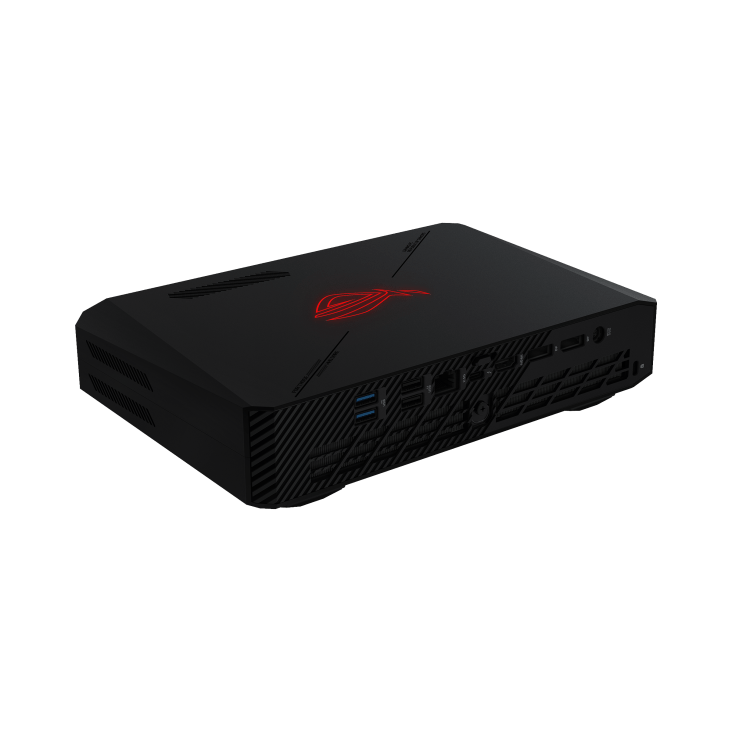

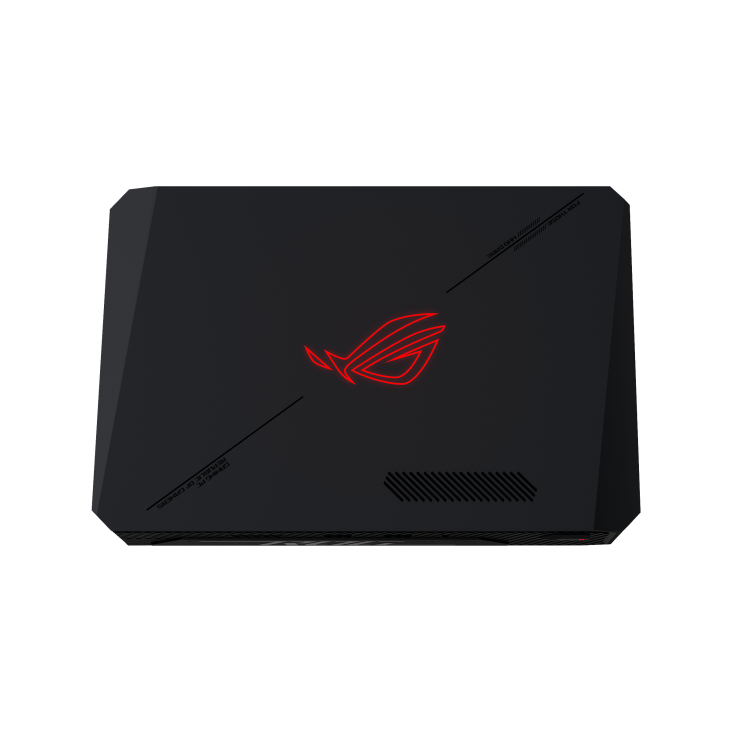

ASUS ROG NUC U7/512GB/16GB/RTX4060/WIN11 NUC14SRKU7AXAR0
PRODUCT DESCRIPTION
ASUS ROG NUC U7 Core Ultra 7 155H / RTX 4060 / 16GB / 512GB SSD / Win 11 (NUC14SRKU7AXAR0) - 3 Years Local Warranty
A 2.5-Litre RTX 4060 Gaming Mini PC Singapore Desks Can Actually Fit
The ASUS ROG NUC U7 NUC14SRKU7AXAR0 pairs an Intel Core Ultra 7 155H processor with an NVIDIA GeForce RTX 4060 Laptop GPU in a 2.5-litre chassis, the entry point into the ROG NUC gaming mini PC range. It is a complete system: 16 GB of DDR5 memory and a 512 GB NVMe SSD are fitted, Windows 11 is pre-installed, and a vertical stand is in the box for either orientation.
NVIDIA GeForce RTX 4060 Laptop GPU — 1080p and Beyond
Graphics come from an NVIDIA GeForce RTX 4060 Laptop GPU with 8 GB of GDDR6 memory, running at 110 W with up to 25 W of NVIDIA Dynamic Boost available. As a laptop-class GPU rather than a discrete desktop card, expect strong 1080p performance with ray tracing and DLSS available, and usable 1440p depending on the title — solid mid-to-high-end gaming in a fraction of the space a desktop tower needs.
Intel Core Ultra 7 155H — 16 Cores, Hybrid Architecture
The Core Ultra 7 155H is a 16-core hybrid processor with 24 MB of cache and a maximum turbo of 4.8 GHz, with an Intel AI Boost NPU integrated alongside the CPU cores. It handles the mixed load a gaming mini PC sees well — background chat, browser tabs and streaming software running alongside the game itself.
16 GB DDR5 SO-DIMM, Room to Grow
Memory ships as 16 GB of DDR5-5600 across two SO-DIMM modules (2 x 8 GB) — conventional removable memory, not soldered, so a future upgrade is a physical module swap. Storage is a 512 GB M.2 NVMe PCIe 4.0 SSD, with the chassis supporting up to three M.2 slots in total for further drives as your game library grows.
Vapor Chamber Cooling, Addressable RGB Panel
ASUS cools the ROG NUC chassis with a vapor chamber and heat pipe thermal design, built to keep the system quiet under a sustained gaming load rather than just a short burst. An addressable backlit ROG panel on the chassis supports Aura Sync RGB lighting and a custom logo design, and the system is Raikiri Pro compatible for wired controller use.
A Genuine Small-Footprint Alternative to a Gaming Tower
At under 2.5 litres, the ROG NUC U7 occupies a fraction of the volume of even a compact ATX gaming tower, while still carrying a discrete NVIDIA GPU with its own dedicated GDDR6 memory rather than relying on shared system RAM the way integrated-graphics mini PCs do. For a Singapore apartment, a shared household desk, or an office that wants a capable gaming or creative rig without committing floor or desk space to a full tower, that combination — real discrete graphics in a genuinely small chassis — is the point of the ROG NUC line.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ROG NUC U7 NUC14SRKU7AXAR0 with a full GST invoice and local Singapore support. ASUS backs this system with a 3-year warranty.
Want more headroom for higher settings and larger game libraries? Our ASUS ROG NUC U9 NUC14SRKU9BYAR0 steps up to a Core Ultra 9 185H processor, an RTX 4070 Laptop GPU, 32 GB DDR5 and a 1 TB SSD in the same chassis. Email sales@sourceit.com.sg and we will help you pick the right build.
ASUS NUC14SRKU7AXAR0 Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ROG NUC U7, Full System |
| SKU | NUC14SRKU7AXAR0 |
| Internal Item Code | 90AS0051-M00020 |
| Range | ASUS ROG NUC, gaming mini PC with discrete GPU |
| Form Factor | 2.5-litre compact desktop, vertical or horizontal orientation |
| Manufacturer Warranty | 3-Year Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra 7 Processor 155H, 1.4 GHz base, up to 4.8 GHz turbo, 24 MB cache |
| Cores | 16 cores, hybrid architecture, cTDP 35–85 W |
| Graphics (Discrete) | NVIDIA GeForce RTX 4060 Laptop GPU, 8 GB GDDR6, 110 W + up to 25 W Dynamic Boost |
| Graphics (Integrated) | Intel Arc integrated GPU (secondary, CPU-side) |
| Neural Processing Unit | Intel AI Boost NPU (integrated) |
Memory & Storage
| Memory Installed | 16 GB DDR5-5600, 2 x 8 GB SO-DIMM |
| Memory Slots / Maximum | 2 x SO-DIMM, up to 32 GB per slot; ASUS validates up to 64 GB total on this platform with thermal limitations at the top end |
| Storage Installed | 512 GB M.2 2280 NVMe PCIe 4.0 SSD |
| Storage Expansion | Up to 3 x M.2 2280 PCIe Gen4 slots total on the platform |
Connectivity & Display
| Wireless LAN | Intel Killer Wi-Fi 6E, Bluetooth 5.3 |
| Wired LAN | 2.5 Gigabit Ethernet (Intel I226-V) |
| Display Outputs | Thunderbolt 4 Type-C (DisplayPort 2.1), HDMI 2.1, 2 x DisplayPort 1.4a |
| USB | USB 3.2 Gen2 Type-A (front and rear), USB 2.0 Type-A (rear), SD card reader (front, UHS-I) |
Physical & Cooling
| Dimensions | 180 x 270 x 50 mm (approx.), under 2.5 litres |
| Weight | 2.6 kg |
| Chassis Material | Aluminium, black with ROG branding |
| Cooling | Vapor chamber and heat pipe thermal design |
| Lighting | Addressable backlit ROG panel, ASUS Aura Sync RGB (12 synchronisation modes for ROG peripherals) |
| Security | Kensington lock slot |
| Operating System | Windows 11, pre-installed |
Connectivity & Setup / Expansion
Cooling and Thermal Design
ASUS cools the ROG NUC chassis with a vapor chamber paired with heat pipes rather than a simpler fan-and-heatsink layout, which is what lets an RTX 4060-class GPU and a 16-core CPU coexist in a 2.5-litre enclosure without excessive noise under sustained load. Both vertical and horizontal orientations are supported, with a vertical stand supplied in the box.
Memory Upgrade Path
Memory is conventional removable DDR5 SO-DIMM across two slots, not soldered. The as-shipped 16 GB (2 x 8 GB) can be swapped for larger modules later; ask SourceIT to quote and fit an upgrade.
Storage Upgrade Path
The platform supports up to three M.2 2280 PCIe Gen4 slots in total, against the single 512 GB drive fitted as standard — genuine room to add drives as a game library or capture footage grows, without replacing the primary drive.
Networking and Ports
Wired networking is 2.5 Gigabit Ethernet, with Intel Killer Wi-Fi 6E and Bluetooth 5.3 for wireless. Display output covers Thunderbolt 4 (DisplayPort 2.1), HDMI 2.1 and two DisplayPort 1.4a outputs — enough for a primary gaming display plus a secondary monitor without needing a dock.
Streaming and Capture Setup
For a streaming or content-creation setup rather than pure gaming, the front-panel SD card reader and the pair of front USB 3.2 ports keep a capture card, microphone interface or camera within easy reach rather than routed round the back — a small but genuinely useful detail on a chassis this compact, where cable management around a rear panel can get cramped quickly.
Package Contents & Ordering Information
In the Box
ASUS ROG NUC U7 system, external DC power adapter and cord, vertical stand, screw pack, user manual and warranty card. Keyboard, mouse and monitor are not included and are ordered separately.
ASUS ROG NUC Range — Ordering Information
SourceIT carries the following ASUS ROG NUC gaming mini PC configurations. These are referenced here by SKU for comparison only — email sales@sourceit.com.sg quoting the SKU to check stock and lead time.
| NUC14SRKU9BYAR0 | Core Ultra 9 185H, RTX 4070 Laptop GPU, 32GB DDR5, 1TB SSD |
| NUC14SRKU7AXAR0 (this listing) | Core Ultra 7 155H, RTX 4060 Laptop GPU, 16GB DDR5, 512GB SSD |
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model on the ROG site. The links below are the current ASUS pages for this model.
| ROG product page | ROG NUC — Overview |
| ROG specifications page | ROG NUC — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting NUC14SRKU7AXAR0 and we will send you the current files directly.
Frequently Asked Questions — ASUS ROG NUC U7 NUC14SRKU7AXAR0
Is the RTX 4060 in this the same as a desktop RTX 4060?
No — it is the RTX 4060 Laptop GPU, an 8 GB GDDR6 mobile-class part running at 110 W plus up to 25 W of Dynamic Boost. It performs closer to a gaming laptop than a full desktop RTX 4060 card, which is the trade-off for fitting real ray-tracing performance into a 2.5-litre chassis.
Is this a complete system or a barebone unit?
Complete system. It ships with the Core Ultra 7 155H processor, RTX 4060 Laptop GPU, 16 GB DDR5 memory and a 512 GB NVMe SSD already fitted, with Windows 11 pre-installed.
Can I add more memory or storage later?
Yes to both. Memory uses conventional removable DDR5 SO-DIMM, not soldered, so a larger kit can be fitted later. Storage has room for up to three M.2 2280 PCIe Gen4 drives in total against the one fitted as standard. Ask SourceIT to quote and fit either upgrade.
How loud is it under gaming load?
ASUS's stated design goal for the vapor chamber and heat pipe cooling system is to run quiet under sustained gaming load; we do not have an independently verified dBA figure to quote, so treat this as a design intention rather than a measured spec — ask us if a specific noise figure matters for your environment.

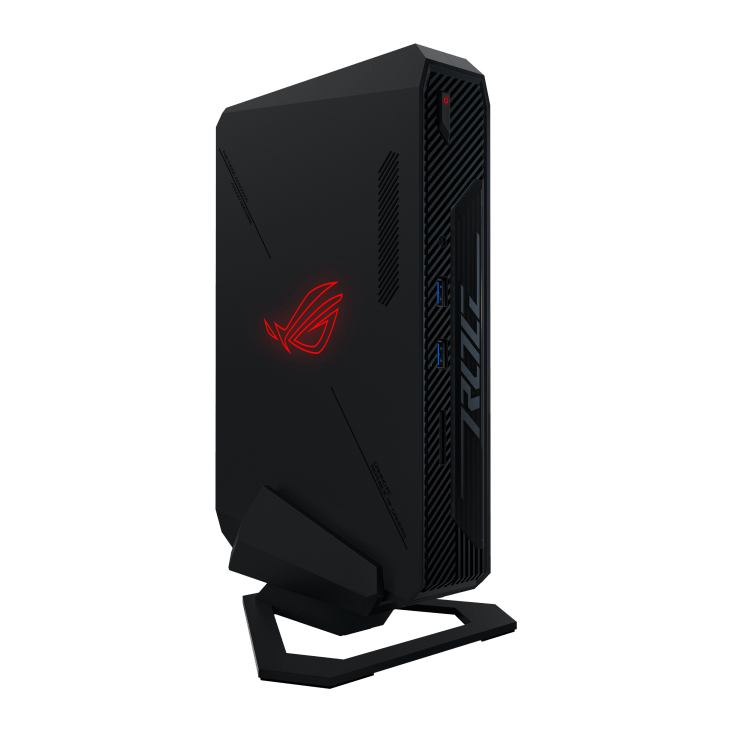

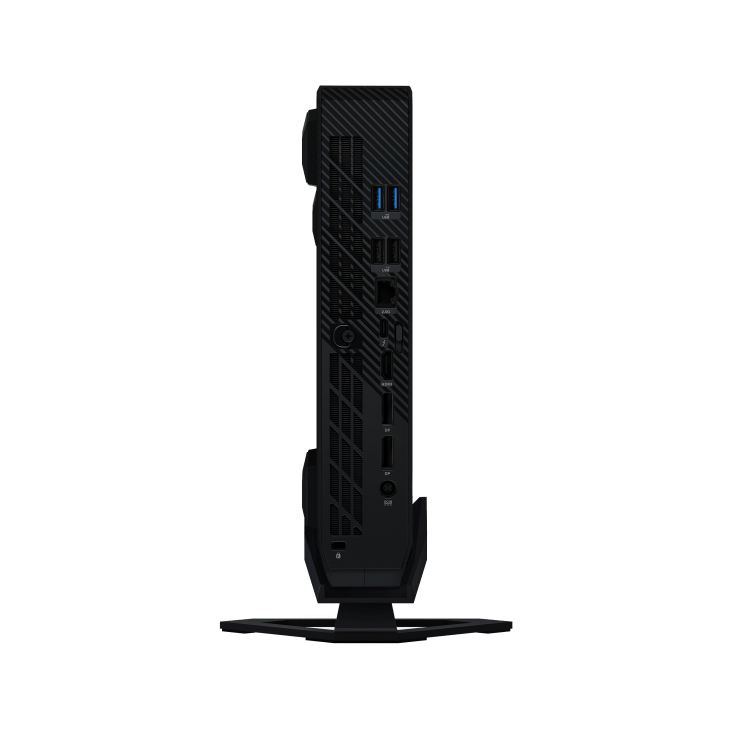

Can I orient it vertically?
Yes, and a vertical stand is included in the box. Both vertical and horizontal placement are supported.
How does this compare with the ROG NUC U9 configuration?
The U9 (NUC14SRKU9BYAR0) steps up to a Core Ultra 9 185H processor and an RTX 4070 Laptop GPU, with 32 GB DDR5 and a 1 TB SSD, in the same chassis. Choose this U7 configuration if 1080p-class gaming and everyday use are the priority and the higher price of the U9 is not justified.
Does it support RGB lighting customisation?
Yes. The addressable backlit ROG panel supports ASUS Aura Sync with multiple synchronisation modes for ROG peripherals, and the panel supports a custom logo design.
What networking does it have?
2.5 Gigabit wired Ethernet plus Intel Killer Wi-Fi 6E and Bluetooth 5.3 for wireless.
Is this really discrete graphics, or is it using shared system memory like an integrated GPU?
Genuine discrete graphics. The RTX 4060 Laptop GPU carries its own dedicated 8 GB of GDDR6 memory, separate from the system's 16 GB of DDR5 — it does not borrow from system RAM the way an integrated GPU does, which is the main reason gaming performance here is meaningfully ahead of an integrated-graphics mini PC of similar physical size.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ROG NUC U7 NUC14SRKU7AXAR0 sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this system with a 3-year warranty.
