ASUS ROG NUC 16 Phantom Blade Zero Edition Intel U9-290HX/ RTX5080/ DDR5 32GB/ 2TB SSD/ Win 11 Home
PRODUCT DESCRIPTION
ASUS ROG NUC 16 x Phantom Blade Zero Edition Intel Core Ultra 9 Processor 290HX Plus / RTX 5080 / 32GB DDR5-6400 / 2TB / Windows 11 Home (RNUC16JNK9X28AA3) - 3 Years Onsite Local Warranty
The ROG NUC 16, Dressed for Phantom Blade Zero
The ASUS ROG NUC 16 x Phantom Blade Zero edition RNUC16JNK9X28AA3 is a collaboration model between ROG and the action game Phantom Blade Zero. It takes the RTX 5080 configuration of the ROG NUC 16 gaming mini PC - Intel Core Ultra 9 Processor 290HX Plus, NVIDIA GeForce RTX 5080 Laptop GPU with 16 GB GDDR7 and 32 GB of DDR5-6400 - and pairs it with a 2 TB SSD and an edition-specific exterior.
Edition Design
ASUS describes the edition as an Obsidian Black body with crimson accents. Blade motifs are engraved along the frame, and the design adds a red-to-dark gradient plate, a faint reflection of the game's protagonist across the surface and crimson red-thread details. A semi-transparent front panel reveals a shadowy outline of the character "Soul". The wider ROG x Phantom Blade Zero collection also includes a monitor, keyboard, keycaps, mouse and headset; those are separate products and are not included with this NUC.

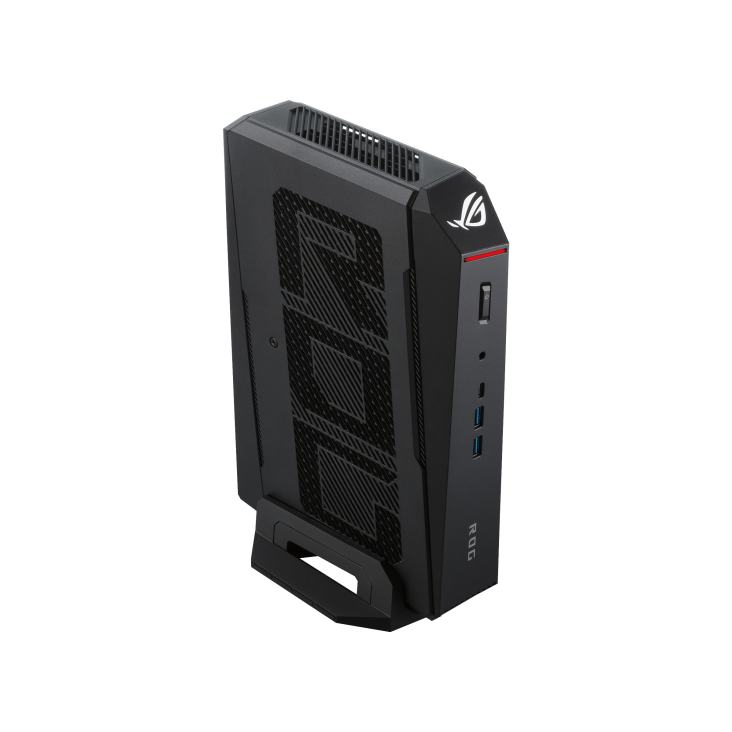

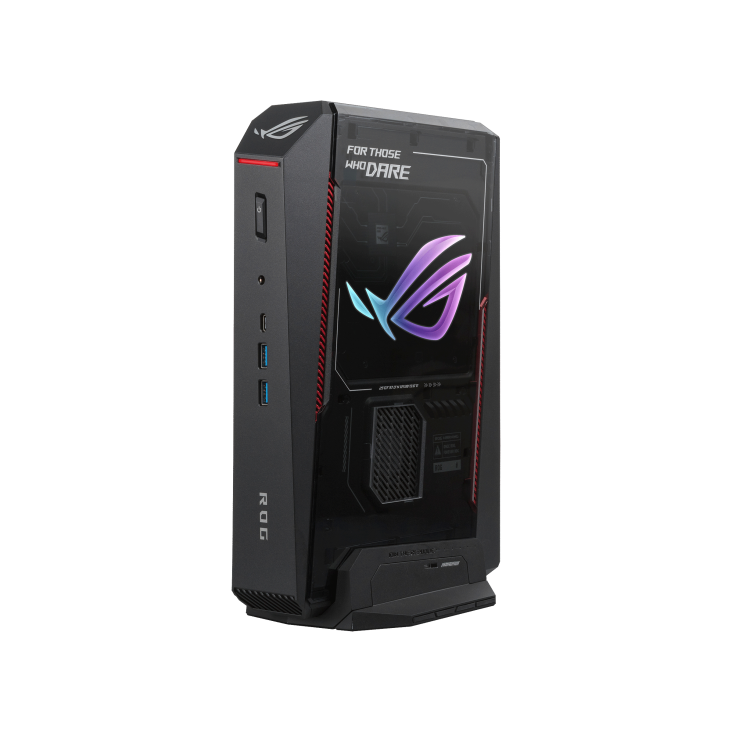

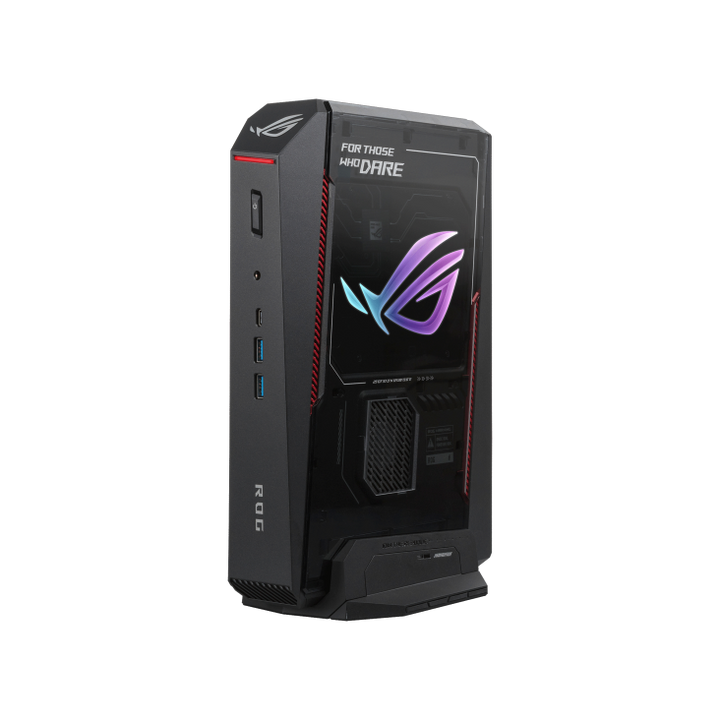

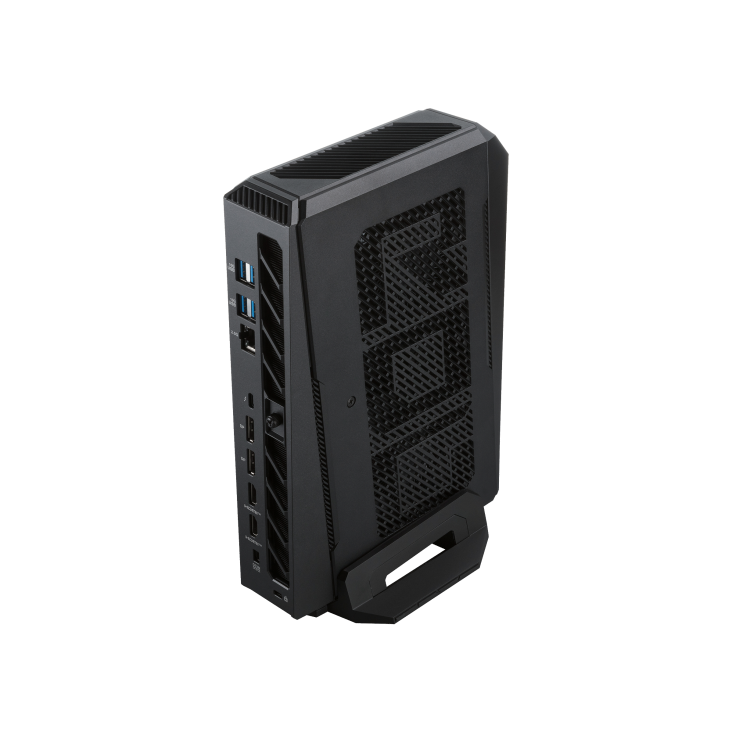

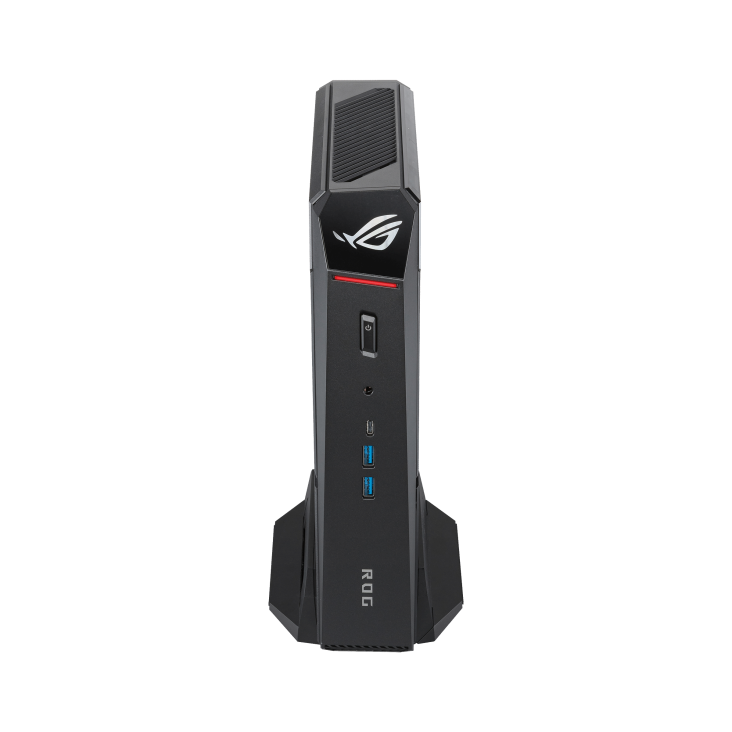

Note on images: ASUS has not published a square product gallery for this edition, so the photos on this listing are official images of the standard ROG NUC 16 chassis, which shares the same shape, stand and port layout. For official images of the edition finish, see the ASUS edition page linked under Datasheet & Downloads.
NVIDIA GeForce RTX 5080 Laptop GPU - 16 GB GDDR7
The RTX 5080 Laptop GPU with 16 GB of GDDR7 is the graphics option ASUS fits to this edition. It supports NVIDIA DLSS in supported games, and the same hardware accelerates local AI inference and creative applications. The 16 GB frame buffer gives room for high-resolution textures and larger AI models.
Intel Core Ultra 9 290HX Plus, 32 GB DDR5-6400 and a 2 TB SSD
The Core Ultra 9 290HX Plus runs at a configurable TDP of 45 W to 160 W in this chassis. It is paired with 32 GB of DDR5-6400 across two 16 GB CSO-DIMM modules and a 2 TB M.2 NVMe PCIe 4.0 SSD - double the storage of the standard RTX 5080 configuration - with Windows 11 Home pre-installed.
Cooling and Placement
ASUS uses a triple-fan design with a unified vapor chamber covering both the CPU and the GPU, which it rates at a 12% increase in CPU thermal capacity over the previous generation, and states noise stays below 38 dBA in demanding games. The removable stand lets the system stand upright or lie flat, and a built-in G-sensor detects the orientation so the cooling adjusts to suit. A rear thumbscrew gives tool-less access for memory and SSD upgrades.
Up to Five 4K Displays

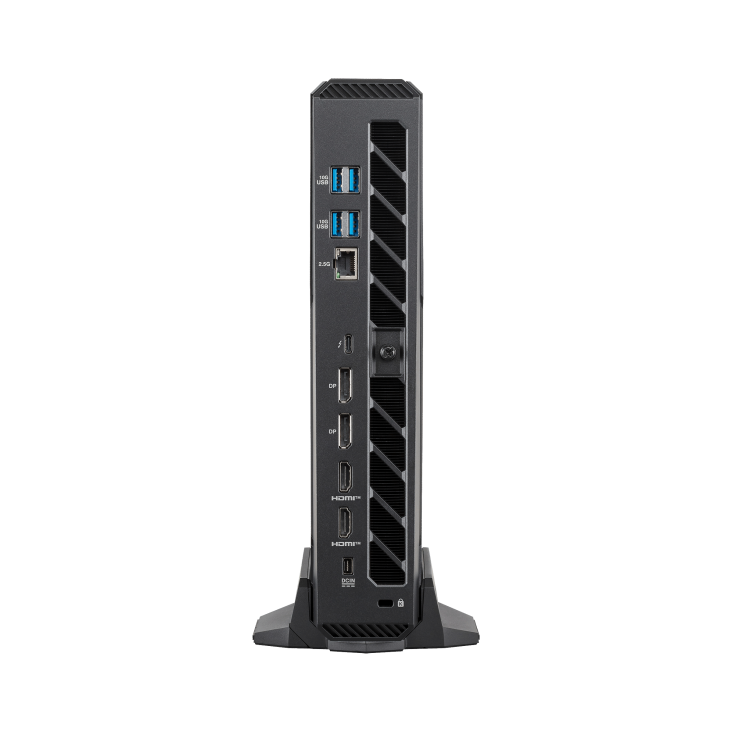

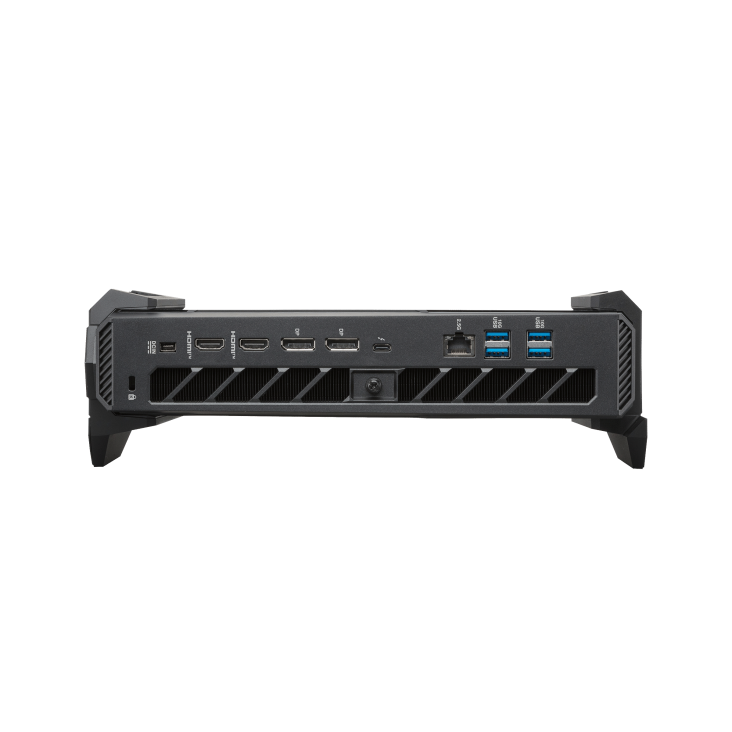

Rear outputs comprise two HDMI 2.1 FRL ports, two DisplayPort 2.1 ports and a Thunderbolt 4 Type-C port with DisplayPort 2.1, which ASUS rates for up to five 4K displays on the ROG NUC 16. Six USB 3.2 Gen 2 Type-A ports, a USB 3.2 Gen 2 Type-C port, Intel Killer Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet cover everything else.
Supplied Locally, with GST Invoice and Singapore Onsite Warranty
SourceIT supplies the ASUS ROG NUC 16 x Phantom Blade Zero RNUC16JNK9X28AA3 with a full GST invoice and local Singapore support. This system carries a 3-year onsite warranty, so a qualifying hardware fault is attended to at your premises.
Prefer the standard finish? The RNUC16JNK9X289A3 has the same processor, graphics and memory with a 1 TB SSD in Obsidian Black, and a Moonlight White version is also available. Email sales@sourceit.com.sg and we will help you choose.
ASUS RNUC16JNK9X28AA3 Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ROG NUC 16 x Phantom Blade Zero Edition, Full System |
| SKU | RNUC16JNK9X28AA3 |
| ASUS Part Number | 90AS00S4-M004W0 |
| UPC | 199291736719 |
| Range | ASUS ROG NUC 16 gaming mini PC (NUC16JNK platform), Phantom Blade Zero edition |
| Chipset | Intel HM870 |
| Chassis Colour | Black with crimson edition accents and ROG logo |
| Manufacturer Warranty | 3-Year Onsite Warranty |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra 9 Processor 290HX Plus (cTDP 45–160 W) |
| Discrete Graphics | NVIDIA GeForce RTX 5080 Laptop GPU, 16 GB GDDR7 |
| Integrated Graphics | Intel Graphics |
Memory & Storage
| Memory Installed | 32 GB DDR5-6400 CSO-DIMM (2 x 16 GB, dual channel) |
| Memory Slots | 2 x DDR5 SO-DIMM / CSO-DIMM; ASUS lists a maximum of 64 GB as DDR5-5600 SO-DIMM x2 or DDR5-6400 CSO-DIMM x2 |
| Storage Installed | 2 TB M.2 2280 NVMe PCIe 4.0 SSD |
| M.2 Slots | 2 x M.2 2280 NVMe: 1 x PCIe Gen4 x4 and 1 x PCIe Gen5 x4, each supporting 1 TB–2 TB SSDs |
| Access | Tool-less upgrade of memory and SSD via rear thumbscrew |
Connectivity & Display

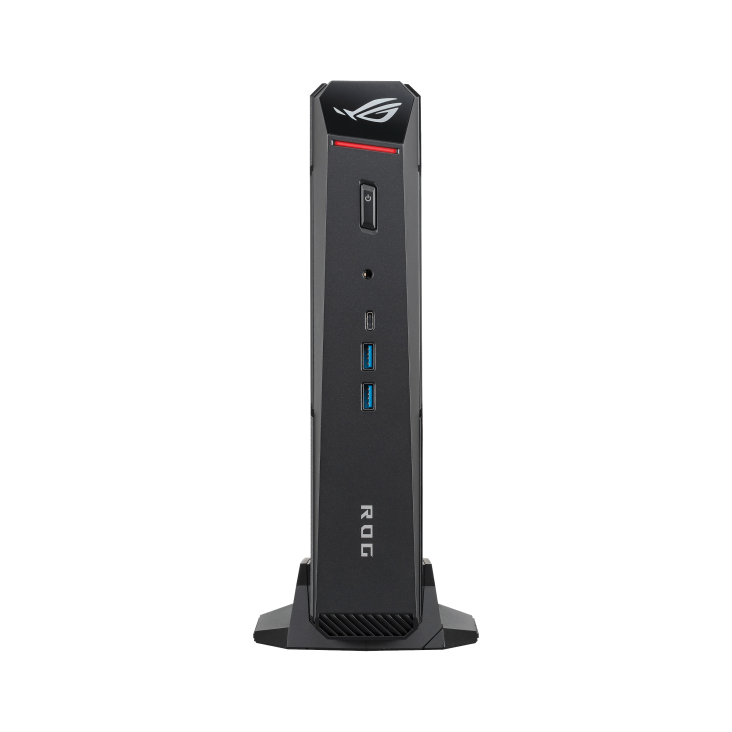

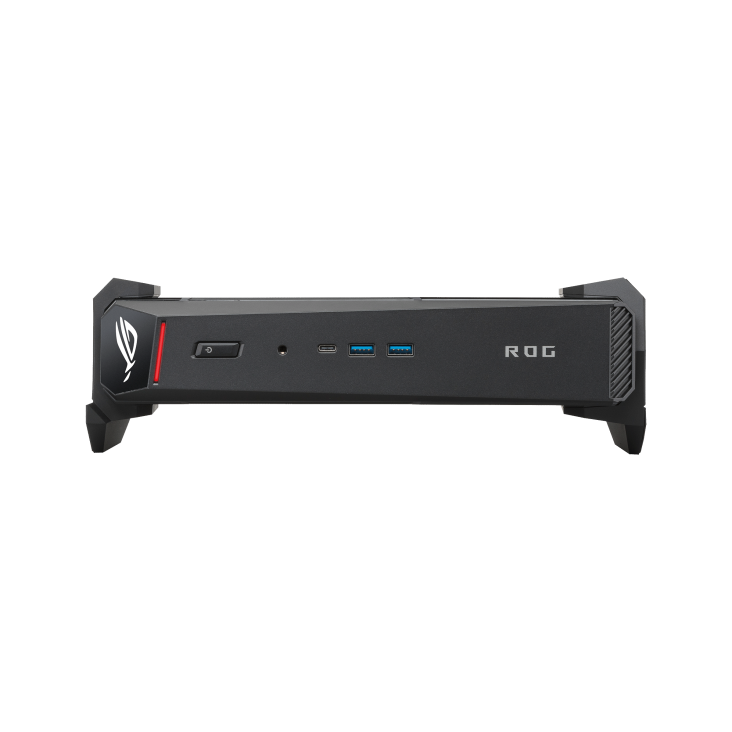

| Front I/O | 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5 mm combo audio jack |
| Rear I/O | 1 x Thunderbolt 4 Type-C with DisplayPort 2.1, 4 x USB 3.2 Gen 2 Type-A, 2 x HDMI 2.1 FRL, 2 x DisplayPort 2.1, 1 x RJ45 LAN, 1 x DC input (ASUS rectangle jack), 1 x Kensington lock |
| Display Support | Up to five 4K displays (ASUS, ROG NUC 16) |
| Wireless | Intel Killer Wi-Fi 7 BE1750x, Bluetooth 5.4 |
| Wired LAN | Realtek RTL8125D, 2.5 Gigabit Ethernet |
| Audio | Realtek ALC3342-CG |
Physical & Security
| Edition Design | Engraved blade motifs, red-to-dark gradient plate, crimson red-thread details, semi-transparent front panel showing the outline of "Soul" |
| Cooling | Triple-fan design with unified vapor chamber over CPU and GPU; below 38 dBA in demanding games (ASUS) |
| Orientation | Vertical or horizontal on the removable stand; G-sensor adjusts cooling to orientation |
| Dimensions | 282.5 x 189.5 x 56.5 mm (11.12 x 7.46 x 2.22 in) |
| Weight | 3.2 kg (7.05 lb) |
| Power Adapter | 380 W external adapter (20 VDC, 19 A) |
| Security | Kensington lock slot |
| Operating System | Windows 11 Home, pre-installed |
Connectivity & Setup / Expansion
Setting Up
Connect a monitor to any of the HDMI 2.1, DisplayPort 2.1 or Thunderbolt 4 outputs, plug in a keyboard and mouse, and connect the 380 W external adapter to the rear DC input. Windows 11 Home is pre-installed, so the system is ready for first sign-in. Armoury Crate handles hardware monitoring, cooling profiles and driver updates, and the NVIDIA App keeps graphics drivers current.
Vertical or Horizontal Placement

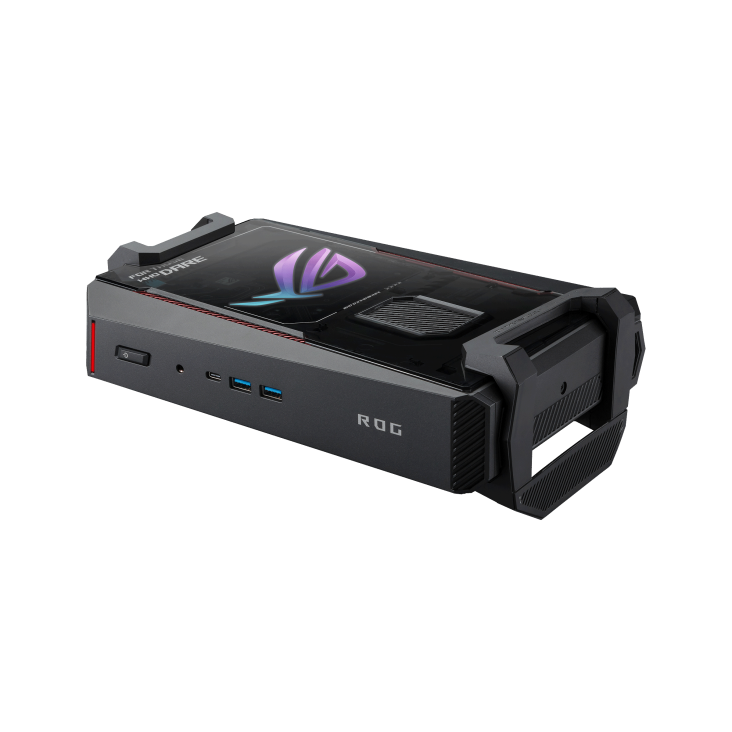

The removable stand supports upright placement beside a display or flat placement under a monitor. The G-sensor detects which way the system is sitting and adjusts the cooling accordingly, so either orientation is supported.
Memory and Storage Upgrades
Memory and the SSD are reached without tools through the rear thumbscrew. Both memory slots are populated with 2 x 16 GB DDR5-6400 CSO-DIMM as shipped; ASUS lists a maximum of 64 GB, so moving to 64 GB means replacing both modules. The board has two M.2 2280 NVMe slots - one PCIe Gen4 x4 and one PCIe Gen5 x4 - each supporting 1 TB to 2 TB drives; the 2 TB SSD occupies one, leaving the other free.
Networking
Wired networking is 2.5 Gigabit Ethernet on a Realtek RTL8125D controller. Wireless is Intel Killer Wi-Fi 7 BE1750x, plus Bluetooth 5.4 for controllers, headsets and peripherals.
Package Contents & Ordering Information
In the Box
ASUS ROG NUC 16 x Phantom Blade Zero system with removable stand, AC adapter and power cord, safety information, regulatory insert and warranty card. Keyboard, mouse, monitor and the other ROG x Phantom Blade Zero collection items are not included and are ordered separately.
ASUS ROG NUC 16 Range — Ordering Information
SourceIT carries the following ASUS ROG NUC 16 configurations. They are referenced here by SKU for comparison — email sales@sourceit.com.sg quoting the SKU to check stock and lead time.
| RNUC16JNK7X569A3 / 90AS00S1-M003B0 | Core Ultra 7 270HX Plus, RTX 5060 Laptop GPU 8GB GDDR7, 16GB DDR5-5600 (2 x 8GB), 1TB PCIe 4.0 SSD, Obsidian Black, 280W adapter |
| RNUC16JNK9X389A3 / 90AS00S1-M00340 | Core Ultra 9 290HX Plus, RTX 5070 Ti Laptop GPU 12GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Obsidian Black, 380W adapter |
| RNUC16JNK9X389A3 - White / 90AS00S2-M00350 | Core Ultra 9 290HX Plus, RTX 5070 Ti Laptop GPU 12GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Moonlight White, 380W adapter |
| RNUC16JNK9X289A3 / 90AS00S1-M00320 | Core Ultra 9 290HX Plus, RTX 5080 Laptop GPU 16GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Obsidian Black, 380W adapter |
| RNUC16JNK9X289A3 - White / 90AS00S2-M00330 | Core Ultra 9 290HX Plus, RTX 5080 Laptop GPU 16GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Moonlight White, 380W adapter |
| RNUC16JNK9X28AA3 / 90AS00S4-M004W0 (this listing) | Phantom Blade Zero Edition: Core Ultra 9 290HX Plus, RTX 5080 Laptop GPU 16GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 2TB PCIe 4.0 SSD, 380W adapter |
| RNUC16JNK9X8ADA3 / 90AS00S3-M001T0 | ROG NUC 16 Edition 20: Core Ultra 9 290HX Plus, RTX 5090 Laptop GPU 24GB GDDR7, 64GB DDR5-6400 (2 x 32GB), 2TB PCIe 5.0 SSD, 380W adapter |
All configurations share the same chassis footprint, I/O, wireless and cooling layout; they differ in processor, graphics, memory, storage, power adapter and exterior finish.
Datasheet & Downloads
ASUS hosts the official product and specification pages for the ROG NUC 16 x Phantom Blade Zero edition. The links below go directly to them.
| Edition product page | ROG NUC 16 x Phantom Blade Zero — Overview |
| Edition specifications page | ROG NUC 16 x Phantom Blade Zero — Full Specifications |
| ROG x Phantom Blade Zero collection | ROG x Phantom Blade Zero — Collection Page |
| ASUS support | ROG NUC 16 — Drivers, Manuals & Support |
For the user manual, drivers or BIOS updates, use the ASUS support pages above, or email sales@sourceit.com.sg quoting RNUC16JNK9X28AA3 and we will help.
Frequently Asked Questions — ASUS ROG NUC 16 x Phantom Blade Zero RNUC16JNK9X28AA3
How does this differ from the standard ROG NUC 16 RTX 5080 model?
The processor, graphics and memory are the same as the RNUC16JNK9X289A3. This edition has a 2 TB SSD instead of 1 TB, and the Phantom Blade Zero exterior with engraved blade motifs, crimson accents and a semi-transparent front panel.
Is this a complete system?
Yes. It ships with the Intel Core Ultra 9 Processor 290HX Plus, NVIDIA GeForce RTX 5080 Laptop GPU, 32GB DDR5-6400 memory and a 2TB NVMe SSD fitted, with Windows 11 Home pre-installed.
Are the edition keyboard, mouse, headset or monitor included?
No. ASUS lists them as separate items in the ROG x Phantom Blade Zero collection. The box contains the NUC, stand, adapter, power cord and documentation.
Can I upgrade memory and storage later?
Yes, without tools. Memory is fitted as 2 x 16 GB, so a move to the 64 GB maximum means replacing both modules. A second M.2 2280 slot is free for an additional 1 TB–2 TB NVMe SSD.
Can it lie flat as well as stand upright?
Yes. The removable stand supports both vertical and horizontal placement, and the built-in G-sensor adjusts the cooling to the orientation.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ROG NUC 16 x Phantom Blade Zero RNUC16JNK9X28AA3 sold by SourceIT comes with local Singapore support and a GST invoice, and carries a 3-year onsite warranty.
