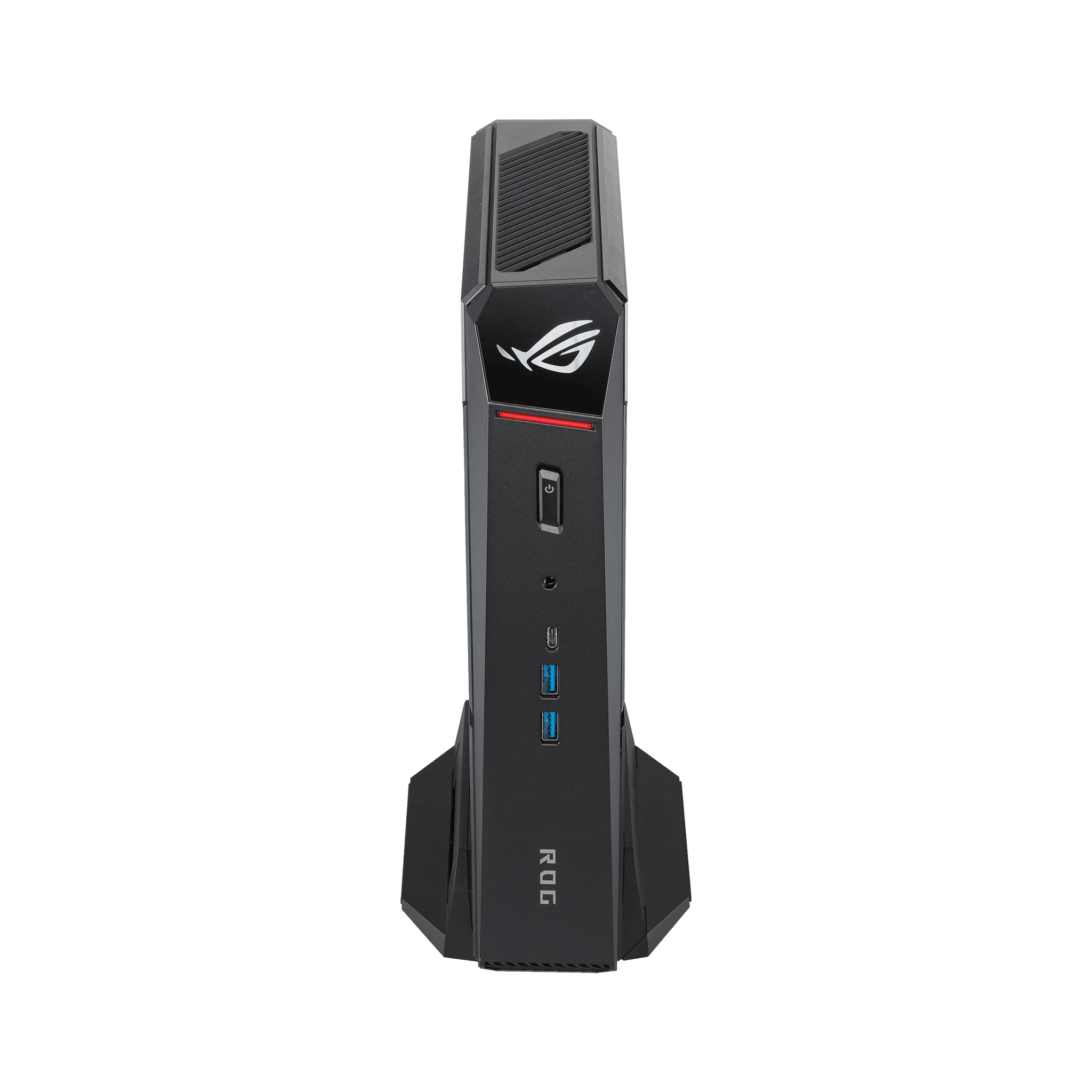

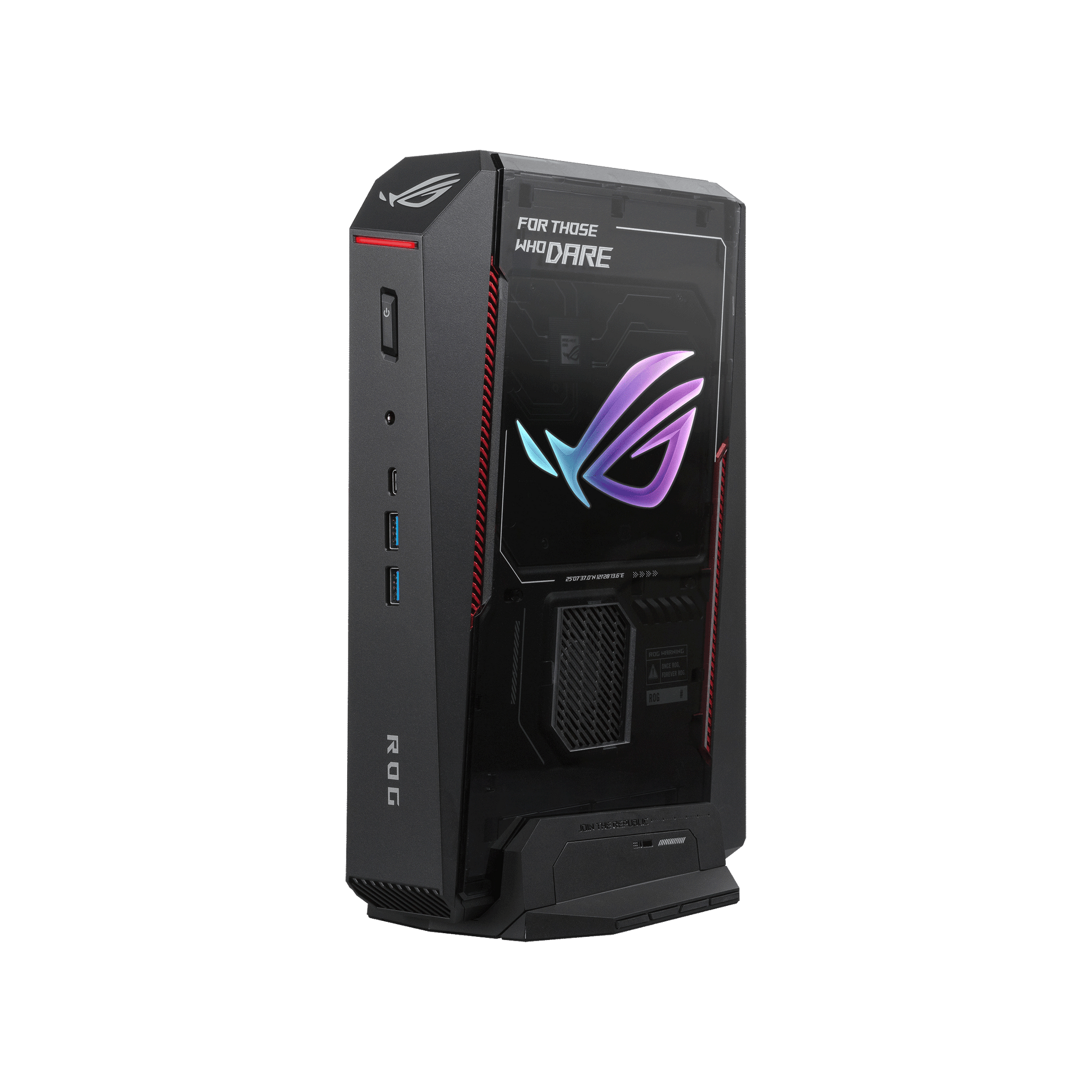

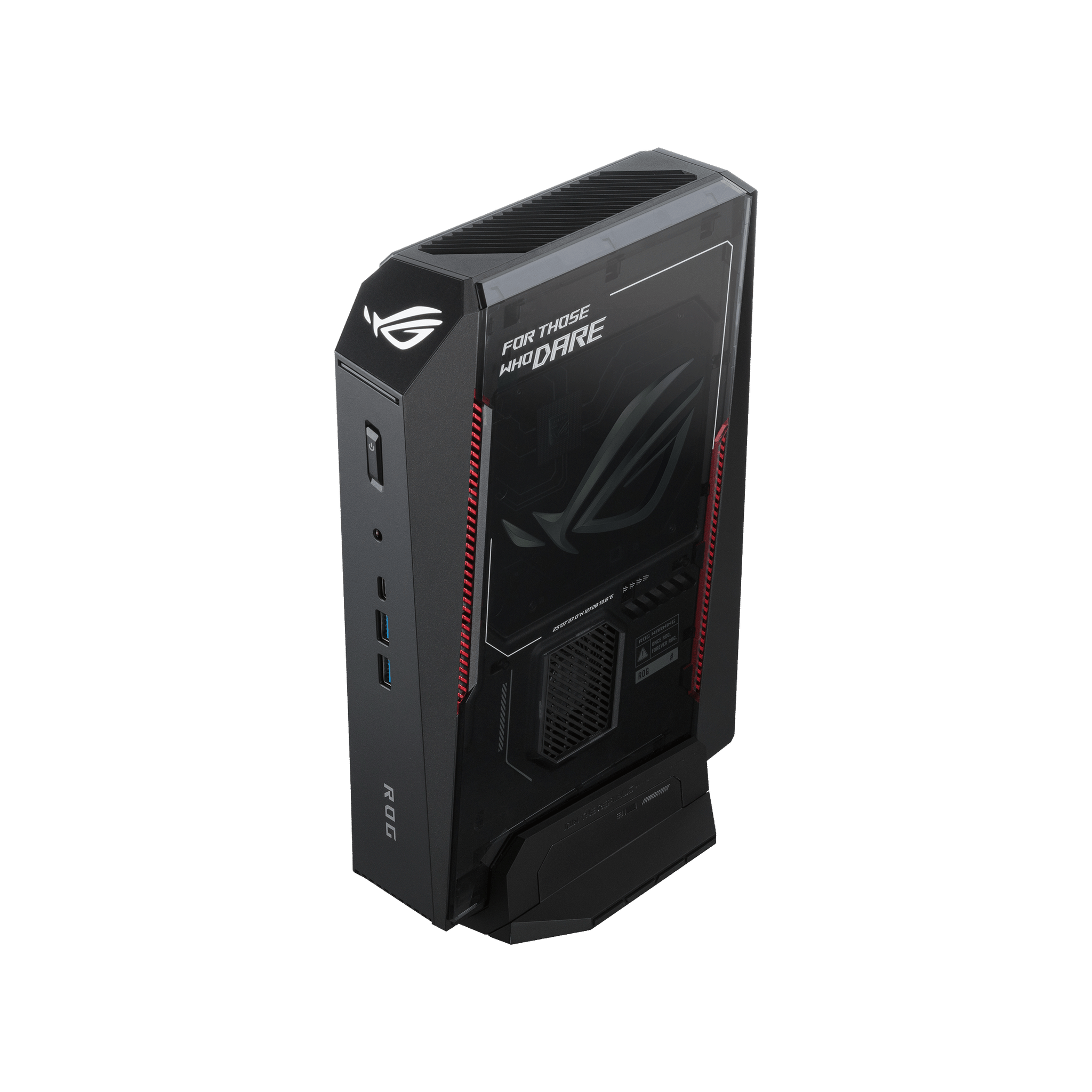

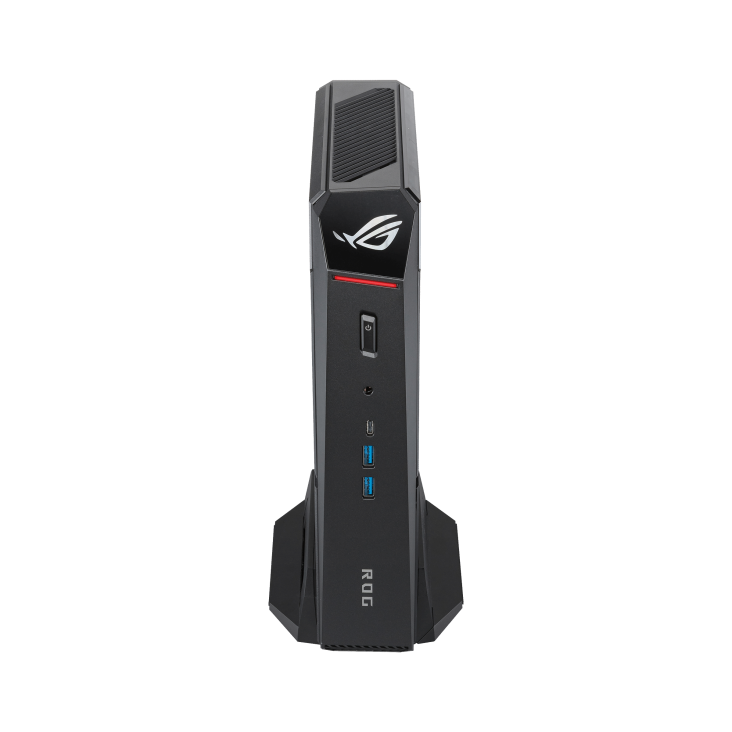

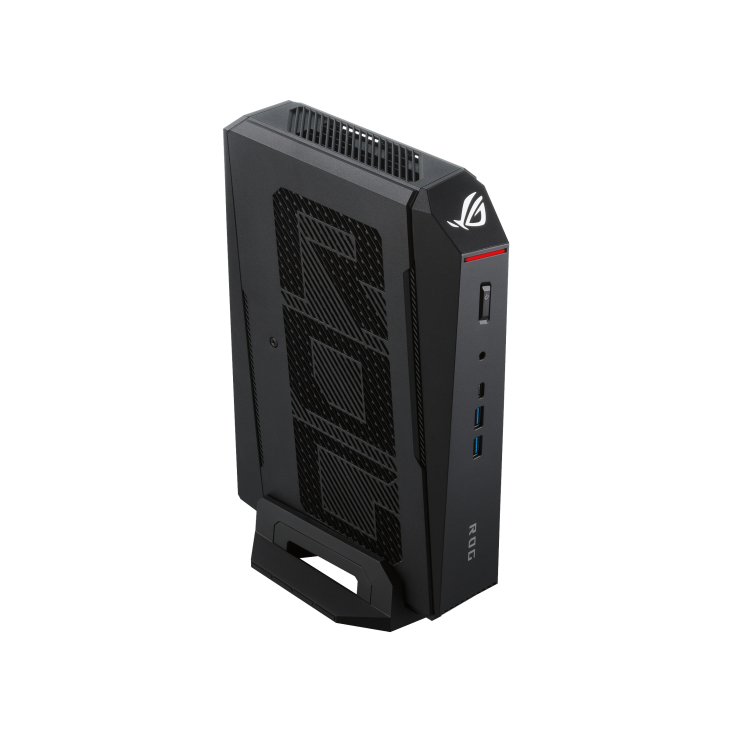

ASUS ROG NUC 16 RNUC16JNK9X389A3 Obsidian Black mini PC with Intel Core Ultra 9 290HX Plus and GeForce RTX 5070 Ti, on its stand with lighting on

ASUS ROG NUC 16 Intel U9-290HX/ RTX5070Ti/ DDR5 32GB/ 1TB SSD/ Win 11 Home

Name: ASUS ROG NUC 16 Intel U9-290HX/ RTX5070Ti/ DDR5 32GB/ 1TB SSD/ Win 11 Home
Brand: Asus
SKU: RNUC16JNK9X389A3 / 90AS00S1-M00340
Price: 4391.3 SGD
Availability: InStock

SKU: RNUC16JNK9X389A3 / 90AS00S1-M00340 Brand: Asus

~~S$4,599.08~~

Prices in SGD, excluding 9% GST.

Why buy from SourceIT

Authorised resellerGenuine stock with full manufacturer warranty.

Local supportSingapore-based warranty and technical assistance.

Procurement readyGeBIZ, Vendors@Gov, SAP Ariba, InvoiceNow and PEPPOL.

Bulk & export ordersVolume pricing and international delivery on request.

PRODUCT DESCRIPTION

ASUS ROG NUC 16 Intel Core Ultra 9 Processor 290HX Plus / RTX 5070 Ti / 32GB DDR5-6400 / 1TB / Windows 11 Home (RNUC16JNK9X389A3) - 3 Years Onsite Local Warranty

Core Ultra 9 and RTX 5070 Ti in a 3-Litre ROG Chassis

The ASUS ROG NUC 16 RNUC16JNK9X389A3 combines the Intel Core Ultra 9 Processor 290HX Plus with an NVIDIA GeForce RTX 5070 Ti Laptop GPU in Obsidian Black. It sits between the RTX 5060 entry build and the RTX 5080 flagship, and for many gamers and creators it is the balanced choice in the range.

NVIDIA GeForce RTX 5070 Ti Laptop GPU — 12 GB GDDR7

The RTX 5070 Ti Laptop GPU brings 12 GB of GDDR7 and NVIDIA's Blackwell architecture, with fifth-generation Tensor Cores driving DLSS 4.5 and Dynamic Multi Frame Generation in supported games. It is a strong match for high-refresh 1440p gaming and capable 4K play, as well as GPU-accelerated video editing, rendering and local AI tools.

Intel Core Ultra 9 290HX Plus with 32 GB DDR5-6400

It shares the Core Ultra 9 290HX Plus with the RTX 5080 configuration — a 24-thread processor with a 55 W base TDP, configurable from 45 W to 160 W — together with 32 GB of DDR5-6400 across two CSO-DIMM modules and a 1 TB M.2 NVMe PCIe 4.0 SSD. Windows 11 Home is pre-installed.

Built Around a 3-Litre Gaming Chassis

Every configuration in the ROG NUC 16 family shares the same compact chassis footprint — 282.5 x 189.5 x 56.5 mm and 3.2 kg — with a patented removable stand so the system can stand upright beside a monitor or lie flat under one. A built-in G-sensor detects the orientation and adjusts the thermal settings to suit. Lighting is controlled through Armoury Crate with Aura Sync, and ASUS states the design has passed MIL-STD-810H testing along with additional bump and drop tests.

Cooling Designed for Desktop-Class Graphics

QuietFlow Cooling uses three 102 x 102 x 17 mm fans and a vapor chamber with 72% thermal coverage, including full contact over the CPU and the laptop GPU. ASUS rates the design at a 12% increase in CPU thermal capacity and below 38 dB(A) under sustained high load. A dedicated SSD heatsink brings SSD operating temperature down to 59°C, an 18.5% reduction in thermal output compared with running without it.

Up to Five 4K Displays

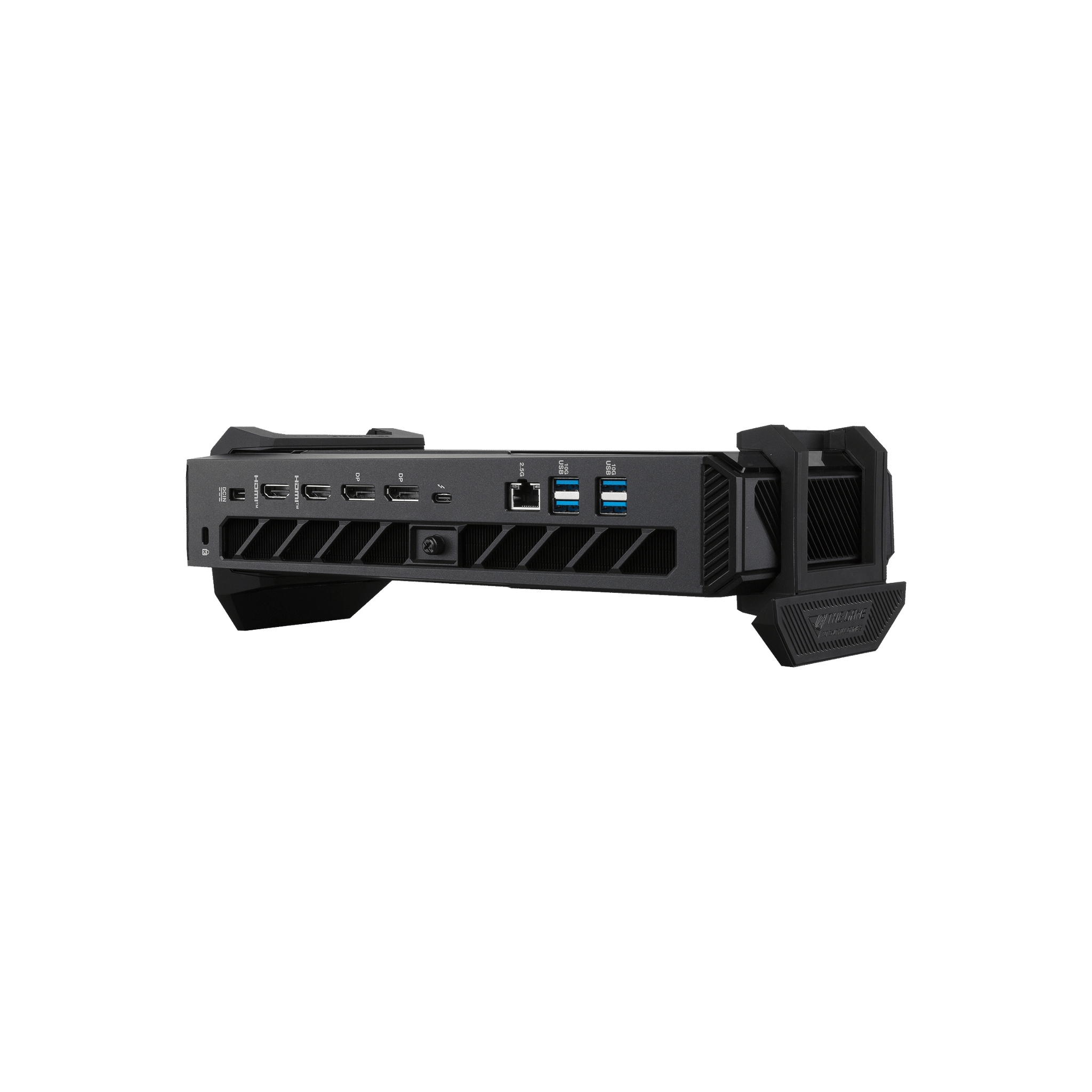

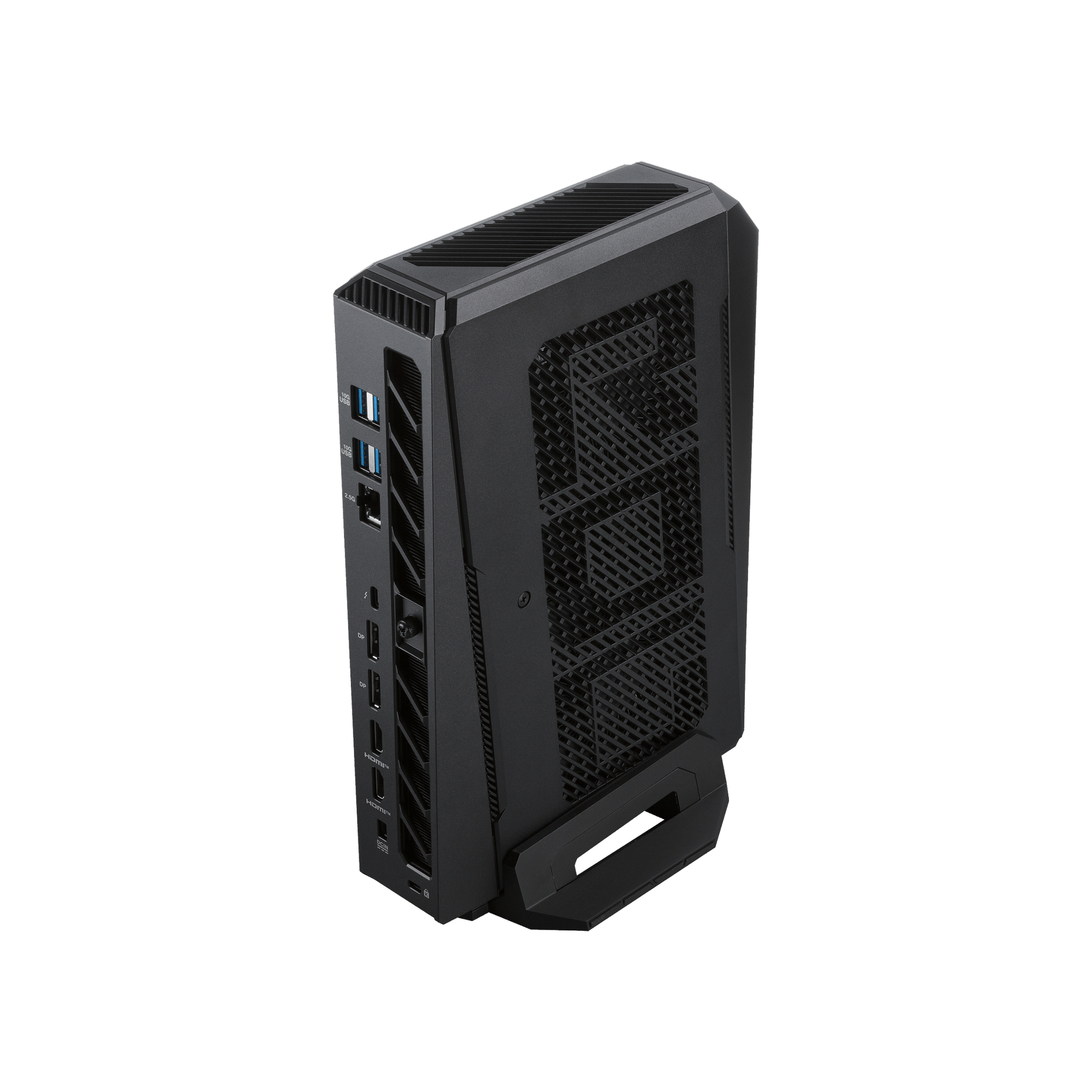

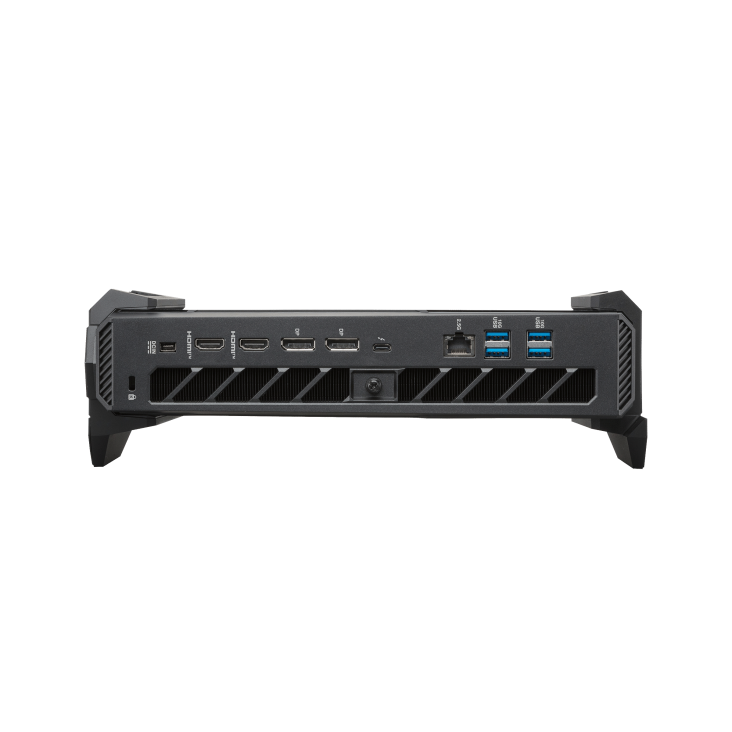

Rear outputs comprise two HDMI 2.1 FRL ports, two DisplayPort 2.1 ports and a Thunderbolt 4 Type-C port with DisplayPort 2.1, so the system can drive up to five 4K displays. HDMI 2.1 supports 4K at 120 Hz or 8K at 60 Hz with HDR10+ and eARC, and ASUS lists 8K at 60 Hz over DisplayPort 2.1 (UHBR20) across two monitors. Six 10 Gbps USB Type-A ports, a 20 Gbps USB Type-C port, Intel Killer Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet cover everything else.

Supplied Locally, with GST Invoice and Singapore Onsite Warranty

SourceIT supplies the ASUS ROG NUC 16 RNUC16JNK9X389A3 with a full GST invoice and local Singapore support. ASUS backs this system with a 3-year onsite warranty, so a qualifying hardware fault is attended to at your premises.

Prefer a white chassis? The RNUC16JNK9X389A3 - White carries the same specification in Moonlight White. Email sales@sourceit.com.sg and we will confirm stock for either colour.

ASUS RNUC16JNK9X389A3 Datasheet — Technical Specifications

General

ASUS Product Name	ASUS ROG NUC 16, Full System
SKU	RNUC16JNK9X389A3
ASUS Part Number	90AS00S1-M00340
Range	ASUS ROG NUC 16 gaming mini PC (NUC16JNK platform)
Chipset	Intel HM870
Chassis Colour	Obsidian Black
Manufacturer Warranty	3-Year Onsite Warranty (ASUS)
Local Warranty (Singapore)	Included with every unit supplied by SourceIT, together with a GST invoice

Processor & Graphics

Processor	Intel Core Ultra 9 Processor 290HX Plus (cTDP 45–160 W)
Discrete Graphics	NVIDIA GeForce RTX 5070 Ti Laptop GPU, 12 GB GDDR7
Integrated Graphics	Intel Graphics

Memory & Storage

Memory Installed	32 GB DDR5-6400 CSO-DIMM (2 x 16 GB, dual channel)
Memory Slots	2 x DDR5 SO-DIMM / CSO-DIMM, dual channel; ASUS lists a maximum of 64 GB as DDR5-5600 SO-DIMM x2 or DDR5-6400 CSO-DIMM x2
Storage Installed	1 TB M.2 2280 NVMe PCIe 4.0 SSD
M.2 Slots	2 x M.2 2280 NVMe: 1 x PCIe Gen4 x4 and 1 x PCIe Gen5 x4, each supporting 1 TB–2 TB SSDs
Access	Tool-less upgrade of memory and SSD

Connectivity & Display

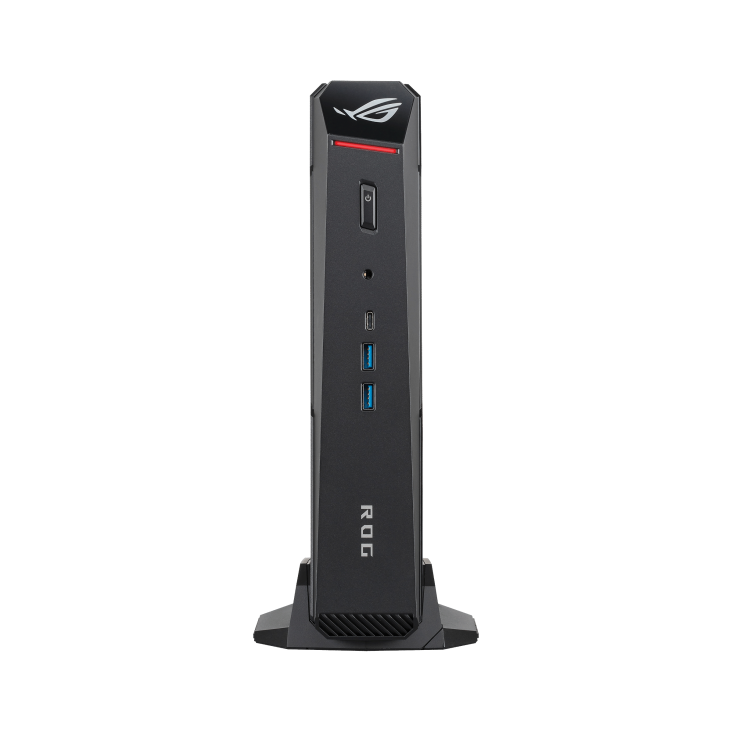

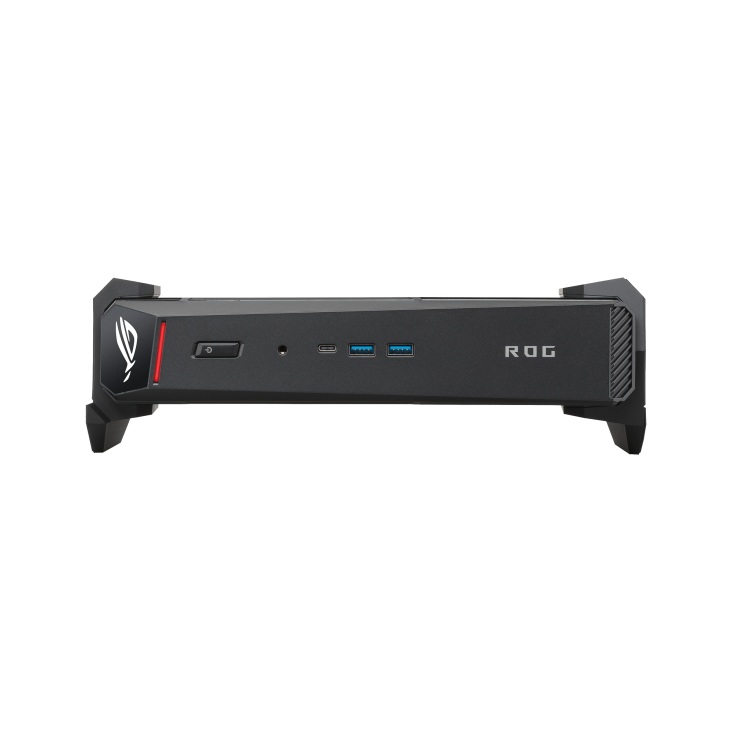

Front I/O	2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5 mm combo audio jack

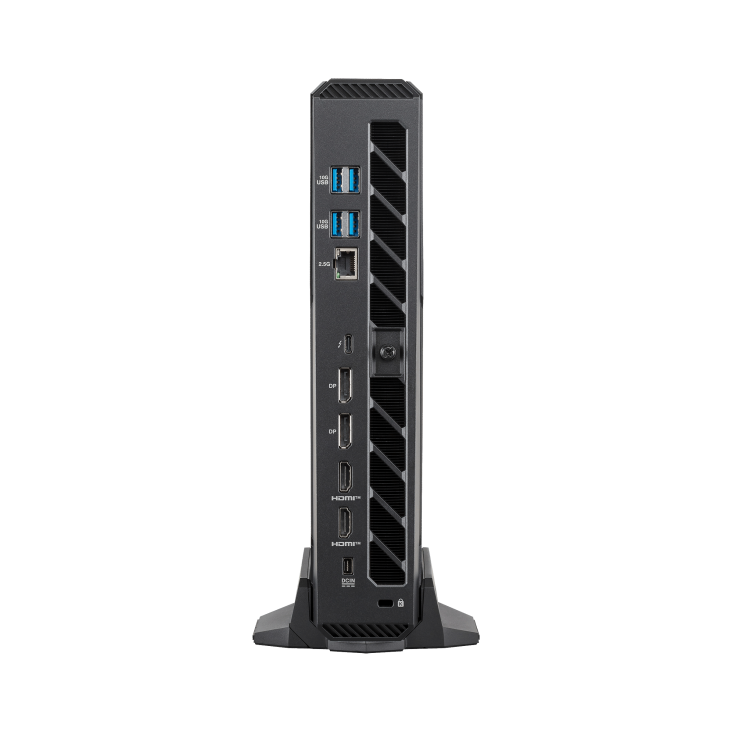

Rear I/O	1 x Thunderbolt 4 Type-C with DisplayPort 2.1, 4 x USB 3.2 Gen 2 Type-A, 2 x HDMI 2.1 FRL, 2 x DisplayPort 2.1, 1 x RJ45 LAN, 1 x DC input (ASUS rectangle jack), 1 x Kensington lock
Display Support	Up to five 4K displays; HDMI 2.1 up to 4K@120Hz or 8K@60Hz; 8K@60Hz via DisplayPort 2.1 UHBR20 on two monitors
Wireless	Intel Killer Wi-Fi 7 BE1750x (Gig+), Bluetooth 5.4
Wired LAN	Realtek RTL8125D, 2.5 Gigabit Ethernet
Audio	Realtek ALC3342-CG

Physical & Security

Cooling	QuietFlow Cooling: 3 x 102 x 102 x 17 mm fans, vapor chamber with 72% thermal coverage over CPU and GPU, dedicated SSD heatsink; below 38 dB(A) under sustained high load (ASUS)
Orientation	Vertical or horizontal on the patented removable stand; G-sensor adjusts thermal settings to orientation
Dimensions	282.5 x 189.5 x 56.5 mm (11.12 x 7.46 x 2.22 in)
Weight	3.2 kg (7.05 lb)
Power Adapter	380 W external adapter (20 VDC, 19 A)
Security	Kensington lock slot
Durability	MIL-STD-810H tested (ASUS)
Operating System	Windows 11 Home, pre-installed

Connectivity & Setup / Expansion

Setting Up

Connect a monitor to any of the HDMI 2.1, DisplayPort 2.1 or Thunderbolt 4 outputs, plug in a keyboard and mouse, and connect the 380 W external adapter to the rear DC input. Windows 11 Home is pre-installed, so the system is ready for first sign-in. Armoury Crate handles hardware monitoring, cooling profiles, lighting and driver updates, and the NVIDIA App keeps Game Ready and Studio drivers current.

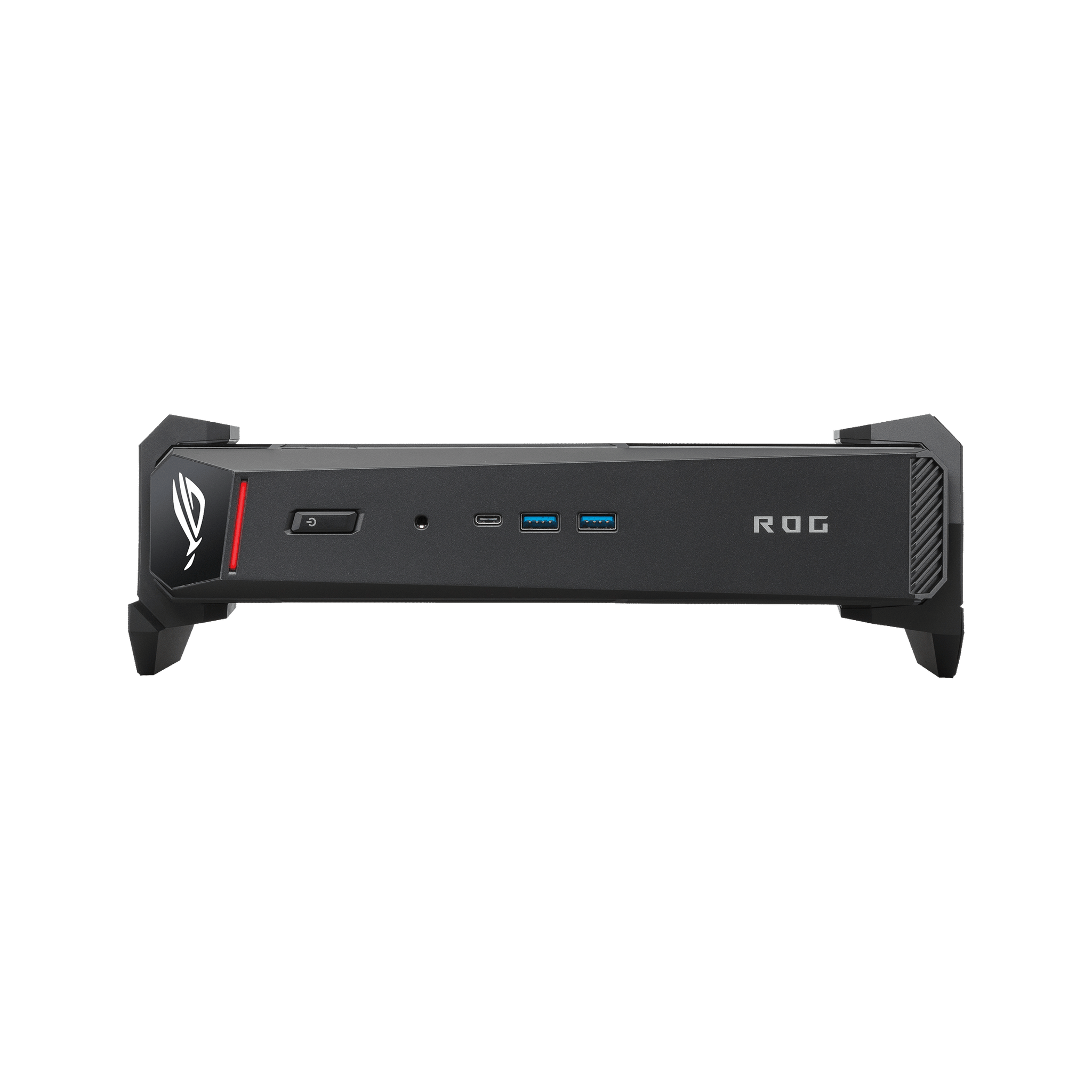

Vertical or Horizontal Placement

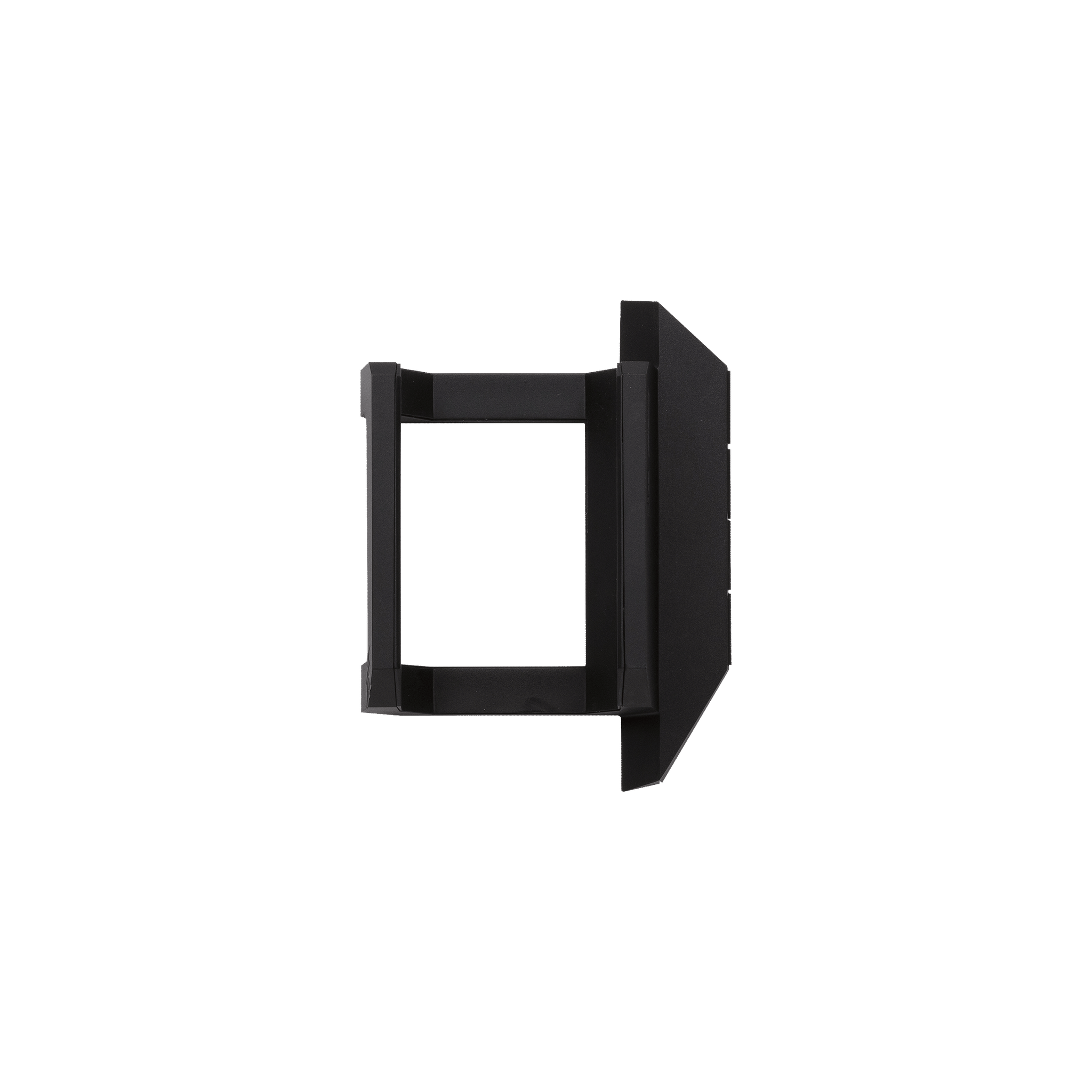

The removable stand supports upright placement beside a display or flat placement under a monitor or in an AV cabinet. The G-sensor detects which way the system is sitting and adjusts thermal behaviour accordingly, so either orientation is a supported configuration.

Memory and Storage Upgrades

Memory and the SSD are reached without tools. Both memory slots are populated with 2 x 16 GB DDR5-6400 CSO-DIMM as shipped; ASUS lists a maximum of 64 GB (DDR5-6400 CSO-DIMM x2 or DDR5-5600 SO-DIMM x2), so moving to 64 GB means replacing both modules. The board has two M.2 2280 NVMe slots — one PCIe Gen4 x4 and one PCIe Gen5 x4 — each supporting 1 TB to 2 TB drives, so there is room to add a second SSD as a game or project library grows.

Networking

Wired networking is 2.5 Gigabit Ethernet on a Realtek RTL8125D controller. Wireless is Intel Killer Wi-Fi 7 BE1750x with support for 320 MHz channels, plus Bluetooth 5.4 for controllers, headsets and peripherals.

ASUS Ecosystem Features

ASUS Power Sync powers the NUC and a compatible monitor on and off together over HDMI CEC, and GlideX lets you share and control screens across devices. Aura Sync links the system lighting with other compatible ASUS and ROG gear.

Package Contents & Ordering Information

In the Box

ASUS ROG NUC 16 system with removable stand, 380 W AC adapter and power cord, safety information, regulatory insert and warranty card. Keyboard, mouse and monitor are not included and are ordered separately.

ASUS ROG NUC 16 Range — Ordering Information

SourceIT carries the following ASUS ROG NUC 16 configurations. They are referenced here by SKU for comparison — email sales@sourceit.com.sg quoting the SKU to check stock and lead time.

RNUC16JNK7X569A3 / 90AS00S1-M003B0	Core Ultra 7 270HX Plus, RTX 5060 Laptop GPU 8GB GDDR7, 16GB DDR5-5600 (2 x 8GB), 1TB PCIe 4.0 SSD, Obsidian Black, 280W adapter
RNUC16JNK9X389A3 / 90AS00S1-M00340 (this listing)	Core Ultra 9 290HX Plus, RTX 5070 Ti Laptop GPU 12GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Obsidian Black, 380W adapter
RNUC16JNK9X389A3 - White / 90AS00S2-M00350	Core Ultra 9 290HX Plus, RTX 5070 Ti Laptop GPU 12GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Moonlight White, 380W adapter
RNUC16JNK9X289A3 / 90AS00S1-M00320	Core Ultra 9 290HX Plus, RTX 5080 Laptop GPU 16GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Obsidian Black, 380W adapter
RNUC16JNK9X289A3 - White / 90AS00S2-M00330	Core Ultra 9 290HX Plus, RTX 5080 Laptop GPU 16GB GDDR7, 32GB DDR5-6400 (2 x 16GB), 1TB PCIe 4.0 SSD, Moonlight White, 380W adapter
RNUC16JNK9X8ADA3 / 90AS00S3-M001T0	ROG NUC 16 Edition 20: Core Ultra 9 290HX Plus, RTX 5090 Laptop GPU 24GB GDDR7, 64GB DDR5-6400 (2 x 32GB), 2TB PCIe 5.0 SSD, 380W adapter

All configurations share the same chassis, I/O, wireless and cooling layout; they differ in processor, graphics, memory, storage, power adapter and chassis colour.

Datasheet & Downloads

ASUS hosts the official product, specification and support pages for the ROG NUC 16. The links below go directly to them.

ROG NUC 16 product page	ROG NUC 16 — Overview
ROG NUC 16 specifications page	ROG NUC 16 — Full Specifications
ROG NUC 16 gallery	ROG NUC 16 — Gallery
ASUS support	ROG NUC 16 — Drivers, Manuals & Support

For the user manual, drivers or BIOS updates, use the ASUS support pages above, or email sales@sourceit.com.sg quoting RNUC16JNK9X389A3 and we will help.

Frequently Asked Questions — ASUS ROG NUC 16 RNUC16JNK9X389A3

Is this a complete system?

Yes. It ships with the Intel Core Ultra 9 Processor 290HX Plus, NVIDIA GeForce RTX 5070 Ti Laptop GPU, 32GB DDR5-6400 memory and a 1TB NVMe SSD fitted, with Windows 11 Home pre-installed.

How does the RTX 5070 Ti compare with the RTX 5080 configuration?

The processor, memory and SSD are the same. The RTX 5080 Laptop GPU adds more graphics performance and 16 GB of GDDR7 against 12 GB here; the RTX 5070 Ti configuration is the better value where 12 GB is enough for your games and applications.

Can I upgrade memory and storage later?

Yes, without tools. Memory is fitted as 2 x 16 GB, so a move to the 64 GB maximum means replacing both modules. A second M.2 2280 slot is available for an additional 1 TB–2 TB NVMe SSD.

Is there a white version?

Yes — the RNUC16JNK9X389A3 - White (90AS00S2-M00350) has the identical specification in Moonlight White.

Can it lie flat as well as stand upright?

Yes. The patented removable stand supports both vertical and horizontal placement, and the built-in G-sensor adjusts thermal settings to the orientation.

How many monitors can it drive?

Up to five 4K displays across the two HDMI 2.1 FRL, two DisplayPort 2.1 and one Thunderbolt 4 (DisplayPort 2.1) outputs. HDMI 2.1 also supports 8K at 60 Hz.

Does it have Wi-Fi 7?

Yes — Intel Killer Wi-Fi 7 BE1750x with Bluetooth 5.4, alongside 2.5 Gigabit Ethernet.

Does it come with a Singapore warranty and a GST invoice?

Yes. Every ASUS ROG NUC 16 RNUC16JNK9X389A3 sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this system with a 3-year onsite warranty.
