ASUS NUC 15 PRO TALL Intel C5-210H/ DDR5 16GB/ 512GB/ Win 11 Pro
PRODUCT DESCRIPTION

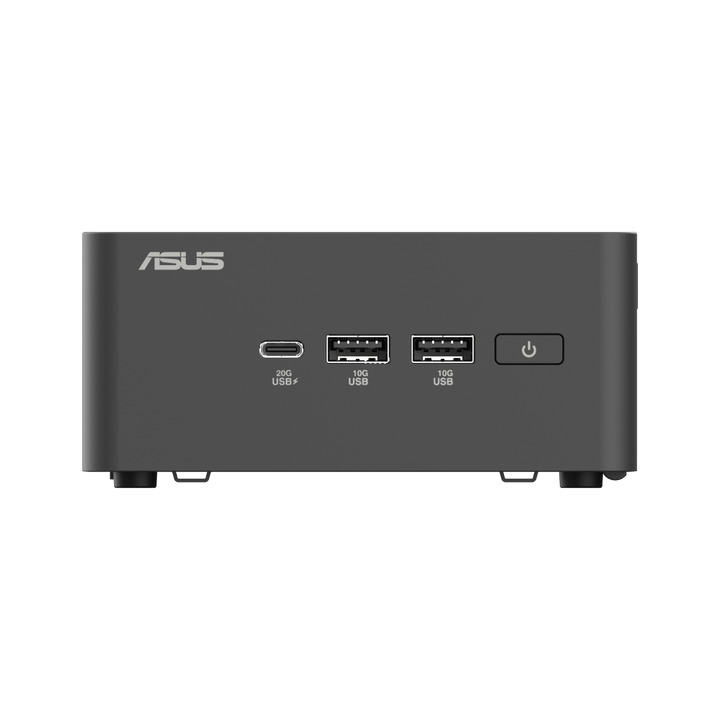

ASUS NUC 15 Pro Tall Intel Core 5 210H / 16GB / 512GB / Windows 11 Pro (RNUC15CRHC5073C3) - 3 Years Onsite Warranty
A Business PC Built Around the Tall Chassis
The ASUS NUC 15 Pro Tall RNUC15CRHC5073C3 is a complete system for a Singapore office desk, reception counter or shared workspace: the Intel Core 5 Processor 210H, 16 GB of DDR5 memory and a 512 GB NVMe SSD are already fitted, with Windows 11 Pro pre-installed and activated. It is a NUC 15 Pro business PC in the "Tall" 54 mm chassis rather than the slimmer 36.8 mm build used elsewhere in the range — the extra height is deliberate, and what it buys you is covered below.
Intel Core 5 Processor 210H — 8 cores (4 Performance + 4 Efficient) / 12 threads
The Intel Core 5 Processor 210H is built on Intel's Raptor Lake generation of the Core (non-Ultra) family, combining 8 cores (4 Performance + 4 Efficient) / 12 threads with a maximum turbo frequency of 4.8 GHz and 12 MB Intel Smart Cache. Base power is 45 W with a maximum turbo power of 115 W. Graphics are handled by the Intel Graphics, 48 execution units, sufficient for office applications, dual and triple monitor desktops and everyday video, though there is no discrete Arc GPU or AI Boost NPU on this tier — No dedicated NPU — Intel Gaussian & Neural Accelerator 3.0 only; not Copilot+ PC eligible. This is the practical trade-off against the Core Ultra configurations elsewhere in our NUC 15 Pro catalogue: less AI acceleration and a lower-tier integrated GPU, in exchange for a lower price point for standard office duty.
16 GB DDR5 and a 512 GB NVMe SSD
Memory ships as 16 GB of DDR5, with a second SO-DIMM slot free for later expansion; ASUS does not publish the exact module count fitted per SKU, so if single- versus dual-channel matters for your workload email us the SKU and we will confirm before you order. That gives comfortable headroom for office multitasking, browser-heavy workloads and several applications open at once. Storage is a 512 GB M.2 NVMe PCIe SSD, fast enough for quick boots and application loads; a second M.2 slot is present on the board for later expansion.
The Tall Chassis: Room to Expand That the Slim Chassis Does Not Have
ASUS builds the NUC 15 Pro in two chassis heights: a 36.8 mm slim build and this 117 x 112 x 54 mm Tall build. The Tall chassis is not simply thicker for its own sake — ASUS reserves a set of separately-purchased expansion accessories for Tall kits only: a second full-size M.2 2280 SSD expansion module, and a second 2.5 Gigabit Ethernet expansion module (available with or without an RS232 serial port). Neither accessory fits inside the slim chassis. If your deployment might later need a second wired network link — a firewall, a gateway box, a kiosk needing a serial-connected peripheral — the Tall chassis is the one that keeps that option open; the slim chassis does not.
Supplied Locally, with GST Invoice and Singapore Onsite Warranty
SourceIT supplies the ASUS NUC 15 Pro Tall RNUC15CRHC5073C3 with a full GST invoice and local Singapore support. ASUS backs this system with a 3-year onsite warranty, so a qualifying hardware fault is resolved at your premises.
This is the 16 GB configuration of this processor tier. If 16 GB is not quite right for your deployment, our sibling SKU RNUC15CRHC5053C3 is the identical Core 5 210H / 512GB build with 8 GB of memory instead — email sales@sourceit.com.sg and we will help you pick the right memory tier.
ASUS RNUC15CRHC5073C3 Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS NUC 15 Pro Tall, Full System |
| SKU | RNUC15CRHC5073C3 |
| Internal Item Code | 90AS00K1-M00300 |
| Range | ASUS NUC 15 Pro Tall, Core 5 210H configuration |
| Form Factor | Ultra-compact desktop mini PC, Tall chassis |
| Manufacturer Warranty | 3-Year Onsite Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Processor & Graphics
| Processor | Intel Core 5 Processor 210H (Raptor Lake, base power 45 W, max turbo power 115 W) |
| Cores / Threads | 8 cores (4 Performance + 4 Efficient) / 12 threads |
| Max Turbo Frequency | 4.8 GHz |
| Cache | 12 MB Intel Smart Cache |
| Graphics | Intel Graphics, 48 execution units |
| AI Acceleration | No dedicated NPU — Intel Gaussian & Neural Accelerator 3.0 only; not Copilot+ PC eligible |
Memory & Storage
| Memory Installed | 16 GB DDR5 SO-DIMM |
| Memory Slots / Maximum | 2 x SO-DIMM, tool-less access, up to 96 GB total per Intel/ASUS |
| Storage Installed | 512 GB M.2 NVMe PCIe SSD |
| Storage Expansion | Second M.2 slot present; tool-less chassis access for upgrade |
Connectivity & Display
| Wireless LAN | Intel Wi-Fi 7, Bluetooth 5.4 |
| Wired LAN | 1 x 2.5 Gigabit Ethernet (RJ45); second 2.5GbE expansion accessory available for this Tall chassis |
| Display Outputs | 2 x Thunderbolt 4 Type-C (DisplayPort 2.1 capable), 2 x HDMI 2.1 |
| Display Support | Up to four simultaneous 4K displays |
| USB | USB 3.2 Gen 2 Type-A and Type-C ports, plus USB 2.0 Type-A |
Physical & Security
| Chassis | Tool-less access to memory and storage; 117 x 112 x 54 mm Tall build |
| Expansion Accessories (Tall Kits Only) | Second M.2 2280 SSD expansion, or second 2.5GbE LAN expansion (with or without RS232), each sold separately |
| Mounting | VESA mount bracket supplied |
| Security | Intel Platform Trust Technology, Kensington lock slot |
| Operating System | Windows 11 Pro, pre-installed |
Connectivity & Setup / Expansion
What the Tall Chassis Adds Over the Slim Build
ASUS reserves two categories of expansion accessory for the Tall chassis that the 36.8 mm slim chassis in the same family cannot fit: a second full-size M.2 2280 SSD expansion module, and a second 2.5 Gigabit Ethernet module (with an RS232 serial port option). Both are sold separately from ASUS and are not bundled with this SKU. If you are choosing between a Tall and a slim configuration purely on the strength of "might I need a second network port or a second full-size SSD later", the Tall chassis is the one that keeps that door open.
Memory and Storage Access
Both DDR5 SO-DIMM slots and the M.2 storage are reached through the same tool-less chassis access, so a memory upgrade or a larger drive does not require a screwdriver. The second M.2 slot on the board is separate from the Tall-only expansion module slot described above; it is present on every NUC 15 Pro chassis, Tall or slim.
Display and Networking Setup
Two Thunderbolt 4 Type-C ports carrying DisplayPort 2.1, plus two HDMI 2.1 outputs, support up to four 4K displays between them. Wired networking is a single 2.5 Gigabit port as standard; if a resilient second wired connection is required immediately rather than added later, ask us about fitting the second-LAN expansion accessory before delivery.
What This Processor Tier Does Not Include
Core 5 210H has no AI Boost NPU and no discrete-class Arc GPU — No dedicated NPU — Intel Gaussian & Neural Accelerator 3.0 only; not Copilot+ PC eligible. Cloud-based Microsoft Copilot works normally over an internet connection regardless of the processor tier; on-device Copilot+ PC features require a NPU rated at 40 TOPS or above, which this configuration does not have.
Package Contents & Ordering Information
In the Box
ASUS NUC 15 Pro Tall system, AC power adapter and power cord, VESA mounting bracket, screw pack, user manual and warranty card. Keyboard, mouse and monitor are not included and are ordered separately.
ASUS NUC 15 Pro Tall Full-System Range — Ordering Information
SourceIT carries the following ASUS NUC 15 Pro Tall full-system configurations, all built on the same Tall chassis and expansion accessories described above. These are referenced here by SKU for comparison only — email sales@sourceit.com.sg quoting the SKU to check stock and lead time.
| RNUC15CRHI3053C3 | Core 3 100U, 8GB DDR5, 512GB SSD |
| RNUC15CRHI3073C3 | Core 3 100U, 16GB DDR5, 512GB SSD |
| RNUC15CRHC5053C3 | Core 5 210H, 8GB DDR5, 512GB SSD |
| RNUC15CRHC5073C3 (this listing) | Core 5 210H, 16GB DDR5, 512GB SSD |
| RNUC15CRHC7053C3 | Core 7 240H, 8GB DDR5, 512GB SSD |
| RNUC15CRHC7073C3 | Core 7 240H, 16GB DDR5, 512GB SSD |
For a higher-performance Core Ultra 7 255H NUC 15 Pro full system, or for a barebone Tall kit with no memory, storage or OS fitted for system integrators fitting their own components, please see the rest of our ASUS NUC 15 Pro catalogue.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model family. The links below are ASUS's current Singapore product and specification pages.
| ASUS Singapore product page | ASUS NUC 15 Pro — Overview |
| ASUS Singapore specifications page | ASUS NUC 15 Pro — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting RNUC15CRHC5073C3 and we will send you the current files directly.
Frequently Asked Questions — ASUS NUC 15 Pro Tall RNUC15CRHC5073C3
Is this a complete system or a barebone unit?
Complete system. It ships with the Intel Core 5 Processor 210H, 16 GB DDR5 memory and a 512 GB NVMe SSD already fitted, with Windows 11 Pro pre-installed and ready for first sign-in.
What does "Tall" actually mean, and does it matter to me?
It refers to the 54 mm chassis height, against a 36.8 mm slim chassis used elsewhere in the NUC 15 Pro range. The practical difference is that ASUS reserves its second-M.2-SSD and second-2.5GbE-LAN expansion accessories for the Tall chassis only — if you might want either later, choose Tall.
Does it have a 2.5-inch SATA drive bay?
No. ASUS does not document a 2.5-inch SATA bay in either the Tall or slim NUC 15 Pro chassis. Storage is two M.2 NVMe slots; the Tall chassis's advantage is the separately-sold M.2 and LAN expansion accessories described above, not a SATA bay.
How does this compare with our 8 GB Core 5 210H listing?
Identical processor, storage and connectivity — the only difference is memory. This SKU ships with 16 GB; sibling SKU RNUC15CRHC5053C3 ships with 8 GB. Choose based on how many applications and browser tabs you expect to run at once.
Is this a Copilot+ PC?
No. Core 5 210H has no NPU rated for Copilot+ PC certification — No dedicated NPU — Intel Gaussian & Neural Accelerator 3.0 only; not Copilot+ PC eligible. Cloud-based Copilot still works normally over the internet.
How many monitors can it drive?
Up to four 4K displays, across two Thunderbolt 4 ports with DisplayPort 2.1 and two HDMI 2.1 outputs.
Can I upgrade the memory and storage myself?
Yes, through tool-less chassis access to both SO-DIMM slots and the primary M.2 slot. A second M.2 slot is present for further storage. Ask SourceIT to supply and fit an upgrade before delivery if you would rather not open the chassis.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS NUC 15 Pro Tall RNUC15CRHC5073C3 sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this system with a 3-year onsite warranty.
