ASUS NUC 14 PRO U7 Barebone RNUC14RVHU700000I
PRODUCT DESCRIPTION
ASUS NUC 14 PRO U7 Barebone RNUC14RVHU700000I (90AR0072-M001L0) - 3 Year Onsite Warranty
High-Performance ASUS NUC 14 Pro U7 for Power Users
The ASUS NUC 14 Pro U7 Barebone (RNUC14RVHU700000I) is a powerhouse compact PC designed for professionals who demand high-speed performance and flexibility. Featuring Intel’s latest Core Ultra 7 processor, this unit delivers next-gen computing in a space-saving chassis ideal for workstations, media hubs, and edge deployments.
Driven by Intel Core Ultra 7
Equipped with the Intel® Core™ Ultra 7 processor, this NUC model ensures smooth multitasking, faster processing, and excellent thermal efficiency. It’s perfect for power users managing demanding applications, rendering workflows, or high-volume multitasking in business or development environments.
Compact Yet Feature-Packed
Don’t let the size fool you—this barebone system supports DDR5 memory, Gen4 NVMe SSDs, and robust I/O connectivity including dual HDMI, USB-C, and Ethernet. It’s built to serve as a reliable, scalable foundation for system integrators, creative professionals, and IT teams needing modular setups.
Custom-Build Ready with Maximum Flexibility
The RNUC14RVHU700000I supports a wide range of operating systems and components, offering complete control over the final build. Whether it’s a high-efficiency desktop, kiosk terminal, or AI-edge system, this barebone kit allows full customization to match your project’s scope and budget.
Technical Specifications
Model: ASUS NUC 14 Pro U7 Barebone
Part Number: 90AR0072-M001L0
SKU: RNUC14RVHU700000I
Processor: Intel® Core™ Ultra 7
Form Factor: Ultra-compact Mini PC (Barebone)
Memory Support: DDR5 SODIMM up to 96GB
Storage Support: M.2 PCIe Gen4 SSD
Ports: HDMI, USB-C, USB 3.2, 2.5GbE LAN, Audio
Wireless: Wi-Fi 6E and Bluetooth (optional based on module)
Operating System: Not pre-installed (OS install ready)
GTIN: 0197105596257
Detailed Specification
NUC 14 Pro Tall (Intel® Core™ Ultra 7) (Barebone) AI-Enabled Mini PC for Commercial Use with Intel® Core™ Ultra Processors
Powered by Intel® Core™ Ultra 7 processors
Intel Arc™ graphics on specified SKUs
Intel® AI Boost on specified SKUs (Intel’s newest NPU purpose-built to handle longer-running AI workloads at low power.)
Dual-channel DDR5-5600MHz SODIMMs, 96GB max
M.2 22x80 key M slot for PCIe x4 Gen 4 NVMe SSD
M.2 22x42 key M slot for PCIe x4 Gen 4
Support for SATA 2.5-inch HDD (Tall kit)
Intel® Wi-Fi 6E AX211, supporting 802.11ax and Bluetooth 5.3 via internal antennas
Intel i226 2.5 Gb Ethernet (i225-LM on vPro models; i226-V on non-vPro models)

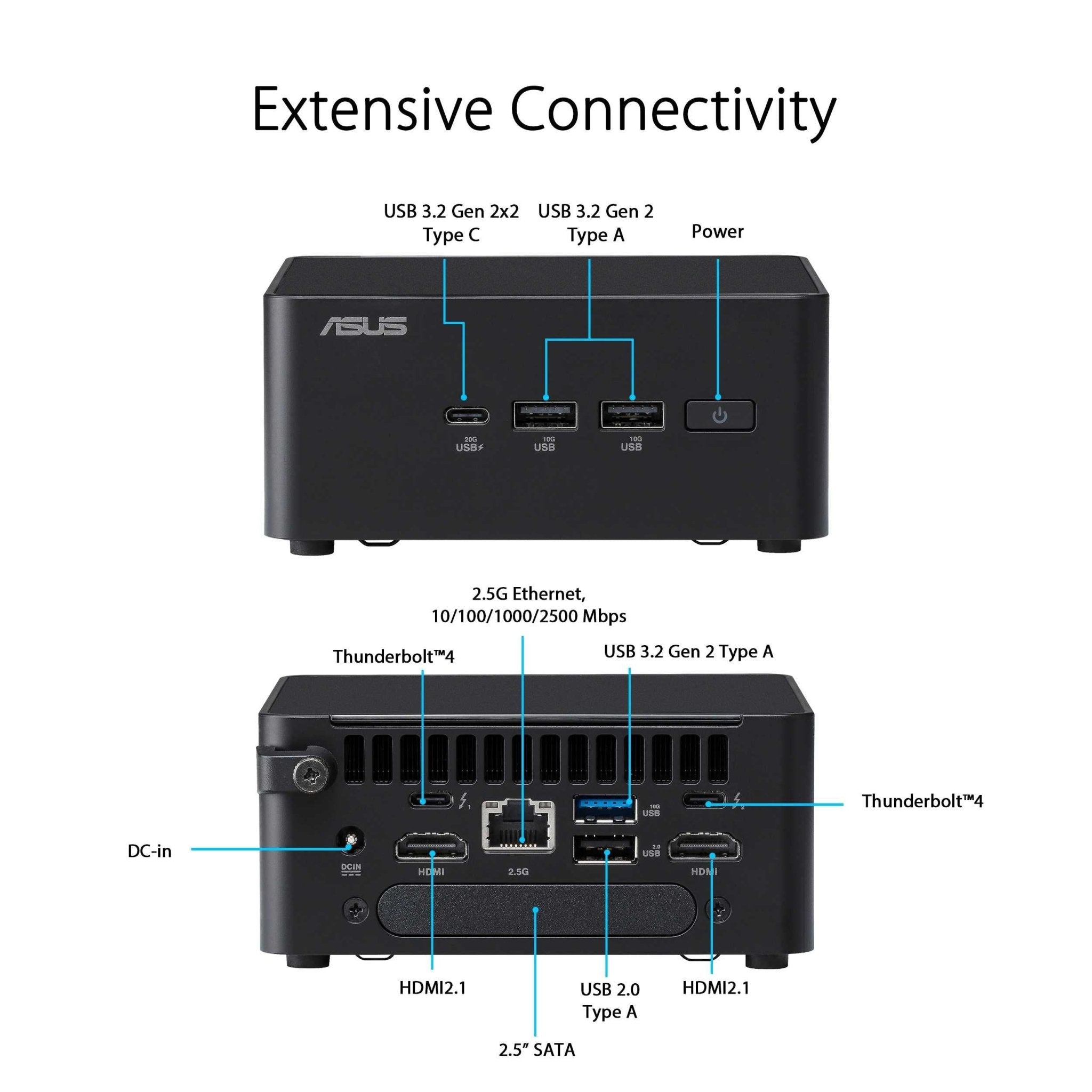

Extensive connectivity includes Thunderbolt™ 4, HDMI® 2.1, USB 3.2 Gen 2, and internal USB 2.0 headers
Intel® Core™ Ultra 7 Processor 155H, cTDP 40W
Intel® Graphics
RAM Not Included' Support: 2 x SO-DIMM Slots, Up to DDR5-5600, 48GB*2
Storage Not Included' Support: 1 x M.2 2280 PCIe Gen4x4, supports 128GB~4TB NVMe SSD 1 x M.2 2242 PCIe Gen4x4, supports 128GB~2TB NVMe SSD 1 x SATA Port for 2.5in SSD/HDD, supports 128GB~4TB SATA drive (Tall SKU only) *Refer to latest QVL list
3 Years Onsite (Barebone)
Part No.: 90AR0072-M001L0
