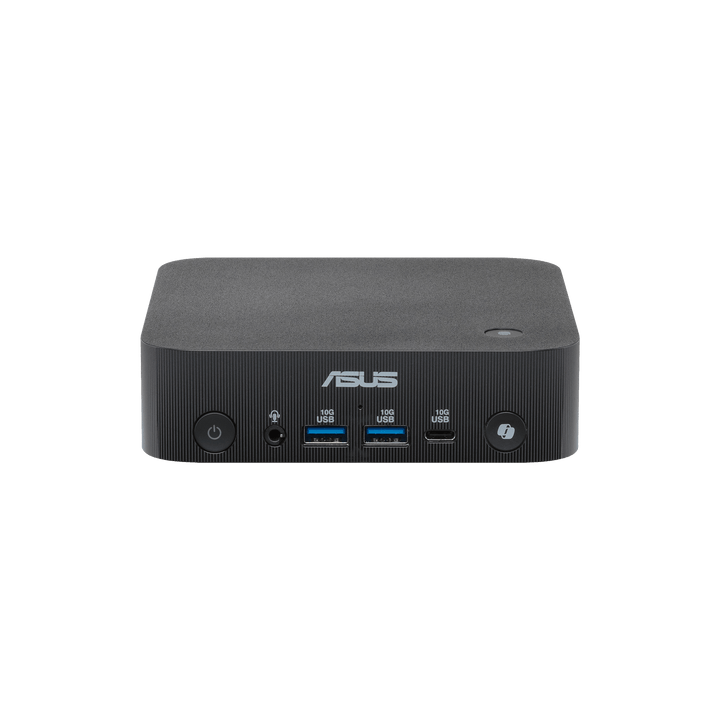

ASUS ExpertCenter PN54 Mini-PC Ryzen AI 7 350/ 32GB/ 1TB SSD WiFi 7 Win11

General

Processor & Graphics

Memory & Storage

Connectivity

Ports & I/O

Physical & Environmental

Power

Display and Video Output Compatibility

Two DisplayPort 1.4 outputs, one HDMI 2.1 output and a USB4 Type-C port (carrying DisplayPort 2.1) together support up to four displays. Standard DisplayPort and HDMI cables connect directly to most current monitors.

Dual LAN Use Cases

The two 2.5G RJ45 ports support a resilient wired connection or bridging two separate network segments. Configuration is done in Windows network settings; talk to us if you need a specific dual-LAN topology configured before delivery.

Upgrade Path and VESA Mount

The memory ships already in dual-channel configuration at 32 GB, with ASUS documenting up to 64 GB total should a heavier workload need it later. A VESA mounting bracket is available as an optional accessory to fix the PN54 to the back of a compatible monitor arm.

Peripheral and Accessory Compatibility

The front-panel USB 3.2 Gen 2 Type-C and Type-A ports handle everyday peripherals — a USB keyboard, mouse, webcam or external drive — without needing to reach behind the unit. The rear USB4 Type-C port additionally supports high-bandwidth peripherals such as external SSD enclosures or a USB-C dock, and can double as one of the four display outputs when a monitor rather than a storage device is connected. Standard Windows drivers cover the fingerprint reader for Windows Hello enrolment without additional software, and the dedicated Copilot key launches Windows Copilot directly from the front panel.

In the Box

AC power adapter, power cord, screw pack, user manual and warranty card. Keyboard, mouse and the VESA mount bracket are available as optional accessories and are not included as standard.

ASUS ExpertCenter PN-Series Mini-PC Range — Ordering Information

All six models above are current ASUS ExpertCenter Mini-PC configurations carried by SourceIT. Email sales@sourceit.com.sg quoting the part number to check stock and lead time.

ASUS hosts the official product and specification pages for this model. The links below are ASUS's current product and specification pages for this model family.

For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting PN54-S70033NL and we will send you the current files directly.

Is this a complete system or a barebone unit?

Complete system. The PN54-S70033NL ships with the AMD Ryzen AI 7 350 processor, 32 GB of dual-channel DDR5 memory and a 1 TB PCIe 4.0 NVMe SSD already fitted, ready for Windows setup on first boot.

Why is the memory already dual-channel here, unlike the PN54-S50034NL?

This configuration ships as two 16 GB modules rather than one 16 GB module, running in dual-channel mode from the factory — matched to the higher-core Ryzen AI 7 350 processor, which benefits more from the extra memory bandwidth than the entry Ryzen AI 5 configuration.

Does it have TPM for platform security?

Yes, this configuration includes TPM (Trusted Platform Module), supporting BitLocker and other Windows security features that require a hardware root of trust.

How many monitors can it drive?

Up to four displays via the two DisplayPort 1.4 outputs, the HDMI 2.1 output and the USB4 Type-C port, all supporting 4K resolution per ASUS's specification.

Why does it have two LAN ports?

The dual 2.5G RJ45 ports support a resilient wired connection or bridging two network segments, both running at up to 2.5 Gbps.

What is the difference between this and the PN54-S50034NL in your catalogue?

Both share the same chassis, dual 2.5G LAN and Wi-Fi 7. This model steps up to the Ryzen AI 7 350 processor with Radeon 860M graphics and ships with 32 GB of dual-channel memory rather than 16 GB single-channel, for heavier multitasking.

Is the fan noisy under load?

ASUS does not publish an acoustic figure for this exact configuration, so none is printed here. The 34 mm-thin chassis and 40 W processor cTDP are both modest by desktop standards, which generally keeps fan speed low for typical office workloads; email us if sustained near-silent operation is a hard requirement for your deployment and we can discuss the specific use case.

What does "onsite" warranty mean in practice in Singapore?

An onsite warranty means a qualifying hardware fault is diagnosed and repaired at your premises by an authorised technician, rather than requiring you to ship the unit back to a service centre and wait for a return. SourceIT coordinates the onsite claim on your behalf as part of the local support that comes with every unit we supply.

Does it come with a Singapore warranty and a GST invoice?

Yes. Every ASUS ExpertCenter PN54-S70033NL sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this model with a 3-year onsite warranty.
