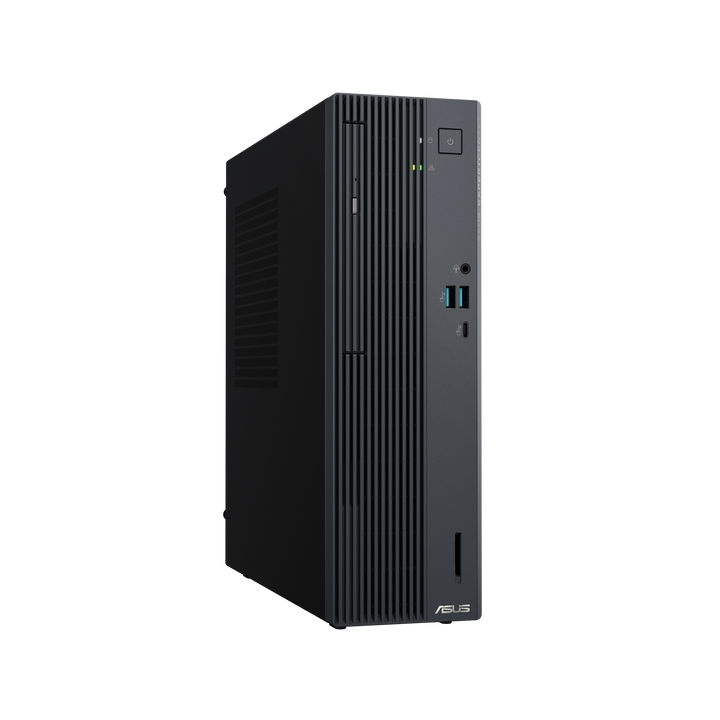

ASUS ExpertCenter P5 SFF P500SV-05210H093X U5-210H/ 16GB/ 512GB SSD

ASUS ExpertCenter P5 SFF P500SV-05210H093X U5-210H/ 16GB/ 512GB SSD/ Win 11 Pro (90PF05A1-M00YS0) - 3 Year Onsite Local Warranty

Reliable Business Performance with Intel Core 5 Processor

The ASUS ExpertCenter P5 SFF P500SV-05210H093X is powered by the Intel Core 5 210H processor, delivering efficient performance with up to 8 cores and boost speeds up to 4.8GHz, making it suitable for daily office workloads such as multitasking, document processing, and business applications while maintaining strong power efficiency for long working hours.

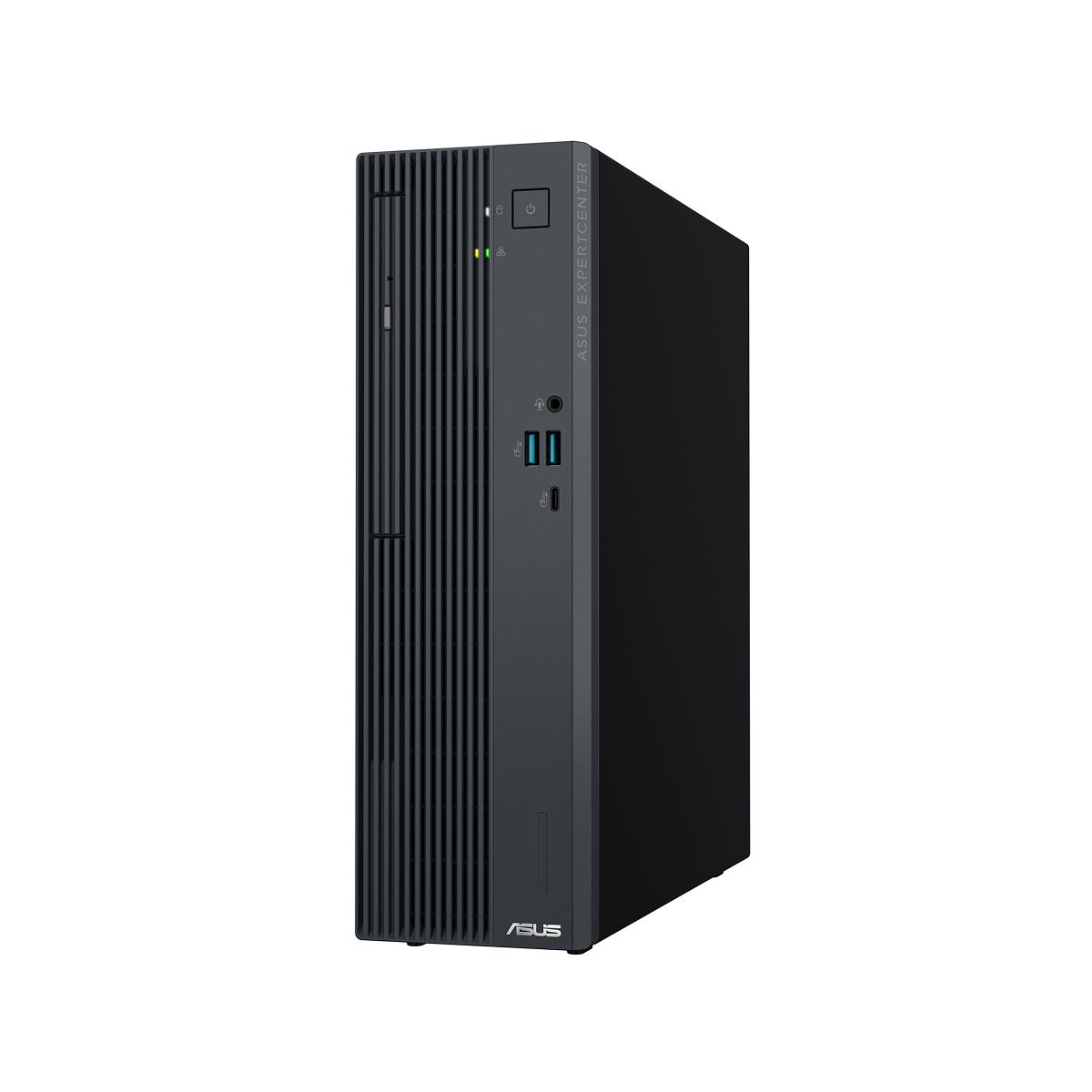

Compact Small Form Factor for Modern Workspaces

Designed in a space-saving small form factor (SFF), the ExpertCenter P5 allows flexible placement on desks or under workstations, making it ideal for offices where space optimization is important, while still delivering desktop-level performance for professional environments.

16GB DDR5 Memory and Fast NVMe Storage

Equipped with 16GB DDR5 memory and a 512GB NVMe PCIe SSD, the system ensures fast boot times, smooth multitasking, and efficient file access, enabling users to run multiple business applications simultaneously without lag and maintain productivity throughout the day.

Comprehensive Connectivity and Expandability

The ExpertCenter P500 SFF includes a wide range of connectivity options such as USB-A, USB-C, HDMI, DisplayPort, and Gigabit Ethernet, ensuring seamless integration with office peripherals and multiple displays, while its expandable design supports RAM upgrades up to 64GB and additional storage options for future scalability.

Enterprise Security and Windows 11 Pro

Pre-installed with Windows 11 Pro, the system offers enterprise-grade security features including TPM, secure boot, and centralized device management, along with ASUS business-grade security and MIL-STD durability, making it a reliable and secure choice for organizations deploying desktops across teams.

Technical Specifications

Processor
• Intel Core 5 210H
• Base 2.2GHz, up to ~4.8GHz Turbo Boost
• 8 cores / 12 threads
• 12MB Intel Smart Cache
• H-series CPU delivers stronger performance vs traditional desktop U-series

Graphics
• Integrated Intel UHD Graphics
• Optional NVIDIA RTX A400 (config dependent)
• Suitable for office, multi-display, and light content workloads

Memory
• 16GB DDR5 RAM (SO-DIMM)
• Dual-slot design
• Expandable up to 64GB

Storage
• 512GB M.2 PCIe 4.0 NVMe SSD
• Fast boot and application performance
• Supports dual storage (SSD + optional HDD expansion)

Operating System
• Windows 11 Pro (business-ready OS)

Form Factor & Design
• Small Form Factor (SFF) desktop
• ~10% smaller than traditional towers
• Compact, space-saving chassis for office deployment

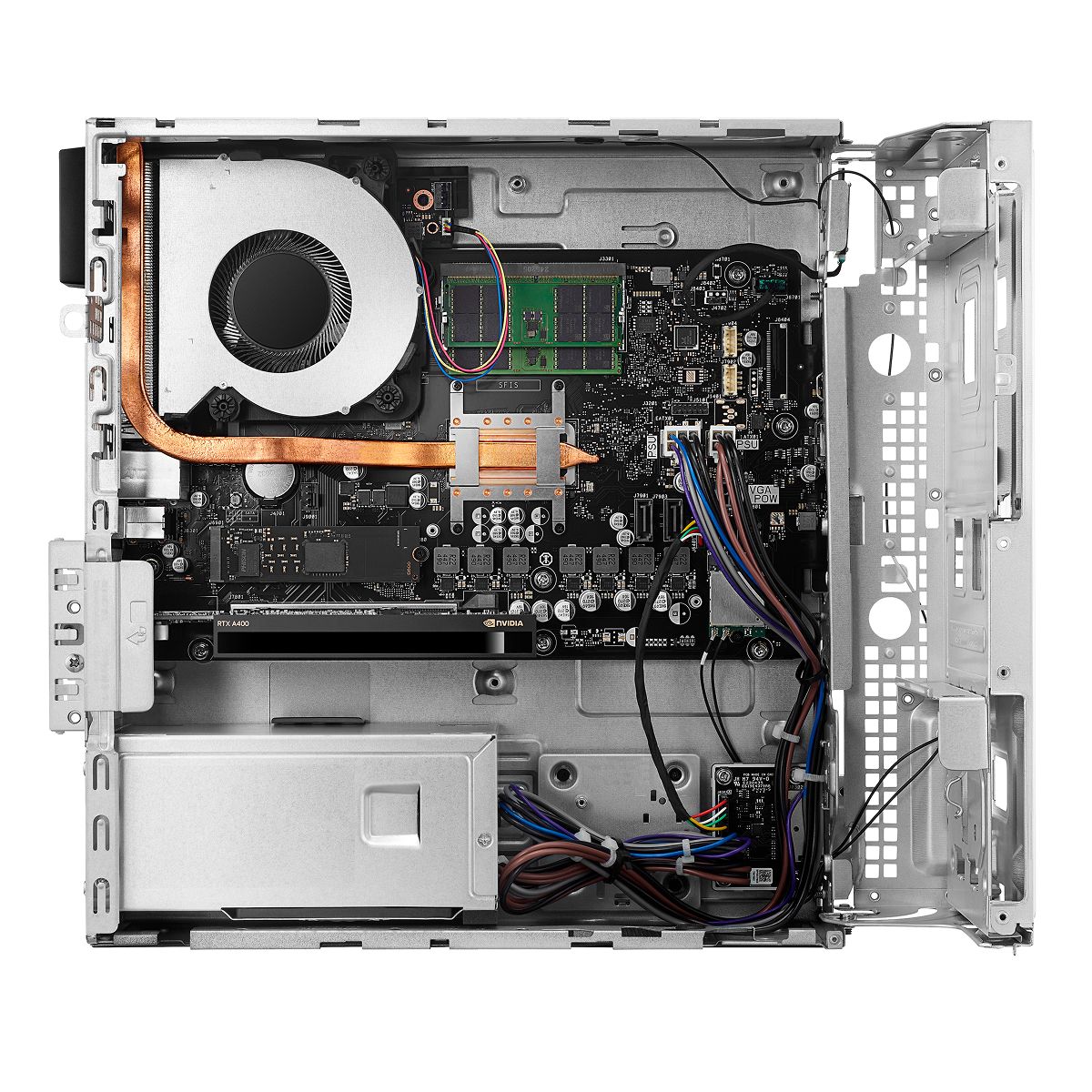

Cooling & Performance
• Advanced air-cooling with copper heat pipe
• Optimised airflow (front intake → rear exhaust)
• Up to ~45W sustained CPU performance
• Quiet operation (~30dB class)

Ports & Connectivity

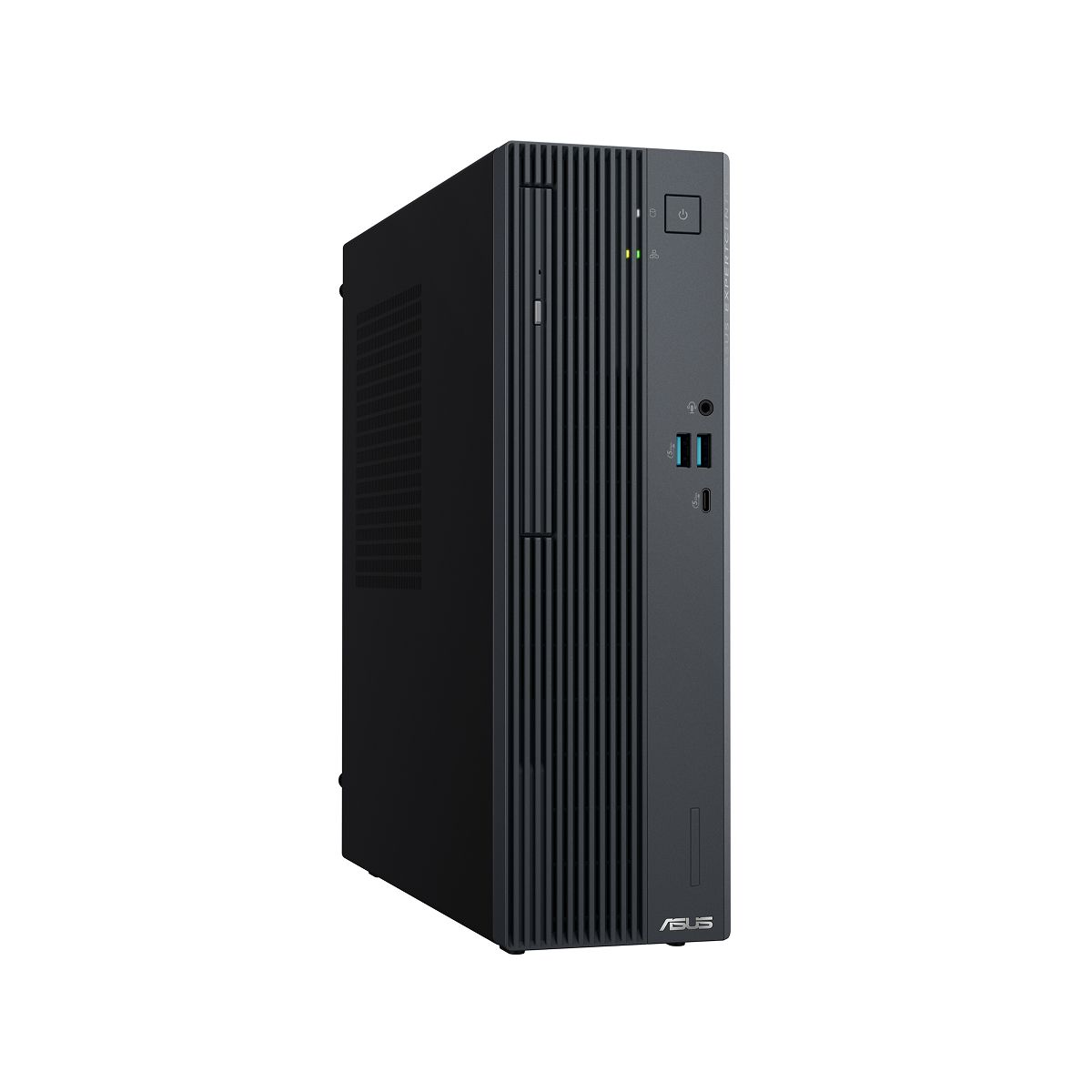

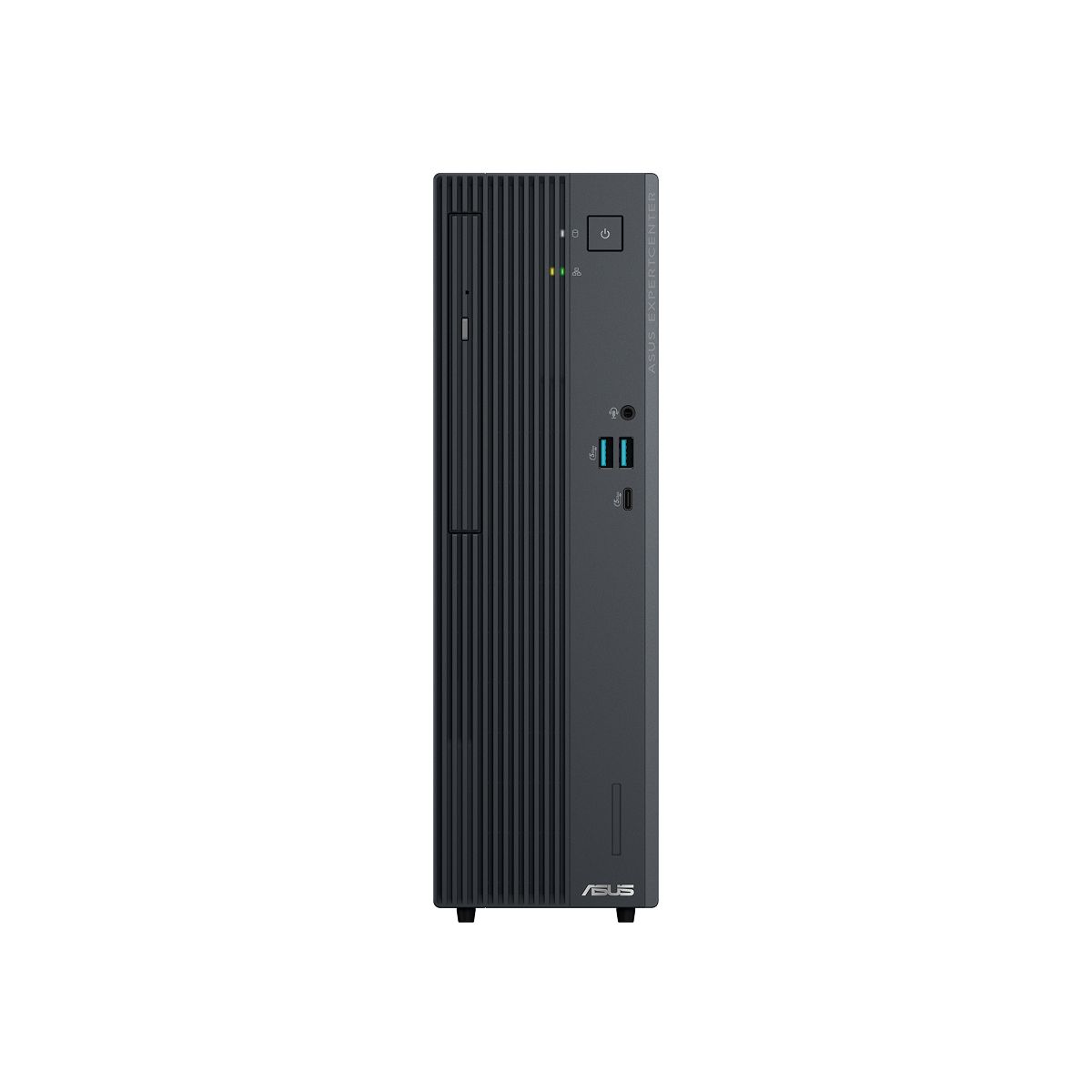

Front:
• USB-A ×2 (USB 3.2 Gen 1)
• USB-C ×1
• Audio combo jack
• Optional SD card reader

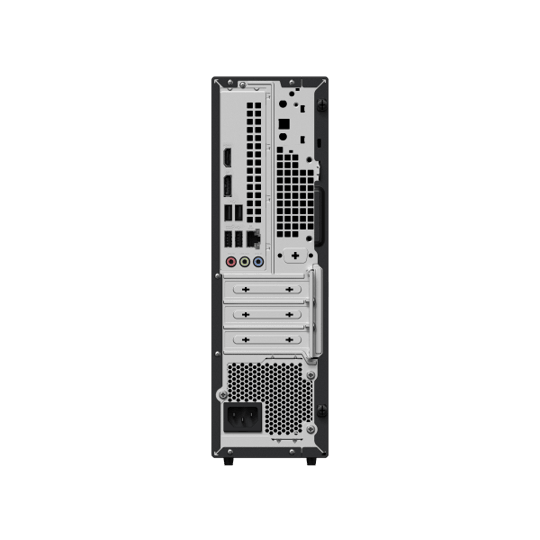

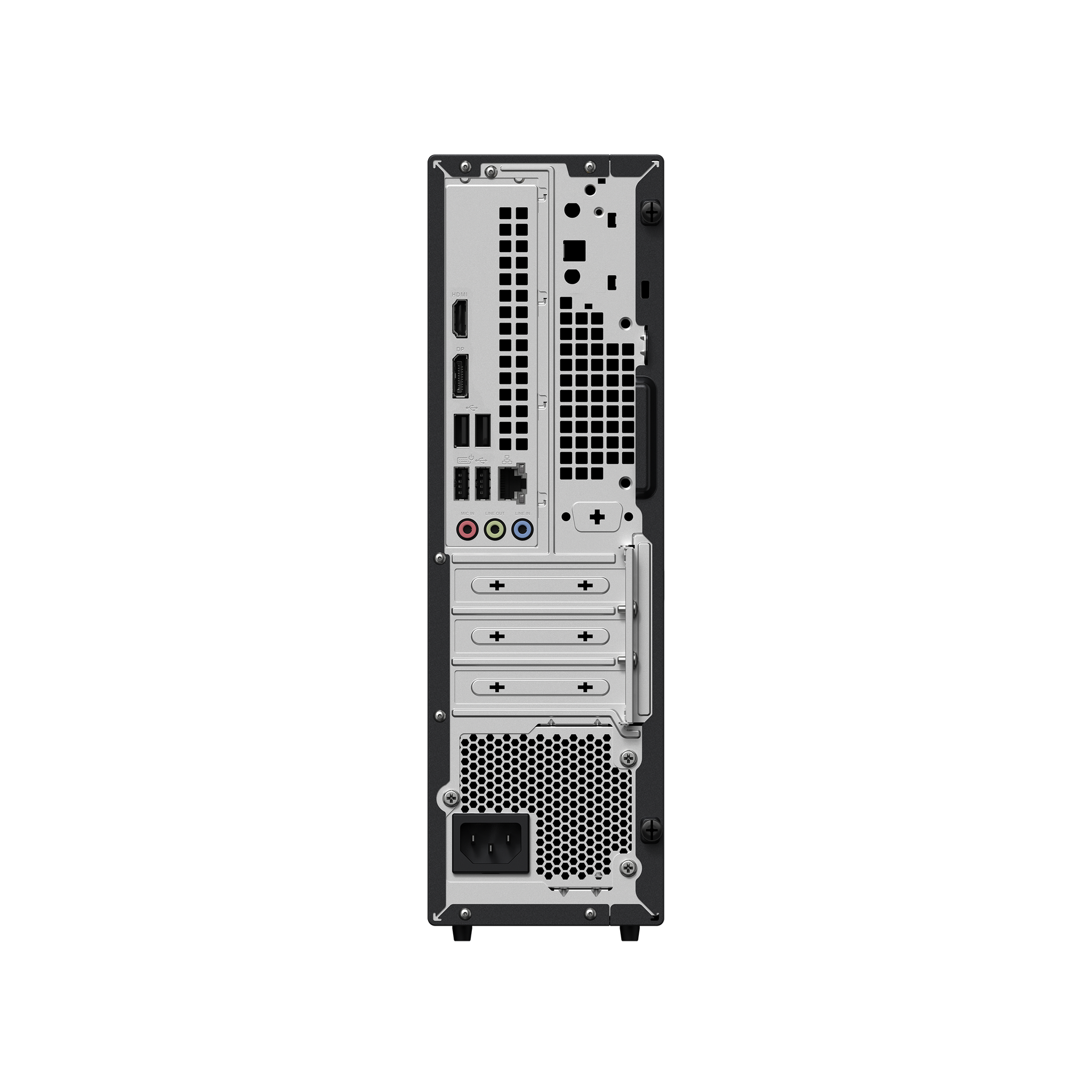

Rear:
• USB-A ×4 (USB 2.0)
• HDMI 1.4
• DisplayPort 1.4
• RJ45 Gigabit LAN
• Audio line-in / line-out / mic (7.1 channel support)

Expansion & Slots
• 2 × DDR5 RAM slots
• 2 × M.2 SSD slots
• 1 × M.2 (WiFi)
• 1 × PCIe 4.0 x16 (for GPU expansion)
• 2 × SATA ports (HDD support)

Networking
• Gigabit Ethernet
• WiFi 6 (optional)
• Bluetooth support

Audio
• High-definition 7.1 channel audio
• Line-in / line-out / mic support

AI & Productivity Features
• Microsoft Copilot integration
• ASUS AI ExpertMeet (AI meeting transcription, translation, noise cancellation)

Security (Enterprise Grade)
• TPM 2.0 hardware security
• ASUS ExpertGuardian security suite
• NIST SP 800-155 compliant BIOS
• Secured-core PC ready

Power Supply
• High-efficiency PSU (up to 80 PLUS Platinum depending config)
• Smart fan power optimisation for energy savings

Durability
• MIL-STD-810H certified
• Designed for long-term enterprise deployment

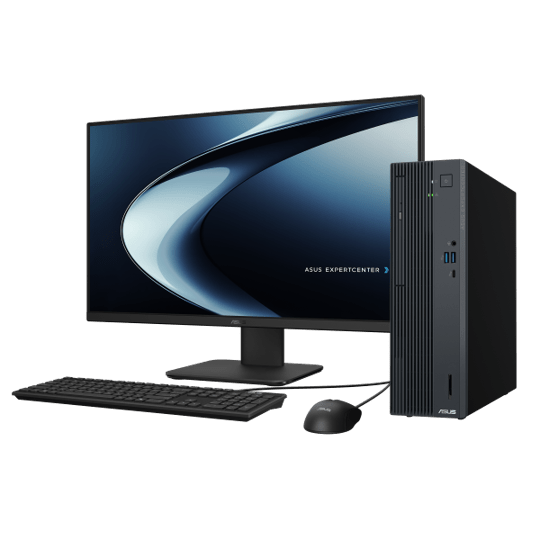

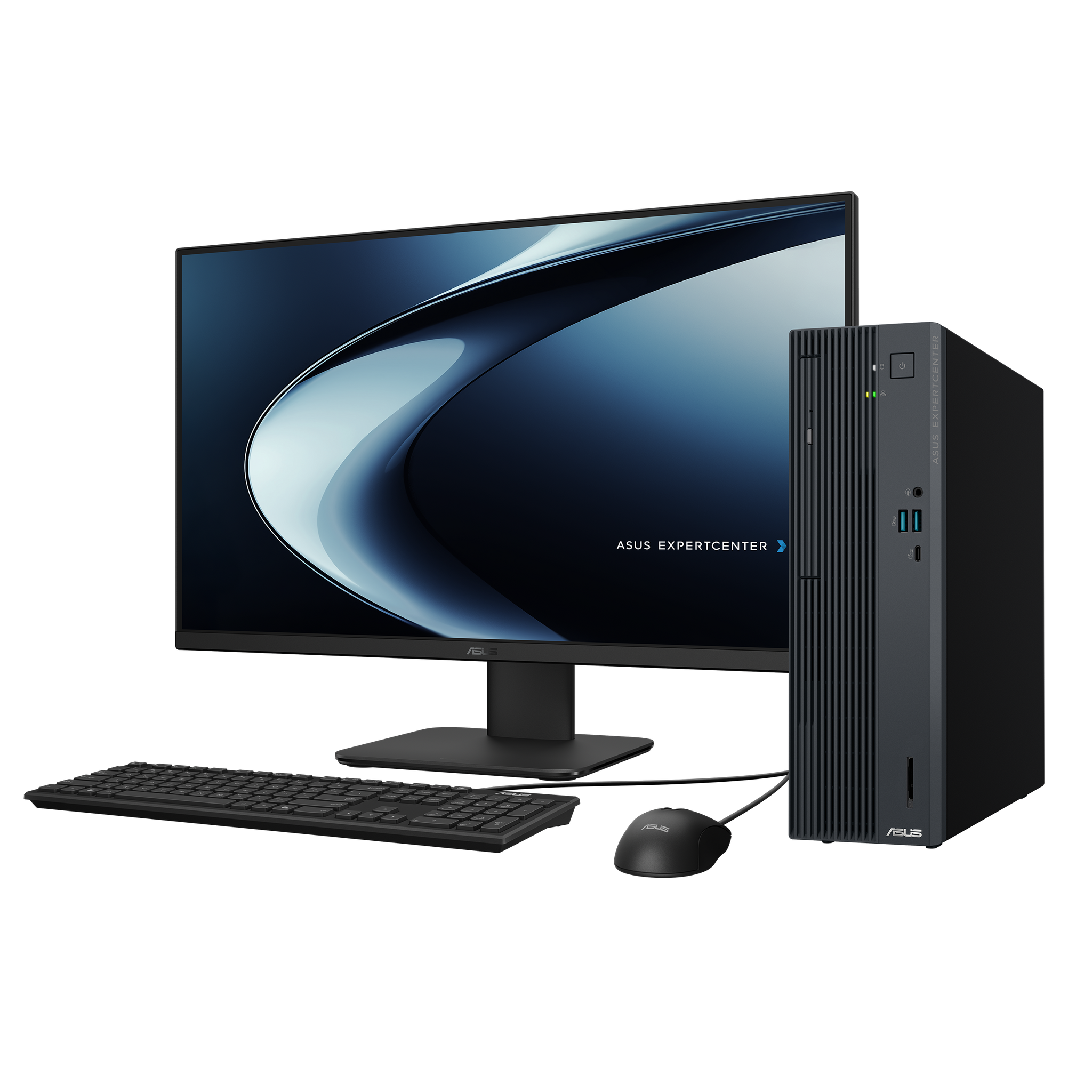

Included Accessories
• USB wired keyboard
• USB wired mouse
