ASUS ExpertCenter D7 SFF D701SER-714700416X i7-14700/ 16GB/ 1TB SSD
PRODUCT DESCRIPTION
ASUS ExpertCenter D7 SFF D701SER (90PF05N1-M03YJ0) - Core i7-14700 / 16GB / 1TB SSD - 3 Year Onsite Local Warranty

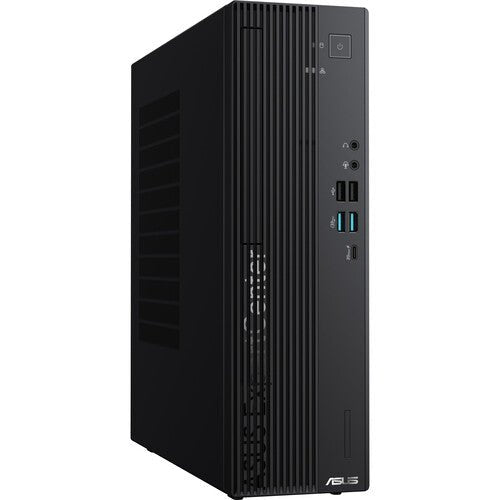

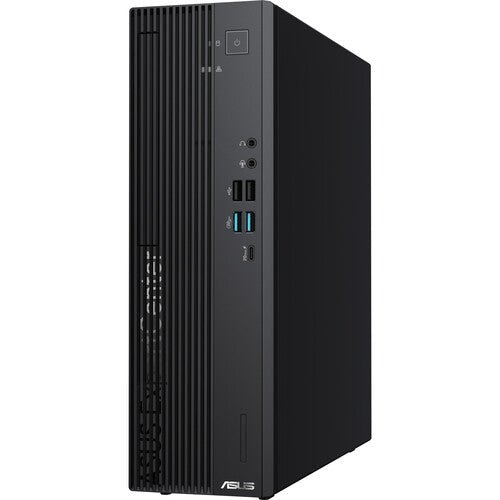

A Small Form Factor Business Desktop Built on Intel 14th Gen
The ASUS ExpertCenter D7 SFF D701SER (90PF05N1-M03YJ0) is a small form factor business desktop powered by the Intel Core i7-14700 processor, 20 cores (8P+12E) / 28 threads, with boost speeds up to 5.3GHz. It ships with 16 GB of DDR5 memory and a 1TB PCIe 4.0 NVMe SSD, and it is built to sit on or under a desk rather than take up the footprint of a full tower — a practical fit for Singapore offices standardising on a compact, quiet business desktop for finance, admin, engineering and general productivity roles.
Intel Core i7-14700: 33MB Intel Smart Cache for Real Multitasking Headroom
The i7-14700 steps up to eight performance cores and twelve efficiency cores — 20 cores and 28 threads in total — with 33 MB of Intel Smart Cache and boost speeds up to 5.3GHz. That is meaningfully more multitasking and background-processing headroom than the i5-14500 configuration, suited to power users running heavier local workloads such as data analysis, multiple virtual machines or CAD-adjacent tools alongside normal office software.
16 GB DDR5, Expandable to 128 GB
The unit ships with 16 GB of DDR5 memory as standard across four DDR5 U-DIMM slots, and ASUS documents support for up to 128 GB total — enough headroom to take this desktop from a standard office role into a heavier local workload (multiple VMs, larger datasets, a database server) without a chassis change. Storage starts with a 1TB PCIe 4.0 NVMe SSD in one of two available M.2 slots, alongside four SATA 6.0 Gb/s ports for additional drives.
Expansion for a Discrete GPU or Add-In Card
The Intel B760 chipset motherboard includes one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, so a discrete graphics card or a capture/compliance add-in card can go in later without needing a different chassis class — something a genuinely sealed small form factor PC will not offer. A dedicated M.2 slot handles the Wi-Fi 6E module separately from the two storage-capable M.2 connectors.
Business Security and MIL-STD-810H Durability
TPM 2.0, BIOS-level protection and Kensington lock support cover the standard enterprise security baseline, and ASUS tests the D701SER chassis to MIL-STD-810H for durability. Windows 11 Pro is preinstalled, ready for domain join and centralised device management from day one.
Built for Office Fleets, Not Just a Single Desk
A small form factor business desktop like the D701SER earns its keep in volume deployment — a finance team standardising thirty identical units, a branch office rollout, or a call centre floor where every desk needs the same reliable, manageable machine rather than a mix of consumer towers. The combination of a fixed chassis footprint, tool-accessible internal expansion and a documented BIOS make it straightforward for an IT team to image, deploy and support at scale, which is a meaningfully different proposition from a one-off consumer PC purchase.
Supplied Locally, with GST Invoice and Singapore Onsite Warranty
SourceIT supplies the ASUS ExpertCenter D701SER 90PF05N1-M03YJ0 with a full GST invoice and local Singapore support. ASUS backs this model with a 3-year onsite warranty, so a hardware fault is resolved at your premises.
Need a leaner configuration? See the Core i5-14500 configuration (90PF05N1-M03YF0) with 512GB storage in our catalogue.
ASUS D701SER 90PF05N1-M03YJ0 Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ExpertCenter D7 SFF (D701SER) |
| Part Number (SKU) | 90PF05N1-M03YJ0 |
| Chipset | Intel B760 |
| Form Factor | Small Form Factor (SFF) desktop |
| Manufacturer Warranty | 3-Year Onsite Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
| Operating System | Windows 11 Pro (preinstalled) |
Processor & Graphics
| Processor | Intel Core i7-14700 — 2.1GHz base, up to 5.3GHz boost |
| Cores / Threads | 20 cores (8P+12E) / 28 threads |
| Cache | 33MB Intel Smart Cache |
| Graphics | Integrated Intel UHD Graphics (chipset-based) |
| Discrete GPU Support | 1 x PCIe 4.0 x16 slot available for an add-in graphics card |
Memory & Storage
| Memory Installed | 16 GB DDR5 U-DIMM |
| Memory Slots / Maximum | 4 x DDR5 U-DIMM slots, up to 128 GB total |
| Primary Storage | 1TB M.2 NVMe PCIe 4.0 SSD |
| Storage Expansion | 2 x M.2 2280/2230 NVMe PCIe 4.0 slots total, plus 4 x SATA 6.0 Gb/s ports |
Connectivity
| Front I/O | 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 2 x USB 2.0, audio combo jack |
| Rear I/O | 2 x USB 3.2 Gen 1 Type-A, 3 x USB 2.0, DisplayPort 1.4, HDMI 1.4, VGA, RJ45 Gigabit Ethernet |
| Wireless LAN | Wi-Fi 6E (802.11ax, tri-band) 2x2, Bluetooth 5.4 |
| Expansion Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Wi-Fi slot |
Physical & Security
| Dimensions (W x D x H) | 9.3 x 29.6 x 30.9 cm |
| Net Weight | Approximately 5.0 kg |
| Security | TPM 2.0, BIOS-level protection, Kensington lock support |
| Durability | MIL-STD-810H tested chassis, per ASUS |
Power
| Power Supply | 180 W internal PSU, 80 PLUS Bronze, 228 W peak |
| Package Contents | AC power cord, USB wired keyboard, USB wired mouse, user documentation, warranty card |
Connectivity, Setup & Expansion
Display and Video Output
Video output covers DisplayPort 1.4 and HDMI 1.4 from the rear panel, plus a VGA port for older monitors and projectors that a fully modern small form factor PC often drops — useful where a meeting room or a legacy display still needs an analogue input. Standard cables connect directly; no adapter is required for DisplayPort or HDMI.
Upgrade Path: Memory, Storage and a Discrete GPU
All four DDR5 U-DIMM slots are user-accessible, so memory can go from the standard 16 GB up to 128 GB as workloads grow. A second M.2 NVMe slot and four SATA ports mean storage can be added rather than replaced, and the single PCIe 4.0 x16 slot leaves room for a discrete graphics card later — a genuine advantage over a sealed mini-PC when a role changes from office productivity to something that benefits from dedicated graphics.
Wired and Wireless Networking
Gigabit Ethernet over RJ45 is the standard wired connection; Wi-Fi 6E with Bluetooth 5.4 covers wireless use where running a cable is impractical. For a stable connection on a desk that moves or a temporary setup, the wired port remains the recommended default for business use.
Security and Fleet Management
TPM 2.0 and BIOS-level protection support standard enterprise device management and encryption policies (BitLocker and similar), and the Kensington lock slot covers basic physical security in an open office. Windows 11 Pro is preinstalled and ready for domain join.
Package Contents & Ordering Information
In the Box

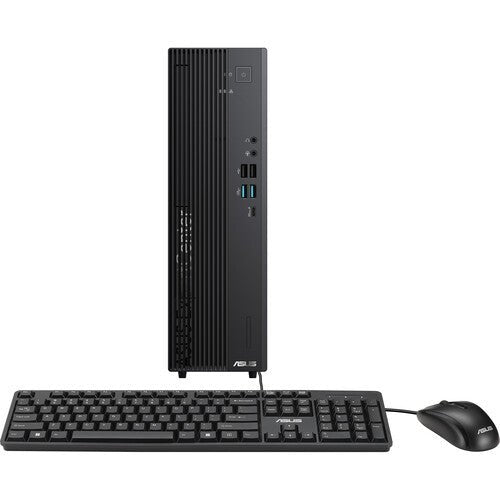

ASUS ExpertCenter D701SER unit, AC power cord, USB wired keyboard, USB wired mouse, user documentation and warranty card.
ASUS ExpertCenter D7 SFF (D701SER) Range — Ordering Information
| 90PF05N1-M03YF0 | Intel Core i5-14500 |
| 90PF05N1-M03YJ0 | Intel Core i7-14700 |
Both configurations share the same Intel B760 chipset, chassis, memory slots and expansion; the difference is the processor and the standard SSD capacity. Email sales@sourceit.com.sg quoting the part number to check stock and lead time, or if you need a different memory or storage configuration built to order.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model.
| ASUS Singapore product page | ASUS ExpertCenter D7 SFF D701SER — Overview |
| ASUS Singapore specifications page | ASUS ExpertCenter D7 SFF D701SER — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting 90PF05N1-M03YJ0 and we will send you the current files directly.
Frequently Asked Questions — ASUS D701SER 90PF05N1-M03YJ0
Is this a full desktop or a barebone system?
A complete system: Intel Core i7-14700 processor, 16 GB DDR5 memory, 1TB PCIe 4.0 NVMe SSD and Windows 11 Pro preinstalled. Connect a monitor, keyboard and mouse and it is ready to deploy.
How much desk space does it need?
The chassis measures 9.3 x 29.6 x 30.9 cm and weighs approximately 5.0 kg — a small form factor footprint that sits comfortably on or under a desk, well short of a full tower.
Can the memory and storage be upgraded later?
Yes. Four DDR5 U-DIMM slots support up to 128 GB total, a second M.2 NVMe slot is available alongside the primary drive, and four SATA ports cover additional 2.5"/3.5" drives.
Can I add a discrete graphics card?
Yes, the motherboard includes one PCIe 4.0 x16 slot for a discrete GPU or other add-in card, which is not something every small form factor chassis in this class supports.
Does it have a legacy VGA output for older meeting-room displays?
Yes — alongside DisplayPort 1.4 and HDMI 1.4, the rear panel includes a VGA port for projectors and monitors that only accept an analogue input.
What is the difference between the i5-14500 and i7-14700 configurations?
Both use the same B760 chipset chassis and memory layout. The i5-14500 gives 14 cores / 20 threads with 24 MB cache and 512 GB standard storage; the i7-14700 steps up to 20 cores / 28 threads with 33 MB cache and 1 TB standard storage — choose based on how CPU-bound your workload is.
Is it suitable for domain-joined, centrally managed fleets?
Yes. TPM 2.0, BIOS-level protection and Windows 11 Pro support standard enterprise device management, encryption and Kensington-lock physical security.
What connectivity options does it have for office peripherals?
Front-panel USB 3.2 Gen 2x2 Type-C plus USB 3.2 Gen 2 and USB 2.0 Type-A ports cover everyday peripherals and fast external storage without reaching around to the back of the chassis, while the rear panel adds further USB-A, Gigabit Ethernet and the video outputs. Wi-Fi 6E with Bluetooth 5.4 rounds out wireless connectivity for keyboards, mice and headsets.
Is it suitable for a fleet rollout across multiple sites?
Yes — the fixed chassis, standard BIOS and documented internal layout make it straightforward to image once and deploy consistently across many desks, which is the usual reason businesses choose this class of small form factor desktop over a mix of consumer PCs.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ExpertCenter D701SER sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this model with a 3-year onsite warranty.
