ASUS ExpertCenter D7 SFF D701SER-514400184X i5-14400/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
ASUS ExpertCenter D7 SFF D701SER-514400184X (90PF05N1-M03YH0) - Core i5-14400 / 16GB / 512GB SSD - 3 Years Onsite Warranty

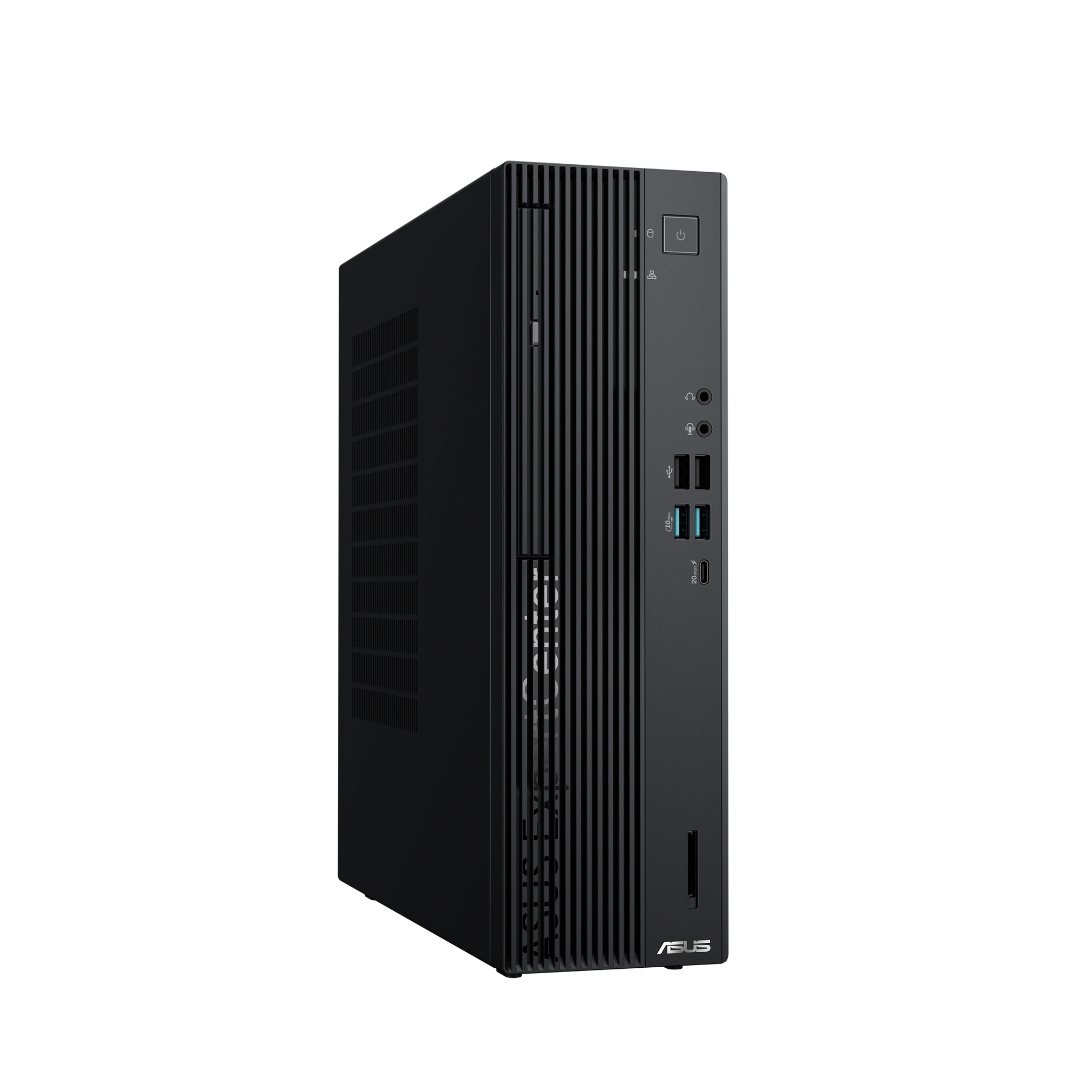

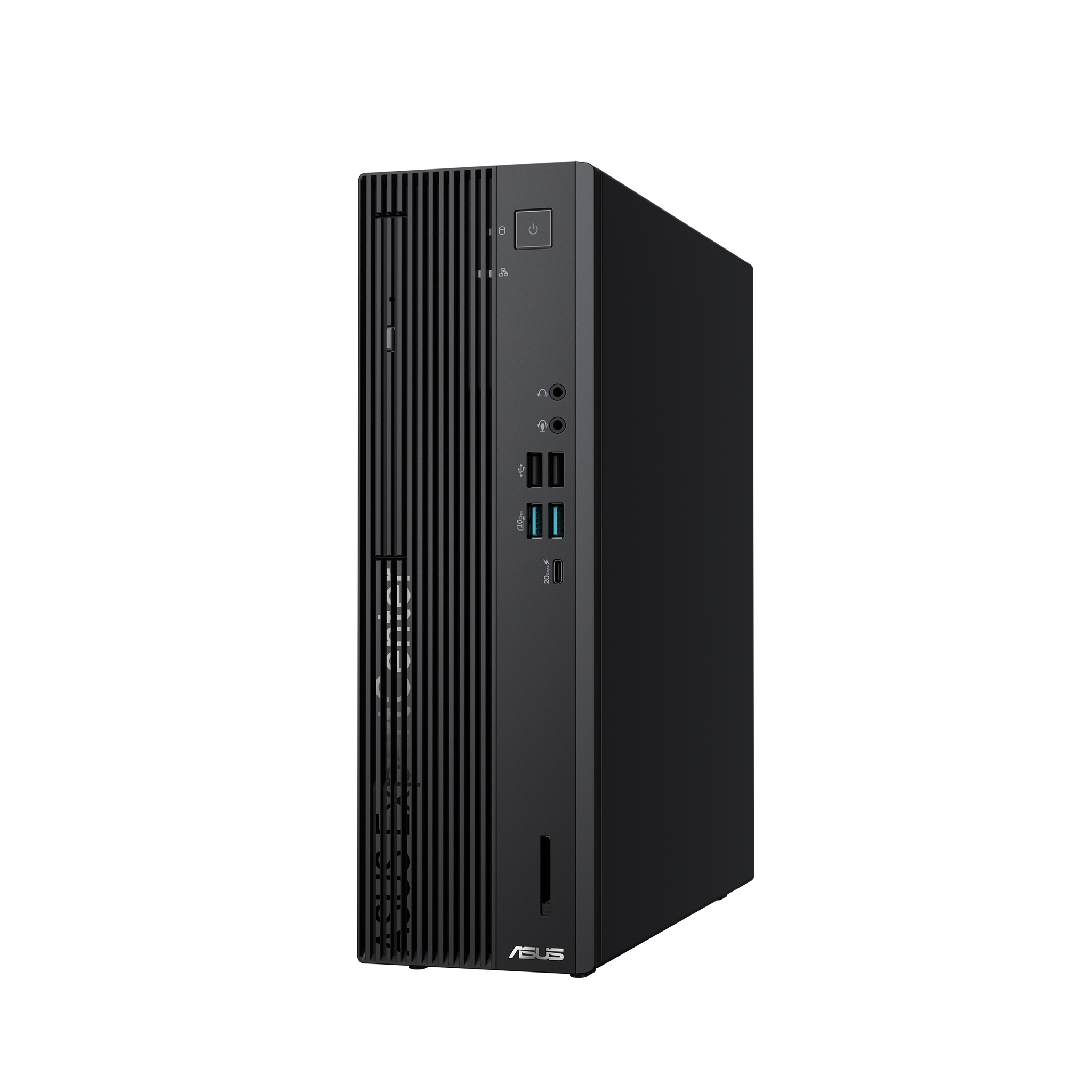

ExpertCenter D7 SFF Small Form Factor Desktop with Core i5-14400
The ASUS ExpertCenter D7 SFF D701SER-514400184X (90PF05N1-M03YH0) is a small form factor business desktop powered by the Intel Core i5-14400 processor (10 cores / 16 threads, up to 4.7GHz) on the Intel B760 chipset, with 16GB of DDR5 U-DIMM memory, a 512GB M.2 NVMe PCIe 4.0 SSD and Windows 11 Pro. The 8.6-litre black chassis measures 9.3 x 29.6 x 30.9 cm, and ASUS states the ExpertCenter D7 SFF is up to 10% smaller than the previous generation, which suits standardised desk deployments in Singapore offices.
Core i5-14400 Processor
The Intel Core i5-14400 runs at a 2.5GHz base clock and boosts up to 4.7GHz, with 10 cores / 16 threads and 20MB of Intel Smart Cache. Graphics are handled by the integrated Intel UHD Graphics 730. That is a comfortable fit for the typical business day: office suites, many browser tabs, video meetings, accounting and ERP clients, and background sync and security tools running at the same time.
16GB DDR5, Expandable to 128GB
16GB of DDR5 U-DIMM memory is installed, with 4 U-DIMM slots supporting up to 128GB in total. The modules are rated 5600 MT/s; ASUS notes they run at 4000-4400 MT/s on this platform. Storage is a 512GB M.2 2280 NVMe PCIe 4.0 SSD, with an additional M.2 2230 storage connector, four SATA 6.0Gb/s ports and both a 2.5-inch and a 3.5-inch drive bay available for expansion.
Display Outputs and PCIe Expansion
Video output is via HDMI 1.4, DisplayPort 1.4 and VGA on the rear panel. Internally there is one PCIe 4.0 x16 slot and 2x PCIe 3.0 x1 slots, so a graphics card, extra network adapter or other add-in card can be fitted later. ASUS offers the ExpertCenter D-series SFF with optional professional NVIDIA graphics; this part number ships with Intel UHD Graphics 730 integrated graphics.
Connectivity, Security and Compliance
Networking is Intel I219-V Gigabit Ethernet plus Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4. Security features include firmware TPM, HDD user password protection, a Kensington security slot and a padlock loop. The system is EPEAT Silver registered, ENERGY STAR 8.0 qualified, and RoHS and REACH compliant.
Ready for Business Deployment

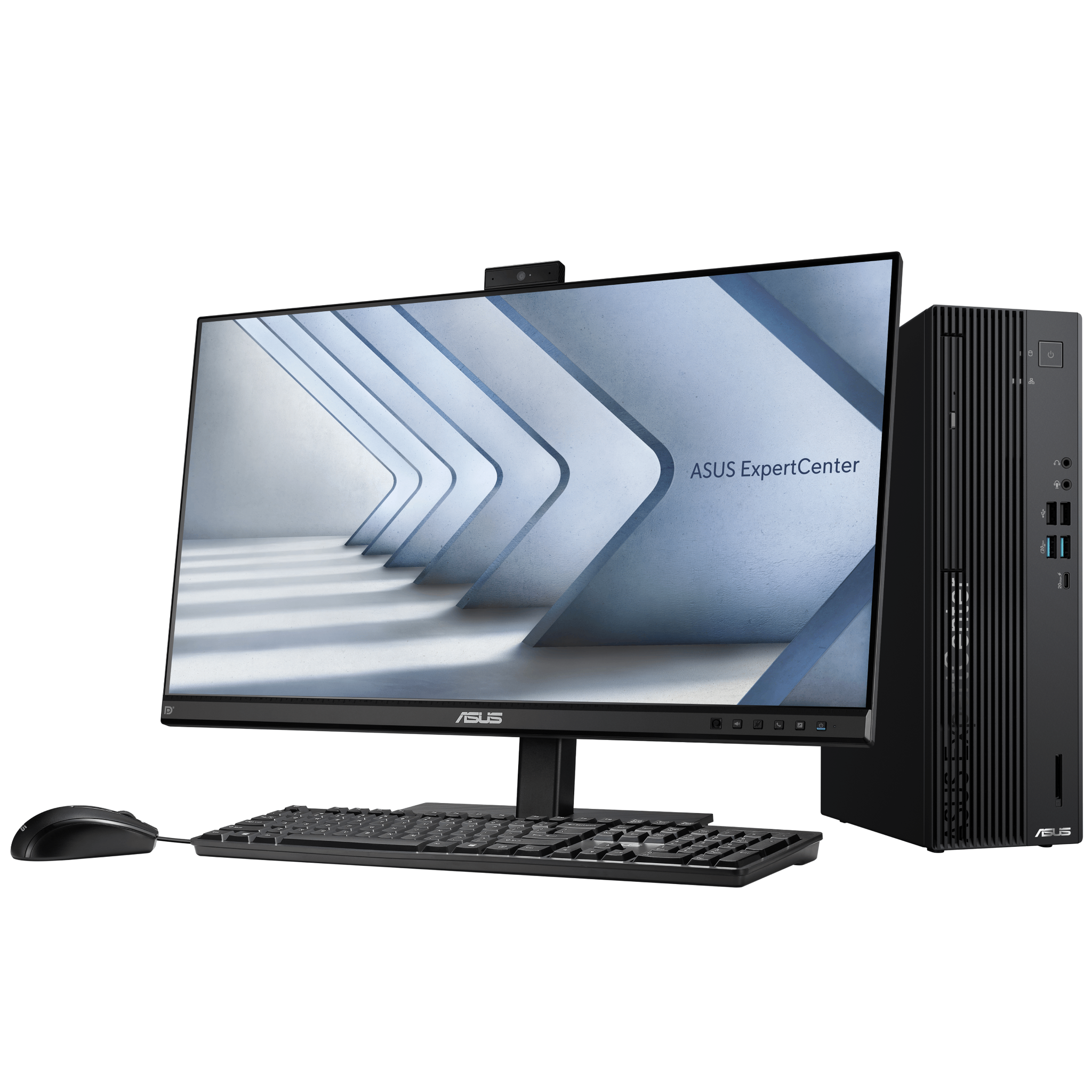

Windows 11 Pro is preinstalled for domain join, Intune or Group Policy management and BitLocker. MyASUS is preloaded for system diagnosis and fan profiles, together with ASUS Business Manager, and every unit ships with a wired USB keyboard and mouse. A consistent chassis and BIOS across the ExpertCenter D7 SFF range make it straightforward for an IT team to image and roll out the same configuration across a department or branch office.
3 Years Onsite Warranty and Local Supply
SourceIT supplies the ASUS D701SER-514400184X (90PF05N1-M03YH0) with a GST invoice. ASUS covers this model with a 3-year onsite warranty, so a hardware fault is handled at your premises. For volume quotes, configuration questions or lead times, email sales@sourceit.com.sg quoting 90PF05N1-M03YH0.
ASUS D701SER-514400184X Datasheet — Technical Specifications
General
| Product Name | ASUS ExpertCenter D7 SFF (D701SER) |
| Part Number (SKU) | 90PF05N1-M03YH0 |
| Model | D701SER-514400184X |
| EAN | 4711636587723 |
| Form Factor | Small form factor (SFF) desktop, 8.6L |
| Colour | Black |
| Operating System | Windows 11 Pro |
| Warranty | 3 Years Onsite Service (ASUS) |
Processor & Graphics
| Processor | Intel Core i5-14400, 2.5GHz base, up to 4.7GHz |
| Cores / Threads | 10 cores / 16 threads |
| Cache | 20MB |
| Chipset | Intel B760 Chipset |
| Graphics | Intel UHD Graphics 730 (integrated) |
| CPU Cooler | Air cooler |
Memory & Storage
| Memory Installed | 16GB DDR5 U-DIMM |
| Memory Speed | DDR5-5600 modules; running at 4000-4400 MT/s on this platform. |
| Memory Slots / Maximum | 4 x DDR5 U-DIMM slots, up to 128GB |
| Storage | 512GB M.2 2280 NVMe PCIe 4.0 SSD |
| Drive Bays | 2.5-inch x 1, 3.5-inch x 1 |
| SATA | 4x SATA 6.0Gb/s ports |
| Optical Drive | None |
Ports & Connectivity

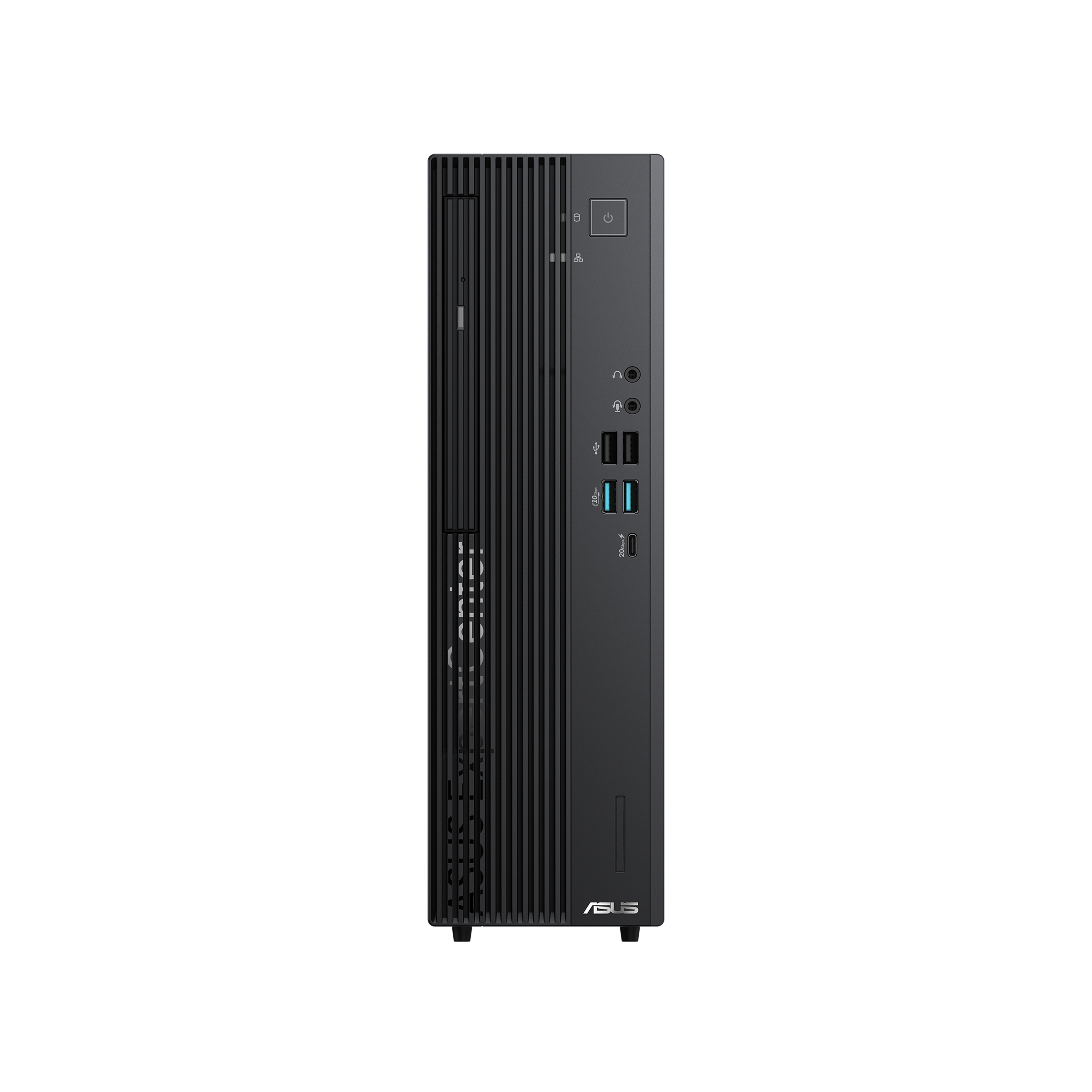

| Front I/O | 1x Headphone; 1x 3.5 mm combo audio jack (Mic in or Headphone out); 2x USB 2.0 Type-A (480 Mbps); 2x USB 3.2 Gen 2 Type-A (10 Gbps); 1x USB 3.2 Gen 2x2 Type-C (20 Gbps) |

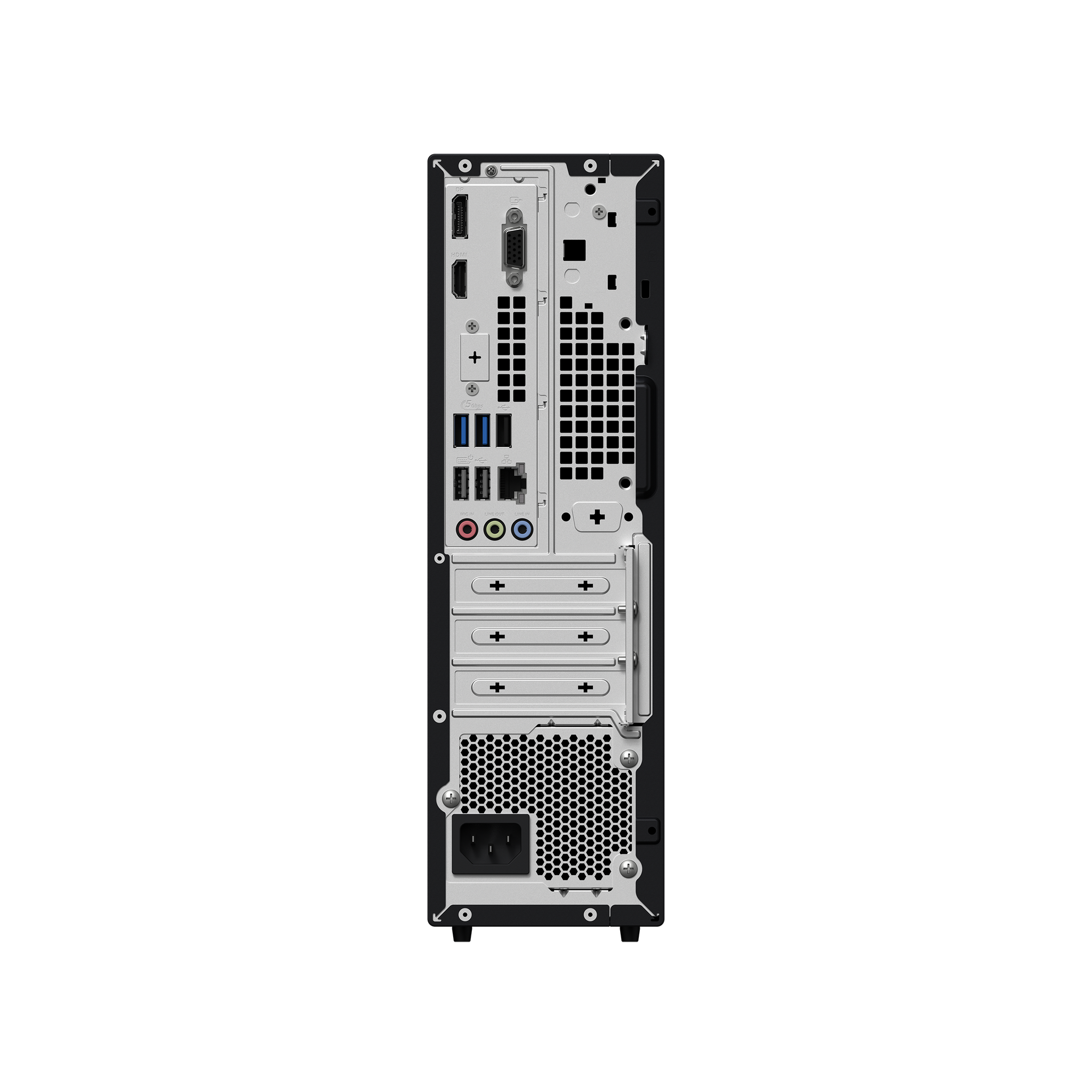

| Rear I/O | 1x RJ45 Gigabit Ethernet; 1x HDMI 1.4; 1x VGA Port; 1x Displayport 1.4; 1x 7.1 channel audio (microphone, line-out, Line-in); 1x Kensington lock; 1x Padlock loop; 3x USB 2.0 Type-A (480 Mbps); 2x USB 3.2 Gen 1 Type-A (5 Gbps) |
| Expansion Slots (incl. used) | 2x PCIe 3.0 x 1; 1x PCIe 4.0 x 16; 1x M.2 2230 connector for storage; 1x M.2 connector for WiFi; 1x M.2 2280 connector for storage; 4x DDR5 U-DIMM slot |
| Ethernet | Intel I219-V 10/100/1000 Mbps (non-vPro) |
| Wireless | Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4 |
| Audio | High Definition 7.1-channel audio |
Power
| Power Supply | 180W, 80 PLUS Bronze, 228W peak |
Physical
| Dimensions (W x D x H) | 9.3 x 29.6 x 30.9 cm (3.66 x 11.65 x 12.17 in) |
| Weight | 5.00 kg |
| Volume | 8.6 litres |
Security & Software
| Security | Firmware TPM, Kensington Security Slot(7 x 3mm), Padlock loop, HDD User Password Protection and Security |
| Antivirus | McAfee, 3 years |
| Preloaded Software | MyASUS (system diagnosis, fan profile), ASUS Business Manager |
| Eco Labels & Compliance | EPEAT Silver, ENERGY STAR 8.0, REACH, RoHS, 65% PCR recycled plastic front bezel |
Package Contents

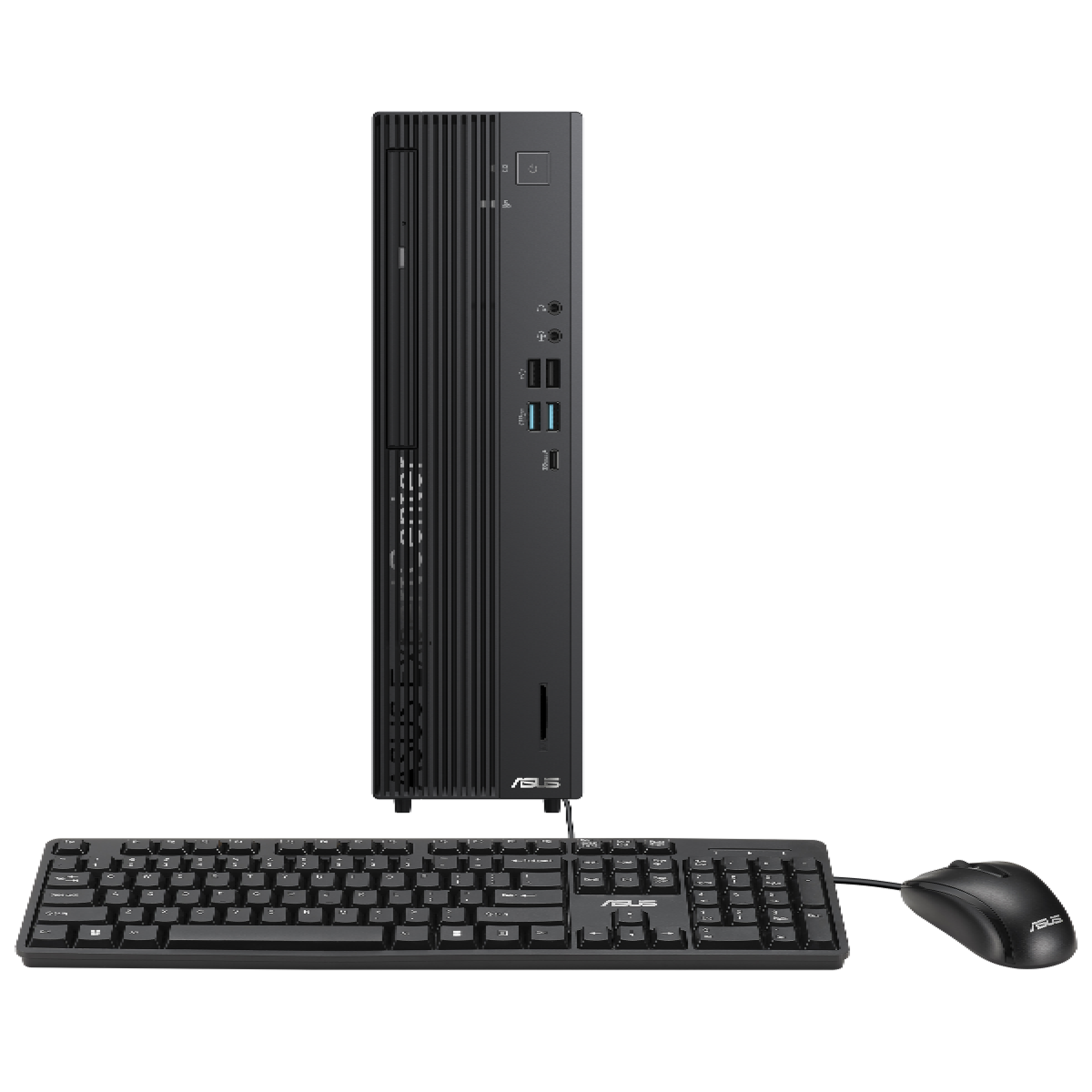

| In the Box | Desktop unit, AC power cord, wired USB keyboard (English), wired USB optical mouse, documentation |
Connectivity, Setup & Expansion
Connecting Displays
The rear panel provides HDMI 1.4, DisplayPort 1.4 and VGA from the integrated graphics. VGA keeps older projectors and monitors usable without an adapter, while HDMI and DisplayPort suit current business displays.
USB and Peripherals
Front: 1 x Headphone, 1 x 3.5 mm combo audio jack (Mic in or Headphone out), 2 x USB 2.0 Type-A (480 Mbps), 2 x USB 3.2 Gen 2 Type-A (10 Gbps), 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps). Rear: 3 x USB 2.0 Type-A (480 Mbps), 2 x USB 3.2 Gen 1 Type-A (5 Gbps). That leaves room for a keyboard, mouse, headset, webcam and USB storage without a hub.
Networking
Intel I219-V Gigabit Ethernet (non-vPro) on RJ45 is the recommended default for a fixed desk. Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4 on a dedicated M.2 Wi-Fi slot covers wireless connections and Bluetooth peripherals.
Memory and Storage Upgrades
4 DDR5 U-DIMM slots take memory from 16GB to a maximum of 128GB. The free M.2 2230 storage connector, four SATA 6.0Gb/s ports and the 2.5-inch and 3.5-inch bays allow additional drives without replacing the boot SSD.
Expansion Slots
2x PCIe 3.0 x 1; 1x PCIe 4.0 x 16; 1x M.2 2230 connector for storage; 1x M.2 connector for WiFi; 1x M.2 2280 connector for storage; 4x DDR5 U-DIMM slot. Check card dimensions and power draw against the 180W (228W peak) power supply and small form factor chassis before ordering an add-in card; we can advise on compatible options.
Security Features
Firmware TPM, HDD user password protection, Kensington security slot and a padlock loop. Windows 11 Pro adds BitLocker drive encryption and Windows Hello support for compatible peripherals.
Package Contents & Ordering Information
In the Box
Desktop unit, AC power cord, wired USB keyboard (English), wired USB optical mouse, documentation.
Ordering Information
| Part Number | 90PF05N1-M03YH0 |
| Model | D701SER-514400184X |
| EAN | 4711636587723 |
| Warranty | 3 Years Onsite Service |
ASUS ExpertCenter D7 SFF D701SER Range — Configurations
| 90PF05N1-M03YE0 (D701SER-714700415X) | Core i7-14700 / 16GB / 512GB SSD, Wi-Fi 6E |
| 90PF05N1-M03YF0 (D701SER-514500702X) | Core i5-14500 / 16GB / 512GB SSD, Wi-Fi 6E |
| 90PF05N1-M03YH0 (D701SER-514400184X) (this configuration) | Core i5-14400 / 16GB / 512GB SSD, Wi-Fi 6E |
All configurations share the same chassis, memory layout and expansion; the main difference is the processor.
Related Range: ExpertCenter D7 SFF (D700SF)
For the newer Intel Core Ultra (Series 2) platform with an integrated NPU, see the ExpertCenter D7 SFF D700SF (90PF05E1-M01N80, Core Ultra 5 225 / 16GB / 512GB SSD), which shares this chassis format and memory layout.
For quotes, volume pricing or delivery lead times, email sales@sourceit.com.sg quoting 90PF05N1-M03YH0.
Datasheet & Downloads
Official ASUS Singapore pages for this model:
| Product overview | ASUS ExpertCenter D7 SFF (D701SER) — Overview |
| Technical specifications | ASUS ExpertCenter D7 SFF (D701SER) — Tech Specs |
| Drivers & support | ASUS ExpertCenter D7 SFF (D701SER) — Driver & Tools |
The ASUS specification page covers every configuration of the D701SER range; the datasheet above reflects this specific part number (90PF05N1-M03YH0).
Frequently Asked Questions — ASUS D701SER-514400184X
Is this a complete system ready to use?
Yes. The D701SER-514400184X ships with the Intel Core i5-14400, 16GB DDR5, a 512GB NVMe SSD, Windows 11 Pro, and a wired USB keyboard and mouse. Connect a monitor and it is ready to set up.
What warranty does it come with?
ASUS covers this model with a 3-year onsite service warranty. SourceIT supplies it with a GST invoice.
How much memory can it take?
4 DDR5 U-DIMM slots support up to 128GB in total; 16GB is installed.
How many monitors can I connect?
The integrated graphics drive 3 rear outputs: HDMI 1.4, DisplayPort 1.4 and VGA, one monitor per port. A graphics card in the PCIe 4.0 x16 slot can add more outputs.
Can I add a graphics card?
Yes, there is a PCIe 4.0 x16 slot. In a small form factor chassis with a 180W power supply, choose a card that fits the chassis and power budget; email us and we will advise on compatible options. This part number ships with integrated graphics only.
Does it have Wi-Fi?
Yes, Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4, alongside Intel Gigabit Ethernet.
Which D701SER configuration should I choose?
The i5-14400 suits standard office work, the i5-14500 adds more cores and threads for heavier multitasking, and the i7-14700 (20 cores / 28 threads) suits demanding spreadsheets, development and light content work. All three share the same chassis, 16GB memory, 512GB SSD and I/O.
Is TPM 2.0 included for Windows 11 and BitLocker?
Yes. This model has firmware TPM, which supports Windows 11 Pro security features such as BitLocker.
