ASUS ExpertCenter D7 SFF D700SF-005225109X Core Ultra 5 225/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
ASUS ExpertCenter D7 SFF D700SF-005225109X (90PF05E1-M01N80) - Core Ultra 5 225 / 16GB / 512GB SSD - 3 Years Onsite Warranty
ExpertCenter D7 SFF with Intel Core Ultra 5 225 and NPU

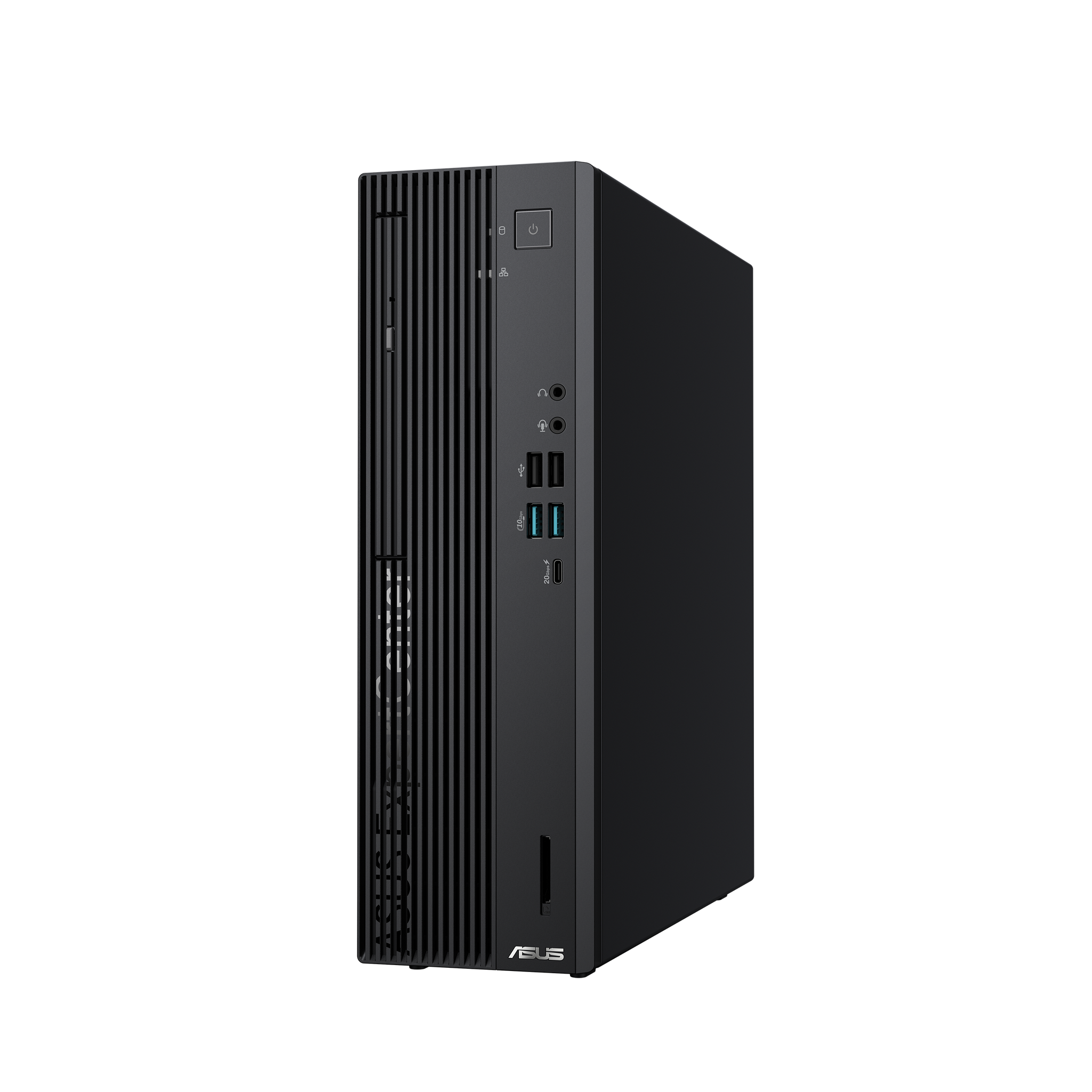

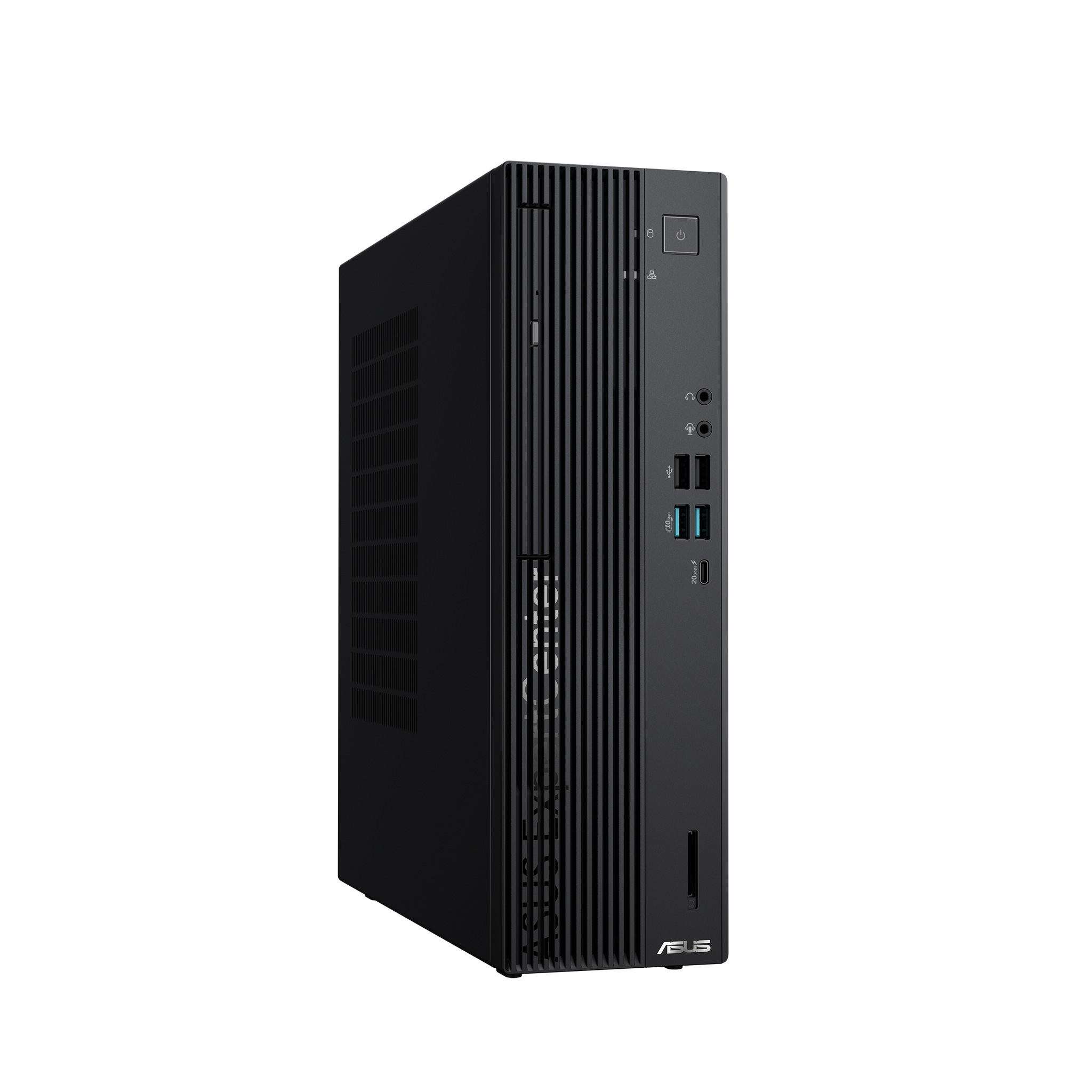

The ASUS ExpertCenter D7 SFF D700SF-005225109X (90PF05E1-M01N80) is a small form factor business desktop based on the Intel Core Ultra 5 225 processor with an integrated Intel AI Boost NPU, paired with 16GB of DDR5 U-DIMM memory, a 512GB M.2 NVMe PCIe 4.0 SSD and Windows 11 Pro. It is built on the Intel B860 chipset in the same 8.6-litre, 9.3 x 29.6 x 30.9 cm black chassis format used across the ExpertCenter D7 SFF line, and ASUS states the D700 SFF is 10% smaller than the previous generation.
Core Ultra 5 225 Processor
The Intel Core Ultra 5 225 runs at a 3.3GHz base clock and boosts up to 4.9GHz, with 10 cores / 10 threads and 20MB of Intel Smart Cache. Graphics are handled by the integrated Intel Graphics. That is a comfortable fit for the typical business day: office suites, many browser tabs, video meetings, accounting and ERP clients, and background sync and security tools running at the same time. The Intel AI Boost NPU can take on supported on-device AI workloads, and ASUS preloads AI ExpertMeet for meeting features (ASUS notes its AI features need 12GB of RAM or more, which this 16GB configuration meets).
16GB DDR5, Expandable to 128GB
16GB of DDR5 U-DIMM memory is installed, with 4 U-DIMM slots supporting up to 128GB in total. The modules are rated 5600 MT/s; actual memory speed is set by the processor. Storage is a 512GB M.2 2280 NVMe PCIe 4.0 SSD, with an additional M.2 2230 storage connector, four SATA 6.0Gb/s ports and both a 2.5-inch and a 3.5-inch drive bay available for expansion.
Display Outputs and PCIe Expansion
Video output is via HDMI 1.4, DisplayPort 1.4 and VGA on the rear panel. Internally there is one PCIe 4.0 x16 slot and 1x PCIe 3.0 x1 slot, so a graphics card, extra network adapter or other add-in card can be fitted later. ASUS offers the ExpertCenter D-series SFF with optional professional NVIDIA graphics; this part number ships with integrated Intel Graphics.
Connectivity, Security and Compliance
Networking is Intel I219-V Gigabit Ethernet plus Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4. Security features include discrete TPM 2.0, HDD user password protection, a Kensington security slot and a padlock loop. The system is EPEAT Silver registered, ENERGY STAR 9.0 qualified, and RoHS and REACH compliant.
Ready for Business Deployment
Windows 11 Pro is preinstalled for domain join, Intune or Group Policy management and BitLocker. MyASUS is preloaded for system diagnosis and fan profiles, together with ASUS Business Manager, and every unit ships with a wired USB keyboard and mouse. A consistent chassis and BIOS across the ExpertCenter D7 SFF range make it straightforward for an IT team to image and roll out the same configuration across a department or branch office.
3 Years Onsite Warranty and Local Supply
SourceIT supplies the ASUS D700SF-005225109X (90PF05E1-M01N80) with a GST invoice. ASUS covers this model with a 3-year onsite warranty, so a hardware fault is handled at your premises. For volume quotes, configuration questions or lead times, email sales@sourceit.com.sg quoting 90PF05E1-M01N80.
ASUS D700SF-005225109X Datasheet — Technical Specifications
General
| Product Name | ASUS ExpertCenter D7 SFF (D700SF) |
| Part Number (SKU) | 90PF05E1-M01N80 |
| Model | D700SF-005225109X |
| EAN | 4711636698887 |
| Form Factor | Small form factor (SFF) desktop, 8.6L |
| Colour | Black |
| Operating System | Windows 11 Pro |
| Warranty | 3 Years Onsite Service (ASUS) |
Processor & Graphics
| Processor | Intel Core Ultra 5 225, 3.3GHz base, up to 4.9GHz |
| Cores / Threads | 10 cores / 10 threads |
| Cache | 20MB |
| Neural Processor | Intel AI Boost NPU |
| Chipset | Intel B860 Chipset |
| Graphics | Intel Graphics (integrated) |
| CPU Cooler | Air cooler |
Memory & Storage
| Memory Installed | 16GB DDR5 U-DIMM |
| Memory Speed | DDR5-5600 modules; actual memory speed is set by the processor. |
| Memory Slots / Maximum | 4 x DDR5 U-DIMM slots, up to 128GB |
| Storage | 512GB M.2 2280 NVMe PCIe 4.0 SSD |
| Drive Bays | 2.5-inch x 1, 3.5-inch x 1 |
| SATA | 4x SATA 6.0Gb/s ports |
| Optical Drive | None |
Ports & Connectivity

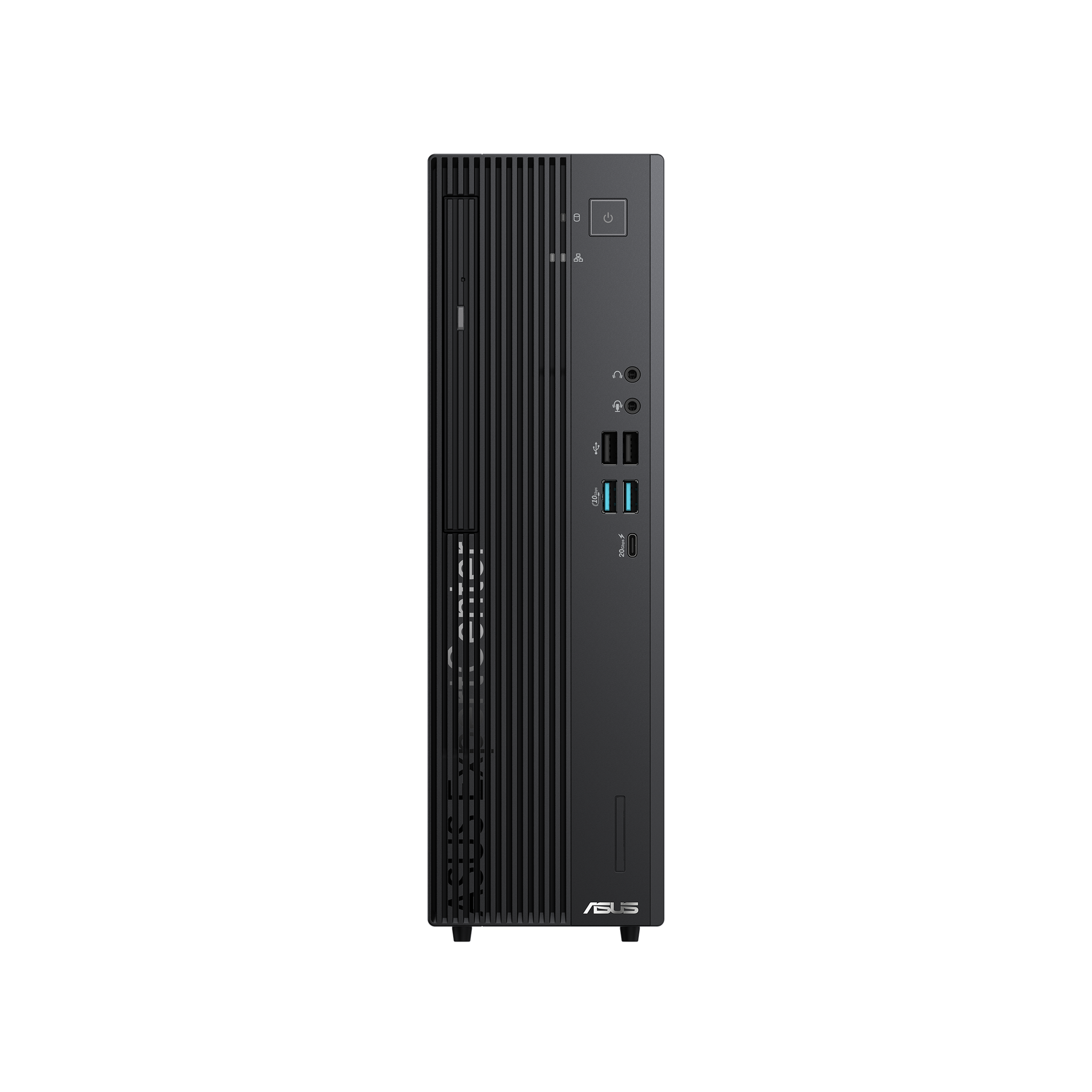

| Front I/O | 1x Headphone; 1x 3.5mm combo audio jack; 2x USB 2.0 Type-A (480 Mbps); 2x USB 3.2 Gen 2 Type-A (10 Gbps); 1x USB 3.2 Gen 2x2 Type-C (20 Gbps) |

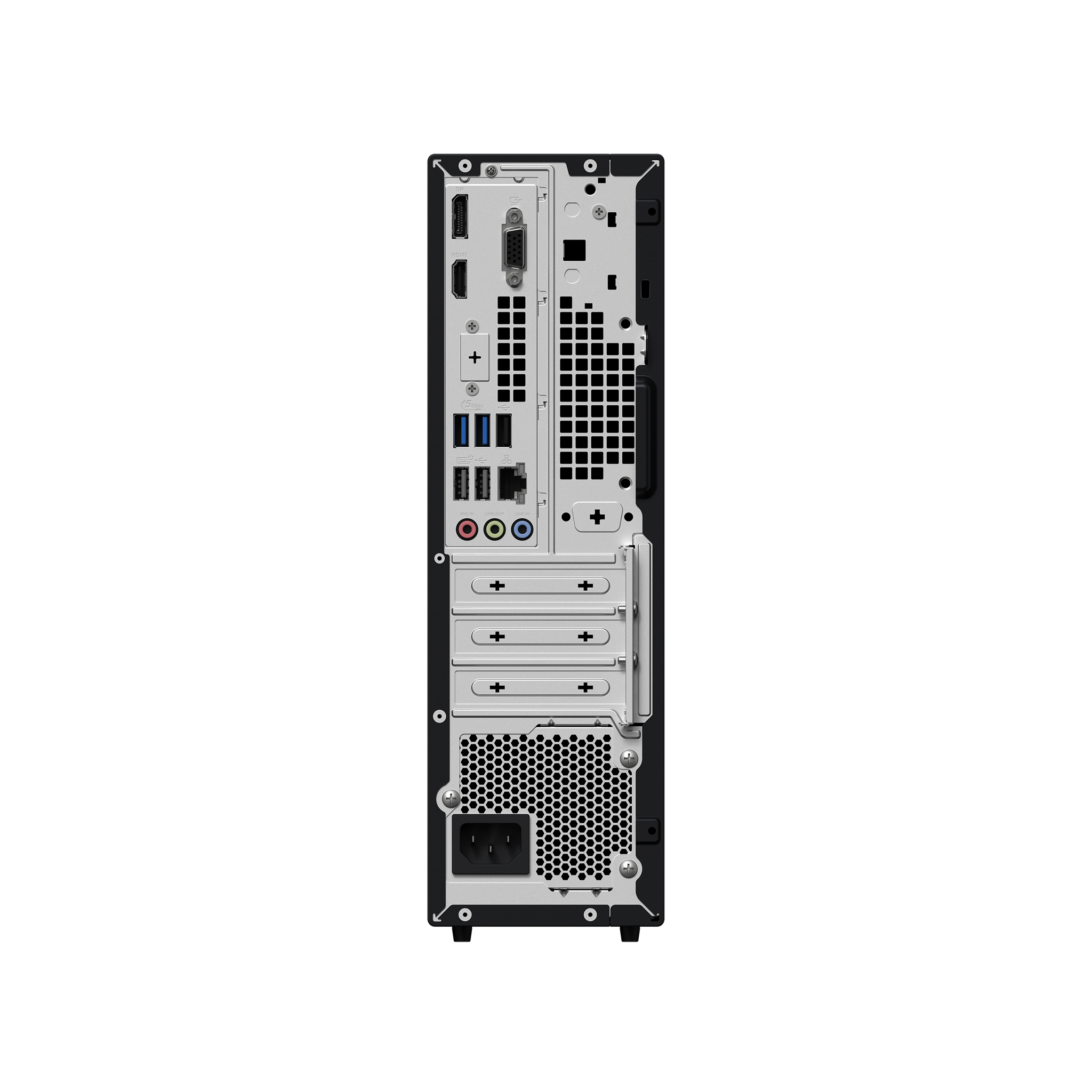

| Rear I/O | 1x RJ45 Gigabit Ethernet; 1x HDMI 1.4; 1x VGA Port; 1x Displayport 1.4; 1x 7.1 channel audio (microphone, line-out, Line-in); 1x Kensington lock; 1x Padlock loop; 3x USB 2.0 Type-A (480 Mbps); 2x USB 3.2 Gen 1 Type-A (5 Gbps) |
| Expansion Slots (incl. used) | 1x PCIe 4.0 x 16; 1x PCIe 3.0 x 1; 1x M.2 2230 connector for storage; 1x M.2 connector for WiFi; 1x M.2 2280 connector for storage; 4x DDR5 U-DIMM slot |
| Ethernet | Intel I219-V 10/100/1000 Mbps (non-vPro) |
| Wireless | Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4 |
| Audio | High Definition 7.1-channel audio |
Power
| Power Supply | 180W, 80 PLUS Bronze, 228W peak |
Physical
| Dimensions (W x D x H) | 9.3 x 29.6 x 30.9 cm (3.66 x 11.65 x 12.17 in) |
| Weight | 5.00 kg |
| Volume | 8.6 litres |
Security & Software
| Security | Discrete TPM 2.0, Padlock loop, Kensington Security Slot(7 x 3mm), HDD User Password Protection and Security |
| Antivirus | McAfee, 3 years |
| Preloaded Software | MyASUS (system diagnosis, fan profile), ASUS Business Manager, AI ExpertMeet |
| Eco Labels & Compliance | EPEAT Silver, ENERGY STAR 9.0, REACH, RoHS, 65% PCR recycled plastic front bezel |
Package Contents

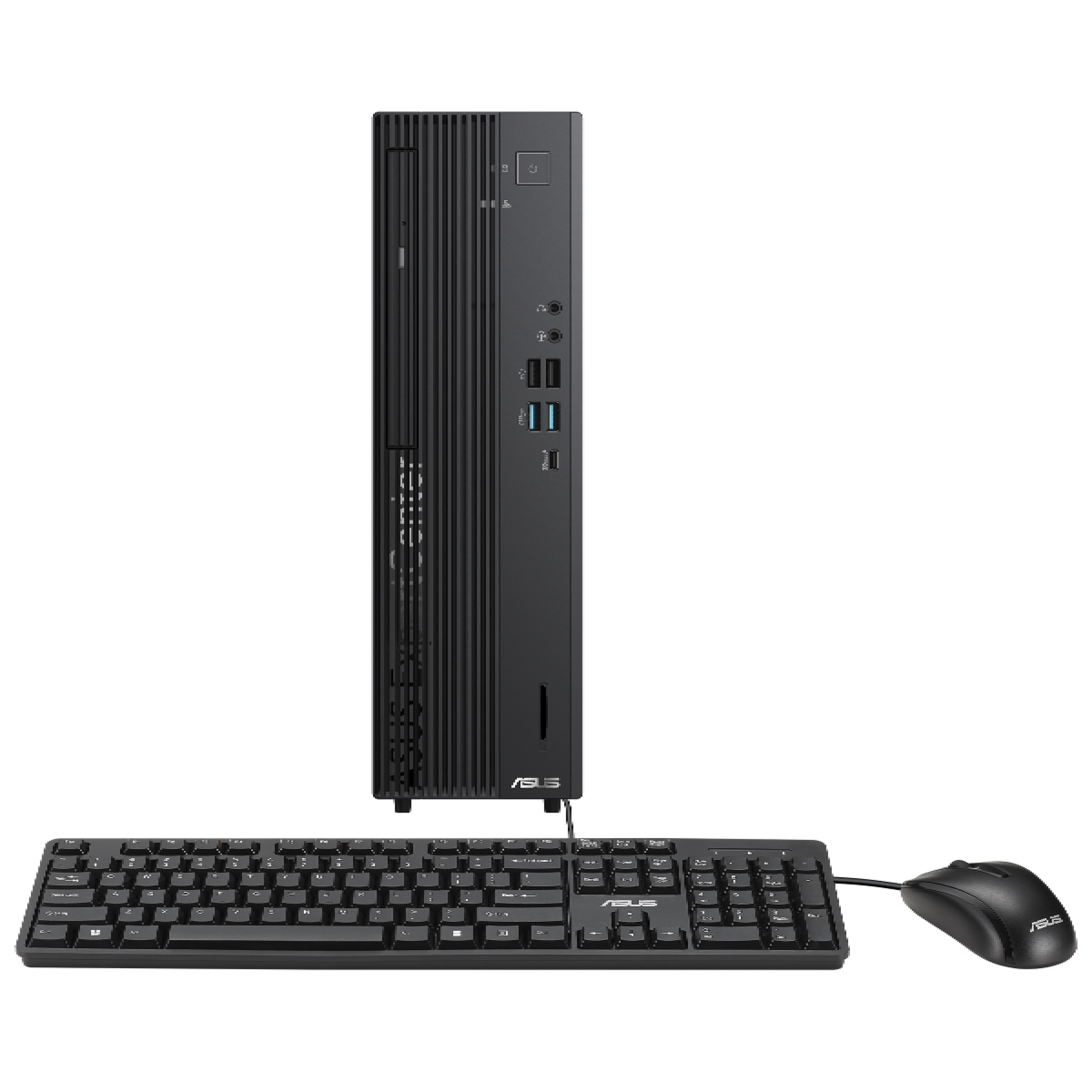

| In the Box | Desktop unit, AC power cord, wired USB keyboard (English), wired USB optical mouse, documentation |
Connectivity, Setup & Expansion
Connecting Displays
The rear panel provides HDMI 1.4, DisplayPort 1.4 and VGA from the integrated graphics. VGA keeps older projectors and monitors usable without an adapter, while HDMI and DisplayPort suit current business displays.
USB and Peripherals
Front: 1 x Headphone, 1 x 3.5mm combo audio jack, 2 x USB 2.0 Type-A (480 Mbps), 2 x USB 3.2 Gen 2 Type-A (10 Gbps), 1 x USB 3.2 Gen 2x2 Type-C (20 Gbps). Rear: 3 x USB 2.0 Type-A (480 Mbps), 2 x USB 3.2 Gen 1 Type-A (5 Gbps). That leaves room for a keyboard, mouse, headset, webcam and USB storage without a hub.
Networking
Intel I219-V Gigabit Ethernet (non-vPro) on RJ45 is the recommended default for a fixed desk. Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4 on a dedicated M.2 Wi-Fi slot covers wireless connections and Bluetooth peripherals.
Memory and Storage Upgrades
4 DDR5 U-DIMM slots take memory from 16GB to a maximum of 128GB. The free M.2 2230 storage connector, four SATA 6.0Gb/s ports and the 2.5-inch and 3.5-inch bays allow additional drives without replacing the boot SSD.
Expansion Slots
1x PCIe 4.0 x 16; 1x PCIe 3.0 x 1; 1x M.2 2230 connector for storage; 1x M.2 connector for WiFi; 1x M.2 2280 connector for storage; 4x DDR5 U-DIMM slot. Check card dimensions and power draw against the 180W (228W peak) power supply and small form factor chassis before ordering an add-in card; we can advise on compatible options.
Security Features
Discrete TPM 2.0, HDD user password protection, Kensington security slot and a padlock loop. Windows 11 Pro adds BitLocker drive encryption and Windows Hello support for compatible peripherals.
Package Contents & Ordering Information
In the Box
Desktop unit, AC power cord, wired USB keyboard (English), wired USB optical mouse, documentation.
Ordering Information
| Part Number | 90PF05E1-M01N80 |
| Model | D700SF-005225109X |
| EAN | 4711636698887 |
| Warranty | 3 Years Onsite Service |
Related Range: ExpertCenter D7 SFF (D701SER)
The D700SF shares its chassis format, four-slot 128GB memory layout and I/O with the Intel 14th Gen ExpertCenter D7 SFF D701SER range. Choose the D700SF for the newer Intel Core Ultra (Series 2) platform with NPU, B860 chipset and discrete TPM 2.0; choose the D701SER for Intel Core i5/i7 14th Gen configurations.
For quotes, volume pricing or delivery lead times, email sales@sourceit.com.sg quoting 90PF05E1-M01N80.
Datasheet & Downloads
Official ASUS Singapore pages for this model:
| Product overview | ASUS ExpertCenter D7 SFF (D700SF) — Overview |
| Technical specifications | ASUS ExpertCenter D7 SFF (D700SF) — Tech Specs |
| Drivers & support | ASUS ExpertCenter D7 SFF (D700SF) — Driver & Tools |
The ASUS specification page covers every configuration of the D700SF range; the datasheet above reflects this specific part number (90PF05E1-M01N80).
Frequently Asked Questions — ASUS D700SF-005225109X
Is this a complete system ready to use?
Yes. The D700SF-005225109X ships with the Intel Core Ultra 5 225, 16GB DDR5, a 512GB NVMe SSD, Windows 11 Pro, and a wired USB keyboard and mouse. Connect a monitor and it is ready to set up.
What warranty does it come with?
ASUS covers this model with a 3-year onsite service warranty. SourceIT supplies it with a GST invoice.
How much memory can it take?
4 DDR5 U-DIMM slots support up to 128GB in total; 16GB is installed.
How many monitors can I connect?
The integrated graphics drive 3 rear outputs: HDMI 1.4, DisplayPort 1.4 and VGA, one monitor per port. A graphics card in the PCIe 4.0 x16 slot can add more outputs.
Can I add a graphics card?
Yes, there is a PCIe 4.0 x16 slot. In a small form factor chassis with a 180W power supply, choose a card that fits the chassis and power budget; email us and we will advise on compatible options. This part number ships with integrated graphics only.
Does it have Wi-Fi?
Yes, Wi-Fi 6E (802.11ax) tri-band 2x2 + Bluetooth 5.4, alongside Intel Gigabit Ethernet.
What is the difference between the D700SF and the D701SER?
Both use the same 8.6L chassis format, memory layout and I/O. The D700SF uses Intel Core Ultra (Series 2) processors with an Intel AI Boost NPU on the B860 chipset with discrete TPM 2.0; the D701SER uses Intel Core 14th Gen processors on the B760 chipset with firmware TPM.
Is TPM 2.0 included for Windows 11 and BitLocker?
Yes. This model has a discrete TPM 2.0 chip, which supports Windows 11 Pro security features such as BitLocker.
