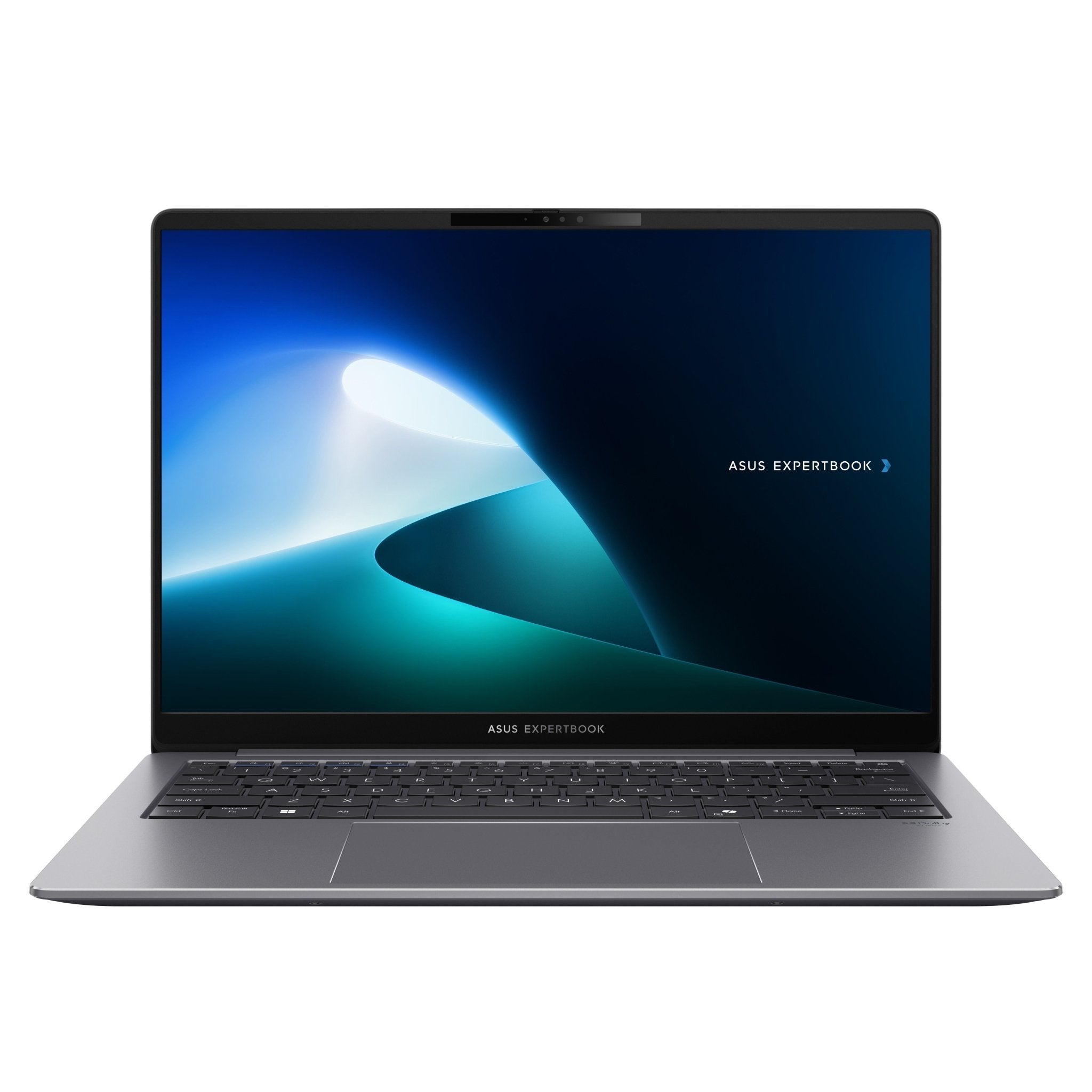

ASUS ExpertBook P5 P5405CSA-NZ0211X U7-258V/32GB/1TB SSD
PRODUCT DESCRIPTION
ASUS ExpertBook P5 P5405CSA-NZ0211X (90NX0861-M008J0) - 3 Years International Warranty
A Copilot+ Generation Business Laptop, Not a Configuration of the P1 or P3
The ASUS ExpertBook P5 P5405CSA-NZ0211X is built on a genuinely different platform from the P1403CVA, P1503CVA and P3405CVA models elsewhere in our ExpertBook P-series catalogue: an Intel Core Ultra (7 258V, Series 2, codename "Lunar Lake") processor rather than a 13th Gen Intel Core H-series chip. It pairs the 7 258V with 32GB of on-package LPDDR5X memory and a 1TB PCIe 4.0 NVMe SSD, ships with Windows 11 Pro preinstalled, and is a Microsoft-certified Copilot+ PC — a distinction none of the P1 or P3 models in our range carry.
At a starting weight around 1.27 kg and finished in Misty Grey, it is noticeably lighter than the P1403CVA despite the larger, sharper display, and carries the same US MIL-STD 810H durability testing as the rest of the ExpertBook P-series.
14-Inch WQXGA Display: Sharper Than the P1403, P1503 or P3405 Range
The panel is a 14-inch WQXGA (2560 x 1600) IPS display in a 16:10 aspect ratio, anti-glare, rated at 400 nits with 100% sRGB colour coverage, in a 90% screen-to-body bezel — meaningfully sharper and brighter than the Full HD panels on the P1403/P1503 range or the WUXGA panel on the P3405CVA, and with full sRGB coverage rather than the 45% NTSC gamut those ranges are rated for. This is the panel to choose where colour accuracy for presentations, design review or photo work matters, not just document and browser work.
Intel Core Ultra 7 258V: On-Device AI with a 47-TOPS NPU
The 7 258V is a 2.2 GHz base, up to 4.8 GHz, 12 MB cache, 8 cores, 8 threads. Unlike the 13th Gen Intel chips in the P1 and P3 ranges, this processor integrates a Neural Processing Unit rated at 47 TOPS for on-device AI — comfortably above Microsoft's 40-TOPS threshold for Copilot+ PC certification, enabling on-device Copilot+ features such as Recall and Live Captions with real-time translation to run locally rather than in the cloud. Graphics are handled by the integrated Intel Arc 140V Graphics, a genuine step up from the Intel UHD Graphics on the P1/P3 range for light content work and multi-display setups, though still not a substitute for a discrete workstation GPU.
32GB LPDDR5X Memory (Soldered) and 1TB PCIe 4.0 SSD
Memory on this range is 32GB of LPDDR5X, mounted on-package rather than in a removable SO-DIMM — a genuine trade-off against the P1/P3 range, where memory is user-upgradeable. LPDDR5X in this configuration is faster and more power-efficient than the DDR5 SO-DIMMs in the older-generation models, contributing to the P5405CSA's Copilot+ battery life, but it means the capacity ordered is the capacity for the life of the machine — order the size the role actually needs. Storage is a 1TB M.2 NVMe PCIe 4.0 SSD, with a second M.2 2230 slot free for expansion.
1080p IR Webcam, TPM 2.0 and Microsoft Pluton Security
Security on the P5405CSA goes further than the P1/P3 range: a 1080p FHD IR camera supports facial recognition sign-in through Windows Hello (in addition to the fingerprint sensor built into the power key on this chassis, rather than the trackpad), and the platform adds a Microsoft Pluton security processor alongside the standard TPM 2.0 and Intel Boot Guard/BIOS Guard — a more current security architecture than the discrete-TPM-only design of the older P1/P3 range. A physical camera privacy shutter and Kensington Nano Security Slot round out physical security.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ExpertBook P5405CSA P5405CSA-NZ0211X with a full GST invoice and local Singapore support. ASUS backs this model with a 3-year international warranty that includes local carry-in and onsite service in Singapore, so a hardware fault is generally resolved without shipping the unit overseas.
Comparing this against the 5 226V configuration (P5405CSA-NZ0212X) in the same P5405CSA range, or the 13th Gen Intel ExpertBook P1/P3 range in our catalogue? Email sales@sourceit.com.sg with your budget and workload and we will help you pick the right configuration.
ASUS P5405CSA-NZ0211X Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ExpertBook P5 P5405CSA-NZ0211X |
| Part Number (PN) | P5405CSA-NZ0211X |
| Internal Item Code | 90NX0861-M008J0 |
| Range | ASUS ExpertBook P5-series, P5405 chassis, Intel Core Ultra (Series 2, "Lunar Lake") |
| Form Factor | 14-inch business laptop, Copilot+ PC certified |
| Operating System | Windows 11 Pro (preinstalled) |
| Manufacturer Warranty | 3 Years International Warranty with Local Carry-in & Onsite Service (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Screen Size | 14.0-inch, 16:10 |
| Resolution | WQXGA, 2560 x 1600 |
| Panel Type | IPS, anti-glare LED-backlit |
| Brightness | 400 nits |
| Colour Gamut | 100% sRGB |
| Screen-to-Body Ratio | 90% |
| Touch | Not touch-enabled |
Processor & Graphics
| Processor | Intel Core Ultra 7 258V, 2.2 GHz base, up to 4.8 GHz, 12 MB cache, 8 cores, 8 threads |
| Neural Processing Unit (NPU) | Intel AI Boost, up to 47 TOPS |
| Graphics | Intel Arc 140V Graphics (integrated) |
| Chipset | Integrated (SoC platform) |
Memory & Storage
| Memory Installed | 32GB LPDDR5X, on-package |
| Memory Upgradeable | No — LPDDR5X is on-package and soldered on this chassis; order the capacity you need |
| Primary Storage | 1TB M.2 2280 NVMe PCIe 4.0 SSD |
| Storage Expansion | 1 x free M.2 2230 PCIe 4.0 slot |

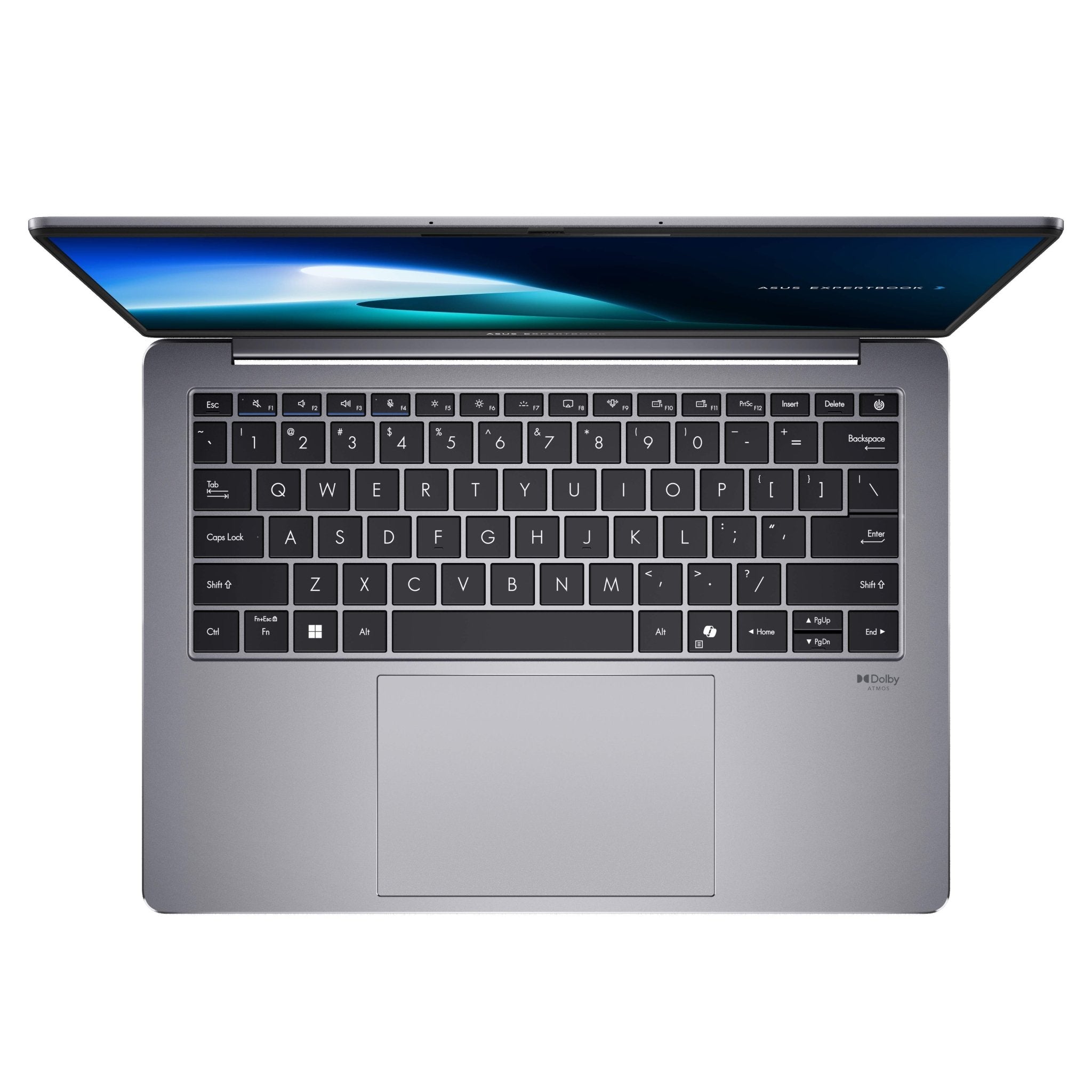

Keyboard & Trackpad
| Keyboard | Backlit chiclet keyboard, 1.5mm key travel, spill-resistant |
| Trackpad | Clickpad with multi-touch gesture support (fingerprint sensor is integrated into the power key on this range, not the trackpad) |

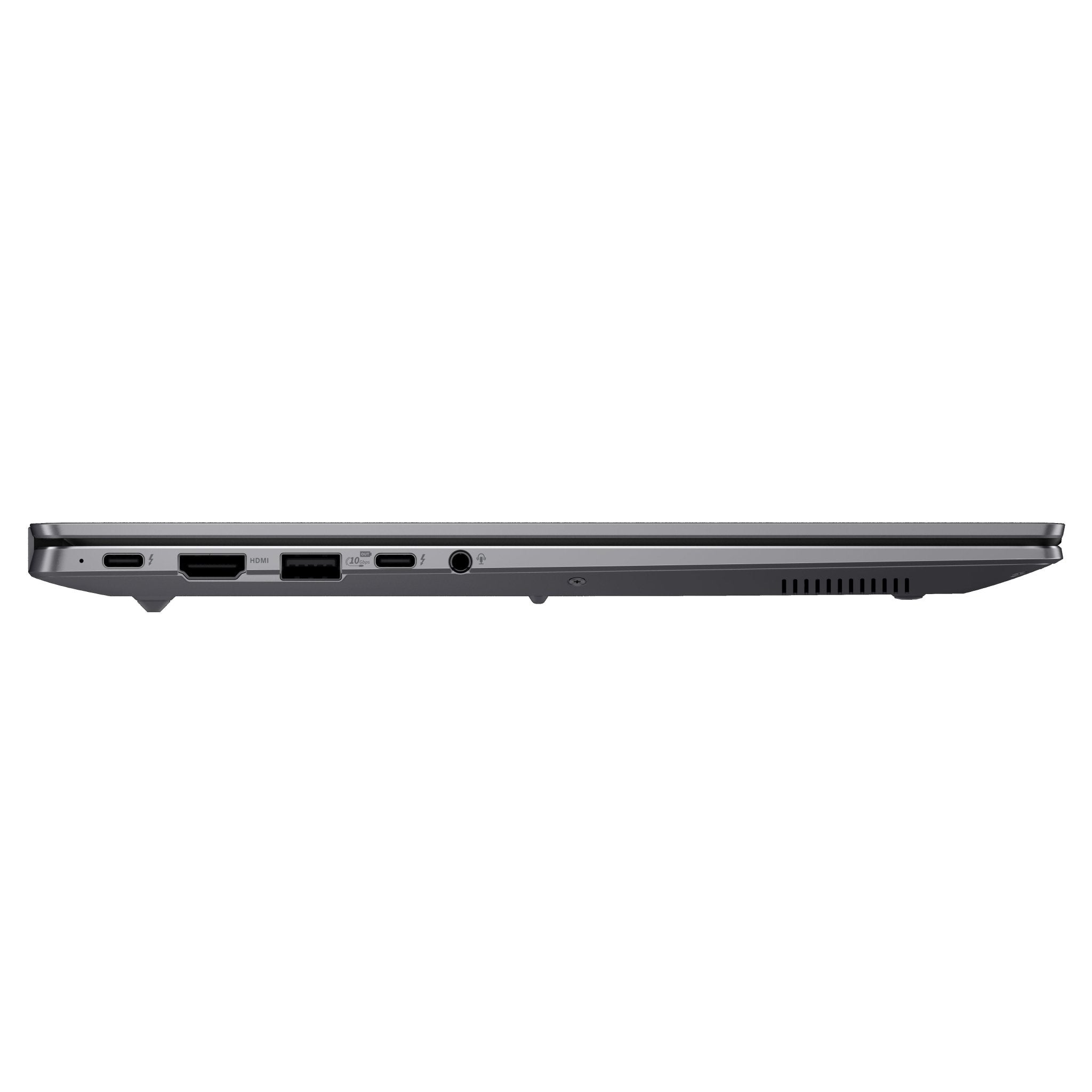

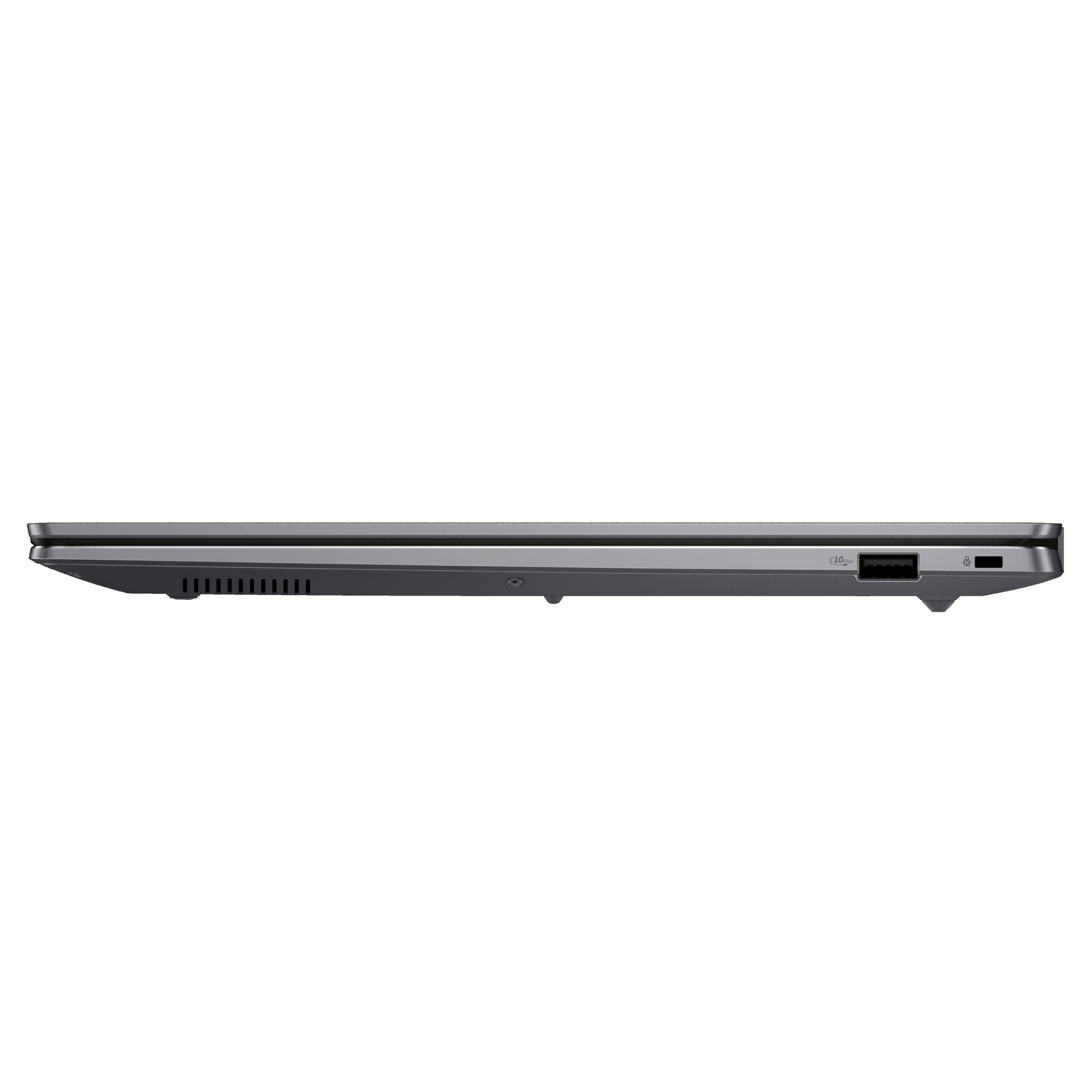

Ports & Connectivity
| USB Type-C / Thunderbolt | 2 x Thunderbolt 4, USB4-compliant, DisplayPort & Power Delivery |
| USB Type-A | 2 x USB 3.2 Gen 2 Type-A |
| Video Output | 1 x HDMI 2.1 |
| Audio | 1 x 3.5 mm combo audio jack |
| Wireless LAN | Wi-Fi 6E (802.11ax), dual band, 2x2 |
| Bluetooth | Bluetooth 5.3 |
| Webcam | 1080p FHD IR camera for Windows Hello, with privacy shutter |
| Note | This chassis does not carry a built-in RJ45 port — use the Thunderbolt 4 ports with a USB-C-to-Ethernet adapter or dock for wired LAN |
Battery & Power
| Battery | 63 WHrs, 3-cell lithium-ion |
| Power Adapter | 65 W USB-C AC adapter (20V DC, 3.25A) |
Physical & Build
| Dimensions (W x D x H) | 31.20 x 22.32 x 1.49~1.64 cm |
| Net Weight | Starting from 1.27 kg |
| Durability | US MIL-STD 810H military-grade testing (shock, vibration, temperature, humidity, altitude) |
| Colour | Misty Grey |
Security
| TPM | TPM 2.0, discrete/firmware |
| Biometric | Fingerprint sensor for Windows Hello |
| Webcam Privacy | Physical camera shutter |
| Physical Lock | Kensington Nano Security Slot |
| Facial Recognition | 1080p FHD IR camera for Windows Hello |
| Security Processor | Microsoft Pluton, plus Intel Boot Guard and Intel BIOS Guard |
| Package Contents | Laptop, AC power adapter, power cord, user documentation, warranty card |
Connectivity & Setup / Security Features
Connecting Peripherals and Displays
Both ports are Thunderbolt 4, USB4-compliant, and support DisplayPort and Power Delivery — a step up from the USB 3.2 Gen 2 Type-C ports on the P1/P3 range in both bandwidth and display-daisy-chain support. The two USB 3.2 Gen 2 Type-A ports and the HDMI 2.1 output round out the set. This chassis has no built-in RJ45 Ethernet port — unlike every P1/P3 model in our catalogue, wired networking on the P5405CSA needs a USB-C-to-Ethernet adapter or a Thunderbolt dock; ask us if you need one bundled.
Wireless Networking
Wi-Fi 6E (802.11ax), dual band, 2x2, paired with Bluetooth 5.3 for headsets, mice and other peripherals. ASUS documents a Wi-Fi 7 option on some P5405CSA builds; this configuration is Wi-Fi 6E — confirm with us at order time if Wi-Fi 7 is a requirement.
Windows Hello: Fingerprint and Facial Recognition Together
This chassis offers two biometric sign-in methods: the fingerprint sensor, integrated into the power key rather than the trackpad, and the 1080p IR camera for Windows Hello facial recognition — enrol either or both in Windows Hello for a fast, secure login. The TPM 2.0 and Microsoft Pluton security processor together store BitLocker recovery keys and platform integrity measurements in hardware, meeting the security baseline most Singapore corporate IT policies require before a device is allowed to hold company data.
Copilot+ Features and On-Device AI
The 47-TOPS NPU clears Microsoft's 40-TOPS Copilot+ PC threshold, so on-device features such as Recall, Live Captions with real-time translation and Cocreator run locally on this hardware rather than depending on a cloud connection — a genuine capability difference from the P1403/P1503/P3405 range, none of which carry a Copilot+ certified NPU.
Webcam Privacy and Physical Security
The camera privacy shutter is a mechanical slide that physically blocks the lens, so no malware or misconfigured app can activate the camera without the user's knowledge — this applies even with the IR facial-recognition function present. The Kensington Nano Security Slot accepts a standard cable lock for hot-desking or unattended demo use.
Package Contents & Ordering Information
In the Box
ASUS ExpertBook P5405CSA-NZ0211X laptop, 65 W USB-C AC power adapter and power cord, quick-start user documentation, warranty card. No mouse and no USB-C-to-Ethernet adapter are included as standard.
Related ExpertBook P1, P3 and P5 Models in Our Catalogue
SourceIT carries several other ExpertBook P-series configurations alongside this one. All are current commercial ASUS ExpertBook laptops for the Singapore market — email sales@sourceit.com.sg quoting the part number to check stock and lead time.
| P5405CSA-NZ0211X (this listing) | Intel Core Ultra 7 258V — 32GB LPDDR5X / 1TB SSD — 14" WQXGA |
| P5405CSA-NZ0212X | Intel Core Ultra 5 226V — 16GB LPDDR5X / 512GB SSD — 14" WQXGA |
| P1403CVA-S60490X | Intel Core i5-13420H — 16GB DDR5 / 512GB SSD — 14" FHD |
| P1403CVA-S60250X | Intel Core i7-13620H — 16GB DDR5 / 512GB SSD — 14" FHD |
| P1503CVA-S71084X | Intel Core i7-13620H — 16GB DDR5 / 1TB SSD — 15.6" FHD |
| P1503CVA-S71085X | Intel Core i7-13620H — 16GB DDR5 / 512GB SSD — 15.6" FHD |
| P3405CVA-LY0092X | Intel Core i7-13620H — 16GB DDR5 / 1TB SSD — 14" WUXGA |
| P3405CVA-LY0097X | Intel Core i7-13620H — 32GB DDR5 / 1TB SSD — 14" WUXGA |
Why the P5405CSA Costs More Than the P1/P3 Range
The P5405CSA is a newer processor generation (Intel Core Ultra Series 2, "Lunar Lake") with a Copilot+ certified NPU, a sharper 100% sRGB WQXGA display, Thunderbolt 4 ports and a lighter chassis — genuine platform differences from the 13th Gen Intel P1403CVA, P1503CVA and P3405CVA, not just a memory or storage bump. The trade-off is soldered, non-upgradeable memory and no built-in Ethernet port. Email us your workload and whether on-device AI or wired networking matters more to your fleet, and we will help you choose.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model family. The links below are ASUS's current Singapore pages for the P5405 chassis.
| ASUS Singapore product page | ASUS ExpertBook P5 (P5405) — Overview |
| ASUS Singapore specifications page | ASUS ExpertBook P5 (P5405) — Full Specifications |
For the PDF datasheet, user manual or driver downloads specific to the P5405CSA-NZ0211X configuration, email sales@sourceit.com.sg quoting P5405CSA-NZ0211X (internal code 90NX0861-M008J0) and we will send you the current files directly.
Frequently Asked Questions — ASUS P5405CSA-NZ0211X
Is this a Copilot+ PC?
Yes. The 47-TOPS Intel AI Boost NPU clears Microsoft's 40-TOPS Copilot+ PC threshold, enabling on-device Copilot+ features. None of the 13th Gen Intel P1403CVA, P1503CVA or P3405CVA models in our catalogue meet this threshold.
Can the memory or storage be upgraded after purchase?
Storage yes, via the free M.2 2230 slot. Memory no — the 32GB of LPDDR5X is mounted on-package and soldered on this chassis, unlike the P1/P3 range, so order the memory capacity your role actually needs.
Does it have a built-in Ethernet port?
No. Unlike every P1/P3 model in our catalogue, the P5405CSA chassis has no RJ45 port — use a USB-C-to-Ethernet adapter or a Thunderbolt dock for wired networking. Ask us if you need one bundled with your order.
What is the difference between this and the P5405CSA-NZ0212X configuration in your range?
This listing runs the Intel Core Ultra 7 258V with 32GB of memory and 1TB of storage; the P5405CSA-NZ0212X runs the Intel Core Ultra 5 226V with 16GB and 512GB. Display, chassis, ports and battery are otherwise identical.
How does this compare with the ExpertBook P1403CVA or P3405CVA in your catalogue?
The P5405CSA is a newer processor generation (Intel Core Ultra Series 2 versus 13th Gen Intel Core), with a Copilot+ certified NPU, a sharper 100% sRGB WQXGA display, Thunderbolt 4 in place of USB 3.2 Gen 2 Type-C, and a lighter chassis. The trade-offs are soldered memory rather than upgradeable SO-DIMMs and no built-in Ethernet port, both of which the P1/P3 range has.
Does it support facial recognition login as well as fingerprint?
Yes — this is the only range in our ExpertBook P-series catalogue with both. The 1080p FHD IR camera supports Windows Hello facial recognition, and a separate fingerprint sensor is integrated into the power key.
What graphics does it use?
Integrated Intel Arc 140V Graphics, built into the Core Ultra processor — a step up from the Intel UHD Graphics on the P1/P3 range for light content and creative work, though not a substitute for a discrete workstation GPU.
What durability testing has this laptop passed?
ASUS tests the ExpertBook P5405 chassis to the US MIL-STD 810H military standard, covering shock, vibration, extreme temperature, humidity and altitude — the same standard applied across the whole ExpertBook P-series.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ExpertBook P5405CSA-NZ0211X sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this model with a 3-year international warranty including local carry-in and onsite service.
