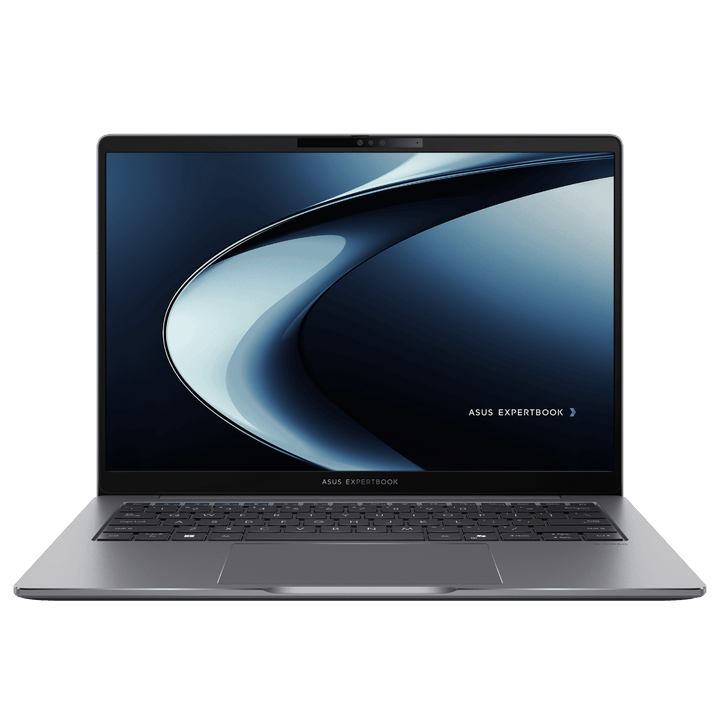

ASUS ExpertBook P3 P3405CVA-LY0092X i7/16GB/1TB SSD
PRODUCT DESCRIPTION
ASUS ExpertBook P3 P3405CVA-LY0092X (90NX08E1-M003H0) - 3 Years International Warranty
A 14-Inch Business Laptop with a Sharper 16:10 Display
The ASUS ExpertBook P3 P3405CVA-LY0092X is a 14-inch business laptop that sits a step above the P1403/P1503 range in our catalogue: the same 13th Gen Intel Core i7-13620H processor, but paired with a taller 16:10 WUXGA (1920 x 1200) display and, on this configuration, 16GB of DDR5 memory. It ships with Windows 11 Pro preinstalled and a 1 TB PCIe 4.0 NVMe SSD, aimed at professionals and small-office users who want more screen and more memory headroom without moving to the newer Core Ultra P5405 range.
At roughly 1.36 kg starting weight and finished in Misty Grey, the P3405CVA is built to the same US MIL-STD 810H durability standard as the rest of the ExpertBook P-series — genuinely useful for staff who travel between sites or work outside a controlled office.
14-Inch WUXGA Display: More Vertical Space Than a 16:9 Panel
The panel is a 14-inch WUXGA (1920 x 1200) IPS display in a 16:10 aspect ratio, anti-glare, rated at 300 nits with 45% NTSC colour coverage, in an 84% screen-to-body bezel. The extra vertical pixels over a standard 16:9 Full HD panel (1200 rows versus 1080) show more of a spreadsheet, document or web page at once before scrolling — a genuine, if modest, productivity difference for anyone working in Excel, Word or a browser most of the day, at the same 1920-pixel horizontal resolution as the P1403/P1503 range.
Intel Core i7-13620H: Ten Cores for Sustained Multitasking
The Core i7-13620H is a 2.4 GHz base, up to 4.9 GHz, 24 MB cache, 10 cores (6P+4E), 16 threads, built on Intel's hybrid performance/efficiency architecture — the same processor used in the i7 configurations of the P1403 and P1503 ranges. In practical terms, the Performance cores handle the foreground application you are actively typing into while the Efficient cores absorb background tasks — sync clients, antivirus scanning, browser tabs — without dragging down the cores doing your actual work. Graphics are handled by the integrated Intel UHD Graphics, sufficient for office use, video calls and dual external monitors, but not intended for gaming or GPU-accelerated creative work.
16GB DDR5 Memory and 1 TB PCIe 4.0 SSD
16GB of DDR5 memory is installed across two SO-DIMM slots, both user-accessible for an upgrade to a documented maximum of 64 GB. A 1 TB M.2 NVMe PCIe 4.0 SSD is fitted in the primary M.2 2280 slot, with a second M.2 2230 slot free for additional storage — ample headroom for large local file sets, virtual machines or a sizeable Outlook cache alongside the operating system and applications.
Fingerprint Reader, TPM 2.0 and a Physically Shuttered Webcam
Security covers the basics that matter for a corporate fleet: a fingerprint sensor integrated into the trackpad for Windows Hello login, a TPM 2.0 chip for hardware-backed encryption keys (required for BitLocker and Windows 11's own security baseline), and a physical camera privacy shutter that mechanically blocks the 720p webcam when not in use. A Kensington Nano Security Slot lets the unit be cable-locked to a desk in an open-plan office.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ExpertBook P3405CVA P3405CVA-LY0092X with a full GST invoice and local Singapore support. ASUS backs this model with a 3-year international warranty that includes local carry-in and onsite service in Singapore, so a hardware fault is generally resolved without shipping the unit overseas.
Comparing this against the 32GB memory configuration (P3405CVA-LY0097X) in the same P3405CVA chassis, or the standard ExpertBook P1403/P1503 range in our catalogue? Email sales@sourceit.com.sg with your budget and workload and we will help you pick the right configuration.
ASUS P3405CVA-LY0092X Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ExpertBook P3 P3405CVA-LY0092X |
| Part Number (PN) | P3405CVA-LY0092X |
| Internal Item Code | 90NX08E1-M003H0 |
| Range | ASUS ExpertBook P3-series, P3405 chassis, 13th Gen Intel |
| Form Factor | 14-inch business laptop |
| Operating System | Windows 11 Pro (preinstalled) |
| Manufacturer Warranty | 3 Years International Warranty with Local Carry-in & Onsite Service (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Screen Size | 14.0-inch, 16:10 |
| Resolution | WUXGA, 1920 x 1200 |
| Panel Type | IPS, anti-glare LED-backlit |
| Brightness | 300 nits |
| Colour Gamut | 45% NTSC |
| Screen-to-Body Ratio | 84% |
| Touch | Not touch-enabled |
Processor & Graphics
| Processor | Intel Core i7-13620H, 2.4 GHz base, up to 4.9 GHz, 24 MB cache, 10 cores (6P+4E), 16 threads |
| Graphics | Intel UHD Graphics (integrated) |
| Chipset | Integrated (SoC platform) |
Memory & Storage
| Memory Installed | 16GB DDR5 SO-DIMM |
| Memory Upgradeable | Yes — 2 x SO-DIMM slots, up to 64 GB total |
| Primary Storage | 1 TB M.2 2280 NVMe PCIe 4.0 SSD |
| Storage Expansion | 1 x free M.2 2230 PCIe 4.0 slot |
Keyboard & Trackpad
| Keyboard | Backlit chiclet keyboard, 1.5mm key travel, spill-resistant |
| Trackpad | Clickpad with multi-touch gesture support, fingerprint sensor integrated |
Ports & Connectivity
| USB Type-C | 2 x USB 3.2 Gen 2 Type-C, DisplayPort & Power Delivery |
| USB Type-A | 2 x USB 3.2 Gen 1 Type-A |
| Video Output | 1 x HDMI 2.1 |
| Wired LAN | 1 x RJ45 Gigabit Ethernet |
| Audio | 1 x 3.5 mm combo audio jack |
| Wireless LAN | Wi-Fi 6 (802.11ax), dual band, 2x2 |
| Bluetooth | Bluetooth 5.4 |
| Webcam | 720p HD camera with privacy shutter |
Battery & Power
| Battery | 50 WHrs, 3-cell lithium-ion |
| Power Adapter | 65 W USB-C AC adapter (20V DC, 3.25A) |
Physical & Build
| Dimensions (W x D x H) | 31.51 x 22.68 x 1.79~1.80 cm |
| Net Weight | Starting from 1.36 kg |
| Durability | US MIL-STD 810H military-grade testing (shock, vibration, temperature, humidity, altitude) |
| Colour | Misty Grey |
Security
| TPM | TPM 2.0, discrete/firmware |
| Biometric | Fingerprint sensor for Windows Hello |
| Webcam Privacy | Physical camera shutter |
| Physical Lock | Kensington Nano Security Slot |
| Package Contents | Laptop, AC power adapter, power cord, user documentation, warranty card |
Connectivity & Setup / Security Features
Connecting Peripherals and Displays
Both USB 3.2 Gen 2 Type-C ports on the P3405CVA support DisplayPort and Power Delivery, so either port can charge the laptop from a compatible USB-C charger or dock, and either can drive an external display. The two USB 3.2 Gen 1 Type-A ports and the HDMI 2.1 output — a step up from the HDMI 1.4 on the P1403/P1503 range — round out the set for mice, USB drives, docking hubs and a higher-bandwidth second monitor.
Wired and Wireless Networking
A Gigabit Ethernet (RJ45) port is built into the chassis, so a wired connection does not need a USB dongle. Wireless is Wi-Fi 6 (802.11ax), dual band, 2x2, paired with Bluetooth 5.4 for headsets, mice and other peripherals.
Setting Up Windows Hello and BitLocker
The trackpad-integrated fingerprint sensor and TPM 2.0 chip work together for a fast, secure login: enrol a fingerprint once in Windows Hello and users can unlock the laptop without typing a password each time, while the TPM stores BitLocker recovery keys in hardware rather than software, meeting the security baseline most Singapore corporate IT policies require before a device is allowed to hold company data. IT teams managing a fleet of these can push a standard BitLocker and Windows Hello policy through Intune or Group Policy at enrolment.
Webcam Privacy and Physical Security
The camera privacy shutter is a mechanical slide, not a software toggle — it physically blocks the 720p webcam lens, so no malware or misconfigured app can activate the camera without the user's knowledge. The Kensington Nano Security Slot accepts a standard cable lock, appropriate for hot-desking environments or exhibition and demo use where the laptop is left unattended briefly.
Package Contents & Ordering Information
In the Box
ASUS ExpertBook P3405CVA-LY0092X laptop, 65 W USB-C AC power adapter and power cord, quick-start user documentation, warranty card. No mouse is included as standard.
Related ExpertBook P1, P3 and P5 Models in Our Catalogue
SourceIT carries several other ExpertBook P-series configurations alongside this one. All are current commercial ASUS ExpertBook laptops for the Singapore market — email sales@sourceit.com.sg quoting the part number to check stock and lead time.
| P3405CVA-LY0092X (this listing) | Intel Core i7-13620H — 16GB DDR5 / 1TB SSD — 14" WUXGA |
| P3405CVA-LY0097X | Intel Core i7-13620H — 32GB DDR5 / 1TB SSD — 14" WUXGA |
| P1403CVA-S60490X | Intel Core i5-13420H — 16GB DDR5 / 512GB SSD — 14" FHD |
| P1403CVA-S60250X | Intel Core i7-13620H — 16GB DDR5 / 512GB SSD — 14" FHD |
| P1503CVA-S71084X | Intel Core i7-13620H — 16GB DDR5 / 1TB SSD — 15.6" FHD |
| P1503CVA-S71085X | Intel Core i7-13620H — 16GB DDR5 / 512GB SSD — 15.6" FHD |
| P5405CSA-NZ0212X | Intel Core Ultra 5 226V — 16GB LPDDR5X / 512GB SSD — 14" WQXGA |
| P5405CSA-NZ0211X | Intel Core Ultra 7 258V — 32GB LPDDR5X / 1TB SSD — 14" WQXGA |
Choosing Between the P1403, P1503, P3405 and P5405 Ranges
All four ranges share the ExpertBook P-series' MIL-STD 810H durability testing, TPM 2.0 and fingerprint login. The P1403 and P1503 are the entry 13th Gen Intel platform in 14-inch and 15.6-inch 16:9 chassis; this P3405 range uses the same processor generation but steps up to the taller 16:10 WUXGA display and higher memory ceilings; the P5405 is a newer generation again, built on Intel Core Ultra (Series 2, "Lunar Lake") processors with an NPU for on-device AI and a sharper WQXGA display, at a higher price point. Email us your budget and use case and we will match you to the right range.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model family. The links below are ASUS's current Singapore pages for the P3405 chassis.
| ASUS Singapore product page | ASUS ExpertBook P3 (P3405) — Overview |
| ASUS Singapore specifications page | ASUS ExpertBook P3 (P3405) — Full Specifications |
For the PDF datasheet, user manual or driver downloads specific to the P3405CVA-LY0092X configuration, email sales@sourceit.com.sg quoting P3405CVA-LY0092X (internal code 90NX08E1-M003H0) and we will send you the current files directly.
Frequently Asked Questions — ASUS P3405CVA-LY0092X
Is this suitable for a standard office fleet deployment?
Yes. Windows 11 Pro out of the box, TPM 2.0 and a fingerprint reader for corporate security policy compliance, and an ASUS 3-year international warranty with local carry-in and onsite service so fleet-wide support does not depend on couriering units overseas.
Can the RAM or storage be upgraded after purchase?
Yes — the P3405CVA uses two DDR5 SO-DIMM slots rather than soldered memory, upgradeable to a documented maximum of 64 GB, and a second M.2 2230 slot is free alongside the 1 TB primary drive for additional storage.
What is the difference between this and the P3405CVA-LY0097X configuration in your range?
Both use the identical Intel Core i7-13620H processor, 1 TB SSD, chassis, display and battery. The only difference is memory: this listing ships with 16GB, the P3405CVA-LY0097X with 32GB. Choose the higher-memory build for virtual machines, large datasets or heavy multi-application workloads.
How is this different from the ExpertBook P1403/P1503 in your catalogue?
Same processor generation (13th Gen Intel Core i7-13620H) and similar port layout, but the P3405CVA has a taller 16:10 WUXGA (1920 x 1200) display versus the P1403/P1503's 16:9 Full HD panel, an HDMI 2.1 output versus HDMI 1.4, and this configuration carries more memory than the standard P1403/P1503 builds.
Does it have a discrete graphics card?
No — graphics are handled by the integrated Intel UHD Graphics built into the processor, sufficient for office productivity, video conferencing and general multi-monitor use but not intended for gaming or GPU-accelerated rendering.
How does the physical webcam shutter work?
It is a mechanical slide built into the lid above the screen that physically covers the 720p webcam lens, so it cannot be bypassed by malware or an app requesting camera access without the user's knowledge.
Is Ethernet built in, or do I need a dongle?
A Gigabit RJ45 Ethernet port is built into the chassis, so no USB dongle is needed for a wired connection.
What durability testing has this laptop passed?
ASUS tests the ExpertBook P3405 chassis to the US MIL-STD 810H military standard, covering shock, vibration, extreme temperature, humidity and altitude.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ExpertBook P3405CVA-LY0092X sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this model with a 3-year international warranty including local carry-in and onsite service.
