ASUS ExpertBook BR1204FGA-R90185W N100/8GB/128G
PRODUCT DESCRIPTION
ASUS ExpertBook BR1204FGA-R90185W N100/8GB/128G (90NX07E1-M005Y0) - 1 Year Onsite Warranty

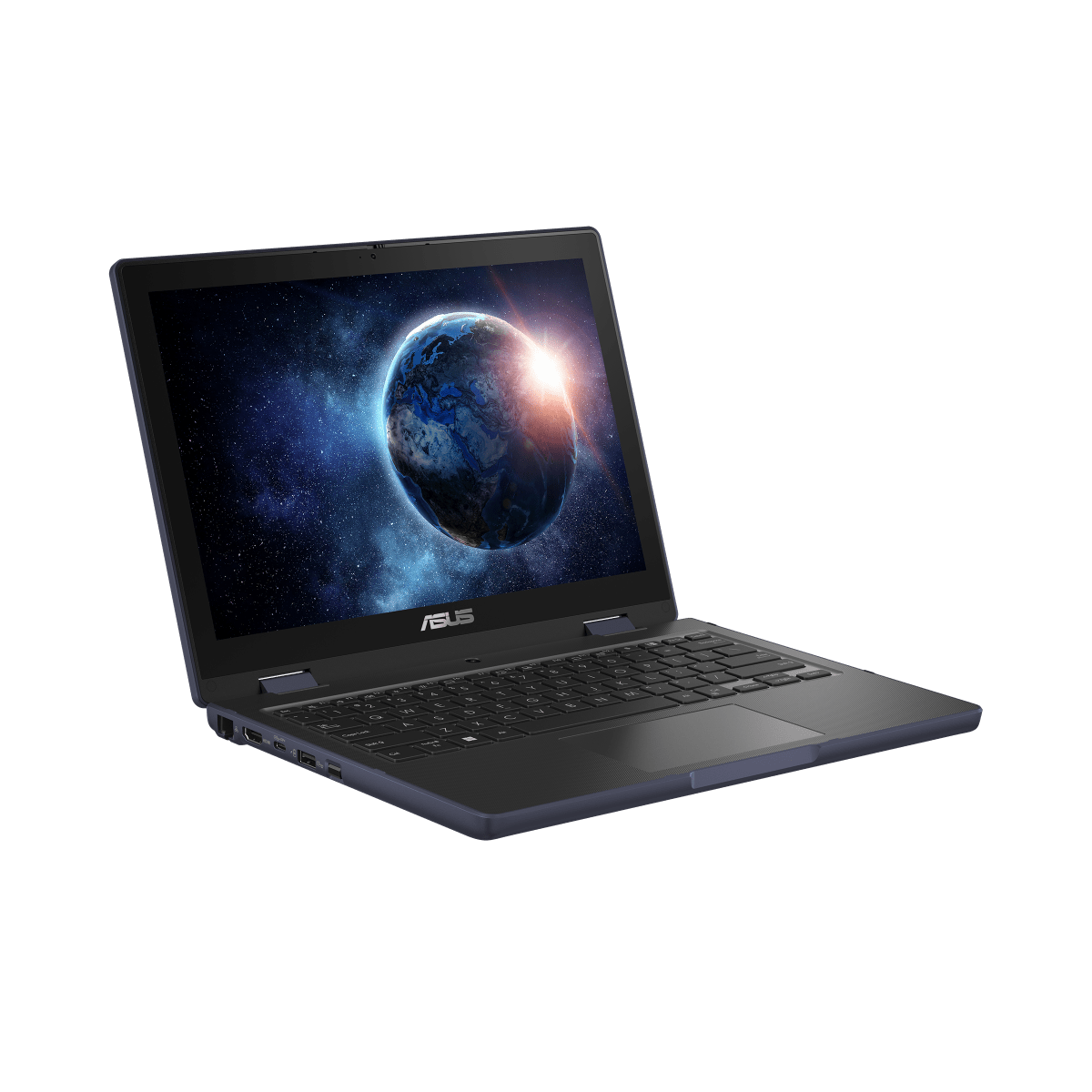

A Rugged Touchscreen Laptop Built for Education, Not the Business ExpertBook B-Series
The ASUS ExpertBook BR1204FGA-R90185W belongs to a different family from the ExpertBook B1, B5 and B9 business laptops in the rest of our catalogue. It is a 12.2-inch rugged laptop from ASUS's education-focused BR range, built around an Intel Processor N100, 8 GB of LPDDR5 memory and 128 GB of UFS storage, running Windows 11 Home rather than Windows 11 Pro. It suits schools, training centres and student device programmes that need a durable, budget-appropriate touchscreen laptop rather than a corporate fleet machine — do not deploy this alongside the B-series ExpertBooks and expect identical management or security features, since it is a different chassis and a different Windows edition entirely.
The MIL-STD 810H rugged chassis, Corning Gorilla Glass touch display and spill-resistant keyboard follow ASUS's BR-series design brief for handling drops, spills and daily classroom wear.

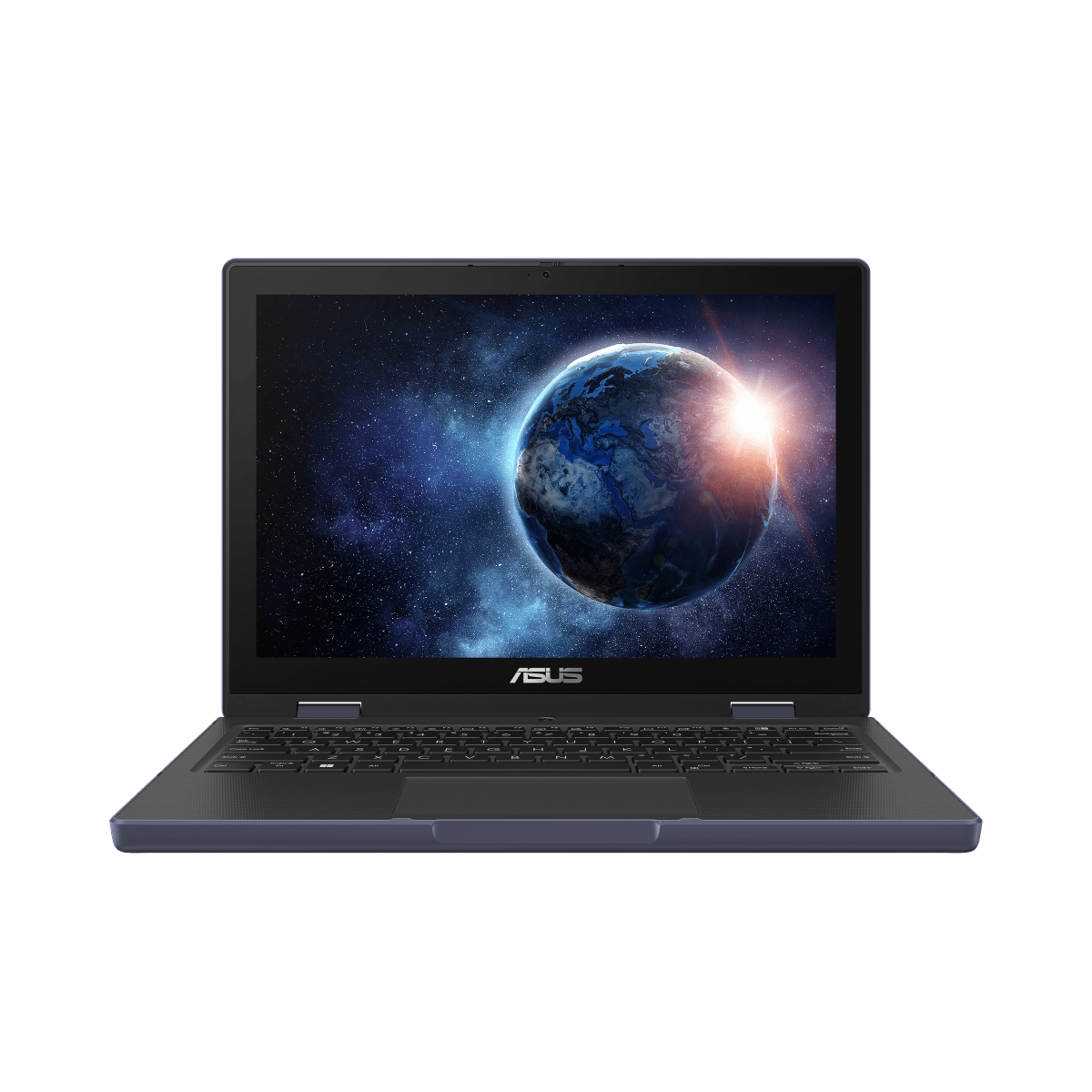

12.2-Inch WUXGA Touchscreen with Corning Gorilla Glass
The display is a 12.2-inch WUXGA (1920 x 1200) touchscreen in a 16:10 aspect ratio, rated at 300 nits with a wide-view IPS panel and protected by Corning Gorilla Glass, plus stylus support for handwritten note-taking. The 16:10 ratio and IPS viewing angles suit shared classroom use where a device is viewed from off-centre, and the Gorilla Glass surface is materially more scratch- and impact-resistant than a standard laptop screen — the point of the whole BR chassis design.
Intel Processor N100: An Efficient, Budget-Tier Chip
The Intel Processor N100 is a quad-core, quad-thread chip with a base clock around 0.8 GHz and a burst speed up to 3.4 GHz, paired with 8 GB of LPDDR5 memory and integrated Intel UHD Graphics. This is entry-tier silicon by design — appropriate for web apps, office documents, video calls and light multitasking, which covers the bulk of day-to-day education workloads, but not intended for heavy multitasking or demanding local software. Storage is 128 GB of UFS flash with a single M.2 PCIe 3.0x4 slot documented for future expansion.
Fingerprint Reader and TPM 2.0, Windows 11 Home
Security includes a fingerprint sensor integrated with the power key and a TPM 2.0 chip, alongside a Kensington lock slot for physically securing the device — useful in a shared classroom or laptop cart environment. The operating system is Windows 11 Home, which is the correct edition for this exact configuration; it does not include the domain-join, BitLocker-management or Group Policy features of Windows 11 Pro found on the ExpertBook B-series business laptops elsewhere in our catalogue.
Compact Ports for Classroom and Take-Home Use

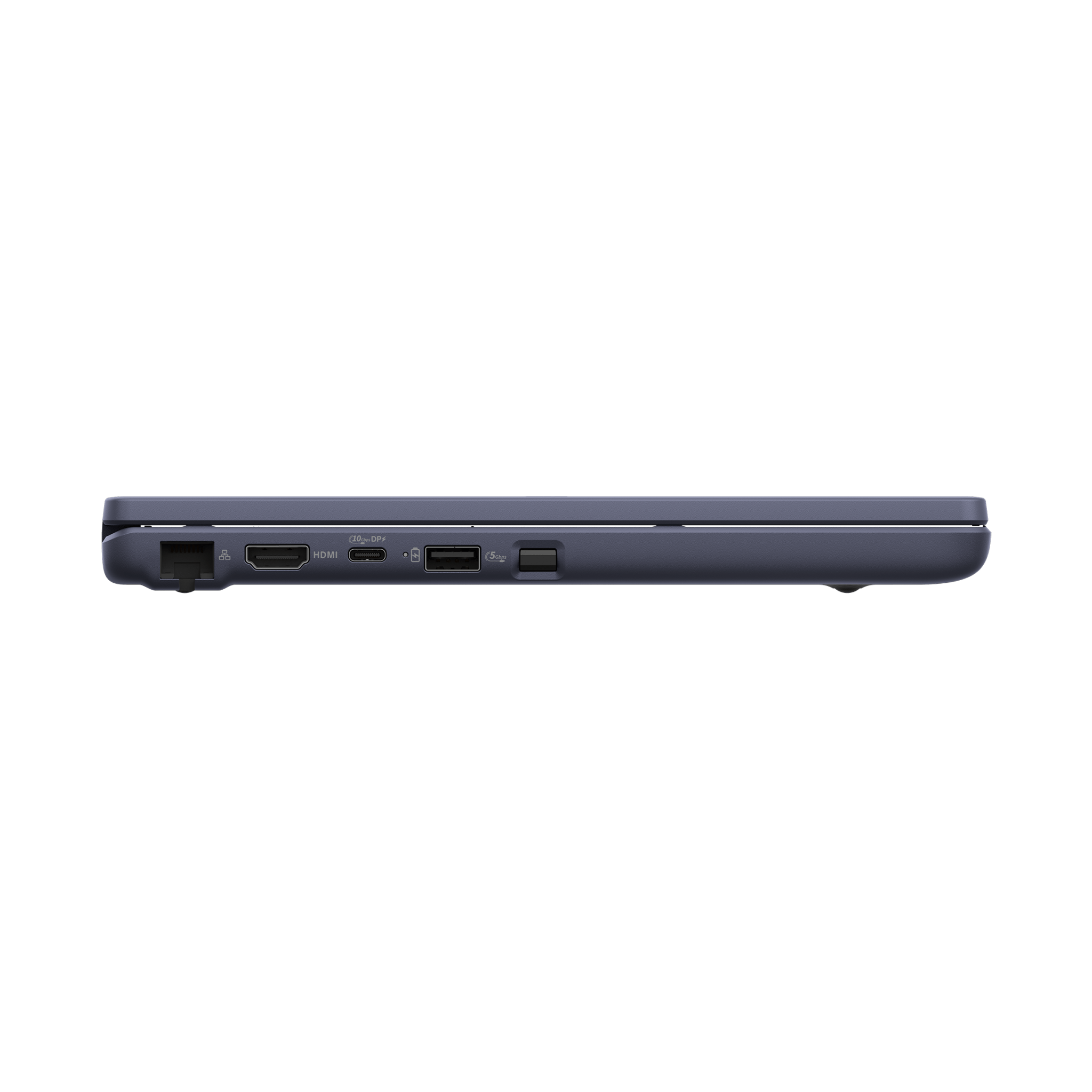

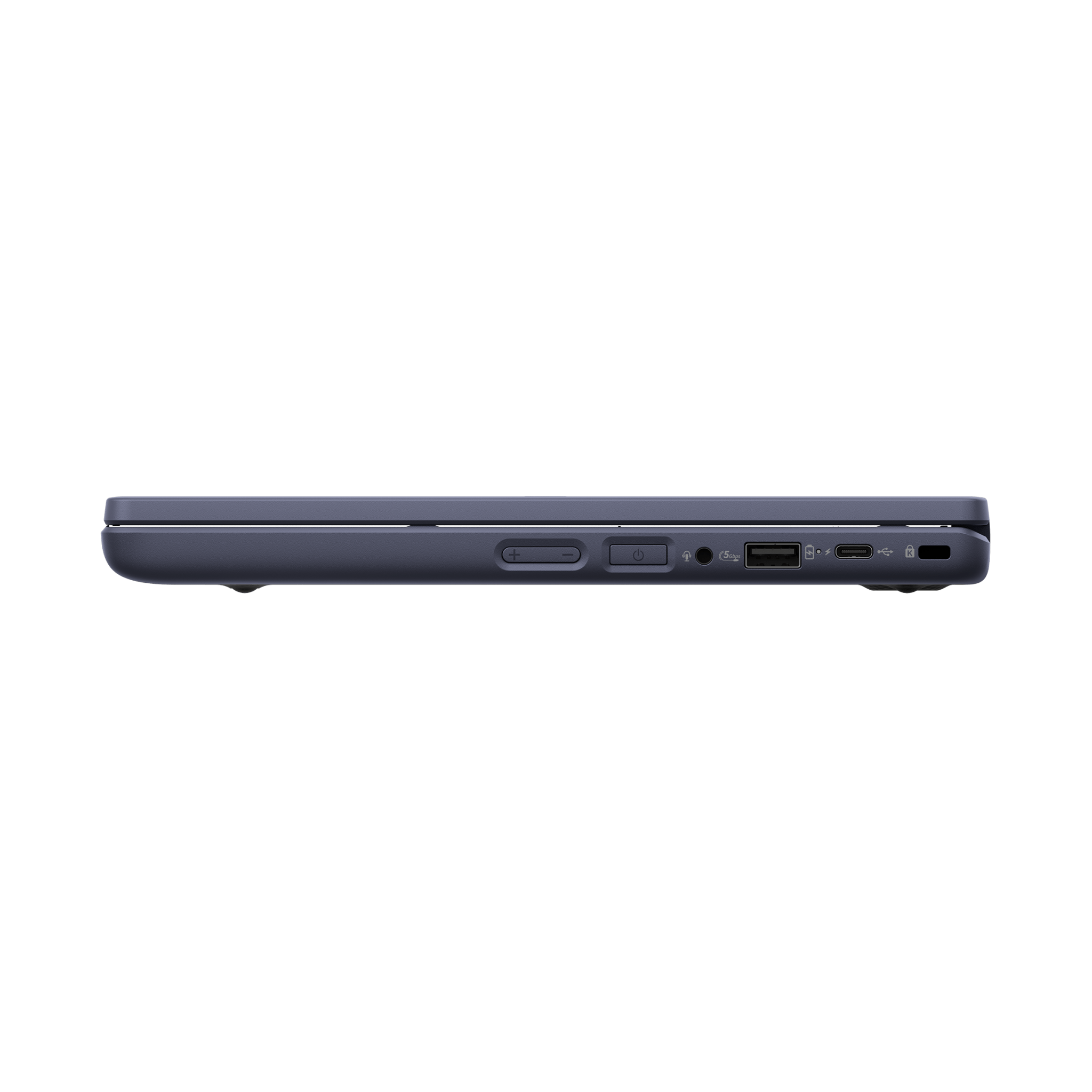

Connectivity covers two USB-C ports (one supporting DisplayPort and Power Delivery), two USB-A ports, HDMI, Gigabit Ethernet and a 3.5 mm combo audio jack, plus Wi-Fi 6E and Bluetooth for wireless connections. A 720p webcam with a physical privacy shutter covers video calls, and the 50 Wh battery is charged over the same 45 W USB-C adapter used for data on one of the ports.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the ASUS ExpertBook BR1204FGA-R90185W with a full GST invoice and local Singapore support. ASUS backs this model with a 1-year international carry-in warranty, with local onsite service available in Singapore.
Considering this for a school device rollout against a business-grade ExpertBook in our catalogue? Email sales@sourceit.com.sg with your fleet size and use case and we will confirm the right model and warranty terms for your deployment.
ASUS BR1204FGA-R90185W Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS ExpertBook BR1204FGA-R90185W N100/8GB/128G |
| Part Number (PN) | BR1204FGA-R90185W |
| Internal Item Code | 90NX07E1-M005Y0 |
| Range | ASUS ExpertBook BR-series — rugged education laptop, distinct from the ExpertBook B business range |
| Form Factor | 12.2-inch rugged touchscreen laptop |
| Operating System | Windows 11 Home (64-bit), preinstalled |
| Manufacturer Warranty | 1-Year International Carry-in Warranty with Local Onsite Service (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Display
| Screen Size | 12.2-inch, 16:10 |
| Resolution | WUXGA, 1920 x 1200 |
| Panel Type | Wide-view IPS, touchscreen, Corning Gorilla Glass |
| Brightness | 300 nits |
| Stylus | Stylus input supported |
Processor & Graphics
| Processor | Intel Processor N100, 0.8 GHz base, burst up to 3.4 GHz, 6 MB cache, 4 cores, 4 threads |
| Graphics | Intel UHD Graphics (integrated) |
Memory & Storage
| Memory Installed | 8 GB LPDDR5, onboard |
| Memory Upgradeable | No — memory is soldered to the board; order the capacity you need |
| Primary Storage | 128 GB UFS flash storage |
| Storage Expansion | 1 x M.2 PCIe 3.0x4 slot documented by ASUS for this chassis family, for future expansion |
Keyboard & Trackpad
| Keyboard | Chiclet keyboard, 1.35 mm key travel, spill-resistant |
| Trackpad | Standard clickpad; touchscreen and stylus also supported for direct input |
Ports & Connectivity
| USB-C | 1 x USB-C (DisplayPort / Power Delivery), 1 x USB-C 2.0 (Power Delivery) |
| USB-A | 2 x USB 3.2 Gen 1 Type-A |
| Video Output | 1 x HDMI 1.4 |
| Wired LAN | 1 x RJ45 Gigabit Ethernet |
| Audio | 1 x 3.5 mm combo audio jack |
| Wireless LAN | Wi-Fi 6E (802.11ax), triple band, 2x2 |
| Bluetooth | Bluetooth 5.2 |
| Webcam | 720p HD camera with physical privacy shutter |
Battery & Power
| Battery | 50 WHrs, 3-cell lithium-ion |
| Power Adapter | 45 W USB-C adapter, 20 V DC / 2.25 A |
Physical & Build
| Dimensions (W x D x H) | 29.7 x 21.3 x 2.12 cm |
| Net Weight | 1.47 kg |
| Durability | US MIL-STD 810H military-grade testing; spill-resistant keyboard, reinforced chassis |
| Chassis Material | Contains recycled plastic content, per ASUS |
Security
| TPM | TPM 2.0 |
| Biometric | Fingerprint sensor integrated with power key |
| Webcam Privacy | Physical camera shutter |
| Physical Lock | Kensington lock slot |
| Package Contents | Laptop, 45 W USB-C power adapter, power cable, user documentation, warranty card |
Connectivity & Setup / Security Features
Ports for Classroom and Home Use
One of the two USB-C ports supports DisplayPort output and Power Delivery, so it can drive an external display or monitor and charge the laptop through a compatible dock or cable. HDMI 1.4 is available as a direct alternative for classroom projectors and displays. The two USB-A ports and Gigabit Ethernet port cover mice, USB drives and a wired network connection where a school's network policy requires it over Wi-Fi.
Wireless Networking
Wi-Fi 6E, triple band, gives access to the less congested 6 GHz band where the school's access points support it, alongside the standard 2.4 GHz and 5 GHz bands, with Bluetooth 5.2 for peripherals such as a stylus, headset or mouse.
Security Features and Why This Is Not a Domain-Joined Fleet Device
TPM 2.0 and a fingerprint sensor integrated with the power key are present for device-level security, and a Kensington lock slot lets the laptop be cable-locked to a desk in a shared classroom or laptop cart. Because this model runs Windows 11 Home rather than Windows 11 Pro, it does not support Active Directory domain join, Group Policy management or BitLocker enterprise key escrow the way the Windows 11 Pro ExpertBook B-series laptops elsewhere in our catalogue do — plan device management around Microsoft 365 Education, Google Workspace for Education or a mobile device management platform suited to Windows 11 Home instead.
Touchscreen and Stylus Input
The 12.2-inch touchscreen supports direct finger and stylus input, and the Corning Gorilla Glass surface is designed to tolerate the scratching and knocks that come with daily student handling far better than a standard laptop panel.
Package Contents & Ordering Information
In the Box
ASUS ExpertBook BR1204FGA-R90185W laptop, 45 W USB-C power adapter, power cable, user documentation, warranty card. No stylus, mouse or protective case is included as standard.
A Different Range from the Business ExpertBook Models in Our Catalogue
This BR1204FGA-R90185W is a rugged education device and is not a configuration of, or interchangeable with, the ExpertBook B1, B5 or B9 business laptops SourceIT also carries. For reference, the other ExpertBook models in our current catalogue are business-class Windows 11 Pro laptops:
| BR1204FGA-R90185W (this listing) | Intel N100 | 8GB LPDDR5 / 128GB UFS | 12.2" touch, Windows 11 Home, education/rugged |
| B1402CVA-EB0124X | Intel Core i5-1335U | 16GB DDR4 / 512GB SSD | 14" FHD, Windows 11 Pro, business |
| B1402CVA-EB0123X | Intel Core i7-1355U | 16GB DDR4 / 512GB SSD | 14" FHD, Windows 11 Pro, business |
| B1402CVA-EB0125X | Intel Core i7-1355U | 16GB DDR4 / 1TB SSD | 14" FHD, Windows 11 Pro, business |
| B1502CVA-BQ0124X | Intel Core i7-1355U | 16GB DDR4 / 512GB SSD | 15.6" FHD, Windows 11 Pro, business |
| B5402CVA-KI0026X | Intel Core i7-1360P vPro | 8GB DDR5 / 1TB SSD | 14" FHD, Windows 11 Pro, business |
| B9403CVA-KM0229X / KM0064X | Intel Core i7-1355U | 16GB LPDDR5(X) / 512GB–1TB SSD | 14" 2.8K OLED, Windows 11 Pro, business |
If you are sourcing devices for a school or training programme, this BR1204FGA is the appropriate model; if you need Windows 11 Pro fleet management for corporate use, choose from the ExpertBook B-series models above instead. Email sales@sourceit.com.sg quoting the part number to check stock and lead time.
Datasheet & Downloads
ASUS hosts the official product and specification pages for the BR1204F chassis family. The link below is ASUS's current global specifications page for this chassis.
| ASUS specifications page | ASUS BR1204F — Full Specifications |
The ASUS global techspec page documents this chassis family broadly and lists processor and storage options that include configurations other than this exact N100 / 8 GB / 128 GB build — for the PDF datasheet and specification sheet confirmed for the BR1204FGA-R90185W configuration specifically, email sales@sourceit.com.sg quoting BR1204FGA-R90185W (internal code 90NX07E1-M005Y0) and we will send you the current files directly.
Frequently Asked Questions — ASUS BR1204FGA-R90185W
Is this the same family as the ExpertBook B1, B5 or B9 business laptops in your catalogue?
No. This is ASUS's education-focused BR-series rugged laptop, a different chassis, processor class and product line entirely from the ExpertBook B business laptops. It also runs Windows 11 Home rather than the Windows 11 Pro on the B-series models.
Does it run Windows 11 Home or Windows 11 Pro?
Windows 11 Home, confirmed for this exact configuration. It does not include Windows 11 Pro features such as Active Directory domain join, Group Policy or BitLocker enterprise key management.
Is this a Chromebook?
No. It runs Windows 11 Home, not ChromeOS, despite the compact rugged form factor typical of education devices.
What warranty does it carry, and how does that compare with the business ExpertBook models?
ASUS backs this model with a 1-year international carry-in warranty, with local onsite service available in Singapore — shorter than the 3-year onsite warranty on the ExpertBook B-series business laptops in our catalogue, reflecting its lower price point and education market positioning.
Is the touchscreen durable enough for daily student use?
Yes — the 12.2-inch panel is protected by Corning Gorilla Glass and supports both finger and stylus input, and the chassis is tested to the US MIL-STD 810H military standard for drops, shocks and spills.
Can the memory or storage be upgraded?
The 8 GB of LPDDR5 memory is soldered and not user-upgradeable. ASUS documents an M.2 PCIe 3.0x4 slot on this chassis family for future storage expansion alongside the 128 GB UFS storage installed.
Is it suitable for general office or business use instead of education?
It can handle basic web and document tasks, but the Intel Processor N100 and Windows 11 Home edition make it a better fit for education and light personal use than for a business fleet — for corporate deployment, choose from the Windows 11 Pro ExpertBook B-series models in our catalogue instead.
Does it charge over USB-C?
Yes, via the bundled 45 W USB-C adapter, using one of the two USB-C ports.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS ExpertBook BR1204FGA-R90185W sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this model with a 1-year international carry-in warranty with local onsite service.
