ASUS ExpertBook B5 B5405CAA-NZ0125X U7-356H/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
ASUS ExpertBook B5 G2 B5405CAA-NZ0125X (90NX0A21-M00460) - Intel Core Ultra 7 356H / 16GB / 512GB SSD - 3 Years Onsite Warranty
ASUS ExpertBook B5 G2 (B5405CAA) with Intel Core Ultra 7 356H
The ASUS ExpertBook B5 B5405CAA-NZ0125X (part number 90NX0A21-M00460) is a 14-inch business laptop from the ExpertBook B5 G2 range, configured with the Intel Core Ultra 7 356H processor, 16GB of DDR5 memory, a 512GB PCIe 4.0 NVMe SSD and Windows 11 Pro. It has an all-aluminium chassis in Gentle Grey and ships with a carry bag and wireless optical mouse.
In the ExpertBook business line-up, the B5 sits above the B1 and B3 ranges with a sharper, faster display, Thunderbolt 4, Wi-Fi 7 and a more powerful NPU, while keeping serviceable SO-DIMM memory and a built-in RJ45 port.
Intel Core Ultra 7 356H with a 50 TOPS NPU
The Core Ultra 7 356H has 16 cores and 16 threads, boosts up to 4.7 GHz and has 18MB of cache, with integrated Intel Graphics. Its Intel AI Boost NPU is rated at up to 50 TOPS, which handles on-device AI features in Windows 11 and supported applications without loading the CPU cores. ASUS markets the B5 G2 range as a Copilot+ PC for work.
14-inch WQXGA 144Hz Display
The 14-inch WQXGA panel (2560 x 1600, 16:10) refreshes at 144Hz, is rated at 400 nits with an anti-glare finish, covers 100% of the sRGB colour gamut and has 178-degree viewing angles. It gives sharper text and more workspace than the WUXGA and FHD panels in the B3 and B1 ranges.
Serviceable Memory and PCIe 5.0-Ready Storage Slot
The 16GB of DDR5 is fitted in SO-DIMM slots (two in total), so memory can be expanded. The 512GB PCIe 4.0 NVMe SSD sits in an M.2 2280 slot rated for PCIe 4.0/5.0 x4, and a second M.2 2230 PCIe 4.0 slot with an SSD housing is available for added storage.
Thunderbolt 4, Wi-Fi 7 and RJ45

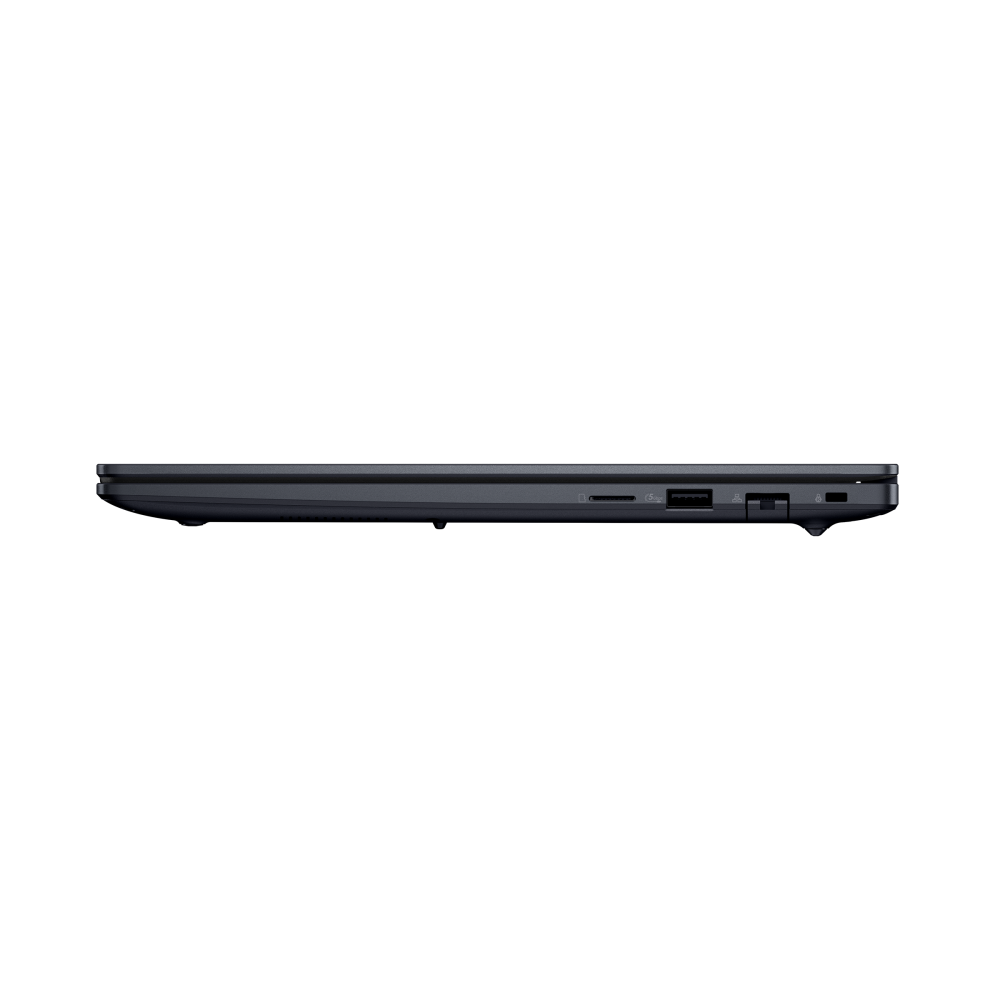

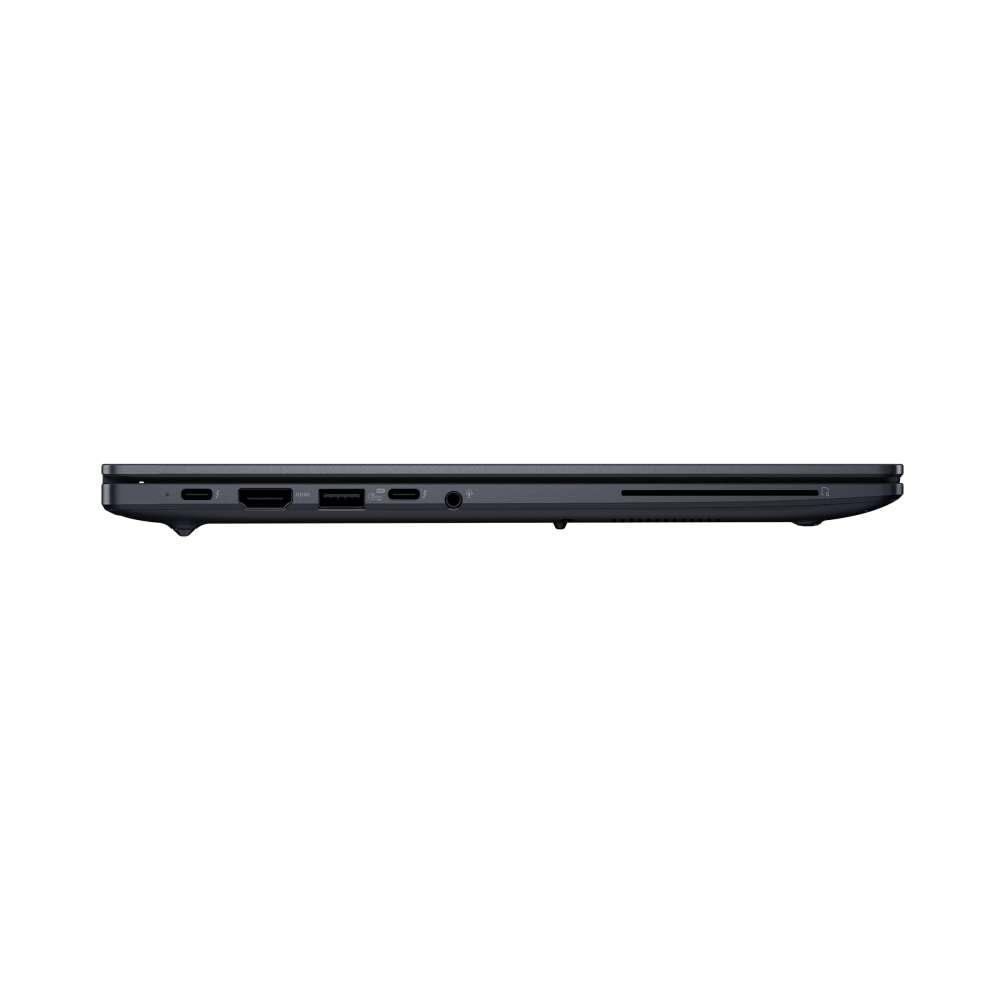

Connectivity includes two Thunderbolt 4 ports (USB4 compliant, with display output and power delivery), two USB 3.2 Gen 1 Type-A ports, HDMI 2.1, RJ45 Gigabit Ethernet, a microSD card reader and a 3.5mm combo audio jack. Wireless is Wi-Fi 7 (triple band, 2x2) with Bluetooth 6.0.
Security, Durability and Sustainability
Sign-in is via the fingerprint sensor in the power key or the 5MP IR camera with Windows Hello; the camera has a physical privacy shutter. The platform includes TPM 2.0, Microsoft Secured-core PC (Security Level 3), Intel BIOS Guard and Boot Guard. The aluminium chassis is tested to US MIL-STD 810H (24 procedures), and ASUS lists EPEAT Gold with Climate+, ENERGY STAR 9.0 and TCO Certified for this configuration.
Warranty and Local Supply
ASUS backs this laptop with 3 years of onsite service on a next-business-day basis, and the battery is covered for the same 3 years. SourceIT supplies the B5405CAA-NZ0125X with a GST invoice; email sales@sourceit.com.sg for volume pricing or a comparison with the ExpertBook B3, B1 and P-series ranges.
ASUS B5405CAA-NZ0125X Datasheet — Technical Specifications
General
| Product name | ASUS ExpertBook B5 G2 B5405CAA-NZ0125X |
| Part No | 90NX0A21-M00460 |
| Model | B5405CAA-NZ0125X |
| EAN | 4711636469302 |
| Form factor | 14.0-inch clamshell business laptop |
| Colour | Gentle Grey |
| Operating system | Windows 11 Pro |
| Warranty | 3 years onsite service (next business day) + 3 years battery warranty |
Display
| Panel | 14.0-inch LED-backlit, IPS-level wide-view panel |
| Resolution & characteristics | WQXGA (2560 x 1600) 16:10, 400 nits, anti-glare, sRGB 100%, 144Hz, 178/178 viewing angle, 1200:1 contrast, 7 ms response (typ.), non-touch, 84% screen-to-body ratio |
Processor & Graphics
| Processor | Intel® Core™ Ultra 7 Processor 356H, 1.9 GHz base, up to 4.7 GHz, 18MB cache, 16 cores / 16 threads |
| NPU | Intel® AI Boost NPU, up to 50 TOPS |
| Graphics | Intel® Graphics (integrated) |
Memory & Storage
| Memory | 16GB DDR5 SO-DIMM |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Expansion | 2x DDR5 SO-DIMM slots; 1x M.2 2280 PCIe 4.0/5.0 x4 (fitted with a PCIe 4.0 SSD); 1x M.2 2230 PCIe 4.0 x4; SSD housing for storage expansion |
Ports & Connectivity
| Thunderbolt / USB-C | 2x Thunderbolt™ 4, compliant with USB4, support display / power delivery |
| USB Type-A | 2x USB 3.2 Gen 1 Type-A |
| Video output | 1x HDMI 2.1 TMDS |
| Wired LAN | 1x RJ45 Gigabit Ethernet |
| Card reader | Micro SD card reader |
| Audio jack | 1x 3.5mm combo audio jack |
| Wireless | Wi-Fi 7 (802.11be) triple band 2x2 + Bluetooth® 6.0 |
| Audio | Audio by Dirac, built-in speaker and array microphone |
| Webcam | 5MP camera with IR function for Windows Hello, with privacy shutter |
Battery & Power
| Battery | 63Wh, 3S1P, 3-cell Li-ion |
| AC adapter | USB Type-C 65W AC adapter (20V 3.25A), 100-240V AC universal input; adapter + power cord |
Physical
| Dimensions (W x D x H) | 31.51 x 22.68 x 1.00 ~ 1.80 cm (12.41" x 8.93" x 0.39" ~ 0.71") |
| Weight | 1.44 kg (3.17 lbs) with battery; 1.21 kg (2.67 lbs) without battery |
| Materials | Aluminium lid, top case and bottom case; Gentle Grey |
| Durability | US MIL-STD 810H military-grade standard (24 procedures) |
| Keyboard | Backlit chiclet keyboard (English) |
| Ecolabels & compliance | EPEAT Gold with Climate+, ENERGY STAR 9.0, TCO Certified, FSC Recycled, REACH, RoHS |
Security
| Biometrics | Fingerprint sensor integrated with the power key |
| TPM | Trusted Platform Module (TPM) 2.0 |
| Physical lock | Kensington Nano Security Slot™ (6 x 2.5mm) |
| Camera privacy | Physical webcam privacy shutter |
| Platform & BIOS | Microsoft Secured-core PC; Microsoft Security Level 3; Intel® BIOS Guard and Intel® Boot Guard; Intel CSME firmware resilience; BIOS self-recovery and integrity measurement; BIOS setup, boot and HDD user passwords; Absolute Persistence 2.0 (Computrace) support |
Package contents
| In the box | ASUS ExpertBook B5 G2 B5405CAA-NZ0125X laptop, USB Type-C 65W AC adapter with power cord, carry bag, wireless optical mouse, documentation |
| Software | MyASUS, ASUS AI ExpertMeet, McAfee® 3 years |
Connectivity & Setup / Security Features
Docking and External Displays
The two Thunderbolt 4 ports (USB4 compliant) carry display output, data and power delivery, so one cable to a Thunderbolt or USB-C dock can charge the laptop and run external monitors. HDMI 2.1 connects a further display directly.
Networking
A built-in RJ45 Gigabit Ethernet port connects to wired office networks without an adapter. Wi-Fi 7 (802.11be, triple band, 2x2) gives higher throughput and lower latency on compatible access points, and Bluetooth 6.0 covers headsets and peripherals.
First-Time Setup
Windows 11 Pro is preinstalled, ready for Microsoft Entra ID or domain join and Intune management. MyASUS handles driver and BIOS updates, battery health charging and diagnostics, and the ASUS MyExpert suite (including AI ExpertMeet for meeting transcription and summaries) is included.
Security Features
Windows Hello works with either the fingerprint sensor in the power key or the IR camera. TPM 2.0, Microsoft Secured-core PC, Intel BIOS Guard, Intel Boot Guard, Intel CSME firmware resilience and BIOS self-recovery protect the firmware. Absolute Persistence 2.0 (Computrace) is supported and the Kensington Nano slot accepts a cable lock.
Package Contents & Ordering Information
In the Box
ASUS ExpertBook B5 G2 B5405CAA-NZ0125X laptop, USB Type-C 65W AC adapter with power cord, carry bag, wireless optical mouse, documentation.
ExpertBook B5 G2 B5405 Configurations in Our Catalogue
This is the ExpertBook B5 G2 configuration we carry. For other ExpertBook ranges, we also list the ExpertBook B3 B3405CCA (Core Ultra 5/7, 14-inch WUXGA), the ExpertBook B1 B1403CVA and B1503CVA (Core 7 150U, 14-inch and 15.6-inch FHD) and the ExpertBook Ultra B9406CAA.
|
B5405CAA-NZ0125X (this listing) 90NX0A21-M00460 |
Core Ultra 7 356H / 16GB DDR5 / 512GB SSD / 5MP camera / 63Wh battery / wireless optical mouse |
Ordering
Order online, or email sales@sourceit.com.sg quoting part number 90NX0A21-M00460 for volume quotations, purchase orders and delivery scheduling. Every unit is supplied with a GST invoice.
Datasheet & Downloads
Official ASUS pages for this model family:
| ASUS product overview | ASUS ExpertBook B5 G2 (14" Intel) — Overview (ASUS Global) |
| ASUS technical specifications | ASUS ExpertBook B5 G2 (14" Intel) — Tech Specs (ASUS Global) |
| Drivers, BIOS & manuals | ASUS Singapore Support — search for B5405CAA |
For a datasheet specific to B5405CAA-NZ0125X (part number 90NX0A21-M00460), email sales@sourceit.com.sg and we will send the configuration details.
Frequently Asked Questions — ASUS B5405CAA-NZ0125X
How is the B5405CAA different from the ExpertBook B3 B3405CCA?
The B5405CAA uses the newer Core Ultra 7 356H with a 50 TOPS NPU (versus up to 13 TOPS on the B3405CCA), a 14-inch WQXGA 144Hz 400-nit display (versus WUXGA 60Hz 300-nit), Thunderbolt 4, Wi-Fi 7 and Bluetooth 6.0, a 63Wh battery and an all-aluminium chassis. Both have RJ45, HDMI 2.1, microSD and SO-DIMM memory.
Can the memory be upgraded?
Yes. The 16GB is fitted in DDR5 SO-DIMM slots (two slots in total), so it can be expanded later.
Can I add a second SSD?
Yes. There is an M.2 2230 PCIe 4.0 slot with an SSD housing in addition to the M.2 2280 slot holding the 512GB SSD.
Does it have Thunderbolt?
Yes. Two Thunderbolt 4 ports, USB4 compliant, with display output and power delivery.
Is the display a touchscreen?
No. It is a 14-inch WQXGA (2560 x 1600) 144Hz non-touch anti-glare panel with 100% sRGB coverage.
Does it support Windows Hello face sign-in?
Yes. The 5MP camera has an IR function for Windows Hello, and there is also a fingerprint sensor in the power key. The camera has a physical privacy shutter.
What is in the box?
The laptop, a 65W USB-C adapter with power cord, a carry bag and a wireless optical mouse.
What warranty is included?
ASUS backs this laptop with 3 years of onsite service on a next-business-day basis, and the battery is covered for the same 3 years. Every unit is supplied with a GST invoice.
