ASUS ExpertBook B1 B1503CVA-S78673X U7-150U/ 16GB/ 512GB SSD
PRODUCT DESCRIPTION
ASUS ExpertBook B1 B1503CVA-S78673X (90NX0801-M09XT0) - Intel Core 7 150U / 16GB / 512GB SSD - 3 Years Onsite Warranty

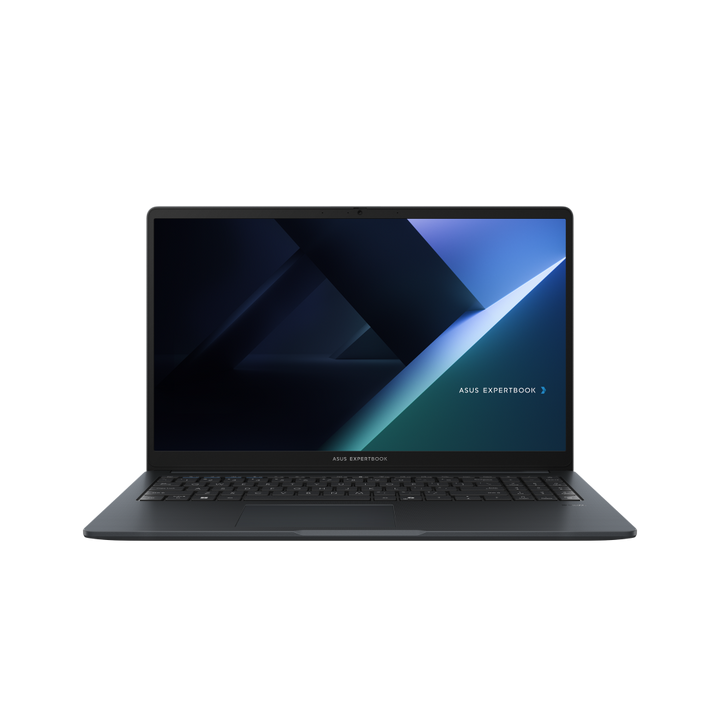

ASUS ExpertBook B1 (B1503) 15.6-inch Business Laptop
The ASUS ExpertBook B1 B1503CVA-S78673X (part number 90NX0801-M09XT0) is a 15.6-inch business laptop with the Intel Core 7 150U processor, 16GB of DDR5 memory, a 512GB PCIe 4.0 NVMe SSD and Windows 11 Pro. It has a full-size keyboard with a numeric keypad, making it a practical choice for accounts, admin and data-entry roles.
This configuration ships with a 720p HD camera, a 42Wh battery, and a carry bag plus wired USB optical mouse in the box.
Intel Core 7 150U Processor
The Intel Core 7 150U has 10 cores and 12 threads, boosts up to 5.4 GHz and has 12MB of cache, with integrated Intel UHD Graphics. It is a low-power U-series chip suited to Microsoft 365, web applications, ERP and accounting software, and video meetings.
15.6-inch FHD Anti-Glare Display and Numeric Keypad
The 15.6-inch Full HD (1920 x 1080) panel is anti-glare and rated at 300 nits, with 170-degree viewing angles. The larger chassis leaves room for a backlit keyboard with a dedicated numeric keypad.
Upgradeable DDR5 Memory and Expandable Storage
The 16GB of DDR5 is fitted in SO-DIMM slots (two in total), so memory can be expanded later. The 512GB M.2 2280 PCIe 4.0 SSD is joined by a spare M.2 2230 PCIe 4.0 slot with an SSD housing for adding storage.
Ports for the Office
Ports include RJ45 Gigabit Ethernet, two USB 3.2 Gen 2 Type-C ports with display output and power delivery, two USB 3.2 Gen 1 Type-A ports, HDMI 1.4 (up to 3840 x 2160 at 30Hz) and a 3.5mm combo audio jack. Wireless is Wi-Fi 6E with Bluetooth 5.4.
Security and Durability
A fingerprint sensor is integrated into the touchpad, the webcam has a physical privacy shutter, and the platform includes TPM 2.0, Microsoft Secured-core PC features, Intel BIOS Guard and Boot Guard, and a Kensington Nano security slot. The chassis is tested to US MIL-STD 810H, and ASUS lists EPEAT Gold with Climate+, ENERGY STAR 8.0 and TCO Certified for this configuration.
Warranty and Local Supply
ASUS backs this laptop with 3 years of onsite service on a next-business-day basis, and the battery is covered for the same 3 years. SourceIT supplies the B1503CVA-S78673X with a GST invoice; email sales@sourceit.com.sg for volume pricing.
ASUS B1503CVA-S78673X Datasheet — Technical Specifications
General
| Product name | ASUS ExpertBook B1 B1503CVA-S78673X |
| Part No | 90NX0801-M09XT0 |
| Model | B1503CVA-S78673X |
| EAN | 4711636466905 |
| Form factor | 15.6-inch clamshell business laptop |
| Colour | Gentle Grey |
| Operating system | Windows 11 Pro |
| Warranty | 3 years onsite service (next business day) + 3 years battery warranty |
Display
| Panel | 15.6-inch LED-backlit, IPS-level wide-view panel |
| Resolution & characteristics | FHD (1920 x 1080) 16:9, 300 nits, anti-glare, NTSC 45%, 60Hz, 170/170 viewing angle, 800:1 contrast, non-touch, 87% screen-to-body ratio |
Processor & Graphics
| Processor | Intel® Core™ 7 Processor 150U, 1.8 GHz base, up to 5.4 GHz, 12MB cache, 10 cores / 12 threads |
| Graphics | Intel® UHD Graphics (integrated) |
Memory & Storage
| Memory | 16GB DDR5 SO-DIMM |
| Storage | 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD |
| Expansion | 2x DDR5 SO-DIMM slots; 1x M.2 2280 PCIe 4.0 x4 (fitted); 1x M.2 2230 PCIe 4.0 x4; SSD housing for storage expansion |
Ports & Connectivity
| USB Type-C | 2x USB 3.2 Gen 2 Type-C, support display / power delivery |
| USB Type-A | 2x USB 3.2 Gen 1 Type-A |
| Video output | 1x HDMI 1.4, up to 3840 x 2160 @ 30Hz |
| Wired LAN | 1x RJ45 Gigabit Ethernet |
| Audio jack | 1x 3.5mm combo audio jack |
| Wireless | Wi-Fi 6E (802.11ax) triple band 2x2 + Bluetooth® 5.4 |
| Audio | Audio by Dirac, built-in speaker and array microphone |
| Webcam | 720p HD camera with privacy shutter |
Battery & Power
| Battery | 42Wh, 3S1P, 3-cell Li-ion |
| AC adapter | USB Type-C 65W AC adapter (20V 3.25A), 100-240V AC universal input; adapter + power cord |
Physical
| Dimensions (W x D x H) | 35.95 x 23.22 x 1.99 cm (14.15" x 9.14" x 0.78") |
| Weight | 1.65 kg (3.64 lbs) with battery; 1.47 kg (3.24 lbs) without battery |
| Materials | Plastic lid, top case and bottom case; Gentle Grey |
| Durability | US MIL-STD 810H military-grade standard |
| Keyboard | Backlit chiclet keyboard with numeric keypad (English) |
| Ecolabels & compliance | EPEAT Gold with Climate+, ENERGY STAR 8.0, TCO Certified, FSC Recycled, REACH, RoHS |
Security
| Biometrics | Fingerprint sensor integrated with the touchpad |
| TPM | Trusted Platform Module (TPM) 2.0 |
| Physical lock | Kensington Nano Security Slot™ (6 x 2.5mm) |
| Camera privacy | Physical webcam privacy shutter |
| Platform & BIOS | Microsoft Secured-core PC; Microsoft Security Level 2; Intel® BIOS Guard and Intel® Boot Guard; Intel CSME firmware resilience; BIOS protection, self-recovery and integrity measurement; BIOS setup, boot and HDD user passwords; Absolute Persistence 2.0 (Computrace) support |
Package contents
| In the box | ASUS ExpertBook B1 B1503CVA-S78673X laptop, USB Type-C 65W AC adapter with power cord, carry bag, wired USB optical mouse, documentation |
| Software | MyASUS, ASUS AI ExpertMeet, McAfee® 30-day free trial |
Connectivity & Setup / Security Features
Docking and External Displays
Both USB 3.2 Gen 2 Type-C ports support display output and power delivery, so a USB-C dock or monitor can power the laptop and carry video over one cable. The HDMI 1.4 port supports an external display up to 3840 x 2160 at 30Hz.
Networking
A built-in RJ45 Gigabit Ethernet port connects directly to a wired office LAN. Wi-Fi 6E (triple band, 2x2) and Bluetooth 5.4 cover wireless networking and peripherals.
First-Time Setup
Windows 11 Pro is preinstalled, ready for domain or Microsoft Entra ID join and Intune management. MyASUS provides driver and BIOS updates, battery health charging and system diagnosis, and ASUS AI ExpertMeet is included (AI features require 12GB of memory or more, which this 16GB configuration meets).
Security Features
Windows Hello sign-in uses the fingerprint sensor in the touchpad. TPM 2.0, Microsoft Secured-core PC, Intel BIOS Guard, Intel Boot Guard and BIOS self-recovery protect the device and firmware, Absolute Persistence 2.0 (Computrace) is supported, and the Kensington Nano slot accepts a cable lock.
Package Contents & Ordering Information
In the Box
ASUS ExpertBook B1 B1503CVA-S78673X laptop, USB Type-C 65W AC adapter with power cord, carry bag, wired USB optical mouse, documentation.
ExpertBook B1 B1503 Configurations in Our Catalogue
Both B1503CVA configurations use the same Core 7 150U processor, 16GB DDR5, 512GB SSD, 15.6-inch FHD display and ports. They differ in webcam resolution, battery capacity, bundled mouse and the bundled McAfee term.
|
B1503CVA-S70758X 90NX0801-M00U50 |
Core 7 150U / 16GB DDR5 / 512GB SSD / 1080p FHD camera / 50Wh battery / wireless optical mouse |
|
B1503CVA-S78673X (this listing) 90NX0801-M09XT0 |
Core 7 150U / 16GB DDR5 / 512GB SSD / 720p HD camera / 42Wh battery / wired USB optical mouse |
Ordering
Order online, or email sales@sourceit.com.sg quoting part number 90NX0801-M09XT0 for volume quotations, purchase orders and delivery scheduling. Every unit is supplied with a GST invoice.
Datasheet & Downloads
Official ASUS pages for this model family:
| ASUS product overview | ASUS ExpertBook B1 (B1503) — Overview (ASUS Singapore) |
| ASUS technical specifications | ASUS ExpertBook B1 (B1503) — Tech Specs (ASUS Singapore) |
| Drivers, BIOS & manuals | ASUS Singapore Support — search for B1503CVA |
For a datasheet specific to B1503CVA-S78673X (part number 90NX0801-M09XT0), email sales@sourceit.com.sg and we will send the configuration details.
Frequently Asked Questions — ASUS B1503CVA-S78673X
What is the difference between B1503CVA-S78673X and B1503CVA-S70758X?
Processor, memory, storage, display and ports are the same. B1503CVA-S78673X has a 720p HD camera, a 42Wh battery and a wired USB optical mouse in the box; B1503CVA-S70758X has a 1080p FHD camera, a 50Wh battery and a wireless optical mouse. Bundled McAfee is McAfee 30-day free trial on B1503CVA-S78673X versus McAfee 3 years on B1503CVA-S70758X.
Does it have a numeric keypad?
Yes. The 15.6-inch chassis has a backlit chiclet keyboard with a dedicated numeric keypad.
Can the memory be upgraded?
Yes. The 16GB is installed in DDR5 SO-DIMM slots (two slots in total). Upgrading requires removing the bottom case.
Can I add a second SSD?
Yes. There is a spare M.2 2230 PCIe 4.0 slot with an SSD housing alongside the fitted 512GB M.2 2280 SSD.
Does it have an SD card reader?
No. This model does not have a card reader. Ports are RJ45, 2x USB-C, 2x USB-A, HDMI 1.4 and a 3.5mm audio jack.
Does the Core 7 150U have an NPU?
No. The Intel Core 7 150U is a conventional U-series processor without a dedicated NPU. If on-device AI acceleration matters, look at the Core Ultra-based ExpertBook B3 and B5 ranges in our catalogue.
Which edition of Windows is installed?
Windows 11 Pro, which supports BitLocker, domain and Microsoft Entra ID join, Group Policy and Intune management for business fleets.
Is it suitable for Microsoft 365 and Teams?
Yes. The Core 7 150U with 16GB or more of DDR5 and an NVMe SSD comfortably runs Microsoft 365, Teams or Zoom calls, browser-based business applications and accounting software. Audio by Dirac and the array microphone support clear video calls.
What is in the box?
The laptop, a 65W USB-C adapter with power cord, a carry bag and a wired USB optical mouse.
What warranty is included?
ASUS backs this laptop with 3 years of onsite service on a next-business-day basis, and the battery is covered for the same 3 years. Every unit is supplied with a GST invoice.
