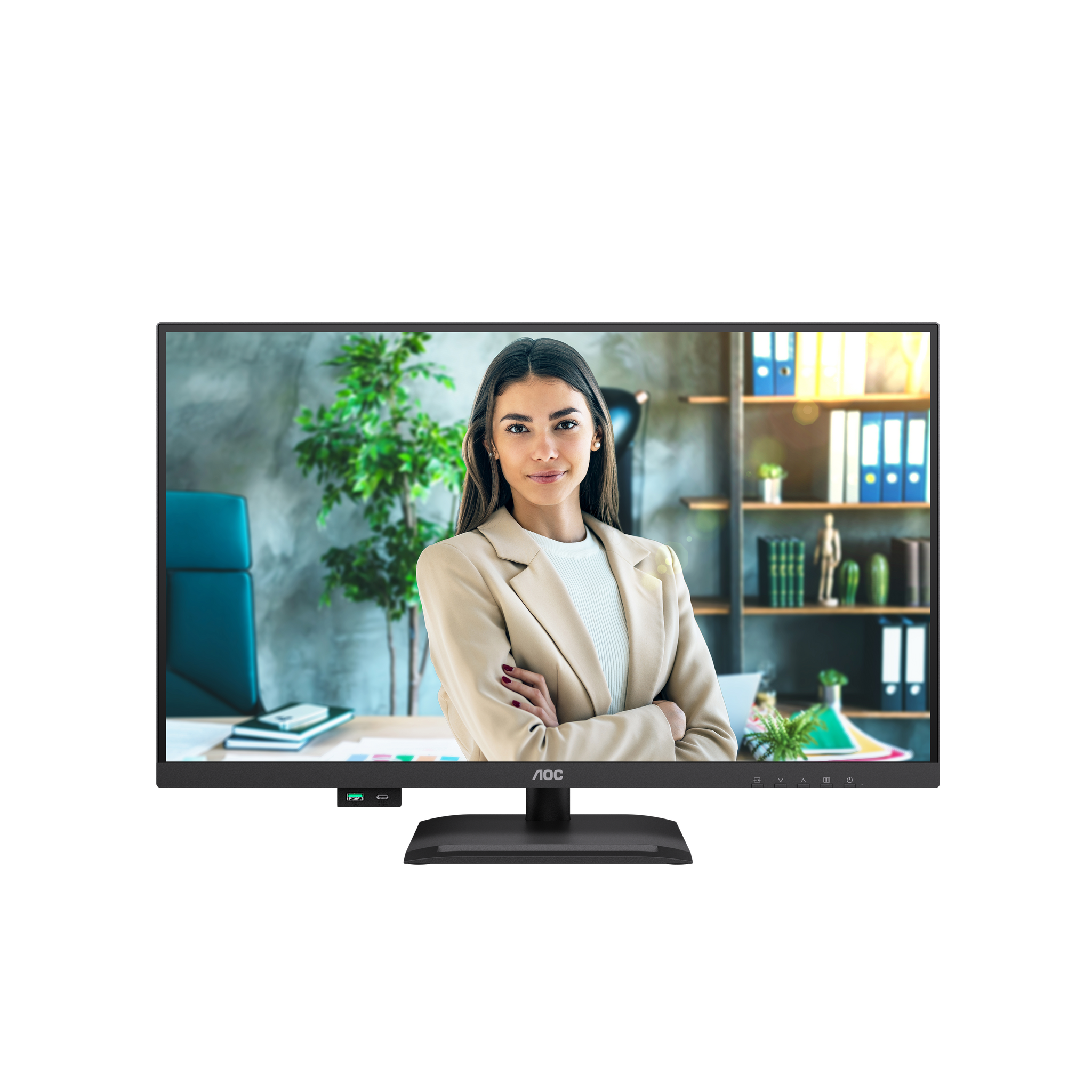

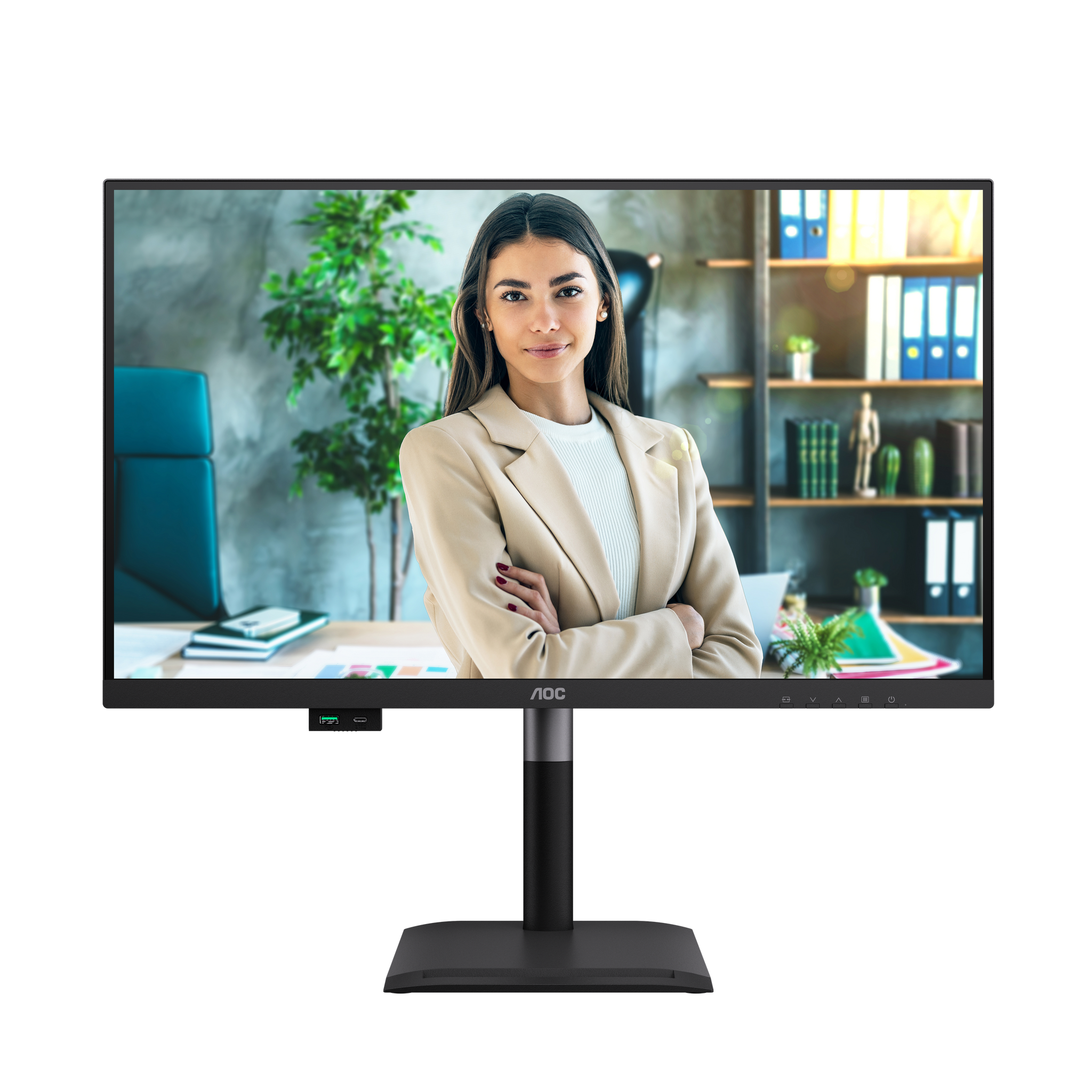

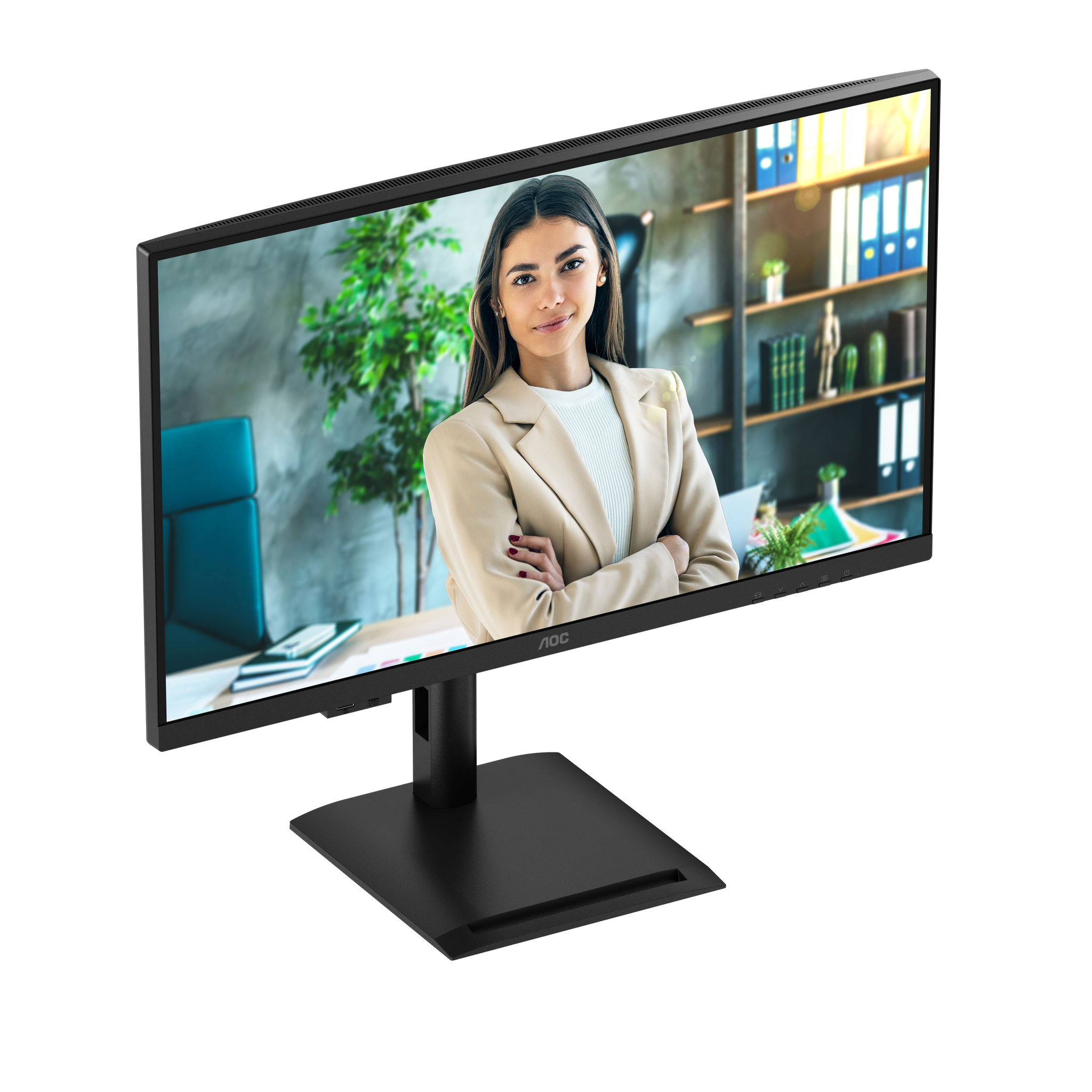

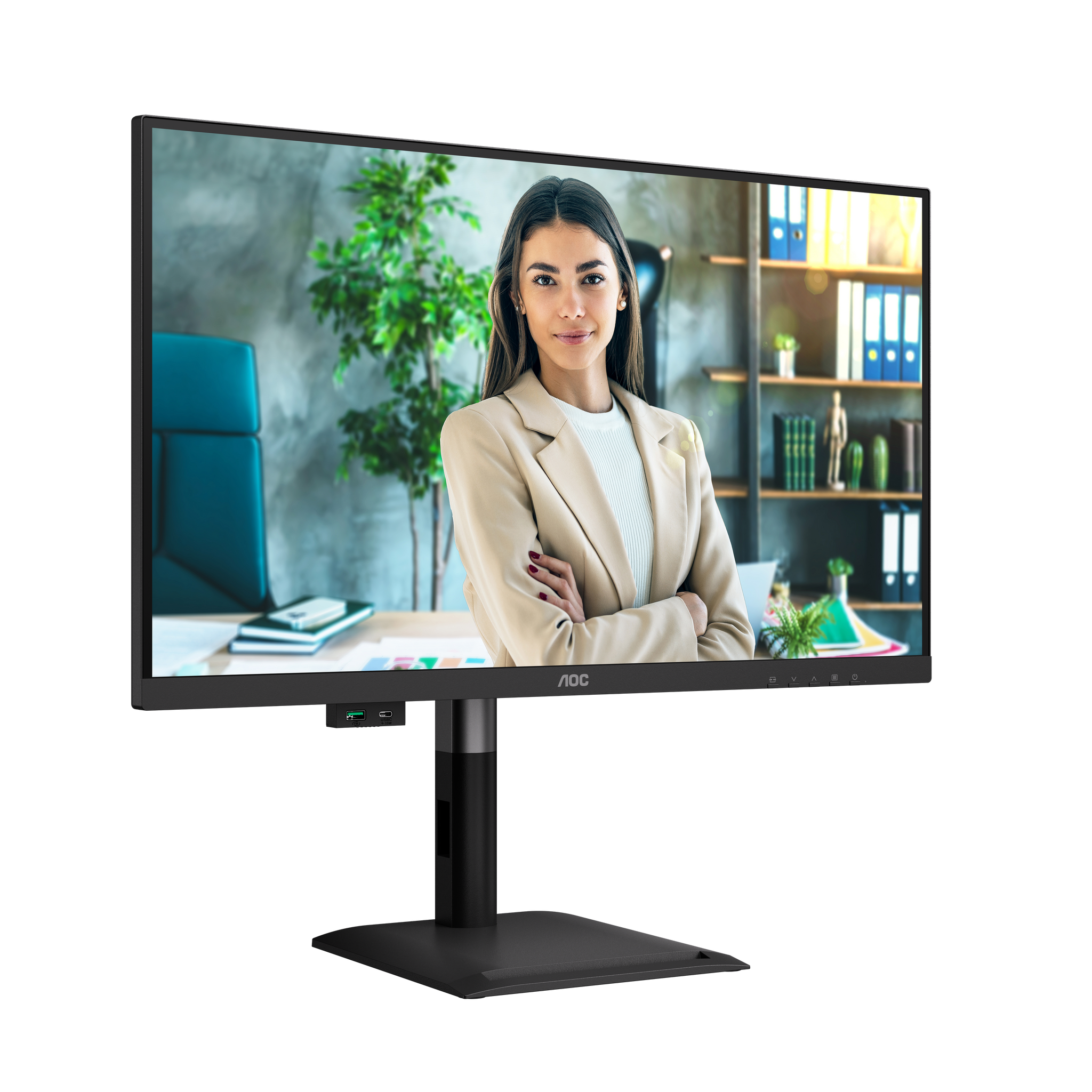

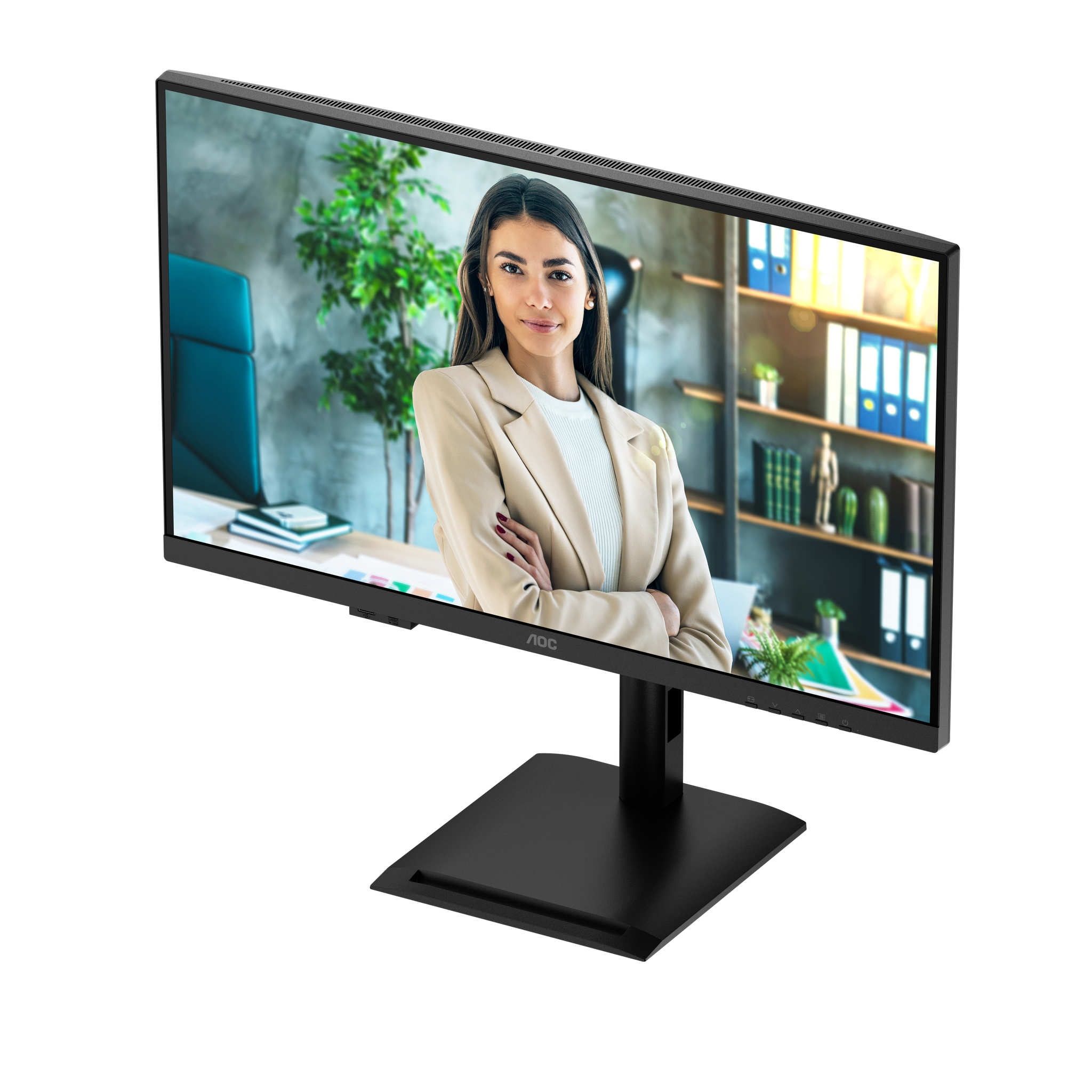

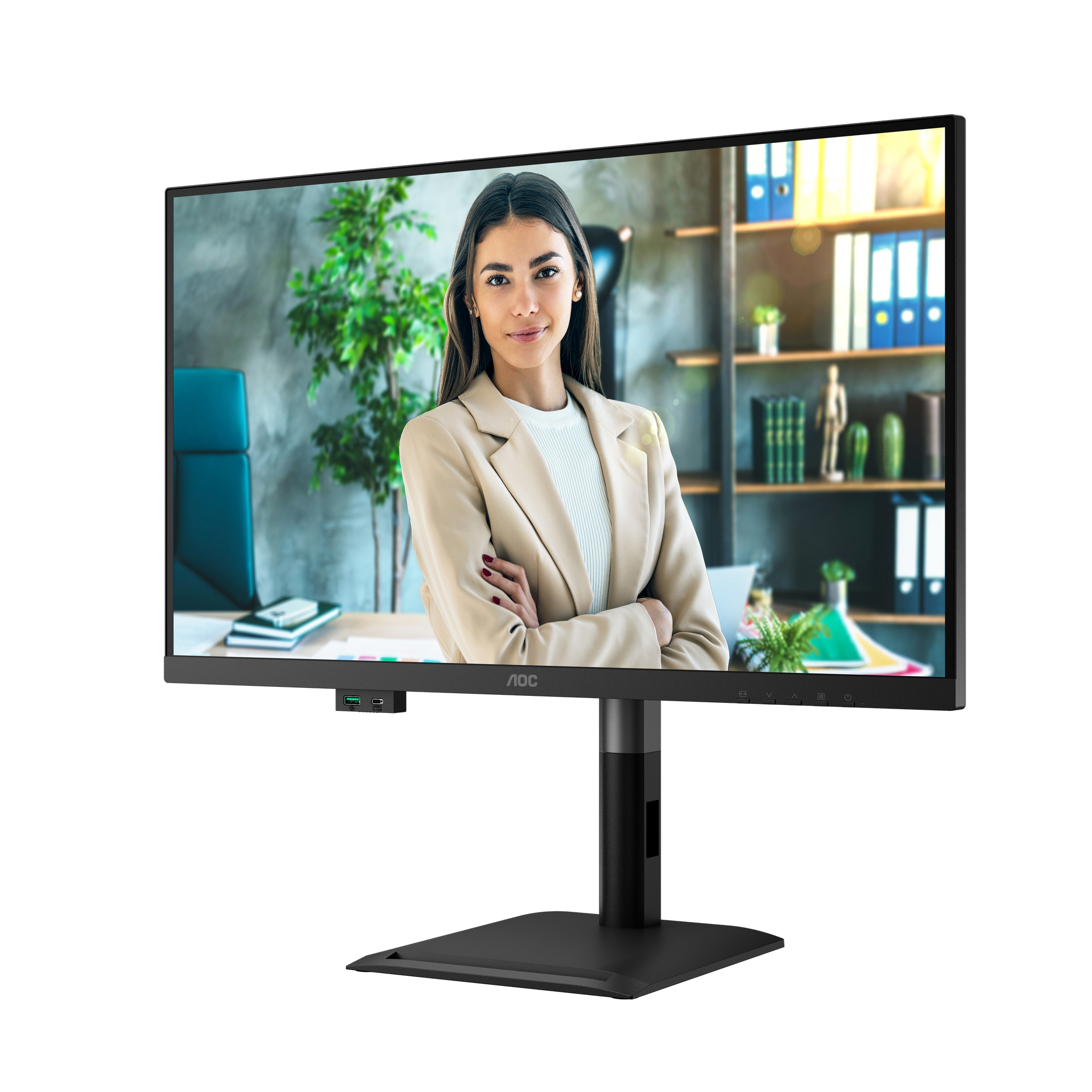

AOC U27P4C 27" 4K UHD IPS 60Hz USB-C Business Monitor with 96W Charging & KVM
PRODUCT DESCRIPTION
AOC U27P4C 27" 4K UHD IPS 60Hz USB-C Business Monitor with 96W Charging & KVM - 3 years parts & labour warranty
Sharp 4K for precise work
A 27" 4K UHD (3840 x 2160) IPS panel at 163 PPI with 178/178 viewing angles, 1.07 billion colours (10-bit, 8-bit + FRC), HDR10 and Delta E<1 (sRGB) colour accuracy.
One USB-C cable for your laptop
USB-C with DisplayPort Alt Mode and USB PD 3.0 delivers typically 96W to charge your laptop, plus a USB hub with 1 x USB-C (15W) and 3 x USB-A 3.2 Gen 1 ports.
KVM and multiview
The built-in KVM lets two computers share one keyboard and mouse, and PiP / PbP shows two sources at once.
Fully adjustable stand
150 mm height adjustment, -5° to 30° tilt, ±180° swivel and ±90° pivot with auto-pivot (G sensor), plus 100 x 100 VESA mounting.
Eye care built in
TÜV Low Blue Light (hardware) and Flicker Free backlight for comfortable all-day work; 2 W x 2 built-in speakers.
The U27P4C is an indent (order-in) item — email sales@sourceit.com.sg for current lead time before ordering.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC U27P4C Datasheet — Technical Specifications
General
| Product Name | AOC U27P4C 27" 4K UHD IPS 60Hz USB-C Business Monitor with 96W Charging & KVM |
| Model | U27P4C |
| Brand / Series | AOC Pro-line P4 series |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985233814 |
Display
| Screen size | 27.0 inch, flat |
| Panel type | IPS |
| Backlight type | WLED |
| Panel resolution | 3840 x 2160 (UHD) |
| Aspect ratio | 16:9 |
| Max refresh rate | 60 Hz |
| Response time | 4 ms GtG |
| Brightness | 350 cd/m² |
| Static contrast ratio | 1000:1 |
| Dynamic contrast ratio | 50M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.07B - 10 bit (8 bit + FRC) |
| Colour gamut | NTSC 94% (CIE1976) / sRGB 120% (CIE1931) |
| Pixel pitch | 0.1554 mm |
| Pixels per inch | 163.0 |
| Panel treatment | Antiglare (AG), haze 25% |
| Display hardness | 3H |
| Local dimming | Global Dimming |
| Pixel defect policy | ISO 9241-307 Class 1 |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| HDR | HDR 10 |
| Flicker-Free | Flicker Free |
| Colour accuracy | Delta E<1 (sRGB) |
| Blue light technology | TUV Low Blue Light (hardware) |
| KVM | Yes |
| Multiview | PiP + PbP |
Connectivity
| HDMI | 2.1 TMDS |
| DisplayPort | DisplayPort 1.2 +HDR, DisplayPort 1.4 x 1 |
| HDCP | HDCP 2.2 (HDMI and DisplayPort) |
| USB-C | USB-C (DP Alt, 96W) x 1 |
| USB upstream | 2 x USB-C (C1/C2) |
| USB downstream | 1 x USB-C (USB3.2 Gen 1, 5G, 15W (5V/3A)), 3 x USB3.2 type A Gen 1, 5 Gbit/s (BC1.2 x 1 yellow) |
| Audio output | 1x Audio out |
USB-C / Power Delivery
| USB C1 | USB PD version 3.0, typical 96W (5V/3A, 7V/3A, 9V/3A, 10V/3A, 12V/3A, 15V/3A, 20V/4.8A) |
| USB C3 | Power supply up to 15W |
Audio
| Speakers | 2 W x 2 |
Ergonomics & Cabinet
| Height adjust | 150 mm |
| Tilt | -5° ~ 30° |
| Swivel | -180° ~ 180° |
| Pivot | -90° ~ 90° |
| Auto pivot (G sensor) | Yes |
| VESA wall mount | 100 x 100 (M4 x 10 screws) |
| Stand screw | M6 x 17 w/ thumb screw |
| Bezel colour / finish (front) | Black / Texture |
| Cabinet colour (back) | Black |
Power
| Power supply | Internal |
| Power source | 100 - 240V ~ 2A, 50 / 60Hz |
| Power consumption on (typical) | 25.0 W |
| Power consumption standby / off | 0.5 W / 0.3 W |
| Power LED (operation / standby) | White / Orange |
Dimensions & Weight
| Product incl. base (WxHxD) | 613.7 × 401.8~551.8 × 232.9 mm |
| Product excl. base (WxHxD) | 613.7 × 364.5 × 53.4 mm |
| Packaging (WxHxD) | 730 × 480 × 139 mm |
| Gross weight incl. package | 8.97 kg |
| Net weight excl. package | 6.4 kg |
| Product without stand | 4.65 kg |
Other
| Plug & Play | Yes, DDC/CI |
| Operating system | Windows 10/11 |
Specifications per AOC's official U27P4C datasheet on aoc.com (nz).
Compatibility & Connectivity
Video Inputs
HDMI (2.1 TMDS), DisplayPort 1.4 and USB-C with DisplayPort Alt Mode.
USB-C Laptops
Laptops that support DisplayPort Alt Mode and USB Power Delivery can run video, USB data and charging (typical 96W, USB PD 3.0) over a single USB-C cable.
KVM
Two USB-C upstream ports (C1/C2) let the built-in KVM switch the keyboard, mouse and USB devices between two computers.
Operating Systems
Windows 10/11.
Mounting
VESA 100 x 100 mm compatible (M4 x 10 screws) for monitor arms and wall brackets.
Package Contents & AOC Business & Office Monitors Ordering Information
In the Box
U27P4C monitor with stand, power cable, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Business & Office Monitors
| Model | Key feature |
| 16T20 | 15.6”, FHD, IPS, 60Hz, Portable, 2x USB-C, Foldable Smart Cover & Stand |
| 25B36X | 24.5", FHD, IPS, 144Hz, HDR10 |
| 27B36X | 27", FHD, IPS, 144Hz, HDR10 |
| Q27P4C | 27", QHD, IPS, 120Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| Q27P3CV | 27", QHD, IPS, 100Hz, USB-C 65W |
| U27P4C (this listing) | 27", UHD, IPS, 60Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| Q32P4C | 31.5", QHD, IPS, 100Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| U32P4C | 31.5", UHD, IPS, 60Hz, USB-C, USB Hub+USB-C 15W, KVM |
| CU34P3CV | 34", WQHD, Curved 1500R, VA, 100Hz, USB-C PD65W, KVM |
Datasheet & Downloads
| AOC product page | U27P4C on aoc.com |
| Product leaflet (PDF) | U27P4C Product leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting U27P4C.
Frequently Asked Questions — AOC U27P4C
What resolution and refresh rate does the U27P4C support?
3840 x 2160 (4K UHD) at up to 60 Hz per AOC's datasheet, with 4 ms GtG response time.
Can it charge my laptop over USB-C?
Yes, the USB-C (C1) port supports USB PD 3.0 with typical 96W power delivery, plus DisplayPort Alt Mode video.
Does it have a KVM and speakers?
Yes, it has a built-in KVM with two USB-C upstream ports and 2 W x 2 built-in speakers.
Is the stand adjustable?
Yes: 150 mm height adjustment, -5° to 30° tilt, ±180° swivel and ±90° pivot, plus 100 x 100 VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
