AOC CU34P3CV 34" WQHD Curved VA 100Hz Business Monitor with USB-C 65W and KVM
PRODUCT DESCRIPTION
AOC CU34P3CV 34" WQHD Curved VA 100Hz Business Monitor with USB-C 65W and KVM - 3 years parts & labour warranty

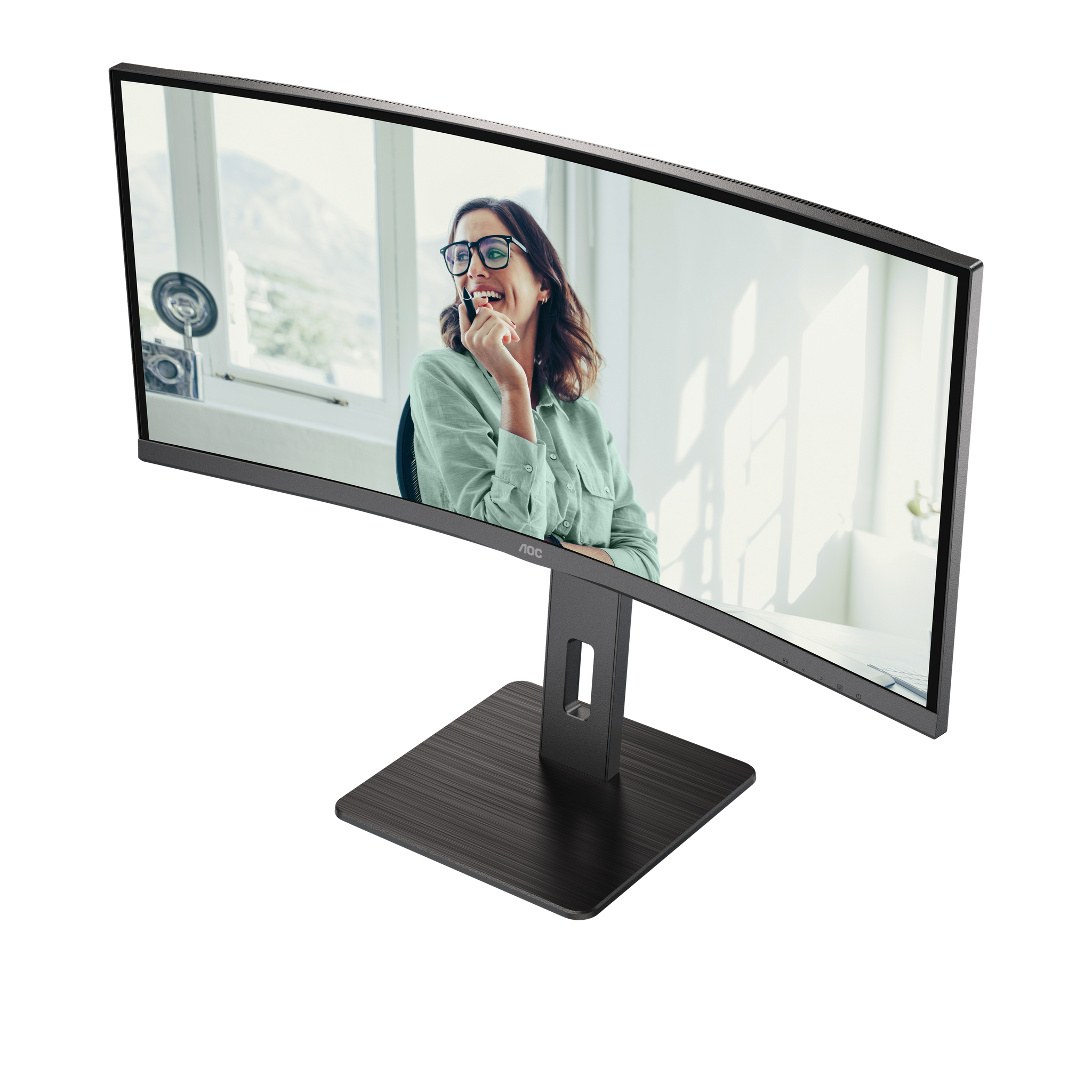

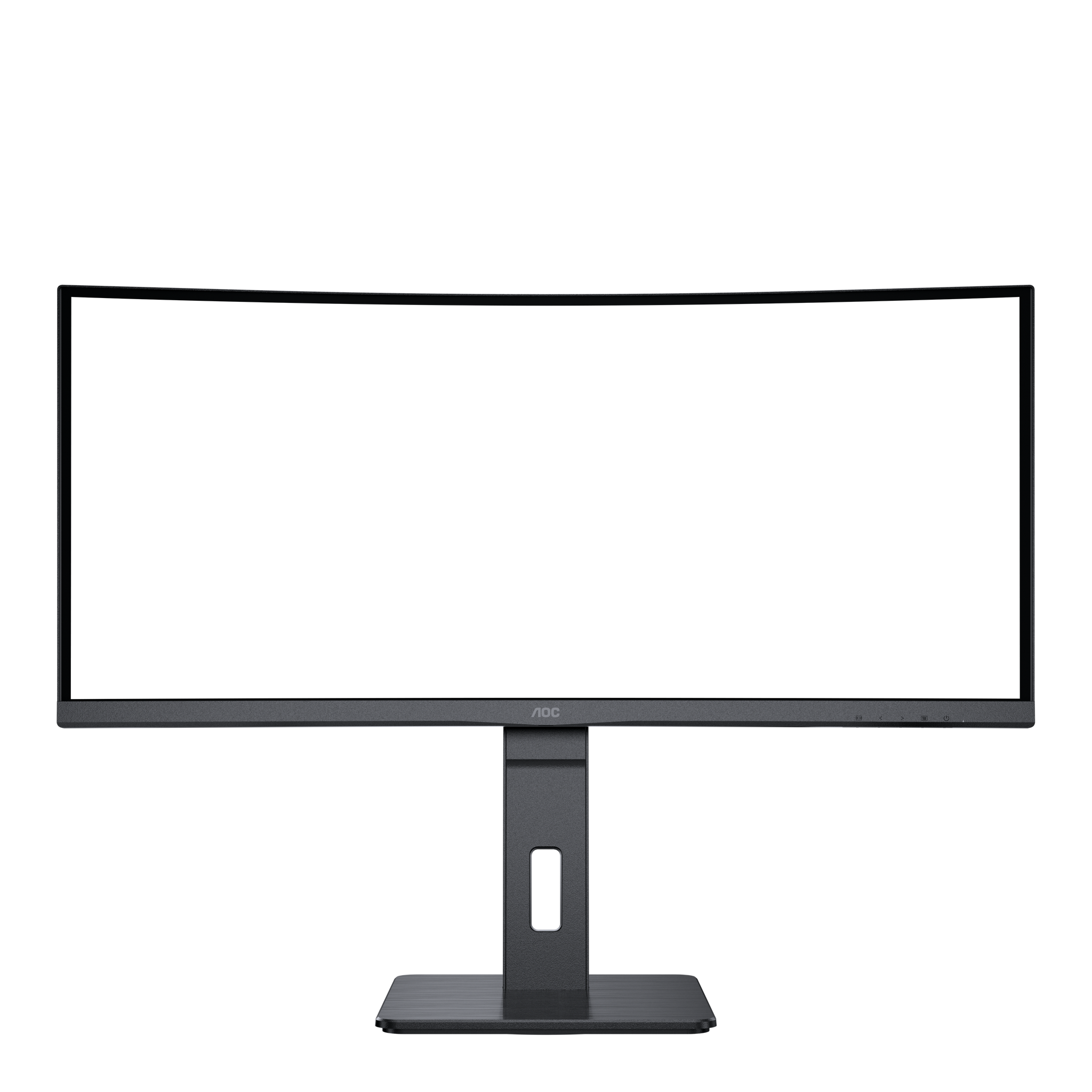

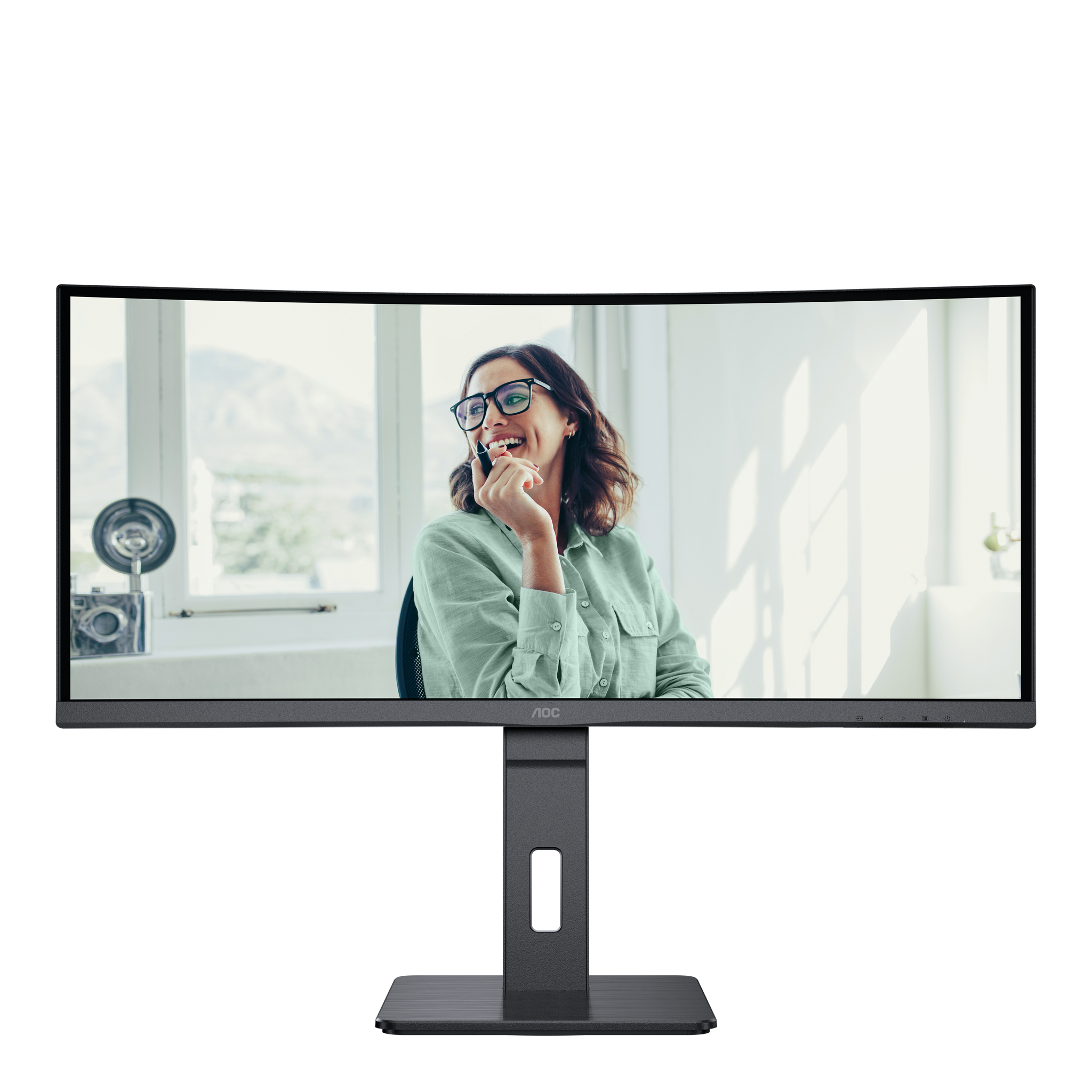

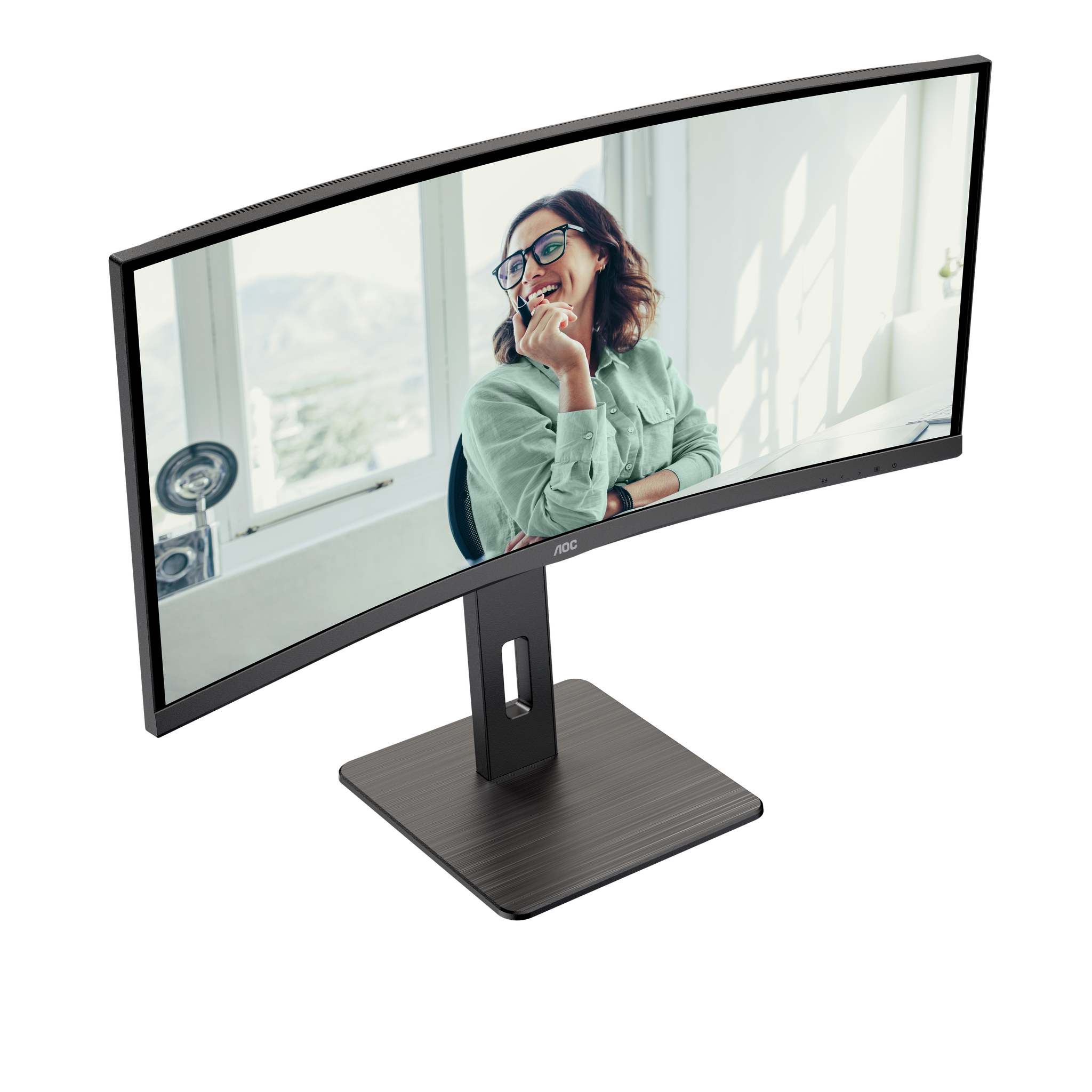

34" curved ultrawide workspace
A 34" WQHD (3440 x 1440) 1500R curved VA panel with a 21:9 aspect ratio and three-sided frameless design for a wider field of view.
USB-C docking with 65 W
USB-C with DP alt mode, data and up to 65 W power delivery, four USB-A 3.2 Gen 1 downstream ports, RJ45 and built-in KVM.
Comfortable all-day viewing
100 Hz refresh, 300 cd/m² brightness, 3000:1 static contrast, 178/178° viewing angles, Adaptive Sync, Flicker Free and Low Blue Light.
Speakers and ergonomic stand
5 W x 2 built-in speakers, 150 mm height adjustment, -5° to 20° tilt and swivel, plus 100 x 100 VESA mounting.
Sustainability
TCO Certified, EPEAT Silver and 85% post-consumer recycled plastic.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC CU34P3CV Datasheet — Technical Specifications
General
| Product Name | AOC CU34P3CV 34" WQHD Curved VA 100Hz Business Monitor with USB-C 65W and KVM |
| Model | CU34P3CV |
| Brand / Series | AOC Pro-line P3 series |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985231933 |
Display
| Screen size | 34.0 inch, curved 1500R |
| Panel type | VA |
| Backlight type | WLED |
| Panel resolution | 3440 x 1440 (WQHD) |
| Aspect ratio | 21:9 |
| Max refresh rate | 100 Hz |
| Response time | 4 ms GtG / 1 ms MPRT |
| Brightness | 300 cd/m² |
| Static contrast ratio | 3000:1 |
| Dynamic contrast ratio | 50M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 16.7 Million |
| Panel treatment / hardness | Antiglare (AG) / 3H |
| Pixel pitch | 0.23175 mm |
| Display viewing area | 797.22 (H) × 333.72 (V) mm |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| Flicker-Free | Flicker Free |
| Blue light technology | Low Blue Light |
| Multiview | PiP + PbP |
| KVM | 1x USB 3.2 Gen 2 Type-C + 1x Type-B |
Connectivity
| HDMI | HDMI 1.4 x 1 |
| DisplayPort | DisplayPort 1.4 x 1 |
| USB | USB 3.2 (Gen 1), 4 x USB-A downstream |
| RJ45 | 1x |
| Audio output | 1x Audio out, Headphone out (3.5mm) |
USB-C / Power Delivery
| USB-C | USB-C 3.2 x 1 (DP alt mode, upstream, power delivery up to 65 W) |
Audio
| Speakers | 5 W x 2 |
Ergonomics & Cabinet
| Height adjust | 150 mm |
| Tilt | -5° / 20° |
| Swivel | -175° / 175° |
| VESA wall mount | 100 x 100 |
| Bezel type | 3-sided frameless |
| Bezel / cabinet colour | Black / Black |
Power
| Power supply | Internal |
| Power source | 100 - 240V～1.5A, 50 / 60Hz |
| Power consumption on (typical) | 35.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 808.34 × 482.44~611.039 × 275.13 mm |
| Product excl. base (WxHxD) | 808.34 × 367.45 × 104.7 mm |
| Packaging (WxHxD) | 1070 × 556 × 190 mm |
| Gross weight incl. package | 12.95 kg |
| Net weight excl. package | 10.0 kg |
| Product without stand | 6.92 kg |
Other
| Operating system | Windows 8.1/10/11, MacOS |
| MTBF (excluding panel) | 70,000 hours |
| TCO Certified | Yes |
| EPEAT | Silver |
| Post-consumer recycled plastic | 85% |
Specifications per AOC's official CU34P3CV datasheet on aoc.com (Singapore). AOC's table lists the product-excl.-base and packaging dimensions in each other's rows; they are shown here in the matching rows.
Compatibility & Connectivity
Video Inputs
HDMI 1.4 x 1, DisplayPort 1.4 x 1 and USB-C with DP alt mode.
USB-C Laptops
A single USB-C cable carries video, USB data and up to 65 W charging to a compatible laptop; RJ45 adds wired network and the KVM lets you share keyboard and mouse between two sources.
Operating Systems
Windows 8.1/10/11 and macOS.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC Business & Office Monitors Ordering Information
In the Box
CU34P3CV monitor with stand, power cable, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Business & Office Monitors
| Model | Key feature |
| 16T20 | 15.6”, FHD, IPS, 60Hz, Portable, 2x USB-C, Foldable Smart Cover & Stand |
| 25B36X | 24.5", FHD, IPS, 144Hz, HDR10 |
| 27B36X | 27", FHD, IPS, 144Hz, HDR10 |
| Q27P4C | 27", QHD, IPS, 120Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| Q27P3CV | 27", QHD, IPS, 100Hz, USB-C 65W |
| U27P4C | 27", UHD, IPS, 60Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| Q32P4C | 31.5", QHD, IPS, 100Hz, USB-C 96W, USB Hub+USB-C 15W, KVM |
| U32P4C | 31.5", UHD, IPS, 60Hz, USB-C, USB Hub+USB-C 15W, KVM |
| CU34P3CV (this listing) | 34", WQHD, Curved 1500R, VA, 100Hz, USB-C PD65W, KVM |
Datasheet & Downloads
| AOC product page | CU34P3CV on aoc.com |
| Product leaflet (PDF) | CU34P3CV Product leaflet (PDF) |
| User manual (PDF) | CU34P3CV User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting CU34P3CV.
Frequently Asked Questions — AOC CU34P3CV
What resolution and refresh rate does the CU34P3CV support?
3440 x 1440 (WQHD, 21:9) on a 1500R curved VA panel at up to 100 Hz.
Can it charge my laptop over USB-C?
Yes, USB-C with DP alt mode supports power delivery up to 65 W, plus USB hub, RJ45 and KVM.
Does it have built-in speakers?
Yes, 5 W x 2 speakers, plus audio and headphone outputs.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
