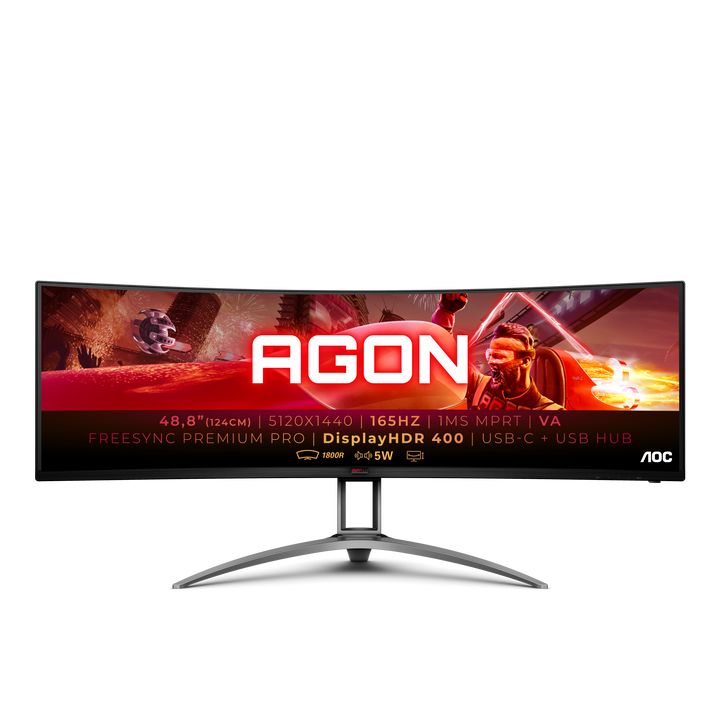

AOC AGON AG493UCX2 49" DQHD Curved VA 165Hz Gaming Monitor with USB-C 65W
PRODUCT DESCRIPTION
AOC AGON AG493UCX2 49" DQHD Curved VA 165Hz Gaming Monitor with USB-C 65W - 3 years parts & labour warranty
49" 32:9 Dual QHD immersion
A curved 1800R VA panel (48.8" viewable) with 5120 x 1440 Dual-QHD resolution in a 32:9 aspect ratio — razor-sharp whichever way you look.
165 Hz with FreeSync Premium
A 165 Hz refresh rate, 1 ms MPRT / 4 ms GtG response and AMD FreeSync Premium (Adaptive Sync) for the smoothest images.
DisplayHDR 400
VESA Certified DisplayHDR 400 with 550 cd/m² brightness and 3000:1 static contrast; Flicker Free and Low Blue Light.
USB-C 65W, USB hub and speakers
USB-C (DP Alt mode) with 65 W power delivery, a USB 3.2 Gen 1 hub with 3 x USB-A downstream (USB-C or USB-B upstream), Picture-by-Picture and built-in 5 W x 2 speakers.
Adjustable stand
100 mm height adjustment, -5° to 15° tilt and ±15° swivel, plus 100 x 100 VESA mounting.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AG493UCX2 Datasheet — Technical Specifications
General
| Product Name | AOC AGON AG493UCX2 49" DQHD Curved VA 165Hz Gaming Monitor with USB-C 65W |
| Model | AG493UCX2 |
| Brand / Series | AGON |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985230530 |
Display
| Screen size | 48.8 inch, curved |
| Curvature radius | 1800R |
| Panel type | VA |
| Panel resolution | 5120 x 1440 (DQHD) |
| Aspect ratio | 32:9 |
| Max refresh rate | 165 Hz |
| Response time | 4 ms GtG / 1 ms MPRT |
| Brightness | 550 cd/m² |
| Static contrast ratio | 3000:1 |
| Dynamic contrast ratio | 80M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 16.7 Million |
| Pixel pitch | 0.2331 mm |
| Display viewing area | 1193.472 (H) × 335.664 (V) mm |
Video Features
| Sync technology (VRR) | Adaptive Sync (FreeSync Premium per AOC product description) |
| HDR | VESA Certified DisplayHDR 400 |
| Multiview | PbP |
| Flicker-Free | Flicker Free |
| Blue light technology | Low Blue Light |
Connectivity
| HDMI | HDMI 2.0 x 3 |
| DisplayPort | DisplayPort 1.4 x 1 |
| USB-C | USB-C (DP Alt mode) x 1 |
| USB upstream | 1 x USB-C (DP Alt Mode), 1 x USB-B |
| USB downstream | 3 x USB-A |
| USB generation | USB 3.2 (Gen 1) |
| Audio output | Headphone out (3.5mm) |
USB-C / Power Delivery
| USB-C power delivery | 65 W |
Audio
| Speakers | 5 W x 2 |
Ergonomics & Cabinet
| Height adjust | 100 mm |
| Tilt | -5° / 15° |
| Swivel | -15° / 15° |
| VESA wall mount | 100 x 100 |
| Bezel / cabinet colour | Black / Black (textured finish) |
Power
| Power supply | Internal |
| Power source | 100 - 240V 50/60Hz |
| Power consumption on (typical) | 68.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 1194.4 × 467.6~567.6 × 308.0 mm |
| Product excl. base (WxHxD) | 1194.4 × 369.4 × 153.24 mm |
| Packaging (WxHxD) | 1301 × 533 × 420 mm |
| Gross weight incl. package | 20.8 kg |
| Net weight excl. package | 14.4 kg |
| Product without stand | 10.9 kg |
Other
| Pixel policy | ISO 9241-307 |
Specifications per AOC's official AG493UCX2/69 datasheet on aoc.com (Singapore).
Compatibility & Connectivity
Video Inputs
HDMI 2.0 x 3, DisplayPort 1.4 x 1 and USB-C (DP Alt mode) x 1. Use DisplayPort 1.4 from your graphics card for the full 165 Hz at 5120 x 1440.
USB-C Laptops
Laptops with USB-C DisplayPort Alt mode get video, USB hub data and up to 65 W charging over a single cable.
Graphics Cards
Adaptive Sync / FreeSync Premium works with compatible AMD graphics cards; Adaptive Sync also works with compatible NVIDIA graphics cards over DisplayPort.
Software
AOC G-Menu lets you adjust picture modes and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets rated for its 10.9 kg panel weight.
Package Contents & AOC Gaming Monitors Ordering Information
In the Box
AG493UCX2 monitor with stand, power cable, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Gaming Monitors
| Model | Key feature |
| 24G4ZR | 23.8", FHD, Fast IPS, 260Hz(OC), HDR10 |
| CS24A/P | 24.1", FHD, E-Sport TN, 610Hz, HDR400 |
| 25G4S | 24.5", FHD, Fast IPS, 310Hz, HDR400 |
| 25G4K | 24.5", FHD, Fast IPS, 420Hz, HDR400 |
| Q25G4S | 24.5", QHD, Fast IPS, 320Hz, HDR400 |
| CS25G | 24.5", FHD, Fast IPS, 310Hz(OC), HDR400 |
| AG276FK | 27", FHD, Fast IPS, 520Hz, HDR400 |
| U27G4 | 27", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| CQ27G4S | 27", Dual: HD-400Hz OC, QHD-320Hz OC, Curved 1500R, Fast VA, HDR400 |
| 27G4H | 27", FHD, Fast IPS, 200Hz, HDR10 |
| 27G11ZE2 | 27", FHD, Fast IPS, 240Hz, HDR10 |
| 27G4ZR | 27", FHD, Fast IPS, 260Hz(OC), HDR10 |
| AG275QXW | 27", QHD, Fast IPS, 180Hz, HDR400, White |
| Q27G4/D | 27", QHD, Fast IPS, 200Hz, HDR400 |
| Q27G4/WS | 27", QHD, Fast IPS, 200Hz, HDR400, White |
| Q27G4S | 27", QHD, Fast IPS, 300Hz, HDR400 |
| Q27G4SL/WS | 27", QHD, Fast IPS, 320Hz, HDR400, White |
| Q27G4XY | 27", QHD, Fast VA, 180Hz, HDR400, USB-C 65W, Google Smart OS |
| Q27B36X | 27", QHD, IPS, 144Hz, HDR10 |
| U27G4XM | 27", Dual: FHD-320Hz, UHD-160Hz, Mini-LED, Fast IPS, HDR1000 |
| AG275UXM | 27", UHD, Mini-LED (QD), Fast IPS, 165Hz, HDR1000 |
| U32G4 | 31.5", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| AGP327UZD | 31.5", Dual: FHD-480Hz, UHD-240Hz, W-OLED, HDR400, USB-C 65W |
| CQ32G4 | 31.5", QHD, Curved 1500R, Fast VA, 180Hz, HDR10 |
| Q32V5E | 31.5", QHD, IPS, 100Hz, HDR10 |
| U32G4ZMN | 31.5", UHD, Mini-LED, Fast VA, 165Hz |
| CU34G4Z | 34", WQHD, Curved 1500R, Fast VA, 240Hz, HDR400 |
| AG344UXM | 34", WQHD, Mini-LED (QD), 170Hz, HDR1000, USB-C 90W |
| AG493UCX2 (this listing) | 49", DQHD, Curved 1800R, VA, SuperWide 32:9, 165Hz, HDR400 |
Datasheet & Downloads
| AOC product page | AG493UCX2 on aoc.com |
| Product leaflet (PDF) | AG493UCX2 Product leaflet (PDF) |
| User manual (PDF) | AG493UCX2 User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AG493UCX2.
Frequently Asked Questions — AOC AG493UCX2
What resolution and refresh rate does the AG493UCX2 support?
5120 x 1440 (Dual QHD, 32:9) at up to 165 Hz, with 1 ms MPRT response time.
Can it charge my laptop over USB-C?
Yes, its USB-C port (DP Alt mode) delivers up to 65 W while carrying video and USB hub data.
Does it have built-in speakers?
Yes, 5 W x 2 speakers, plus a 3.5 mm headphone output.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
