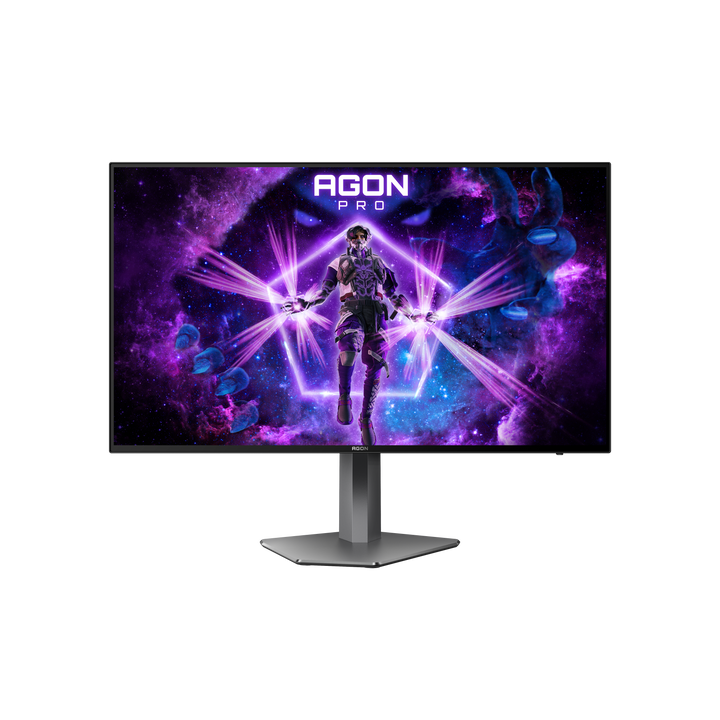

AOC AGON PRO AG276QZD 26.5" QHD OLED 240Hz Gaming Monitor with HDR10 and RGB Light FX
PRODUCT DESCRIPTION
AOC AGON PRO AG276QZD 26.5" QHD OLED 240Hz Gaming Monitor with HDR10 and RGB Light FX - 3 years parts & labour warranty
240 Hz OLED speed
A 26.5" QHD (2560 x 1440) OLED panel with a 240 Hz refresh rate, 0.03 ms GtG response and low input lag for smooth, crisp gameplay.
HDR10 and deep contrast
HDR10 with up to 1000 cd/m² (HDR, 3% APL), 1.5M:1 static contrast, 1.07 billion colours and DCI-P3 98.5% gamut; G-SYNC Compatible for tear-free play.
eSport-optimised design
An eSport-optimised base with 130 mm height adjustment, -5° to 23° tilt, ±30° swivel and ±90° pivot, plus built-in cable management. Red Dot Winner 2023.
RGB Light FX, speakers and USB
Customisable RGB Light FX to match AGON by AOC accessories, 5 W x 2 speakers and a 2-port USB 3.2 Gen 1 hub.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AG276QZD Datasheet — Technical Specifications
General
| Product Name | AOC AGON PRO AG276QZD 26.5" QHD OLED 240Hz Gaming Monitor with HDR10 and RGB Light FX |
| Model | AG276QZD |
| Brand / Series | AGON PRO |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985231063 |
Display
| Screen size | 26.5 inch, flat |
| Panel type | OLED |
| Panel treatment | Antiglare (AG) |
| Panel resolution | 2560 x 1440 (QHD) |
| Aspect ratio | 16:9 |
| Max refresh rate | 240 Hz |
| Response time | 0.03 ms GtG |
| Brightness | 200 cd/m² (100% APL) / 450 cd/m² typ. (25% APL) / 1000 cd/m² typ. (HDR 3% APL) |
| Static contrast ratio | 1.5M:1 |
| Dynamic contrast ratio | 80M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.07 Billion |
| Colour gamut | sRGB 100% (CIE1931) / DCI-P3 98.5% (CIE1976) |
| Pixel pitch | 0.2292 mm |
| Display viewing area | 586.75 (H) × 330.05 (V) mm |
Video Features
| Sync technology (VRR) | NVIDIA G-SYNC Compatible |
| HDR | HDR10 |
| Flicker-Free | Flicker Free |
| Blue light | Low Blue Light |
| Multiview | PiP + PbP |
Connectivity
| HDMI | HDMI 2.0 x 2 |
| DisplayPort | DisplayPort 1.4 x 2 |
| USB hub | USB 3.2 Gen 1 (5Gbit), 2 downstream ports |
| Audio output | Headphone out (3.5mm) |
Audio
| Speakers | 5 W x 2 |
Ergonomics & Cabinet
| Height adjust | 130 mm |
| Tilt | -5° / 23° |
| Swivel | -30° / 30° |
| Pivot | -90° / 90° |
| VESA wall mount | 100 x 100 |
| Light FX | RGB |
| Bezel colour / finish (front) | Black / Texture |
| Cabinet colour / finish (back) | Black / Texture |
Power
| Power supply | External |
| Power source | 20VDC, 6.0A |
| Power consumption on (typical) | 35.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 604.4 × 396.6~526.6 × 233.9 mm |
| Product excl. base (WxHxD) | 604.4 × 350.6 × 71.3 mm |
| Packaging (WxHxD) | 731 × 477 × 189 mm |
| Gross weight incl. package | 10.33 kg |
| Net weight excl. package | 6.41 kg |
| Product without stand | 4.91 kg |
Other
| Pixel policy | ISO 9241-307 |
Specifications per AOC's official AG276QZD/69 datasheet on aoc.com (sg).
Compatibility & Connectivity
Video Inputs
HDMI 2.0 x 2 and DisplayPort 1.4 x 2. Use DisplayPort 1.4 from your graphics card for QHD at 240 Hz; HDMI 2.0 suits consoles and laptops.
Graphics Cards
NVIDIA G-SYNC Compatible for tear-free gaming with compatible graphics cards.
Software
AOC G-Menu lets you adjust picture modes, Light FX and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC QD-OLED Gaming Monitors Ordering Information
In the Box
AG276QZD monitor with stand, external power adapter, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC QD-OLED Gaming Monitors
| Model | Key feature |
| Q27G40ZDF | 26.5", QHD, QD-OLED, 240Hz |
| Q27G4ZD | 26.5", QHD, QD-OLED, 240Hz, HDR400 |
| Q27G4SD | 26.5", QHD, QD-OLED, 360Hz, HDR400 |
| Q27G4KD | 26.5", QHD, QD-OLED, 500Hz, HDR500 |
| U27G4D | 26.5", UHD, QD-OLED, 165Hz, HDR400 |
| AG276UZD | 26.5", UHD, QD-OLED, 240Hz, HDR400, USB-C 65W, KVM |
| AGP346UCSD | 34", WQHD, Curved 1800R, QD-OLED, 360Hz, HDR500, USB-C 15W |
| AG276QZD (this listing) | 26.5", QHD, OLED, 240Hz, HDR10, RGB |
Datasheet & Downloads
| AOC product page | AG276QZD on aoc.com |
| Product leaflet (PDF) | AG276QZD Product leaflet (PDF) |
| User manual (PDF) | AG276QZD User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AG276QZD.
Frequently Asked Questions — AOC AG276QZD
What refresh rate does the AG276QZD support?
240 Hz at 2560 x 1440, with 0.03 ms GtG response time.
Is the stand adjustable?
Yes: 130 mm height adjustment, -5° to 23° tilt, ±30° swivel and ±90° pivot.
Does it have speakers and USB ports?
Yes, 5 W x 2 speakers and a 2-port USB 3.2 Gen 1 hub, plus a 3.5 mm headphone output.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
