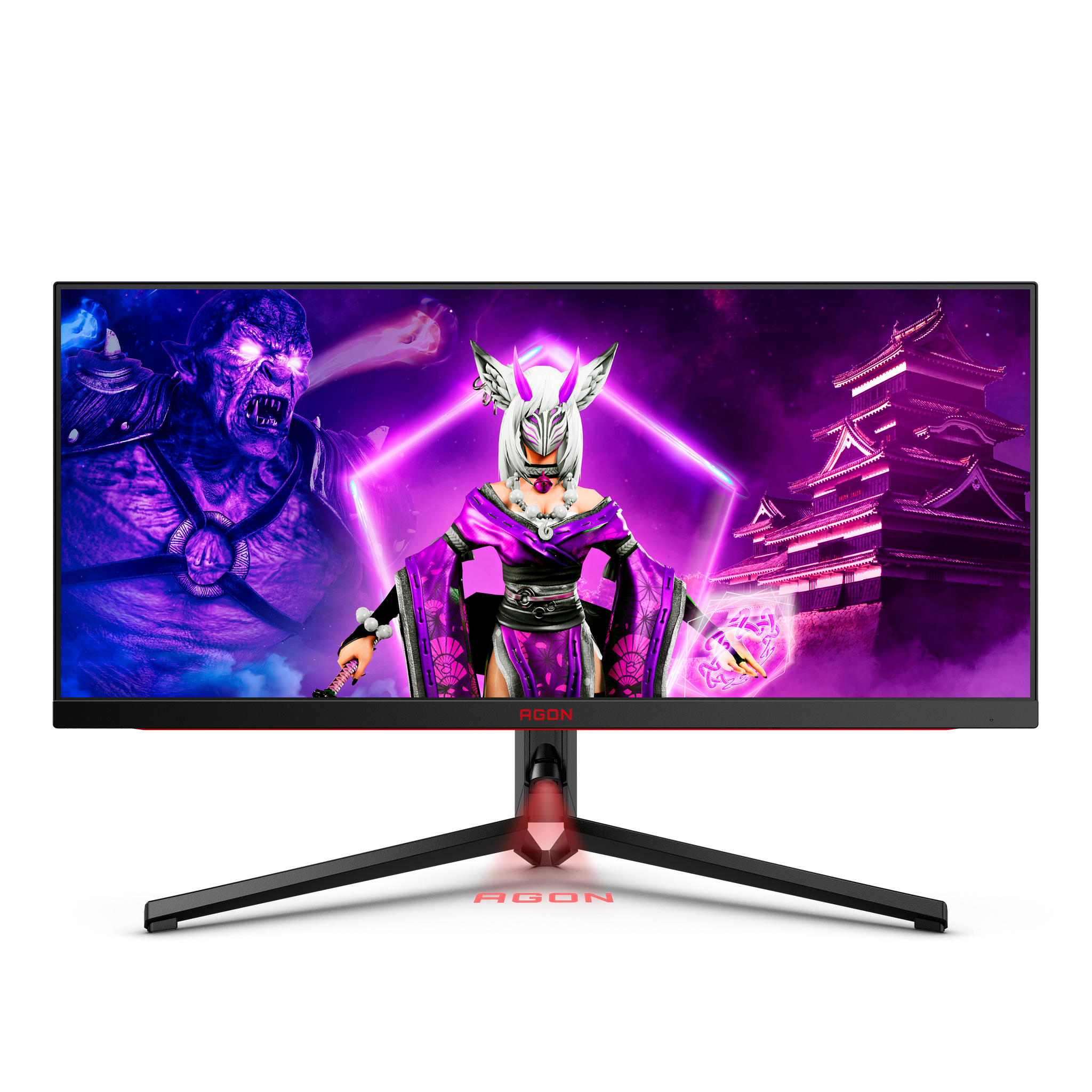

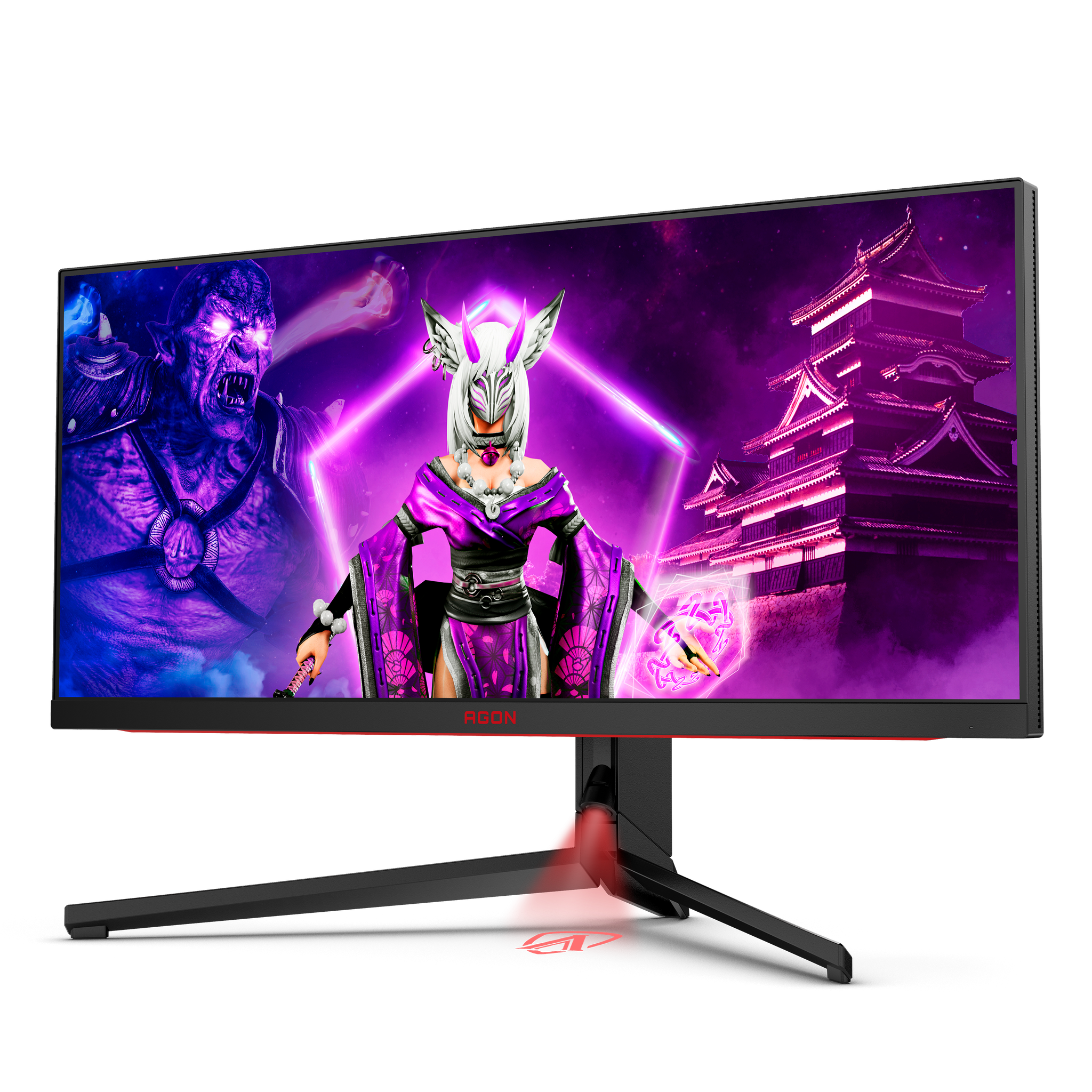

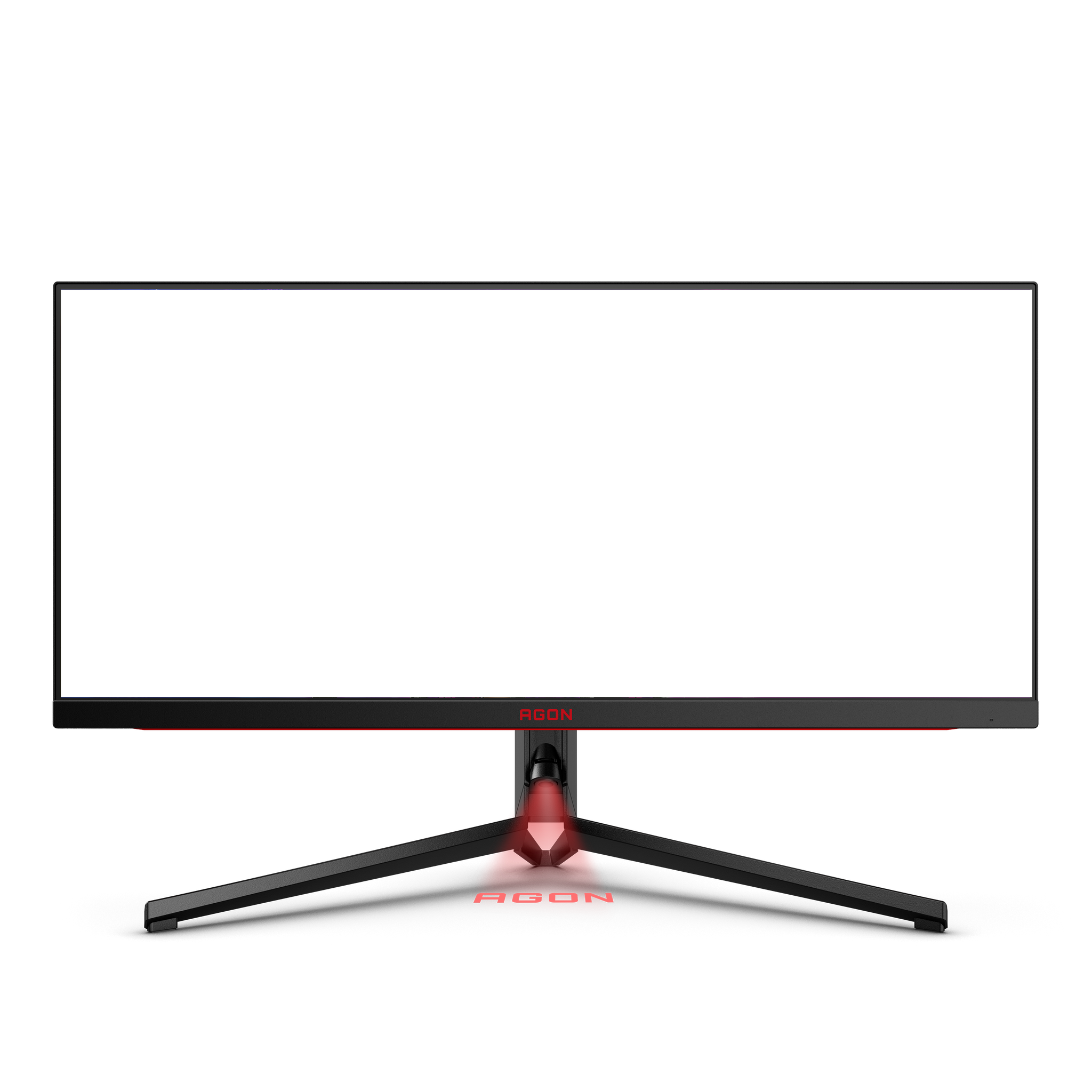

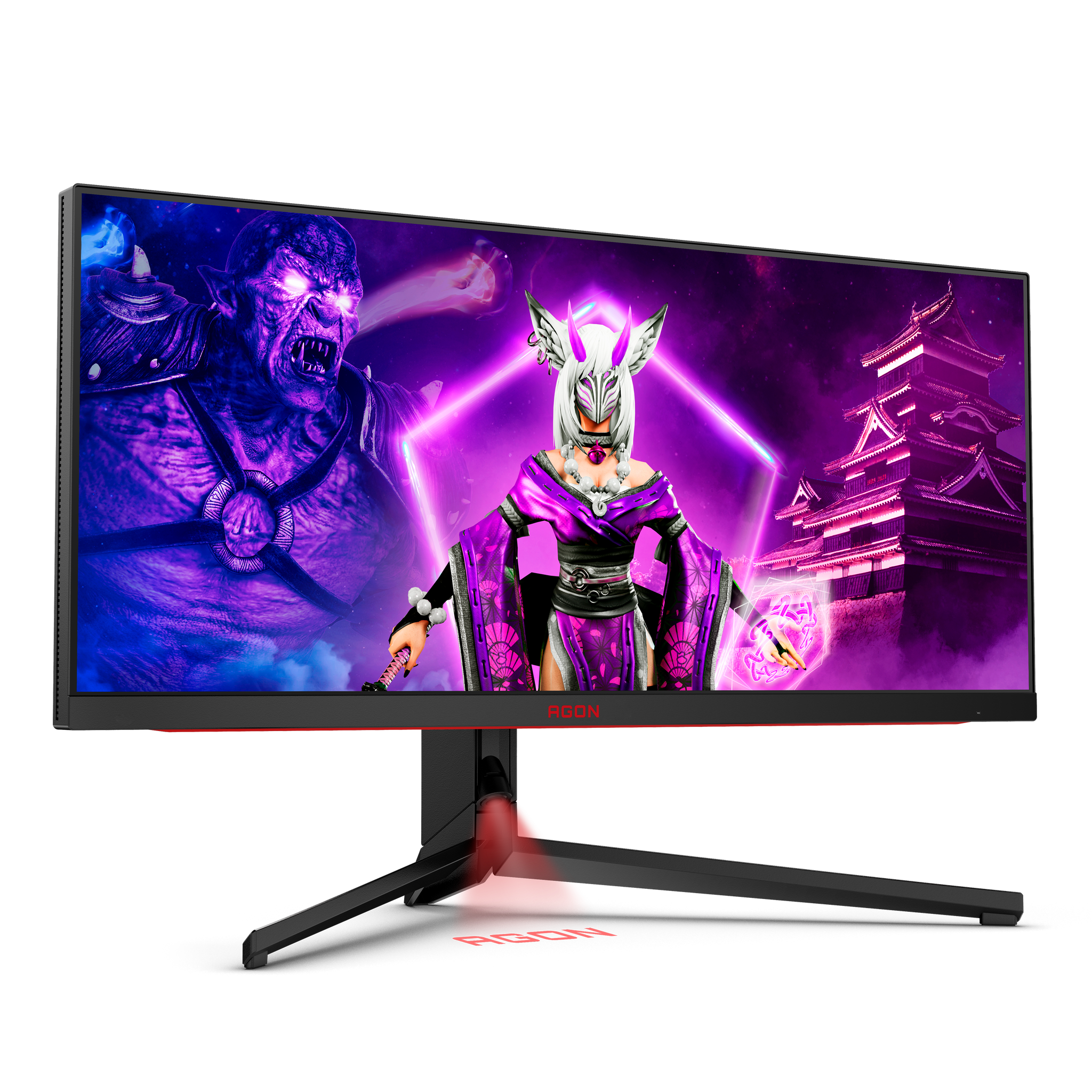

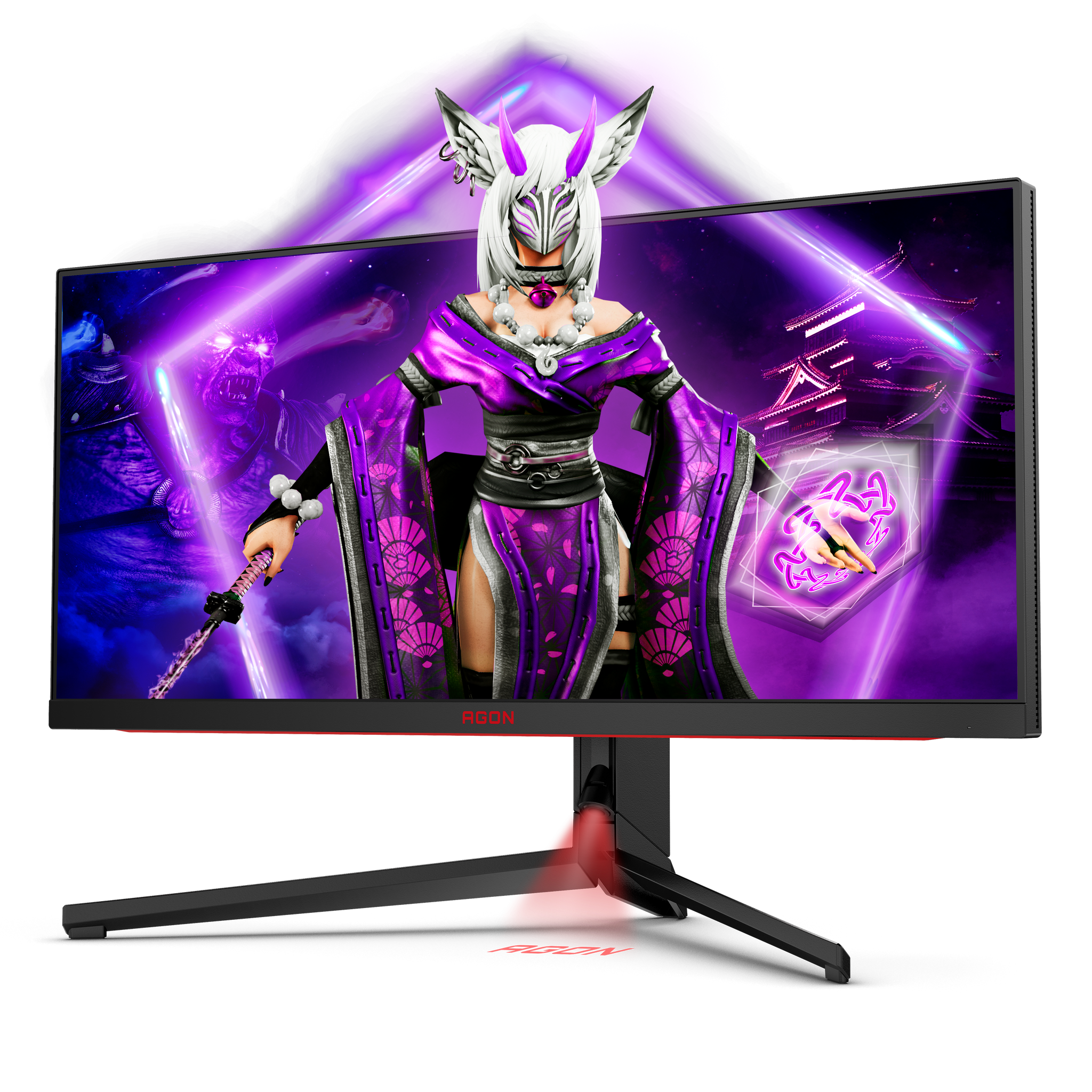

AOC AGON PRO AG344UXM 34" WQHD Mini-LED IPS 170Hz Gaming Monitor with USB-C 90W and KVM
PRODUCT DESCRIPTION
AOC AGON PRO AG344UXM 34" WQHD Mini-LED IPS 170Hz Gaming Monitor with USB-C 90W and KVM - 3 years parts & labour warranty
21:9 Mini-LED with 1152 zones
A 34" 3440 x 1440 IPS panel with Mini LED backlight and 1152 local dimming zones; AOC calls it the first MiniLED 21:9 monitor in the world.
VESA DisplayHDR 1000
VESA Certified DisplayHDR 1000, 600 cd/m² brightness, 1.07 billion colours and DCI-P3 107% colour gamut, with an anti-glare coated display.
170 Hz, 1 ms gaming
170 Hz refresh and 1 ms GtG response with Adaptive Sync for smooth, high-end gameplay.
USB-C 90W, USB hub and KVM
USB-C with DP alt mode and up to 90 W power delivery, four USB 3.2 Gen 1 downstream ports and built-in KVM for gaming, home office and streaming; 8W x 2 speakers with DTS.
Adjustable stand and RGB
130 mm height adjustment, -5° to 23° tilt and ±20° swivel, with RGB customisable through AOC G-Menu and 100 x 100 VESA mounting.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AG344UXM Datasheet — Technical Specifications
General
| Product Name | AOC AGON PRO AG344UXM 34" WQHD Mini-LED IPS 170Hz Gaming Monitor with USB-C 90W and KVM |
| Model | AG344UXM |
| Brand / Series | AGON PRO |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985231414 |
Display
| Screen size | 34.0 inch, flat |
| Panel type | IPS |
| Backlight type | Mini LED, 1152 local dimming zones |
| Panel resolution | 3440 x 1440 (UWQHD) |
| Aspect ratio | 21:9 |
| Max refresh rate | 170 Hz |
| Response time | 1 ms GtG |
| Brightness | 600 cd/m² |
| Static contrast ratio | 1000:1 |
| Dynamic contrast ratio | 80M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.07 Billion |
| Colour gamut | NTSC 117% (CIE1976) / sRGB 140% (CIE1931) / DCI-P3 107% (CIE1976) |
| Pixel pitch | 0.2325 mm |
| Display viewing area | 799.8 (H) × 334.8 (V) mm |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| HDR | VESA Certified DisplayHDR™ 1000 |
| Blue light technology | Low Blue Light |
| Multiview | PbP |
| KVM | Yes (per AOC product description) |
Connectivity
| HDMI | HDMI 2.1 x 2 |
| DisplayPort | DisplayPort 1.4 x 1 |
| USB | USB 3.2 (Gen 1), 4 x downstream, 5 Gbit/s |
| Audio output | Headphone out (3.5mm) |
USB-C / Power Delivery
| USB-C | USB-C 3.2 x 1 (DP alt mode, upstream, power delivery up to 90 W) |
Audio
| Speakers | 8W x 2 + DTS |
Ergonomics & Cabinet
| Height adjust | 130 mm |
| Tilt | -5° / 23° |
| Swivel | -20° / 20° |
| VESA wall mount | 100 x 100 |
| Bezel colour / finish (front) | Black / Matt |
| Cabinet colour / finish (back) | Black, Red / Matt |
Power
| Power supply | Internal |
| Power consumption on (typical) | 142.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 816.4 × 467.7~597.7 × 400.1 mm |
| Product excl. base (WxHxD) | 816.4 × 372.5 × 87.9 mm |
| Packaging (WxHxD) | 983 × 526 × 283 mm |
| Gross weight incl. package | 17.7 kg |
| Net weight excl. package | 12.77 kg |
| Product without stand | 9.75 kg |
Other
| Pixel policy | ISO 9241-307 |
Specifications per AOC's official AG344UXM datasheet on aoc.com (Singapore).
Compatibility & Connectivity
Video Inputs
HDMI 2.1 x 2, DisplayPort 1.4 x 1 and USB-C with DP alt mode. Use DisplayPort 1.4 from your graphics card for the full 170 Hz refresh rate.
USB-C Laptops
A single USB-C cable carries video, USB data and up to 90 W charging to a compatible laptop; the built-in KVM lets you share keyboard and mouse between two sources.
Graphics Cards
Adaptive Sync works with compatible AMD and NVIDIA graphics cards.
Software
AOC G-Menu lets you customise RGB lighting, picture modes and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC Gaming Monitors Ordering Information
In the Box
AG344UXM monitor with stand, power cable, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Gaming Monitors
| Model | Key feature |
| 24G4ZR | 23.8", FHD, Fast IPS, 260Hz(OC), HDR10 |
| CS24A/P | 24.1", FHD, E-Sport TN, 610Hz, HDR400 |
| 25G4S | 24.5", FHD, Fast IPS, 310Hz, HDR400 |
| 25G4K | 24.5", FHD, Fast IPS, 420Hz, HDR400 |
| Q25G4S | 24.5", QHD, Fast IPS, 320Hz, HDR400 |
| CS25G | 24.5", FHD, Fast IPS, 310Hz(OC), HDR400 |
| AG276FK | 27", FHD, Fast IPS, 520Hz, HDR400 |
| U27G4 | 27", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| CQ27G4S | 27", Dual: HD-400Hz OC, QHD-320Hz OC, Curved 1500R, Fast VA, HDR400 |
| 27G4H | 27", FHD, Fast IPS, 200Hz, HDR10 |
| 27G11ZE2 | 27", FHD, Fast IPS, 240Hz, HDR10 |
| 27G4ZR | 27", FHD, Fast IPS, 260Hz(OC), HDR10 |
| AG275QXW | 27", QHD, Fast IPS, 180Hz, HDR400, White |
| Q27G4/D | 27", QHD, Fast IPS, 200Hz, HDR400 |
| Q27G4/WS | 27", QHD, Fast IPS, 200Hz, HDR400, White |
| Q27G4S | 27", QHD, Fast IPS, 300Hz, HDR400 |
| Q27G4SL/WS | 27", QHD, Fast IPS, 320Hz, HDR400, White |
| Q27G4XY | 27", QHD, Fast VA, 180Hz, HDR400, USB-C 65W, Google Smart OS |
| Q27B36X | 27", QHD, IPS, 144Hz, HDR10 |
| U27G4XM | 27", Dual: FHD-320Hz, UHD-160Hz, Mini-LED, Fast IPS, HDR1000 |
| AG275UXM | 27", UHD, Mini-LED (QD), Fast IPS, 165Hz, HDR1000 |
| U32G4 | 31.5", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| AGP327UZD | 31.5", Dual: FHD-480Hz, UHD-240Hz, W-OLED, HDR400, USB-C 65W |
| CQ32G4 | 31.5", QHD, Curved 1500R, Fast VA, 180Hz, HDR10 |
| Q32V5E | 31.5", QHD, IPS, 100Hz, HDR10 |
| U32G4ZMN | 31.5", UHD, Mini-LED, Fast VA, 165Hz |
| CU34G4Z | 34", WQHD, Curved 1500R, Fast VA, 240Hz, HDR400 |
| AG344UXM (this listing) | 34", WQHD, Mini-LED (QD), 170Hz, HDR1000, USB-C 90W |
| AG493UCX2 | 49", DQHD, Curved 1800R, VA, SuperWide 32:9, 165Hz, HDR400 |
Datasheet & Downloads
| AOC product page | AG344UXM on aoc.com |
| Product leaflet (PDF) | AG344UXM Product leaflet (PDF) |
| User manual (PDF) | AG344UXM User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AG344UXM.
Frequently Asked Questions — AOC AG344UXM
What refresh rate and resolution does the AG344UXM support?
3440 x 1440 (21:9) at up to 170 Hz, with 1 ms GtG response time.
Can it charge my laptop over USB-C?
Yes, its USB-C port supports DP alt mode and power delivery up to 90 W, and it has a built-in KVM.
Does it have built-in speakers?
Yes, 8W x 2 speakers with DTS, plus a 3.5 mm headphone output.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
