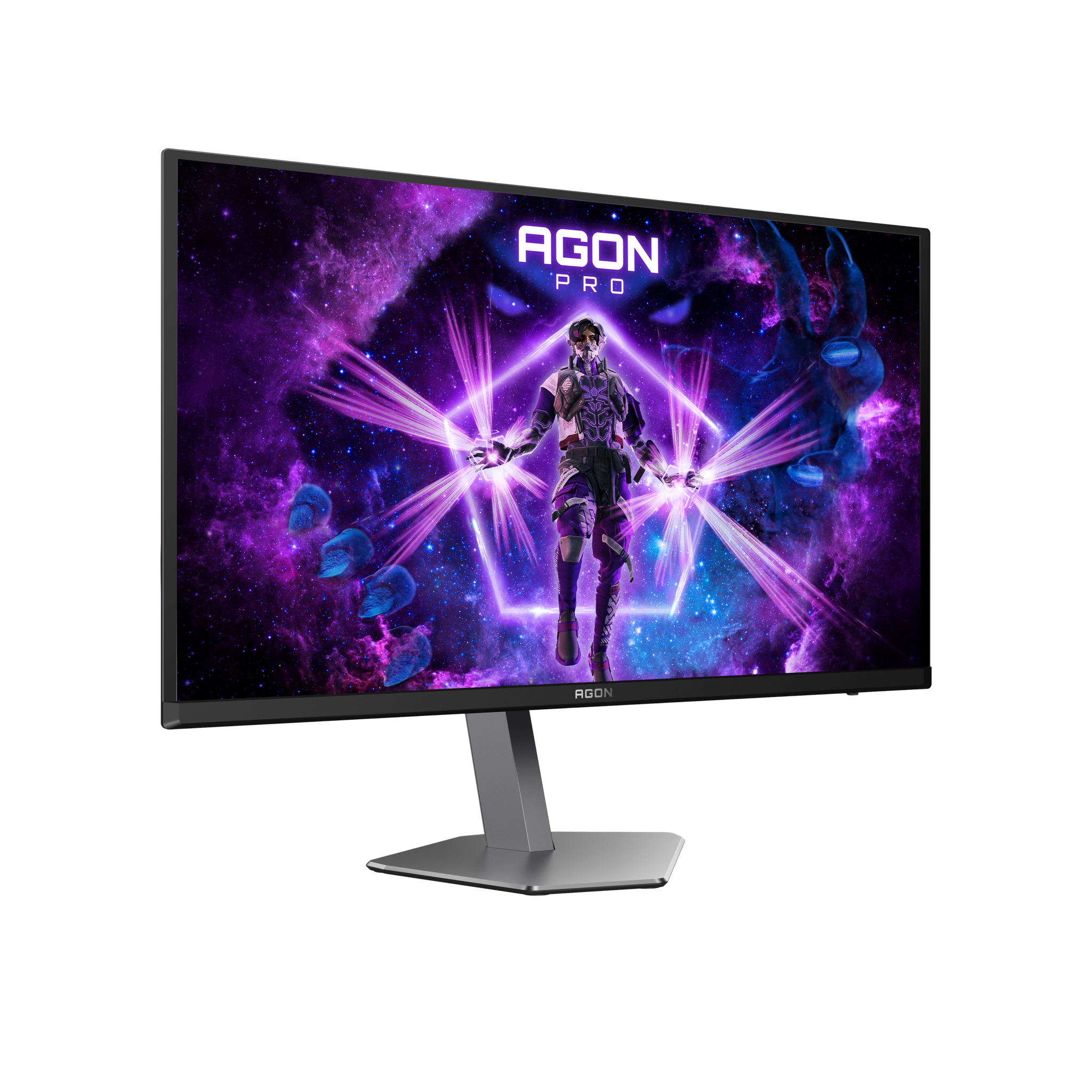

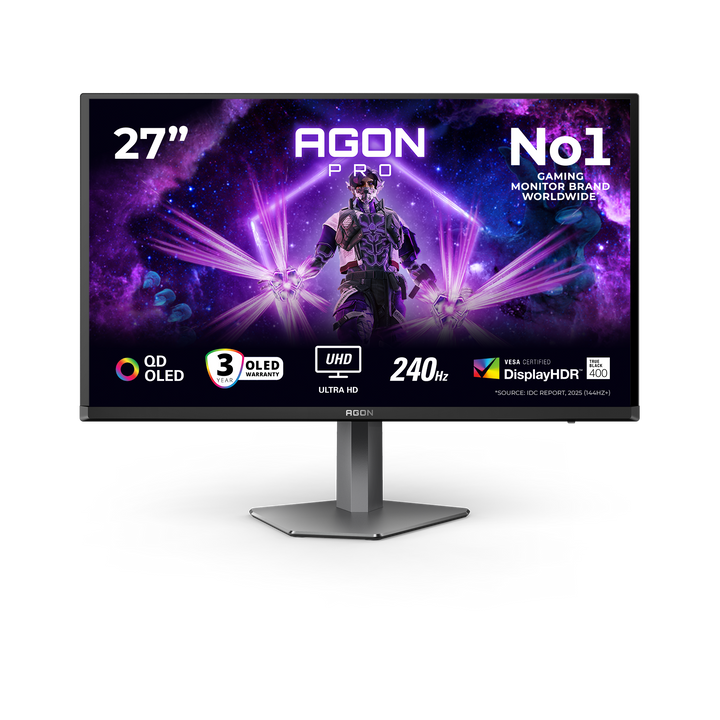

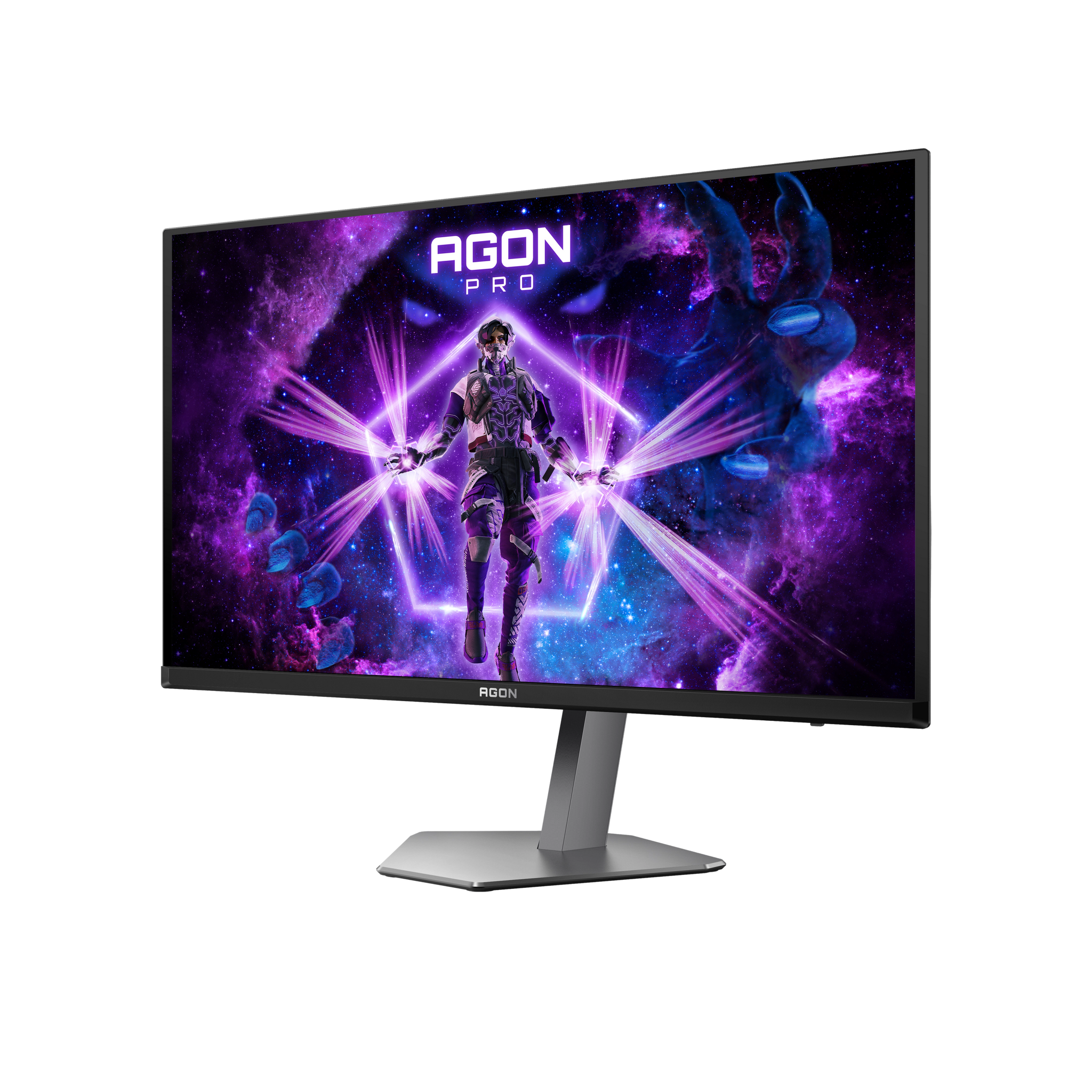

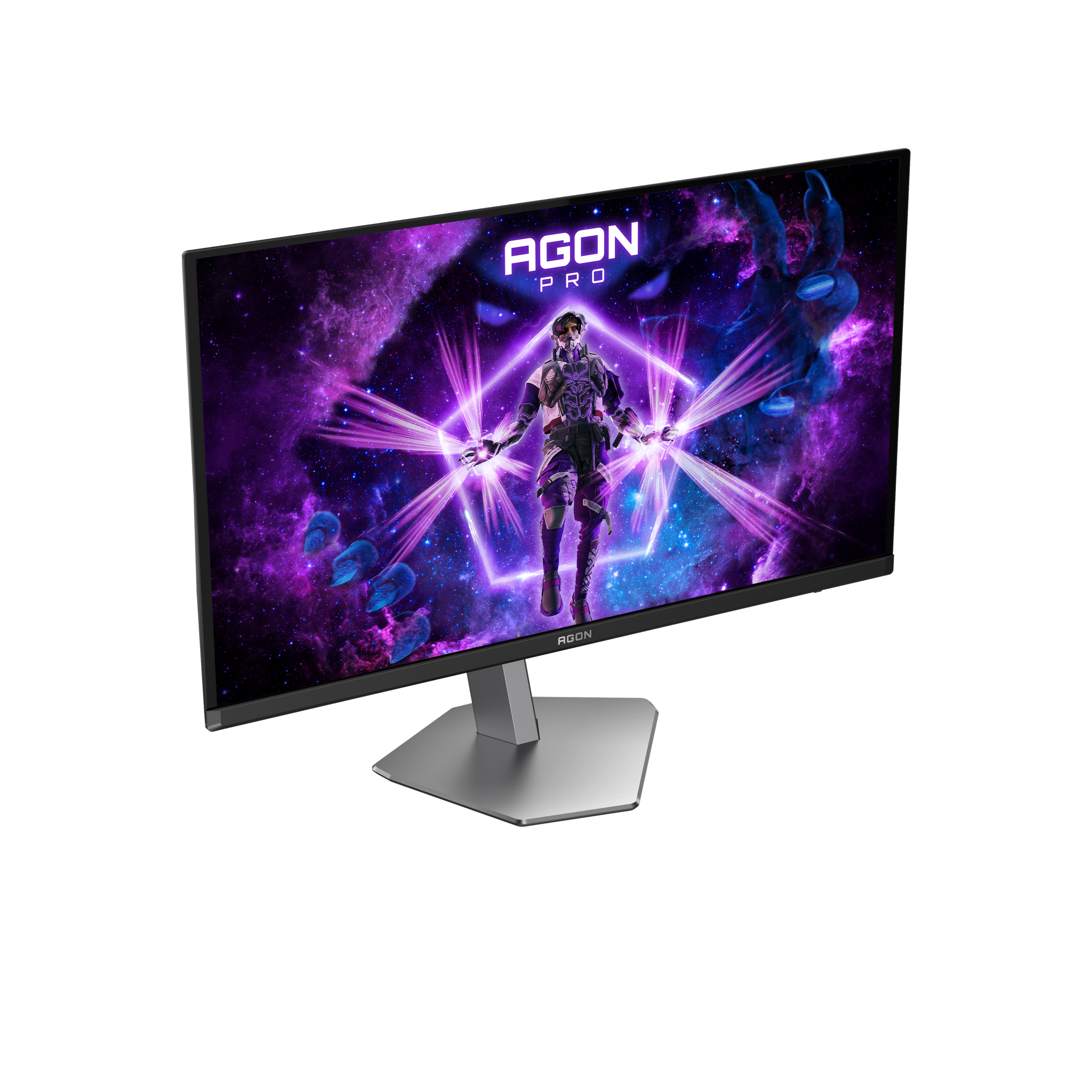

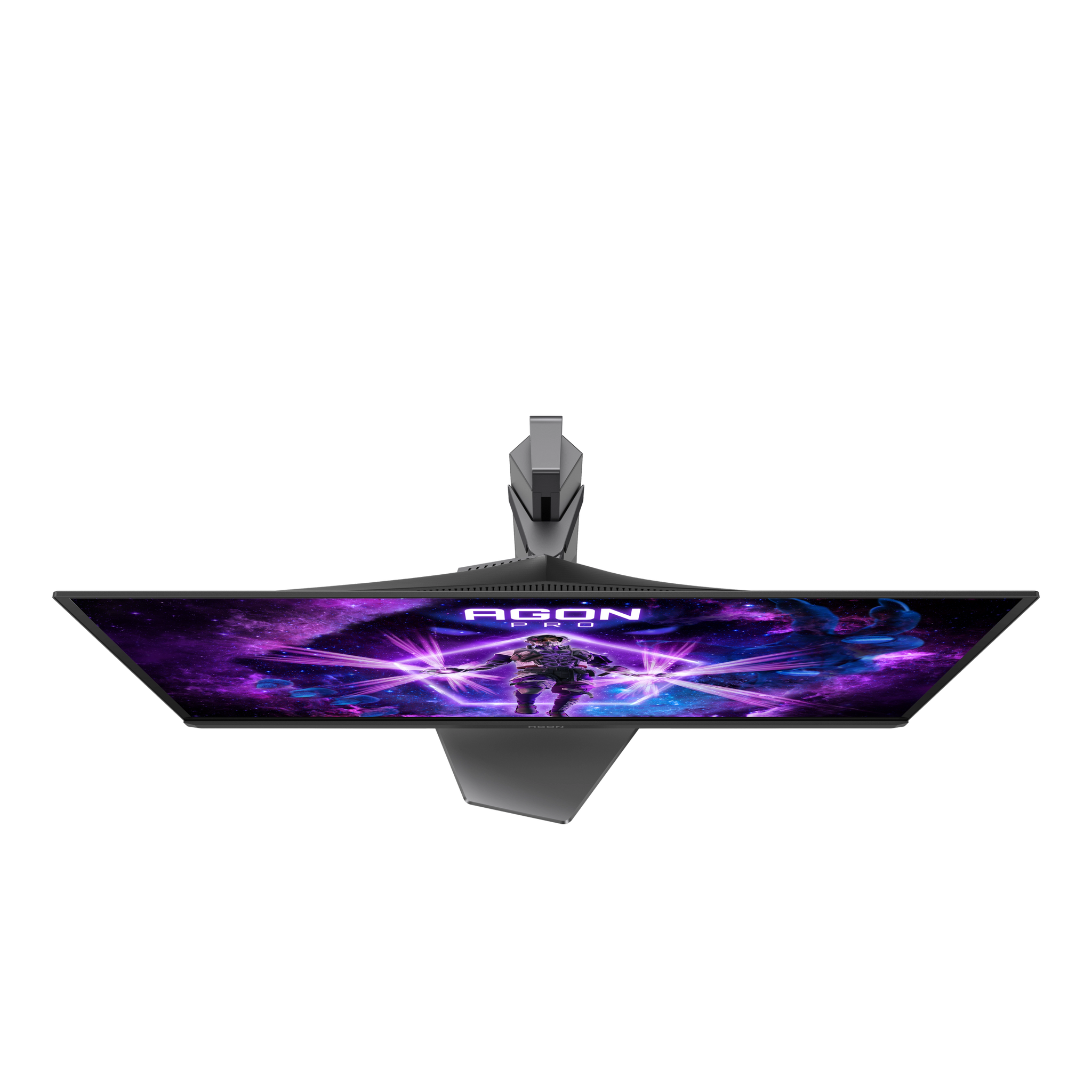

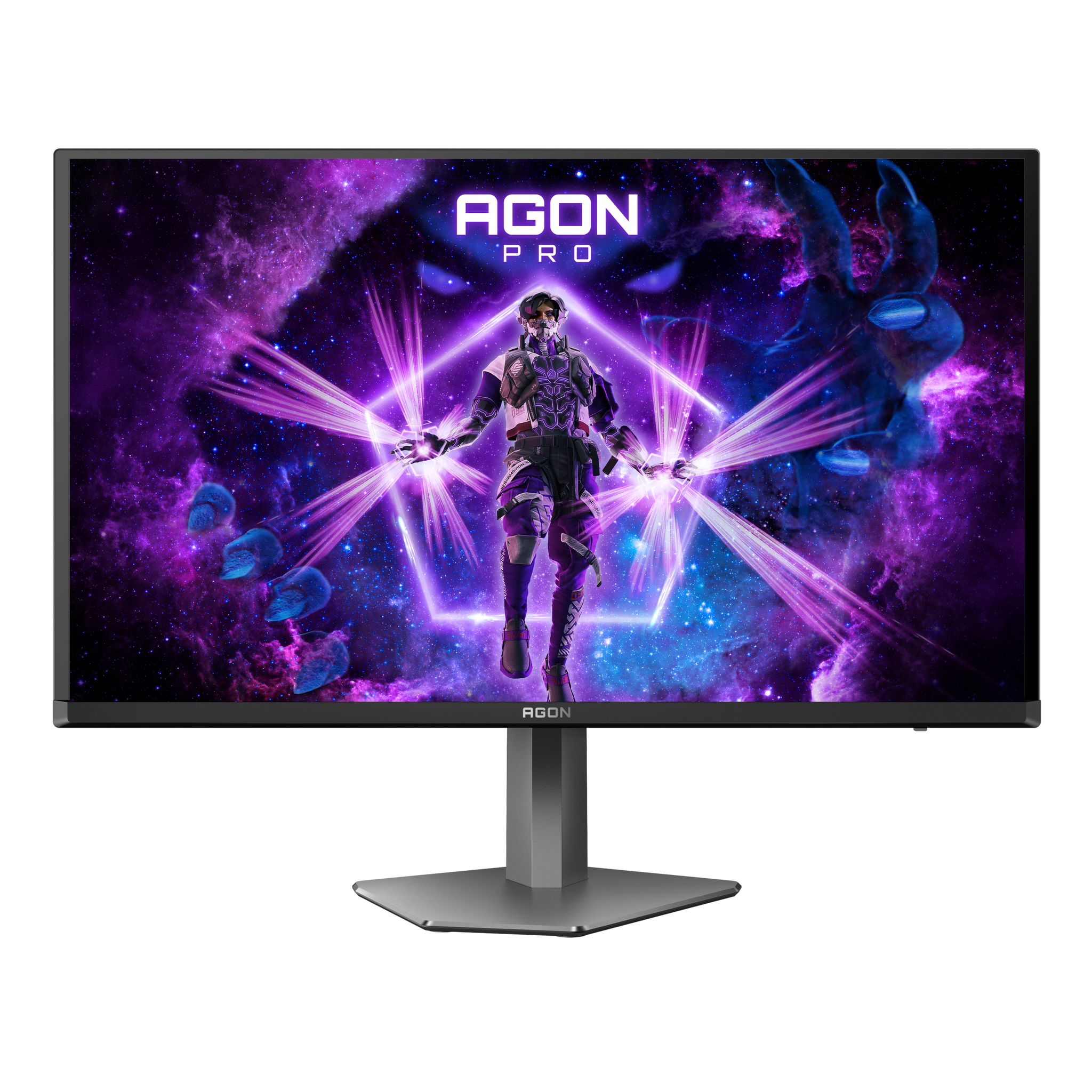

AOC AGON PRO AG276UZD 26.5" 4K UHD QD-OLED 240Hz Gaming Monitor with USB-C 65W, KVM
PRODUCT DESCRIPTION
AOC AGON PRO AG276UZD 26.5" 4K UHD QD-OLED 240Hz Gaming Monitor with USB-C 65W, KVM - 3 years parts & labour warranty
4K QD-OLED at 240 Hz
A 26.5" UHD (3840 x 2160) QD-OLED panel with a 240 Hz refresh rate and 0.03 ms GtG response, with HDMI 2.1 / DP 2.1 for ultra-smooth visuals and Adaptive Sync to prevent tearing.
DisplayHDR True Black 400
VESA Certified DisplayHDR True Black 400, 1.5M:1 contrast, up to 1000 cd/m² (typ., HDR 3% APL) and sRGB 100% / DCI-P3 99% colour gamut, ideal for gaming and creative work.
USB-C 65W, KVM and USB hub
USB-C with DP Alt Mode and up to 65 W power delivery, a built-in KVM switch and a 2-port USB-A hub, plus PiP/PbP multiview.
Speakers and full ergonomic stand
2 x 5 W speakers, 130 mm height adjustment, -5° to 23° tilt, ±30° swivel, ±90° pivot and 100 x 100 VESA mounting.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AG276UZD Datasheet — Technical Specifications
General
| Product Name | AOC AGON PRO AG276UZD 26.5" 4K UHD QD-OLED 240Hz Gaming Monitor with USB-C 65W, KVM |
| Model | AG276UZD |
| Brand / Series | AGON PRO |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985233326 |
Display
| Screen size | 26.5 inch, flat |
| Panel type | QD-OLED |
| Panel treatment | Anti-reflective (Glossy finishing) |
| Panel resolution | 3840 x 2160 (UHD) |
| Aspect ratio | 16:9 |
| Max refresh rate | 240 Hz |
| Response time | 0.03 ms GtG |
| Brightness | 200 cd/m² (100% APL) / 450 cd/m² (typ., 25% APL) / 1000 cd/m² (typ., HDR 3% APL) |
| Static contrast ratio | 1.5M:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.07 Billion |
| Colour gamut | sRGB 100% (CIE1931) / DCI-P3 99% (CIE1976) |
| Pixel pitch | 0.153 mm |
| Display viewing area | 589.968 × 332.928 mm |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| HDR | VESA Certified DisplayHDR™ True Black 400 |
| Flicker-Free | Flicker Free |
| Blue light technology | Anti Blue Light |
| Multiview | PiP + PbP |
| KVM | Yes |
Connectivity
| HDMI | HDMI 2.1 x 2 |
| DisplayPort | DP 2.1 x 1 (UHBR 20) |
| USB-C | USB-C 3.2 x 1 (DP Alt Mode, upstream, power delivery up to 65 W) |
| USB upstream | 1 x USB-C (DP Alt Mode), 1 x USB-B |
| USB downstream | 2 x USB-A, USB 3.2 (Gen 1), 5 Gbit/s |
| Audio output | Headphone out (3.5mm) |
USB-C / Power Delivery
| USB-C power delivery | Up to 65 W |
| DP Alt Mode | Yes |
Audio
| Speakers | 5 W x 2 |
Ergonomics & Cabinet
| Height adjust | 130 mm |
| Tilt | -5° ~ 23° |
| Swivel | -30° ~ 30° |
| Pivot | -90° ~ 90° |
| VESA wall mount | 100 x 100 |
| Bezel / cabinet colour | Black / Black |
| Bezel / cabinet finishing | Matt / Matt |
Power
| Power supply | External |
| Power source | 20VDC, 6.0A |
| Power consumption on (typical) | 35.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 609.3 × 395.6~525.6 × 240 mm |
| Product excl. base (WxHxD) | 609.3 × 350.6 × 74.4 mm |
| Packaging (WxHxD) | 730 × 436 × 188 mm |
| Gross weight incl. package | 11.62 kg |
| Net weight excl. package | 6.85 kg |
| Product without stand | 5.35 kg |
Specifications per AOC's official AG276UZD/69 datasheet on aoc.com (Singapore).
Compatibility & Connectivity
Video Inputs
HDMI 2.1 x 2, DP 2.1 x 1 (UHBR 20) and USB-C with DP Alt Mode. Use DP 2.1 or HDMI 2.1 for 4K at 240 Hz.
USB-C Laptops
A single USB-C cable carries video, USB data and up to 65 W charging to compatible laptops with DP Alt Mode; the built-in KVM lets one keyboard and mouse control two connected computers.
Graphics Cards
Adaptive Sync works with compatible AMD and NVIDIA graphics cards.
Software
AOC G-Menu lets you adjust picture modes and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC QD-OLED Gaming Monitors Ordering Information
In the Box
AG276UZD monitor with stand, external power adapter, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC QD-OLED Gaming Monitors
| Model | Key feature |
| Q27G40ZDF | 26.5", QHD, QD-OLED, 240Hz |
| Q27G4ZD | 26.5", QHD, QD-OLED, 240Hz, HDR400 |
| Q27G4SD | 26.5", QHD, QD-OLED, 360Hz, HDR400 |
| Q27G4KD | 26.5", QHD, QD-OLED, 500Hz, HDR500 |
| U27G4D | 26.5", UHD, QD-OLED, 165Hz, HDR400 |
| AG276UZD (this listing) | 26.5", UHD, QD-OLED, 240Hz, HDR400, USB-C 65W, KVM |
| AGP346UCSD | 34", WQHD, Curved 1800R, QD-OLED, 360Hz, HDR500, USB-C 15W |
Datasheet & Downloads
| AOC product page | AG276UZD on aoc.com |
| Product leaflet (PDF) | AG276UZD Product leaflet (PDF) |
| User manual (PDF) | AG276UZD User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AG276UZD.
Frequently Asked Questions — AOC AG276UZD
What refresh rate does the AG276UZD support?
Up to 240 Hz at 3840 x 2160 (4K UHD), with 0.03 ms GtG response time.
Can it charge my laptop over USB-C?
Yes, the USB-C port supports DP Alt Mode and power delivery up to 65 W, and the monitor has a built-in KVM switch.
Is the stand adjustable?
Yes: 130 mm height adjustment, -5° to 23° tilt, ±30° swivel and ±90° pivot.
Does it have speakers and VESA mounting?
Yes, 2 x 5 W built-in speakers and 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
