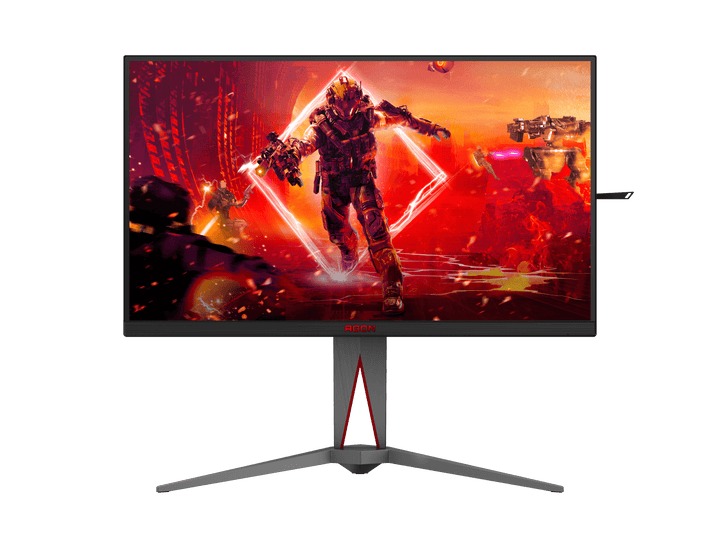

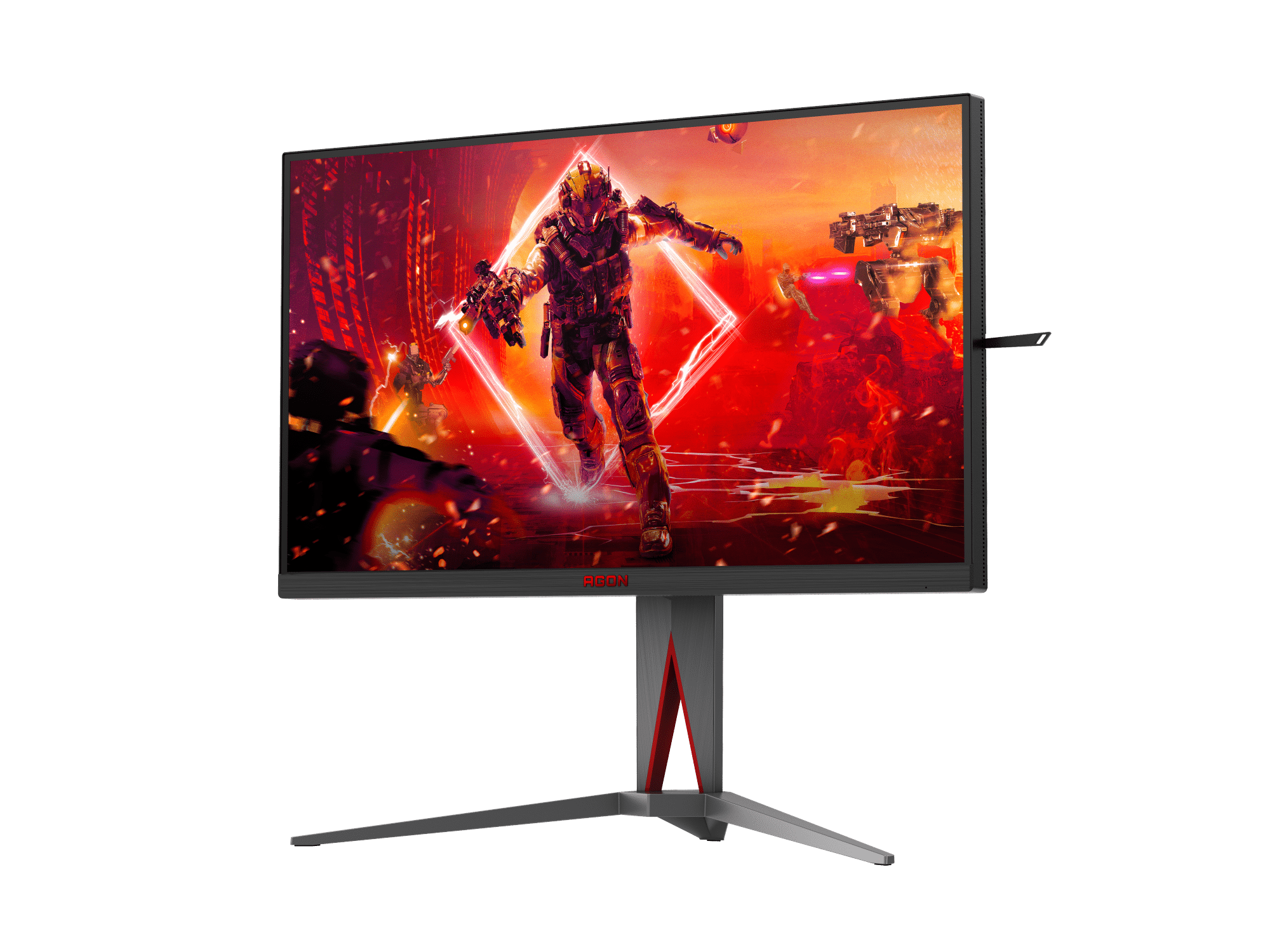

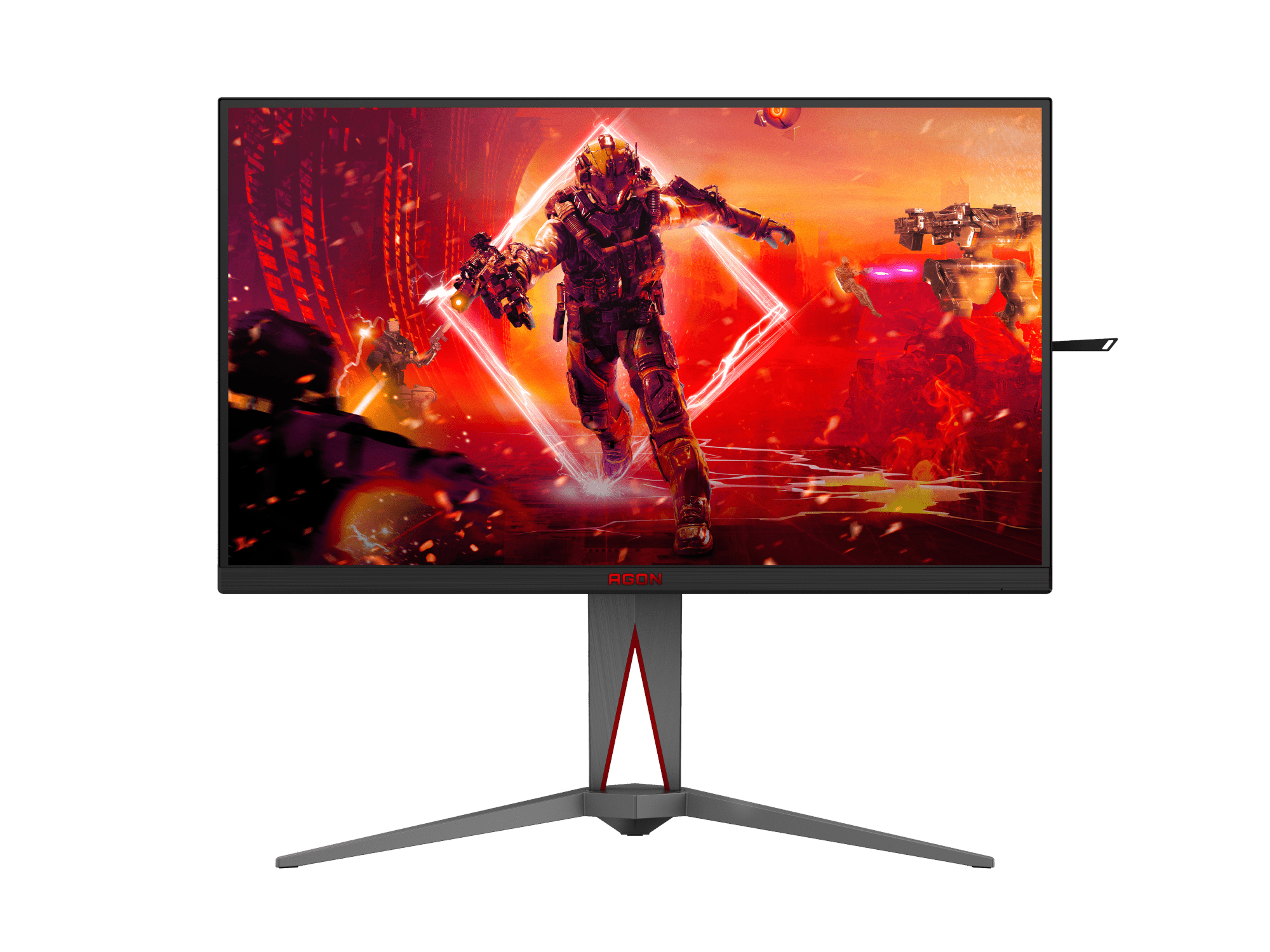

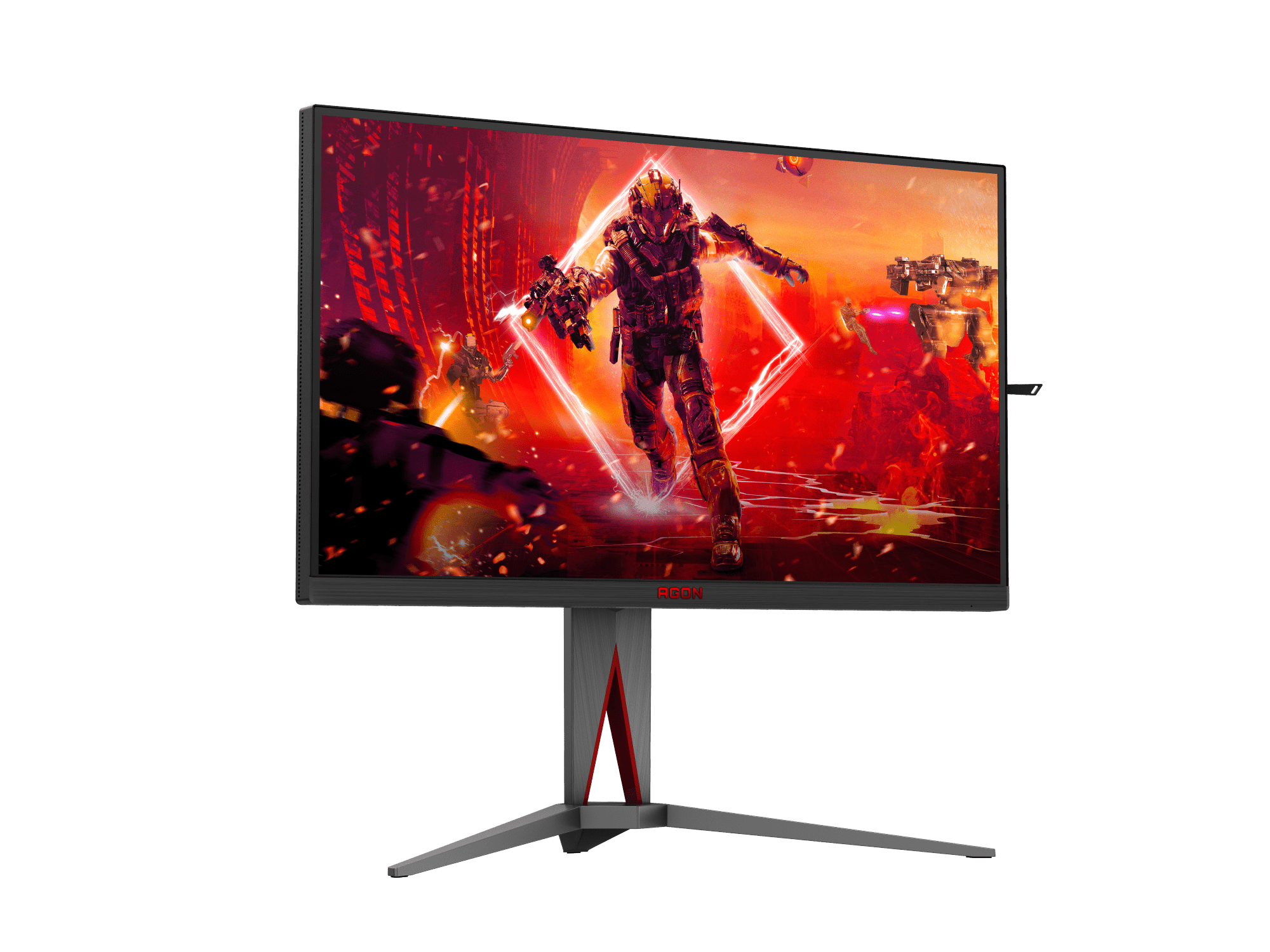

AOC AGON PRO AG275UXM 27" 4K UHD Mini-LED Fast IPS 165Hz Gaming Monitor with DisplayHDR 1000
PRODUCT DESCRIPTION
AOC AGON PRO AG275UXM 27" 4K UHD Mini-LED Fast IPS 165Hz Gaming Monitor with DisplayHDR 1000 - 3 years parts & labour warranty
4K Mini-LED with 1152 zones
A 27" UHD (3840 x 2160) Fast IPS panel with Quantum Dot and a MINI-LED 1152-zone backlight for precise local dimming.
DisplayHDR 1000 brightness
DisplayHDR 1000 with 450 cd/m² (SDR) / 1200 cd/m² (HDR) brightness, 1.07 billion colours, DCI-P3 116% gamut and Delta E < 2 accuracy.
165 Hz, 1 ms gaming
165 Hz refresh and 1 ms GtG response with Adaptive Sync for fluid, artifact-free performance at virtually any framerate.
Adjustable AGON PRO stand

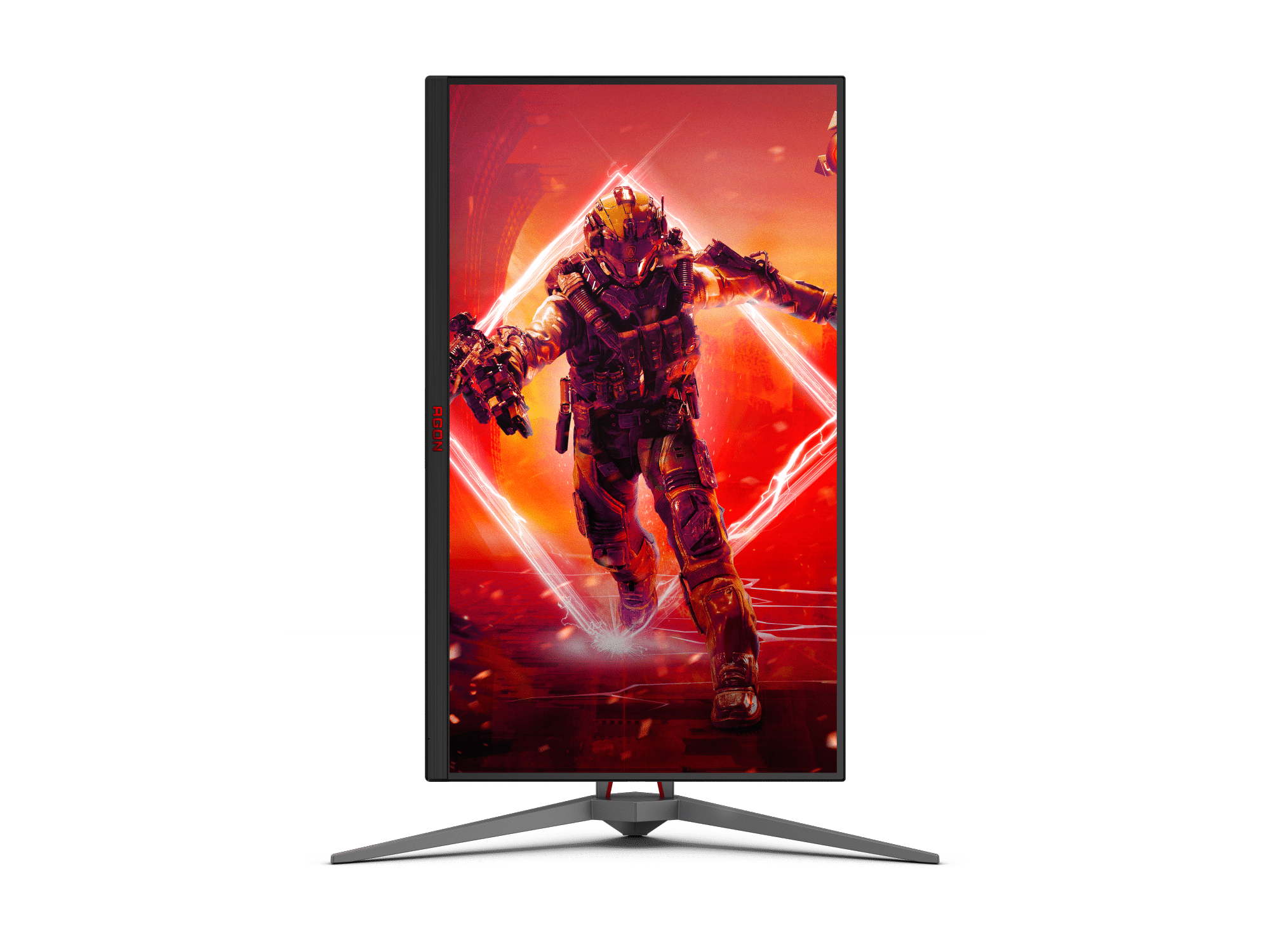

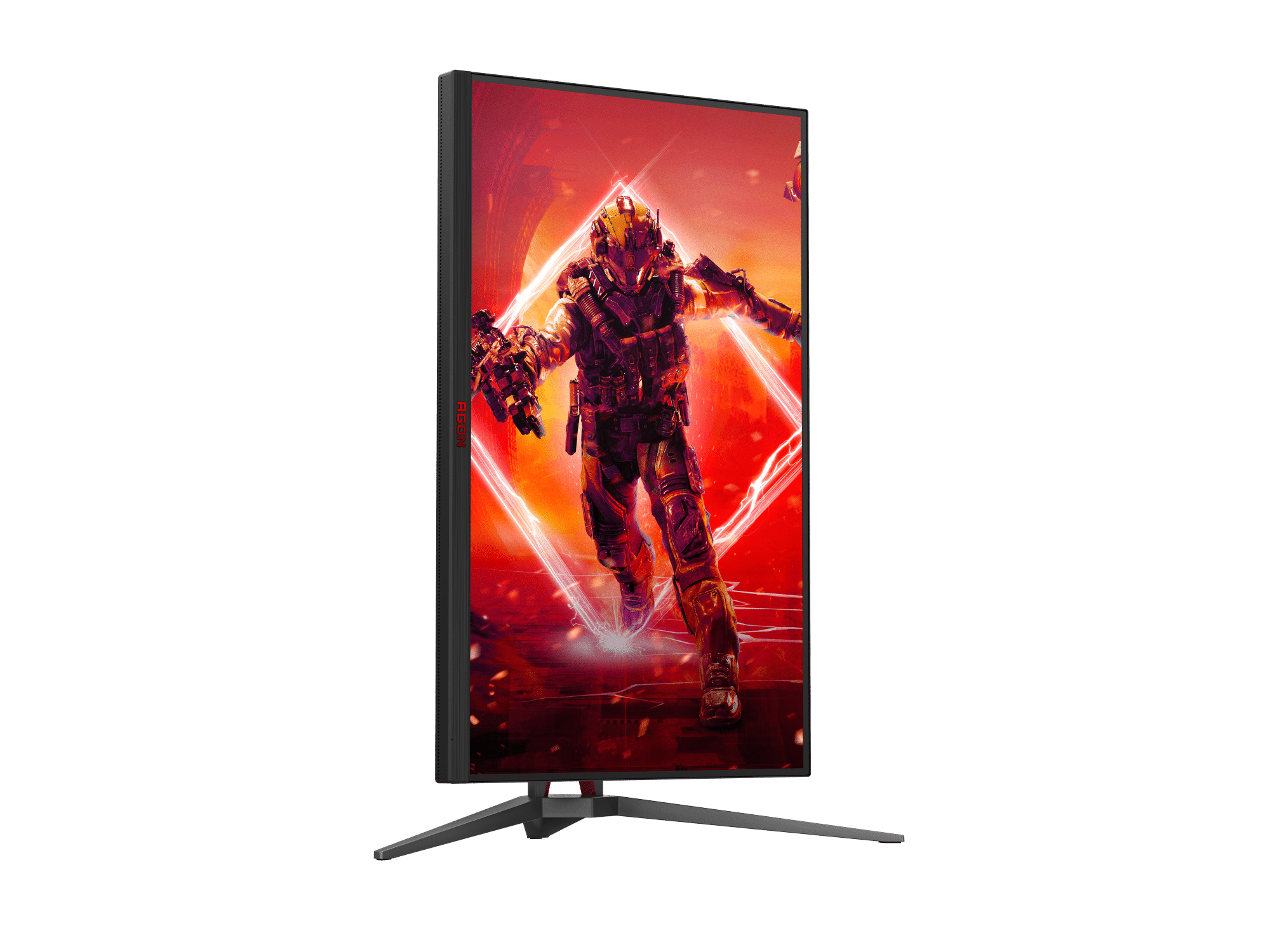

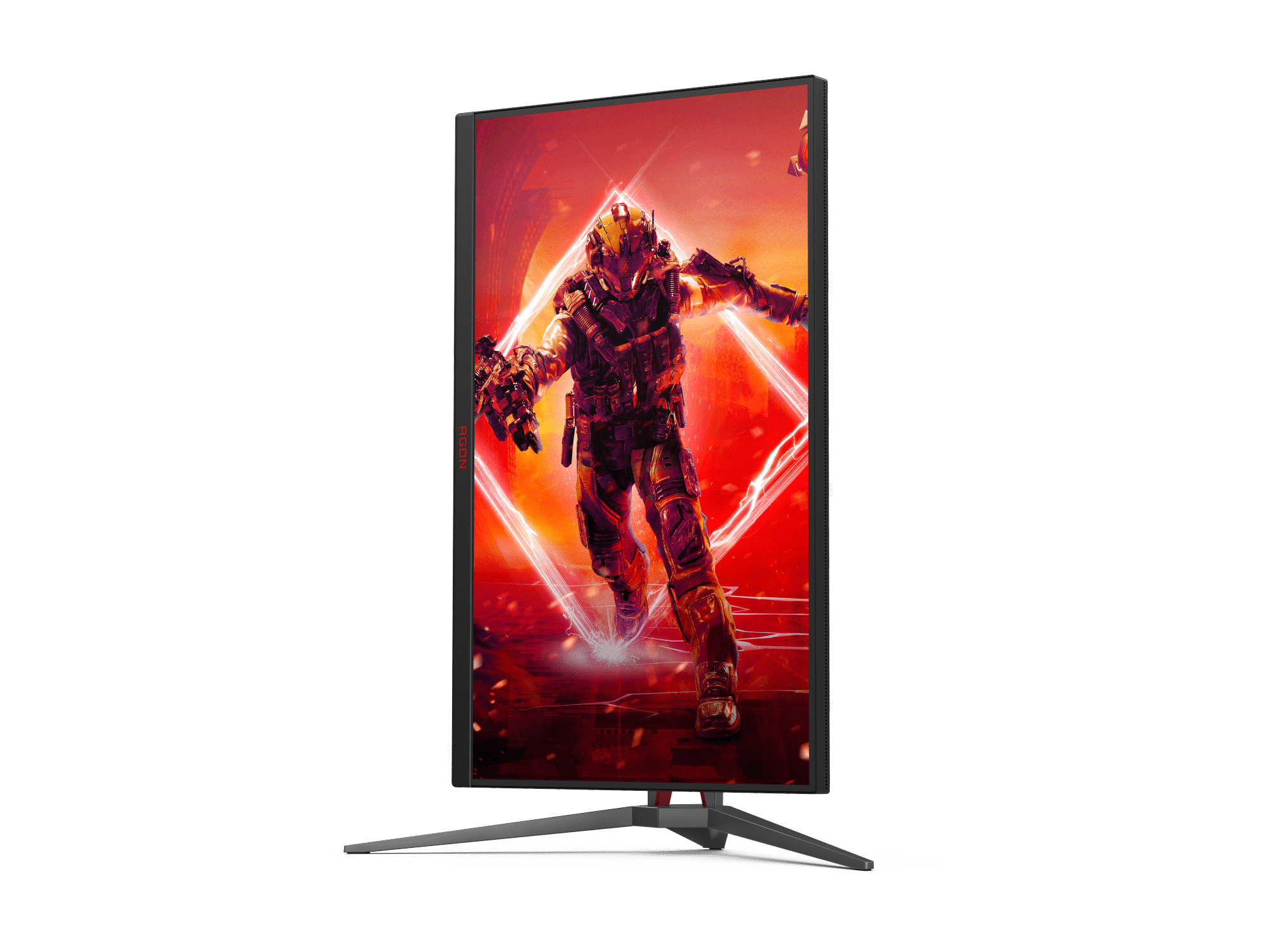

150 mm height adjustment, -5° to 23° tilt, ±20° swivel and ±90° pivot, with Light FX and 100 x 100 VESA mounting.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC AG275UXM Datasheet — Technical Specifications
General
| Product Name | AOC AGON PRO AG275UXM 27" 4K UHD Mini-LED Fast IPS 165Hz Gaming Monitor with DisplayHDR 1000 |
| Model | AG275UXM |
| Brand / Series | AGON PRO |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985232459 |
Display
| Screen size | 27.0 inch, flat |
| Panel type | Fast IPS with Quantum Dot |
| Backlight type | MINI-LED 1152-ZONE |
| Panel resolution | 3840 x 2160 (UHD) |
| Aspect ratio | 16:9 |
| Max refresh rate | 165 Hz (per AOC product description) |
| Response time | 1 ms GtG |
| Brightness | 450 cd/m² (SDR) / 1200 cd/m² (HDR) |
| Static contrast ratio | 1000:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 1.07 Billion |
| Colour gamut | NTSC 127% (CIE1976) / sRGB 153% (CIE1931) / DCI-P3 116% (CIE1976) |
| Pixel pitch | 0.1554 mm |
| Display viewing area | 596.736 (H) × 335.664 (V) mm |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| HDR | DisplayHDR 1000 (per AOC product description) |
| Colour accuracy | Delta E < 2 |
Connectivity
| HDMI | HDMI 2.1 x 2 |
| DisplayPort | DisplayPort 1.4 x 1 |
| HDCP | HDCP 2.2 (HDMI and DisplayPort) |
| Audio output | Headphone out (3.5mm) |
Ergonomics & Cabinet
| Height adjust | 150 mm |
| Tilt | -5° / 23° |
| Swivel | -20° / 20° |
| Pivot | -90° / 90° |
| VESA wall mount | 100 x 100 |
| Cabinet colour (back) | Grey, Black |
Power
| Power supply | External |
| Power source | 19.5VDC, 6.93A |
| Power consumption on (typical) | 47.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 613.4 × 422.8~561.1 × 234.5 mm |
| Product excl. base (WxHxD) | 613.4 × 365.8 × 58.8 mm |
| Packaging (WxHxD) | 840 × 445 × 161 mm |
| Gross weight incl. package | 10.12 kg |
| Net weight excl. package | 6.77 kg |
| Product without stand | 5.29 kg |
Specifications per AOC's official AG275UXM datasheet on aoc.com (Singapore).
Compatibility & Connectivity
Video Inputs
HDMI 2.1 x 2 and DisplayPort 1.4 x 1. Use DisplayPort 1.4 from your graphics card for 4K at the full refresh rate; HDMI 2.1 suits consoles and laptops.
Graphics Cards
Adaptive Sync works with compatible AMD and NVIDIA graphics cards.
Software
AOC G-Menu lets you adjust picture modes, Light FX and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC Gaming Monitors Ordering Information
In the Box
AG275UXM monitor with stand, external power adapter and power cable, signal cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Gaming Monitors
| Model | Key feature |
| 24G4ZR | 23.8", FHD, Fast IPS, 260Hz(OC), HDR10 |
| CS24A/P | 24.1", FHD, E-Sport TN, 610Hz, HDR400 |
| 25G4S | 24.5", FHD, Fast IPS, 310Hz, HDR400 |
| 25G4K | 24.5", FHD, Fast IPS, 420Hz, HDR400 |
| Q25G4S | 24.5", QHD, Fast IPS, 320Hz, HDR400 |
| CS25G | 24.5", FHD, Fast IPS, 310Hz(OC), HDR400 |
| AG276FK | 27", FHD, Fast IPS, 520Hz, HDR400 |
| U27G4 | 27", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| CQ27G4S | 27", Dual: HD-400Hz OC, QHD-320Hz OC, Curved 1500R, Fast VA, HDR400 |
| 27G4H | 27", FHD, Fast IPS, 200Hz, HDR10 |
| 27G11ZE2 | 27", FHD, Fast IPS, 240Hz, HDR10 |
| 27G4ZR | 27", FHD, Fast IPS, 260Hz(OC), HDR10 |
| AG275QXW | 27", QHD, Fast IPS, 180Hz, HDR400, White |
| Q27G4/D | 27", QHD, Fast IPS, 200Hz, HDR400 |
| Q27G4/WS | 27", QHD, Fast IPS, 200Hz, HDR400, White |
| Q27G4S | 27", QHD, Fast IPS, 300Hz, HDR400 |
| Q27G4SL/WS | 27", QHD, Fast IPS, 320Hz, HDR400, White |
| Q27G4XY | 27", QHD, Fast VA, 180Hz, HDR400, USB-C 65W, Google Smart OS |
| Q27B36X | 27", QHD, IPS, 144Hz, HDR10 |
| U27G4XM | 27", Dual: FHD-320Hz, UHD-160Hz, Mini-LED, Fast IPS, HDR1000 |
| AG275UXM (this listing) | 27", UHD, Mini-LED (QD), Fast IPS, 165Hz, HDR1000 |
| U32G4 | 31.5", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| AGP327UZD | 31.5", Dual: FHD-480Hz, UHD-240Hz, W-OLED, HDR400, USB-C 65W |
| CQ32G4 | 31.5", QHD, Curved 1500R, Fast VA, 180Hz, HDR10 |
| Q32V5E | 31.5", QHD, IPS, 100Hz, HDR10 |
| U32G4ZMN | 31.5", UHD, Mini-LED, Fast VA, 165Hz |
| CU34G4Z | 34", WQHD, Curved 1500R, Fast VA, 240Hz, HDR400 |
| AG344UXM | 34", WQHD, Mini-LED (QD), 170Hz, HDR1000, USB-C 90W |
| AG493UCX2 | 49", DQHD, Curved 1800R, VA, SuperWide 32:9, 165Hz, HDR400 |
Datasheet & Downloads
| AOC product page | AG275UXM on aoc.com |
| Product leaflet (PDF) | AG275UXM Product leaflet (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting AG275UXM.
Frequently Asked Questions — AOC AG275UXM
What refresh rate and resolution does the AG275UXM support?
3840 x 2160 (4K UHD) at up to 165 Hz per AOC, with 1 ms GtG response time.
How many dimming zones does it have?
It uses a MINI-LED backlight with 1152 local dimming zones and reaches 1200 cd/m² in HDR.
Is the stand adjustable?
Yes: 150 mm height adjustment, -5° to 23° tilt, ±20° swivel and ±90° pivot.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
