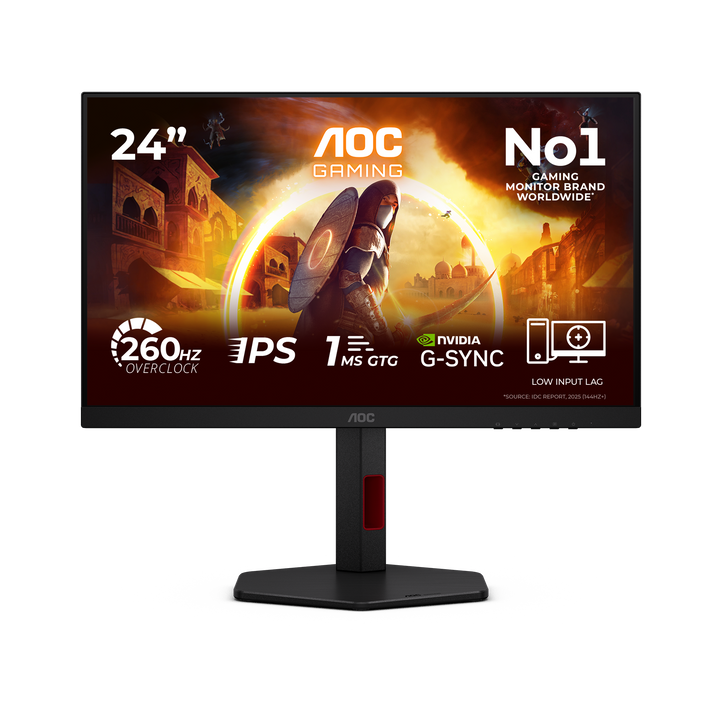

AOC 24G4ZR 23.8" Full HD Fast IPS 260Hz (OC) Gaming Monitor with HDR10
PRODUCT DESCRIPTION
AOC 24G4ZR 23.8" Full HD Fast IPS 260Hz (OC) Gaming Monitor with HDR10 - 3 years parts & labour warranty
Built for competitive play
A 23.8" Full HD (1920 x 1080) Fast IPS panel running 260 Hz overclocked (240 Hz native), with 1 ms GtG and 0.3 ms MPRT response for crystal-clear motion and instant responsiveness.
G-Sync Compatible, low input lag
Adaptive Sync with NVIDIA G-SYNC Compatible certification keeps gameplay fluid and tear-free, while Low Input Lag keeps every input instant.
HDR10 and accurate colour
300 cd/m² brightness, HDR10 support, typical 88% DCI-P3 / 107% sRGB colour gamut and Delta E<2 (sRGB) colour accuracy; Flicker Free and Low Blue Light for longer sessions.
Ergonomic esports stand
130 mm height adjustment, -5° to 23° tilt, ±30° swivel and ±90° pivot, plus 100 x 100 VESA mounting and AOC G-Menu control.
Need monitors for a whole office, classroom or gaming room? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AOC 24G4ZR Datasheet — Technical Specifications
General
| Product Name | AOC 24G4ZR 23.8" Full HD Fast IPS 260Hz (OC) Gaming Monitor with HDR10 |
| Model | 24G4ZR |
| Brand / Series | AOC GAMING G4 series |
| Local Warranty (Singapore) | 3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore) |
| EAN | 6973985233708 |
Display
| Screen size | 23.8 inch, flat |
| Panel type | Fast IPS |
| Panel resolution | 1920 x 1080 (FHD) |
| Aspect ratio | 16:9 |
| Max refresh rate | 260 Hz (overclocked; 240 Hz native per AOC) |
| Response time | 1 ms GtG / 0.3 ms MPRT |
| Brightness | 300 cd/m² |
| Static contrast ratio | 1000:1 |
| Viewing angle (CR10) | 178/178 |
| Display colours | 16.7 Million |
| Colour gamut | NTSC 96% (CIE1976) / sRGB 107% (CIE1931) / DCI-P3 88% (CIE1976) |
| Pixel pitch | 0.2745 mm |
| Display viewing area | 527.04 (H) × 296.46 (V) mm |
Video Features
| Sync technology (VRR) | Adaptive Sync |
| NVIDIA G-SYNC | NVIDIA G-SYNC Compatible |
| HDR | HDR10 |
| Flicker-Free | Flicker Free |
| Colour accuracy | Delta E<2 (sRGB) |
| Blue light technology | Low Blue Light |
Connectivity
| HDMI | HDMI 2.0 x 2 |
| DisplayPort | DisplayPort 1.4 x 1 |
| HDCP | HDCP 1.4/2.2 (HDMI), HDCP 2.2 (DisplayPort) |
| Audio output | Headphone out (3.5mm) |
Ergonomics & Cabinet
| Height adjust | 130 mm |
| Tilt | -5° / 23° |
| Swivel | -30° / 30° |
| Pivot | -90° / 90° |
| VESA wall mount | 100 x 100 |
| Bezel / cabinet colour | Black / Black, Red (textured finish) |
Power
| Power supply | Internal |
| Power source | 100 - 240V～1.5A, 50 / 60Hz |
| Power consumption on (typical) | 18.0 W |
Dimensions & Weight
| Product incl. base (WxHxD) | 540 × 380.6~493.6 × 207.7 mm |
| Product excl. base (WxHxD) | 540 × 324.8 × 50.6 mm |
| Packaging (WxHxD) | 650 × 420 × 139 mm |
| Gross weight incl. package | 6.64 kg |
| Net weight excl. package | 4.38 kg |
| Product without stand | 2.58 kg |
Other
| What's in the box | DisplayPort cable included |
Specifications per AOC's official 24G4ZR/69 datasheet on aoc.com (Singapore).
Compatibility & Connectivity
Video Inputs
HDMI 2.0 x 2 and DisplayPort 1.4 x 1. Use DisplayPort 1.4 from your graphics card to reach the full 260 Hz refresh rate; HDMI 2.0 suits consoles and laptops.
Graphics Cards
NVIDIA G-SYNC Compatible; Adaptive Sync also works with compatible AMD graphics cards over DisplayPort.
Software
AOC G-Menu lets you adjust picture modes and monitor settings from your PC.
Mounting
VESA 100 x 100 mm compatible for monitor arms and wall brackets.
Package Contents & AOC Gaming Monitors Ordering Information
In the Box
24G4ZR monitor with stand, power cable, DisplayPort cable and quick start guide. Cable types vary by AOC Singapore pack — email us to confirm before ordering.
AOC Gaming Monitors
| Model | Key feature |
| 24G4ZR (this listing) | 23.8", FHD, Fast IPS, 260Hz(OC), HDR10 |
| CS24A/P | 24.1", FHD, E-Sport TN, 610Hz, HDR400 |
| 25G4S | 24.5", FHD, Fast IPS, 310Hz, HDR400 |
| 25G4K | 24.5", FHD, Fast IPS, 420Hz, HDR400 |
| Q25G4S | 24.5", QHD, Fast IPS, 320Hz, HDR400 |
| CS25G | 24.5", FHD, Fast IPS, 310Hz(OC), HDR400 |
| AG276FK | 27", FHD, Fast IPS, 520Hz, HDR400 |
| U27G4 | 27", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| CQ27G4S | 27", Dual: HD-400Hz OC, QHD-320Hz OC, Curved 1500R, Fast VA, HDR400 |
| 27G4H | 27", FHD, Fast IPS, 200Hz, HDR10 |
| 27G11ZE2 | 27", FHD, Fast IPS, 240Hz, HDR10 |
| 27G4ZR | 27", FHD, Fast IPS, 260Hz(OC), HDR10 |
| AG275QXW | 27", QHD, Fast IPS, 180Hz, HDR400, White |
| Q27G4/D | 27", QHD, Fast IPS, 200Hz, HDR400 |
| Q27G4/WS | 27", QHD, Fast IPS, 200Hz, HDR400, White |
| Q27G4S | 27", QHD, Fast IPS, 300Hz, HDR400 |
| Q27G4SL/WS | 27", QHD, Fast IPS, 320Hz, HDR400, White |
| Q27G4XY | 27", QHD, Fast VA, 180Hz, HDR400, USB-C 65W, Google Smart OS |
| Q27B36X | 27", QHD, IPS, 144Hz, HDR10 |
| U27G4XM | 27", Dual: FHD-320Hz, UHD-160Hz, Mini-LED, Fast IPS, HDR1000 |
| AG275UXM | 27", UHD, Mini-LED (QD), Fast IPS, 165Hz, HDR1000 |
| U32G4 | 31.5", Dual: FHD-320Hz, UHD-160Hz, Fast IPS, HDR400 |
| AGP327UZD | 31.5", Dual: FHD-480Hz, UHD-240Hz, W-OLED, HDR400, USB-C 65W |
| CQ32G4 | 31.5", QHD, Curved 1500R, Fast VA, 180Hz, HDR10 |
| Q32V5E | 31.5", QHD, IPS, 100Hz, HDR10 |
| U32G4ZMN | 31.5", UHD, Mini-LED, Fast VA, 165Hz |
| CU34G4Z | 34", WQHD, Curved 1500R, Fast VA, 240Hz, HDR400 |
| AG344UXM | 34", WQHD, Mini-LED (QD), 170Hz, HDR1000, USB-C 90W |
| AG493UCX2 | 49", DQHD, Curved 1800R, VA, SuperWide 32:9, 165Hz, HDR400 |
Datasheet & Downloads
| AOC product page | 24G4ZR on aoc.com |
| Product leaflet (PDF) | 24G4ZR Product leaflet (PDF) |
| User manual (PDF) | 24G4ZR User manual (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 24G4ZR.
Frequently Asked Questions — AOC 24G4ZR
What refresh rate does the 24G4ZR support?
260 Hz overclocked (240 Hz native) at 1920 x 1080, with 1 ms GtG and 0.3 ms MPRT response time.
Is the stand adjustable?
Yes: 130 mm height adjustment, -5° to 23° tilt, ±30° swivel and ±90° pivot.
Does it have built-in speakers?
No, it has a 3.5 mm headphone output for headphones or external speakers.
Can I wall-mount it?
Yes, it supports 100 x 100 mm VESA mounting.
What warranty do I get?
3 years parts & labour warranty (AOC Singapore, serviced by MPGS Singapore). Supplied by SourceIT with a GST invoice.
