AMD Ryzen 7 5800X3D 8-Core 16-Thread AM4 Desktop Processor with 3D V-Cache
PRODUCT DESCRIPTION
AMD Ryzen 7 5800X3D 8-Core 16-Thread AM4 Desktop Processor with 3D V-Cache (100-100000651POF) - 3 Years Local Warranty
96 MB L3 Cache with AMD 3D V-Cache
The AMD Ryzen 7 5800X3D combines 8 Zen 3 cores and 16 threads with AMD 3D V-Cache technology, giving the processor 96 MB of L3 cache. Games and other latency-sensitive workloads keep more of their data on-chip, which is why AMD builds its X3D parts for gaming.
AM4 Platform
It installs in AM4 motherboards (X570, X470, B550, B450, A520) and supports 2-channel DDR4 UDIMM memory up to 128 GB, with PCIe 4.0 connectivity (20 usable lanes from the CPU). Base clock is 3.4 GHz, boost reaches up to 4.5 GHz, and default TDP is 105 W.
Discrete Graphics Required
This processor has no integrated graphics, so a discrete graphics card is required for display output.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 7 5800X3D Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 7 5800X3D |
| Boxed Part Number (OPN) | 100-100000651POF |
| Tray Part Number | 100-000000651 |
| Series | Ryzen 5000 Series (former codename Vermeer) |
| Market Segment | Enthusiast Desktop |
| Launch Date | 20 April 2022 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 3 |
| Cores / Threads | 8 / 16 (SMT) |
| Base Clock | 3.4 GHz |
| Max. Boost Clock | Up to 4.5 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 96 MB (AMD 3D V-Cache) |
| Default TDP | 105 W |
| Process | TSMC 7nm FinFET (CPU cores); 12nm (Globalfoundries) (I/O die) |
| Max. Operating Temperature (Tjmax) | 90 °C |
| Boost Technology | Precision Boost 2 |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM4 |
| Supporting Chipsets | X570, X470, B550, B450, A520 |
| Memory Type | DDR4 UDIMM, 2 channels |
| Max. Memory | 128 GB |
| Max. Memory Speed | 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, 4x2R DDR4-2667 |
| ECC Support | Yes (Requires motherboard support) |
Connectivity
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes | 24 total / 20 usable |
| Additional Lanes from Chipset | X570: 16x Gen 4; X470: 2x Gen 3, 8x Gen 2 |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps) |
| Native SATA Ports | 2 |
Graphics
| Integrated Graphics | None, discrete graphics card required |
Cooling
| Thermal Solution in Box | Not included |
| Recommended Cooler | Liquid cooler recommended for optimal performance (AMD) |
Compatibility & Software Support
Motherboard
Requires an AM4 motherboard (X570, X470, B550, B450, A520). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR4 UDIMM memory only, 2 channels.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
High-refresh gaming PCs, gaming and streaming rigs, and enthusiast builds where gaming performance matters most.
Package Contents & AMD Ryzen 5000 Series (AM4) Ordering Information
In the Box

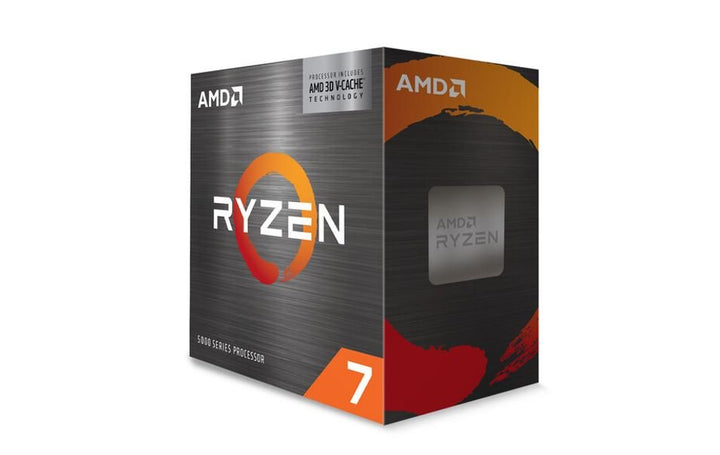

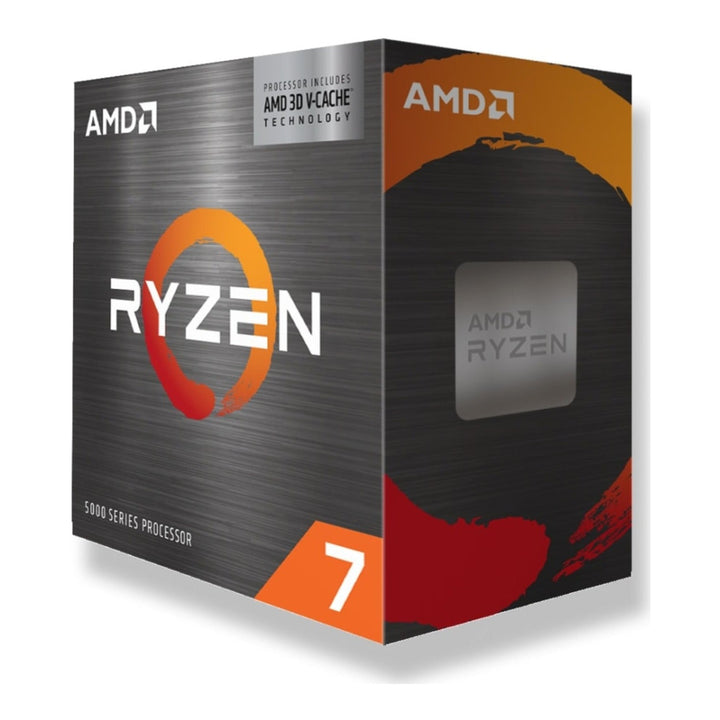

AMD Ryzen 7 5800X3D processor in retail packaging. No CPU cooler is included; AMD recommends a liquid cooler for optimal performance.
AMD Ryzen 5000 Series (AM4)
| Model | Key feature |
| Ryzen 9 5900X | 12C/24T, up to 4.8 GHz, 105W |
| Ryzen 7 5800X3D (this listing) | 8C/16T, 3D V-Cache, 96 MB L3, 105W |
| Ryzen 7 5700X | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 7 5700 | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 5 5600X | 6C/12T, up to 4.6 GHz, 65W |
| Ryzen 5 5600 | 6C/12T, up to 4.4 GHz, 65W |
| Ryzen 5 5500 | 6C/12T, up to 4.2 GHz, 65W |
| Ryzen 7 5700G | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 5 5600GT | 6C/12T, up to 4.6 GHz, 65W |
| Ryzen 5 5500GT | 6C/12T, up to 4.4 GHz, 65W |
Datasheet & Downloads
| AMD product page | AMD Ryzen 7 5800X3D specifications on amd.com |
| Drivers & software | AMD Ryzen 7 5800X3D drivers and downloads |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5800X3D.
Frequently Asked Questions — AMD Ryzen 7 5800X3D
Does the 5800X3D come with a cooler?
No. The boxed 5800X3D ships without a cooler; AMD recommends a liquid cooler for optimal performance.
Which motherboards does it fit?
AM4 motherboards with DDR4 memory. It does not fit AM5 boards. Older AM4 boards may need a BIOS update first.
Does it have integrated graphics?
No. A discrete graphics card is required for display output.
What memory does it support?
2-channel DDR4 UDIMM up to 128 GB, rated to DDR4-3200.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
