AMD Ryzen 7 5700X 8-Core 16-Thread AM4 Desktop Processor
PRODUCT DESCRIPTION
AMD Ryzen 7 5700X 8-Core 16-Thread AM4 Desktop Processor (100-100000926WOF) - 3 Years Local Warranty
8 Cores, 16 Threads on Zen 3
The AMD Ryzen 7 5700X runs 8 Zen 3 cores and 16 threads at a 3.4 GHz base clock with boost up to 4.6 GHz, backed by 4 MB of L2 and 32 MB of L3 cache, in a 65 W default TDP.
AM4 Platform
It installs in AM4 motherboards (X570, X470, X370, B550, B450, B350, A520) and supports 2-channel DDR4 UDIMM memory up to 128 GB, with PCIe 4.0 connectivity (20 usable lanes from the CPU).
Discrete Graphics Required
This processor has no integrated graphics, so a discrete graphics card is required for display output.
Building a PC or buying for a fleet? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
AMD Ryzen 7 5700X Datasheet — Technical Specifications
General
| Product Name | AMD Ryzen 7 5700X |
| Boxed Part Number (OPN) | 100-100000926WOF |
| Tray Part Number | 100-000000926 |
| Series | Ryzen 5000 Series (former codename Vermeer) |
| Market Segment | Enthusiast Desktop |
| Launch Date | 4 April 2022 |
| Local Warranty (Singapore) | 3 years, AMD boxed processor limited warranty, supplied by SourceIT with a GST invoice |
CPU
| Architecture | Zen 3 |
| Cores / Threads | 8 / 16 (SMT) |
| Base Clock | 3.4 GHz |
| Max. Boost Clock | Up to 4.6 GHz |
| L1 Cache | 512 KB |
| L2 Cache | 4 MB |
| L3 Cache | 32 MB |
| Default TDP | 65 W |
| Process | TSMC 7nm FinFET (CPU cores); 12nm (Globalfoundries) (I/O die) |
| Max. Operating Temperature (Tjmax) | 90 °C |
| Boost Technology | Precision Boost 2 |
| Overclocking & Tuning | Unlocked for overclocking |
| Instruction Set Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |
Platform & Memory
| CPU Socket | AM4 |
| Supporting Chipsets | X570, X470, X370, B550, B450, B350, A520 |
| Memory Type | DDR4 UDIMM, 2 channels |
| Max. Memory | 128 GB |
| Max. Memory Speed | Up to 3200 MT/s |
Connectivity
| PCI Express Version | PCIe 4.0 |
| Native PCIe Lanes | 24 total / 20 usable |
| NVMe Support | Boot, RAID 0, RAID 1, RAID 10 |
| Native USB | 4 x USB 3.2 Gen 2 (10Gbps) |
| Native SATA Ports | 2 |
Graphics
| Integrated Graphics | None, discrete graphics card required |
Cooling
| Thermal Solution in Box | Not included |
Compatibility & Software Support
Motherboard
Requires an AM4 motherboard (X570, X470, X370, B550, B450, B350, A520). Boards may need a BIOS update before they recognise a newer processor, so check the motherboard maker's CPU support list before installing.
Memory
DDR4 UDIMM memory only, 2 channels.
Operating Systems
Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit.
Software
AMD Ryzen Master for monitoring and tuning, and the AMD Chipset Driver from AMD Drivers & Support.
Typical Use
Gaming PCs, content creation, office and home desktops.
Package Contents & AMD Ryzen 5000 Series (AM4) Ordering Information
In the Box

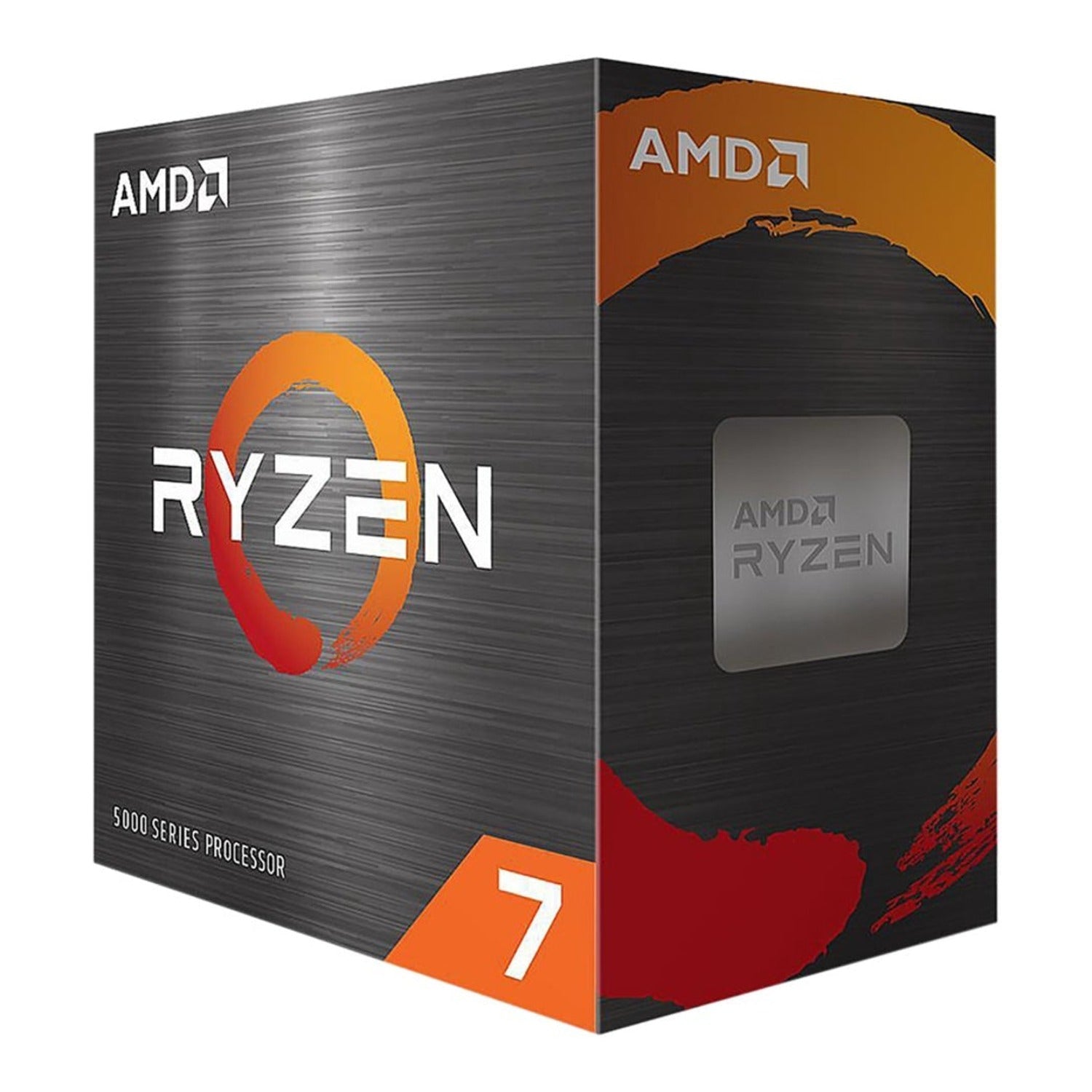

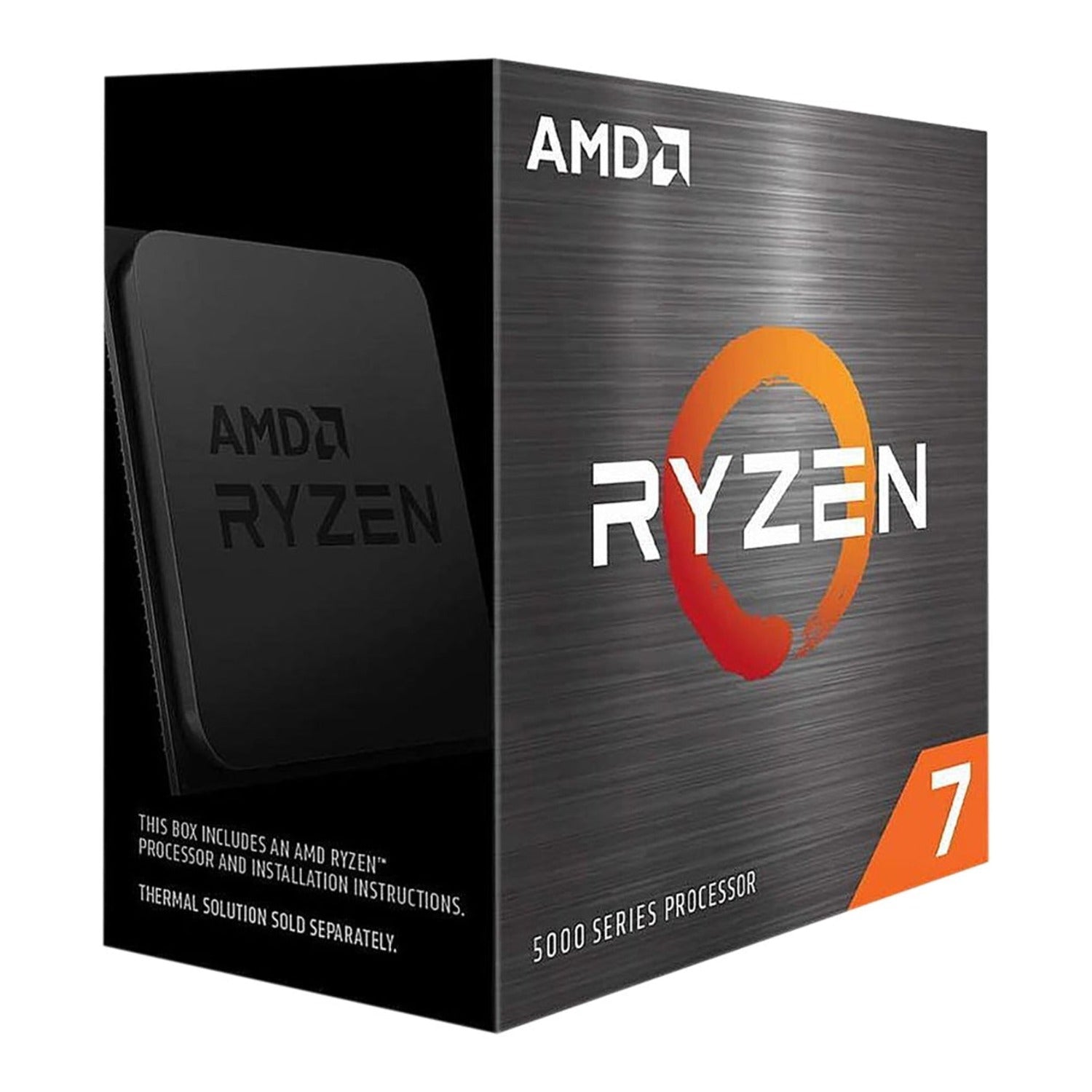

AMD Ryzen 7 5700X processor in retail packaging. No CPU cooler is included, so budget for a compatible cooler.
AMD Ryzen 5000 Series (AM4)
| Model | Key feature |
| Ryzen 9 5900X | 12C/24T, up to 4.8 GHz, 105W |
| Ryzen 7 5800X3D | 8C/16T, 3D V-Cache, 96 MB L3, 105W |
| Ryzen 7 5700X (this listing) | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 7 5700 | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 5 5600X | 6C/12T, up to 4.6 GHz, 65W |
| Ryzen 5 5600 | 6C/12T, up to 4.4 GHz, 65W |
| Ryzen 5 5500 | 6C/12T, up to 4.2 GHz, 65W |
| Ryzen 7 5700G | 8C/16T, up to 4.6 GHz, 65W |
| Ryzen 5 5600GT | 6C/12T, up to 4.6 GHz, 65W |
| Ryzen 5 5500GT | 6C/12T, up to 4.4 GHz, 65W |
Datasheet & Downloads
| AMD specifications & drivers | AMD Ryzen 7 5700X specifications and drivers on amd.com |
| Tuning utility | AMD Ryzen Master |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 5700X.
Frequently Asked Questions — AMD Ryzen 7 5700X
Does the 5700X come with a cooler?
No. The boxed 5700X ships without a cooler.
Which motherboards does it fit?
AM4 motherboards with DDR4 memory. It does not fit AM5 boards. Older AM4 boards may need a BIOS update first.
Does it have integrated graphics?
No. A discrete graphics card is required for display output.
What memory does it support?
2-channel DDR4 UDIMM up to 128 GB, up to 3200 MT/s.
What warranty do I get?
3 years AMD boxed processor limited warranty, supplied locally by SourceIT with a GST invoice.
