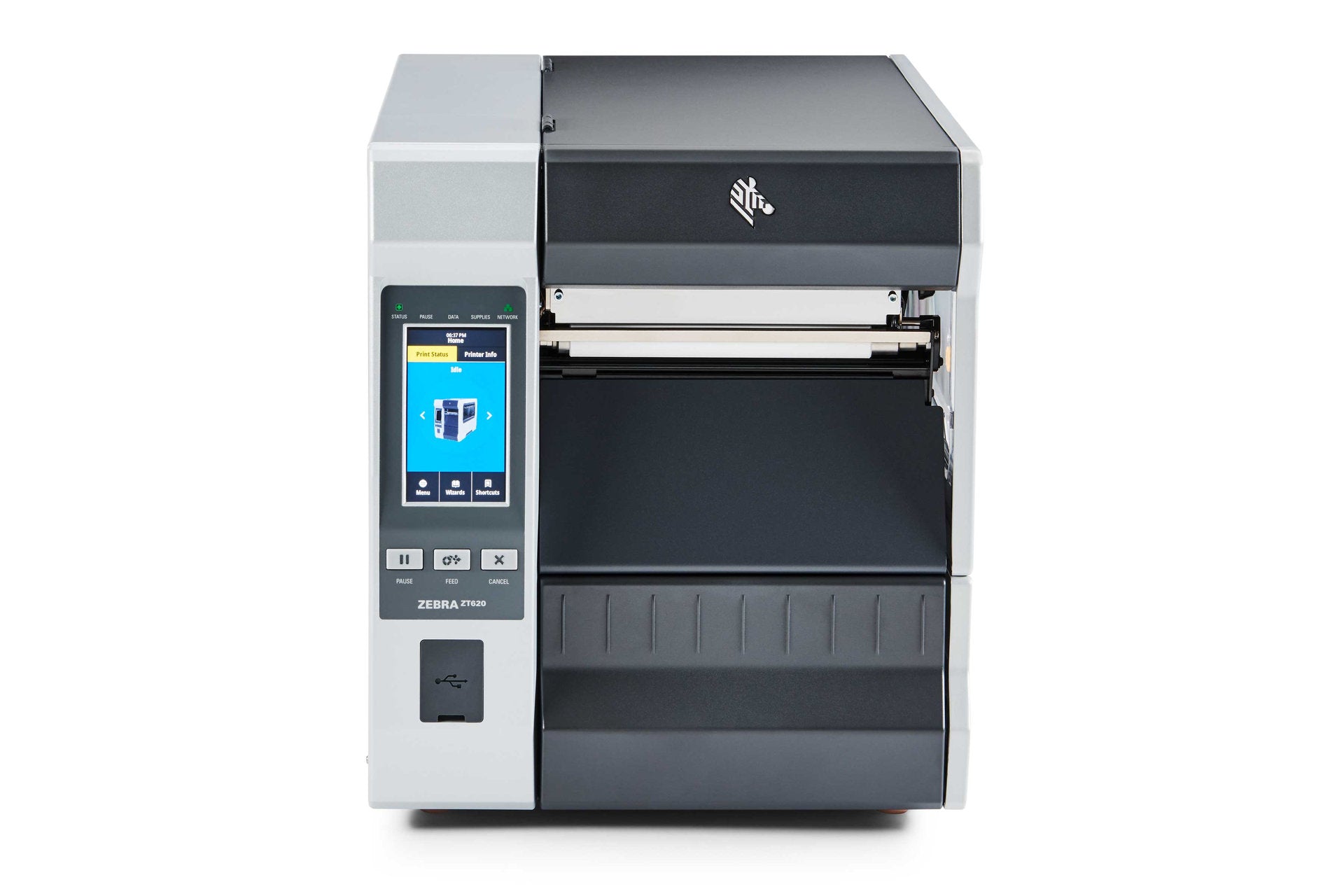

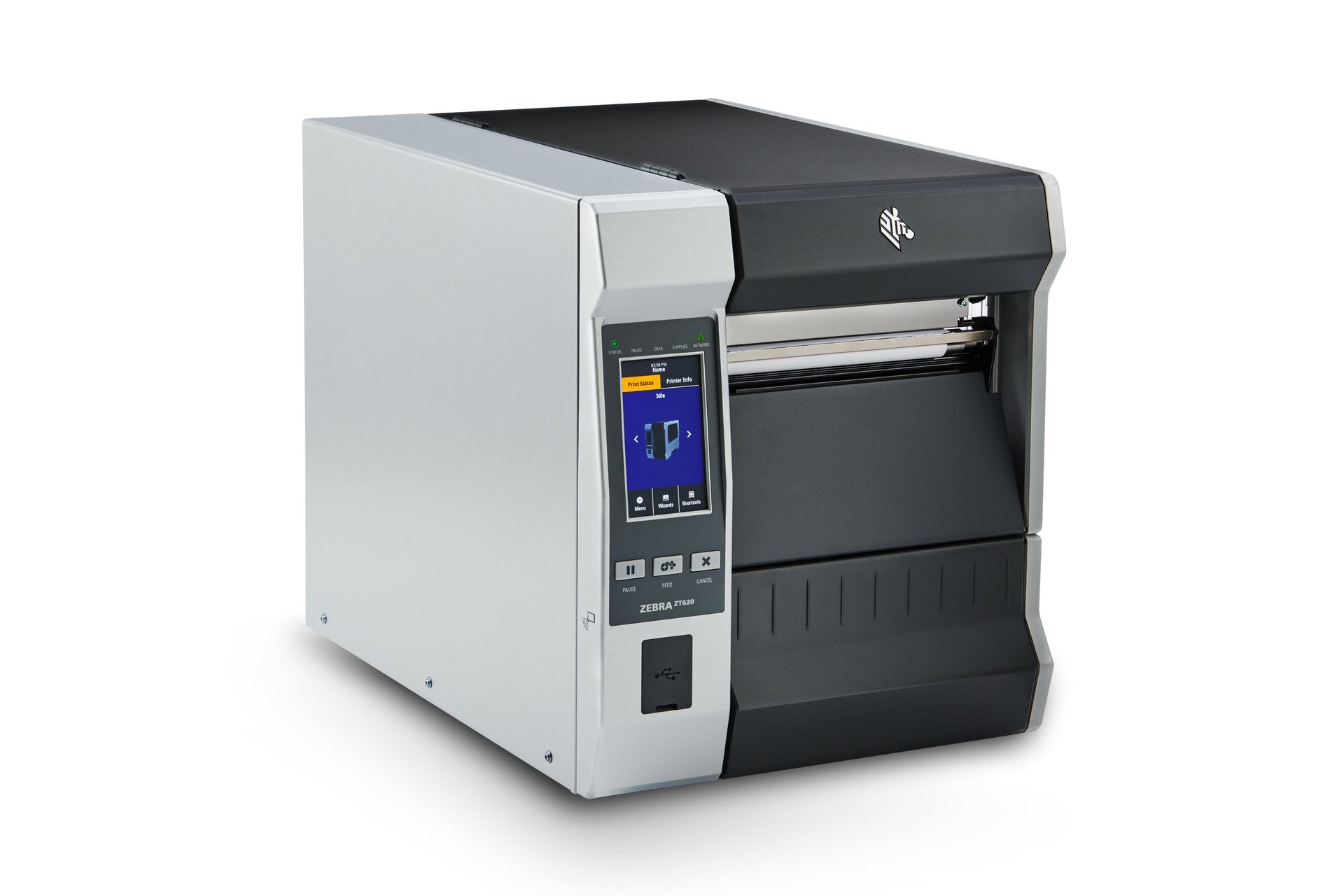

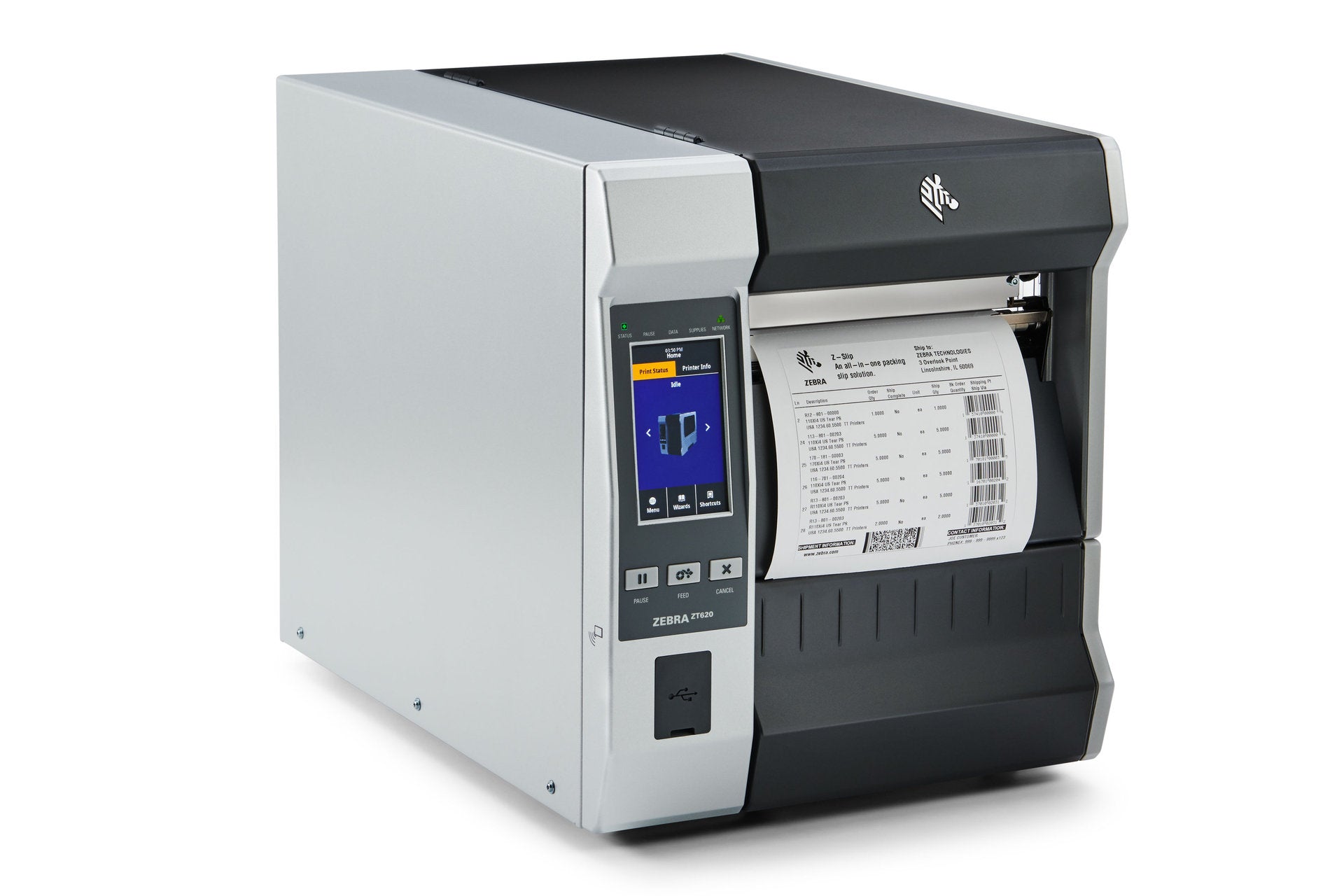

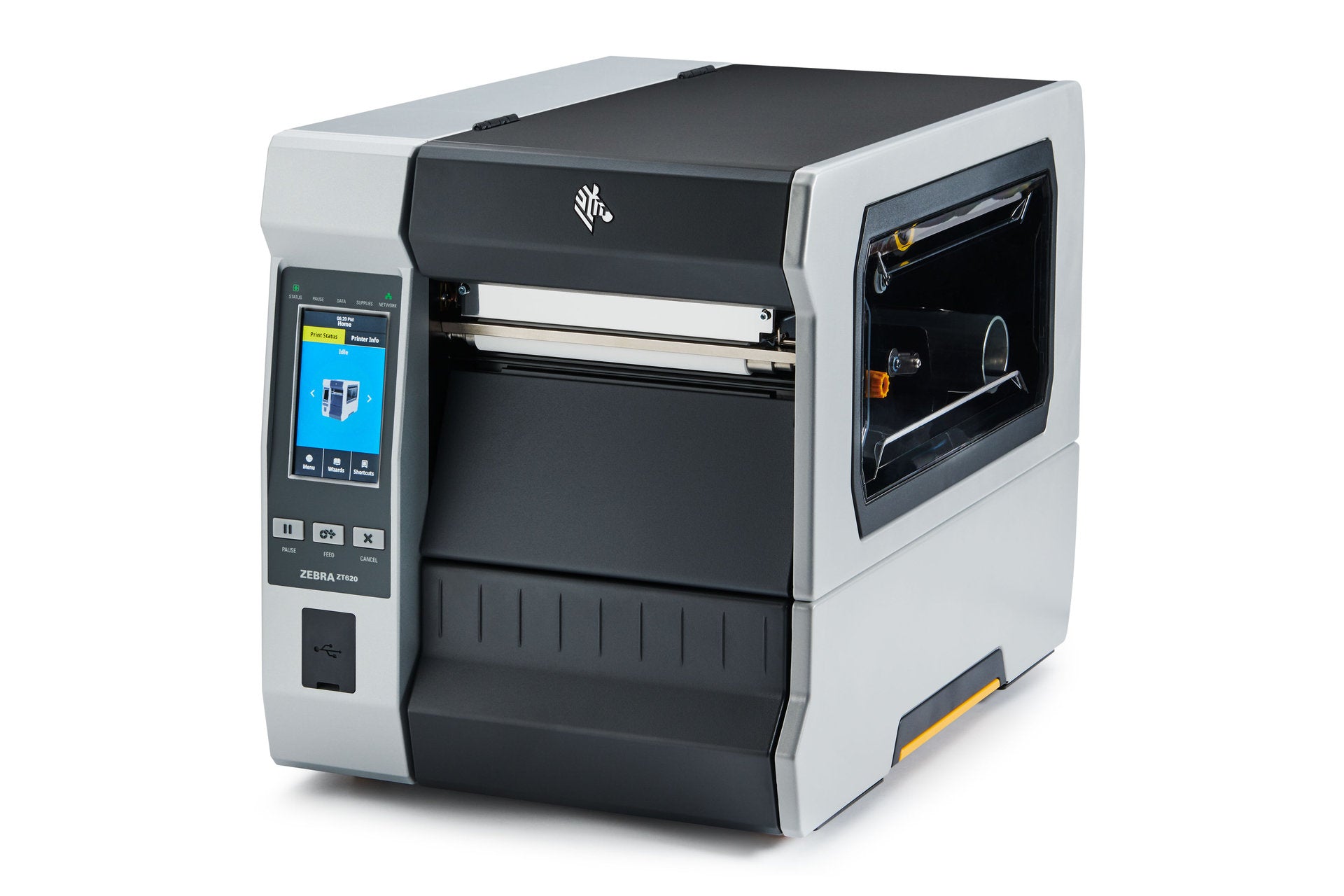

Zebra ZT620 6" High-Performance Industrial Thermal Transfer Label Printer, 203 dpi
PRODUCT DESCRIPTION
Zebra ZT62062-T0P0100Z ZT620 6" High-Performance Industrial Thermal Transfer Label Printer, 203 dpi
Built for mission-critical labelling
Zebra's high-performance industrial line for 24/7 manufacturing, distribution and pallet labelling.
Wide 6" printing at speed
Prints up to 168 mm wide at up to 305 mm per second on media up to 180 mm.
Colour touch display
Intuitive menus, wizards and alerts make setup and troubleshooting quick for operators.
Ready to grow
Two open slots for Wi-Fi 6, Ethernet, parallel or applicator interfaces, plus field-upgradable RFID.
Zebra ZT620 Datasheet — Technical Specifications
General
| Product Name | Zebra ZT620 6" Industrial Thermal Transfer Printer |
| Part Number | ZT62062-T0P0100Z |
| Series | Zebra ZT600 Series |
| Print Method | Thermal transfer and direct thermal |
| Dimensions (closed) | 505 mm L x 341.45 mm W x 395.68 mm H |
| Weight | 26 kg |
Printing
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 168 mm (6.6") |
| Maximum Print Speed | 305 mm/s (12 ips) |
| Maximum Continuous Print Length | 2,032 mm at 203 dpi |
| Memory | 1 GB RAM; 2 GB Flash |
| Operating System | Link-OS |
| Programming | ZPL, ZPL II, ZBI 2.0, XML |
Media & Ribbon
| Media Width | 51 mm to 180 mm |
| Maximum Roll Size | 203 mm O.D. on 76 mm core |
| Media Thickness | 0.058 to 0.25 mm |
| Ribbon Length / Width | 450 m / 51 to 170 mm, 25.4 mm core |
Environmental & Power
| Operating Temperature | Thermal transfer 5°C to 40°C; direct thermal 0°C to 40°C |
| Operating Humidity | 20% to 85% non-condensing |
| Electrical | Auto-detectable 90–265 VAC, 47–63 Hz, 250 W; ENERGY STAR |
Compatibility & Connectivity
Interfaces on this Model
USB, serial and Bluetooth per distributor listing.
Expansion
Two open slots for dual-band Wi-Fi 6 with Bluetooth 5.3, parallel, Ethernet or applicator interface cards.
Options
Rewinder, cutter with catch tray, and field-upgradable UHF RFID encoder.
Package Contents & Zebra ZT600 Series Ordering Information
In the Box
ZT620 printer, power cord, USB cable and documentation. Labels and ribbon sold separately.
Zebra ZT600 Series
| Model | Key feature |
| ZT610 | 4" wide, up to 356 mm/s, 600 dpi option |
| ZT62062-T0P0100Z (this listing) | ZT620 6" wide, 203 dpi |
Datasheet & Downloads
| Zebra product page | ZT620 on zebra.com |
| Specification sheet | ZT600 Series spec sheet |
Frequently Asked Questions — Zebra ZT620
What is the ZT620 typically used for?
Pallet, carton and drum labels, GHS chemical labels and other wide labels in high-volume operations.
Is ribbon included?
No. Labels and ribbon are sold separately; ask us for matching Zebra supplies.
