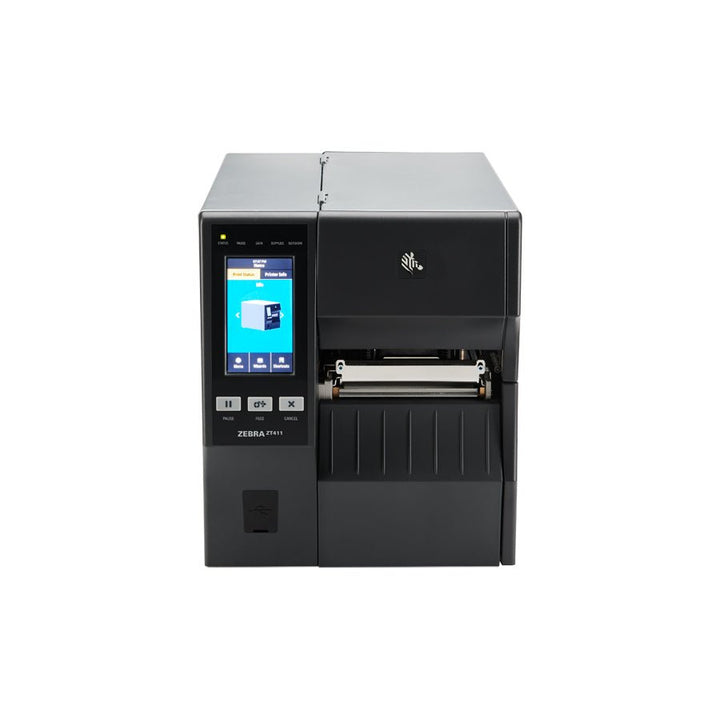

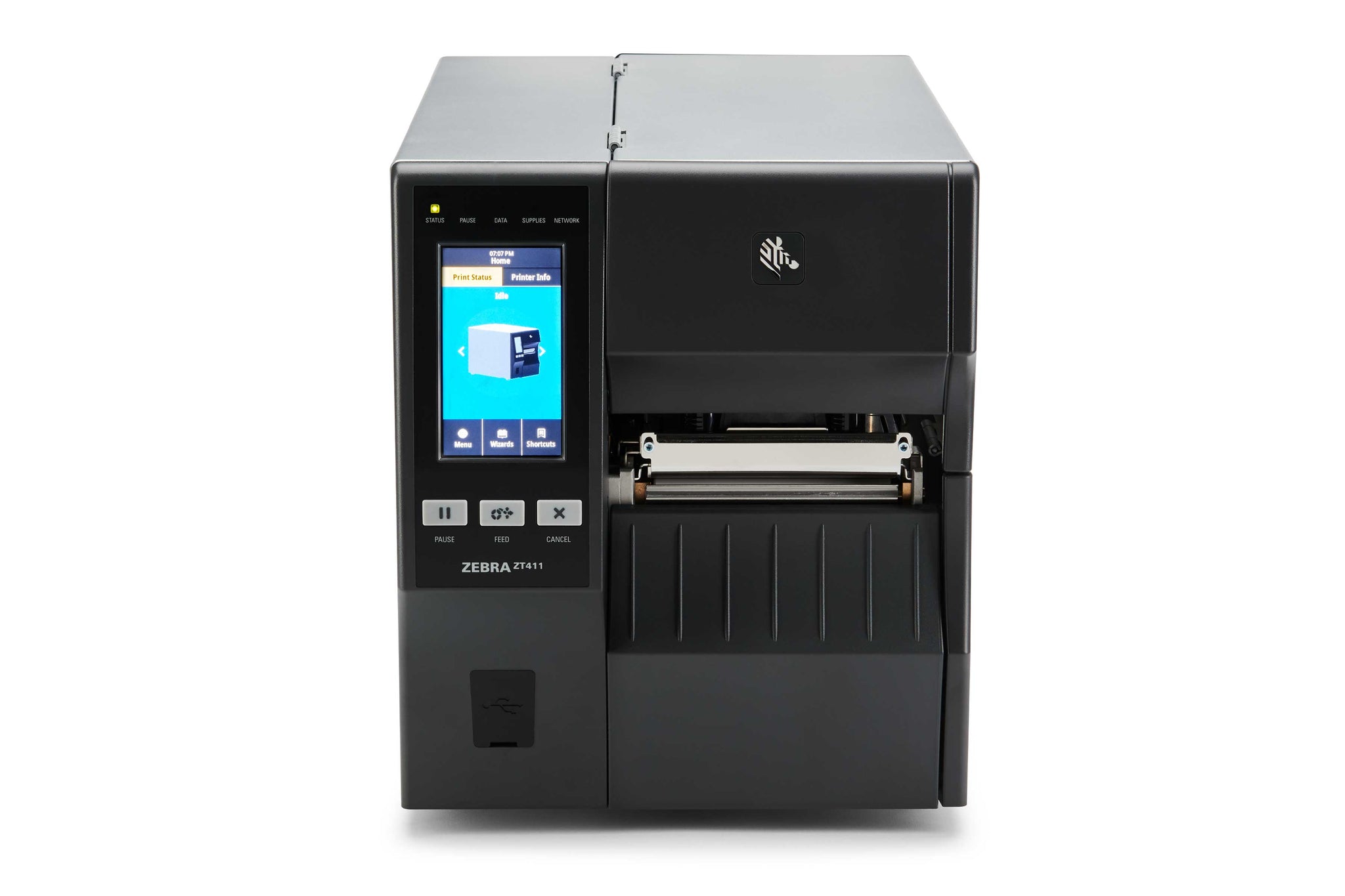

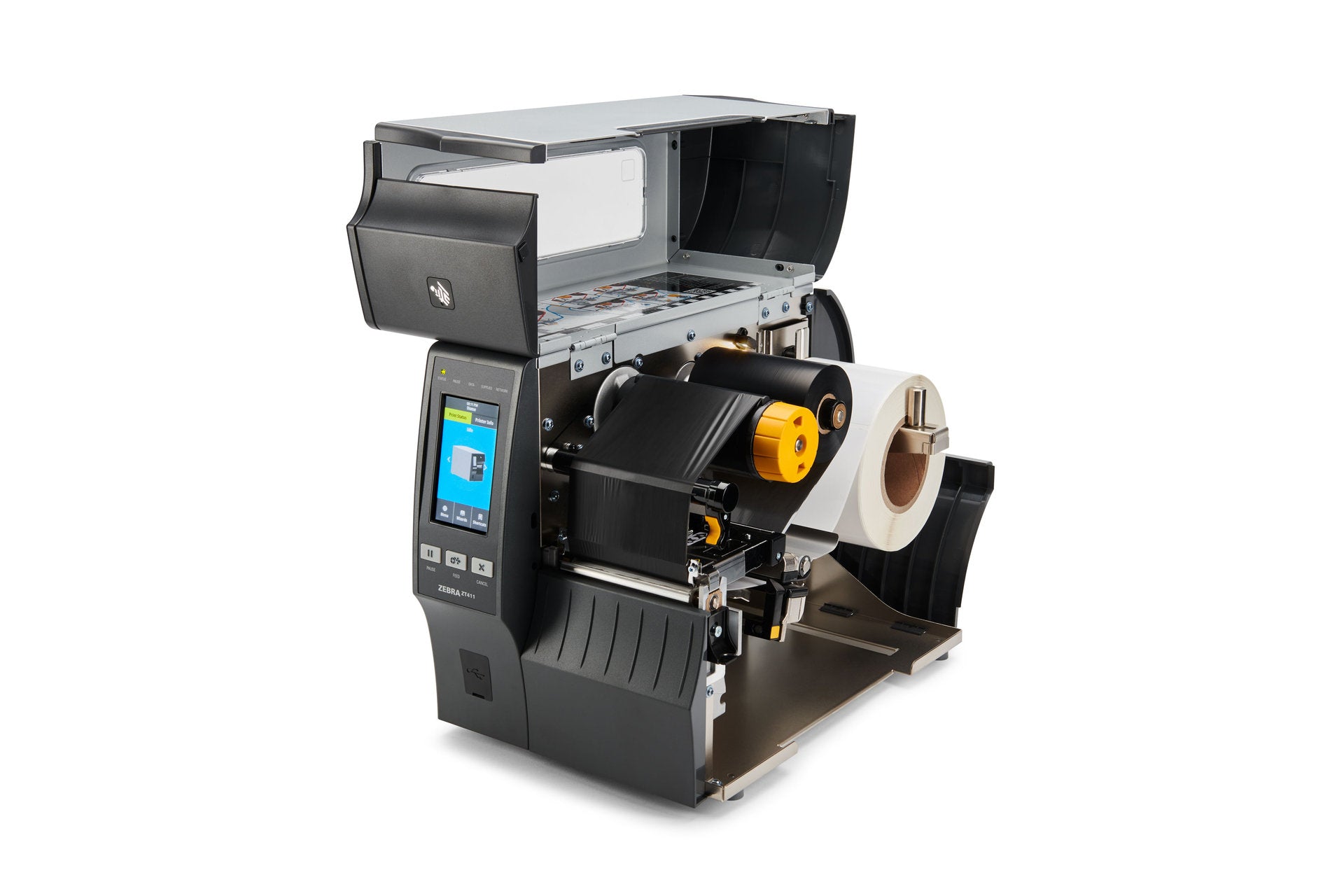

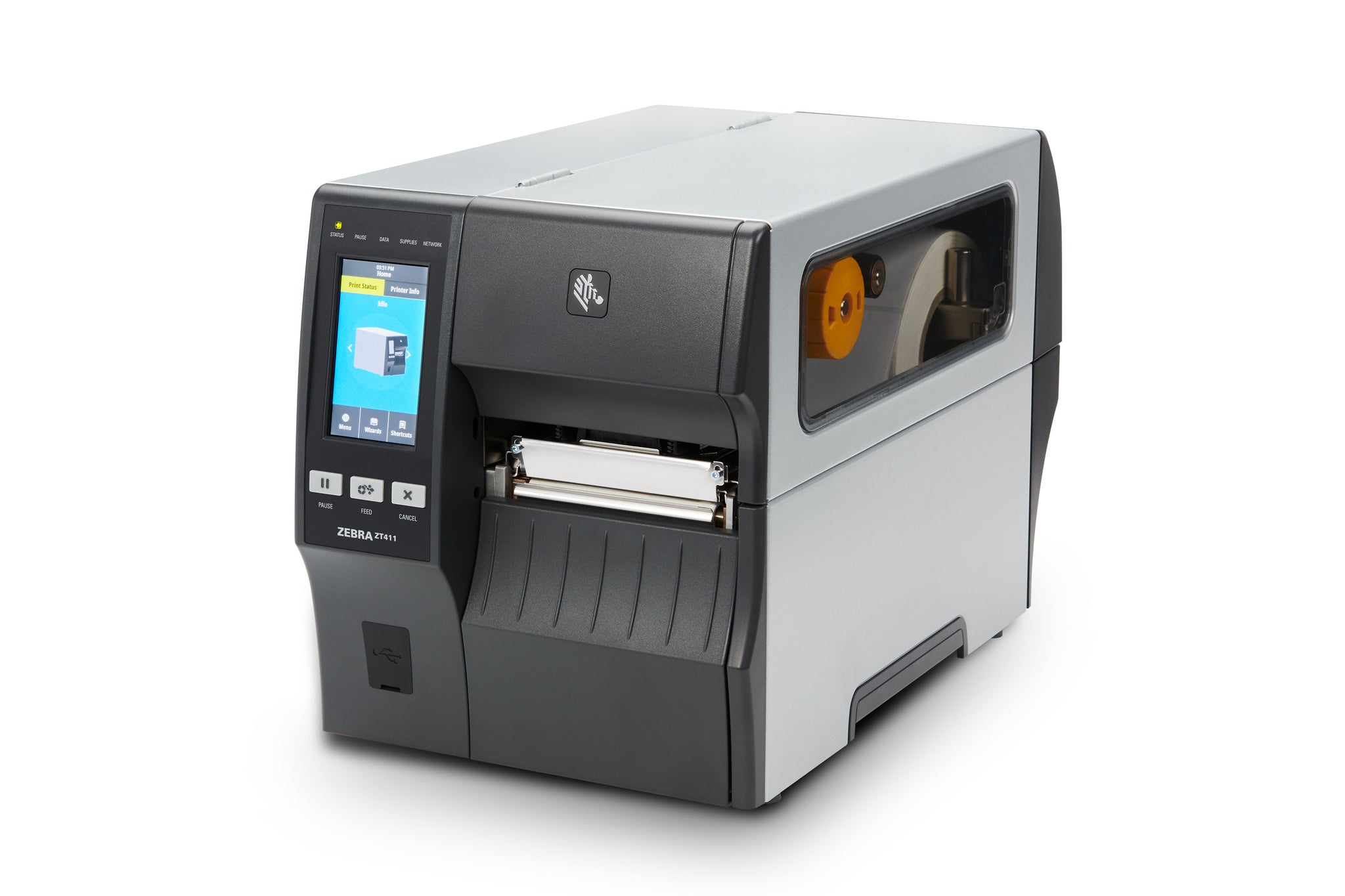

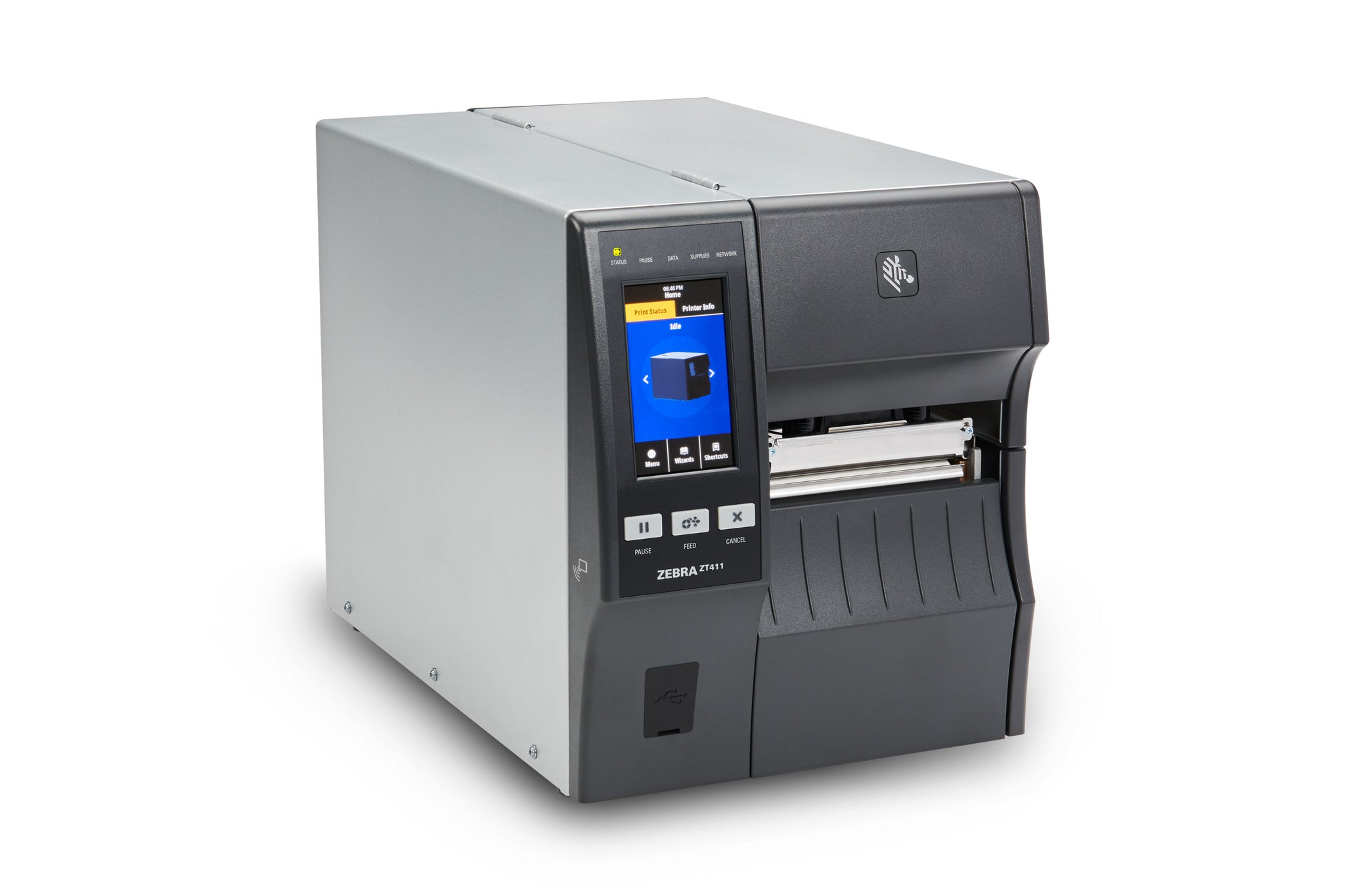

Zebra ZT411 Direct Thermal Industrial Printers

Zebra ZT411 Direct Thermal Industrial Printers (ZT41142-T0P0000Z) - 1 Year Local Warranty

Industrial-Grade Printing for High-Volume Labeling Operations

The Zebra ZT411 Direct Thermal Industrial Printer (ZT41142-T0P0000Z) is a powerful industrial label printer engineered for manufacturing, warehousing, logistics, transportation, and distribution environments. Designed to handle demanding workloads, the ZT411 delivers reliable, high-speed printing performance while maintaining exceptional print quality for critical labeling applications across enterprise operations.

Direct Thermal Printing for Efficient Label Production

Utilizing direct thermal technology, the Zebra ZT411 prints labels without the need for ribbons, helping reduce operating costs and simplifying maintenance. It is ideal for producing shipping labels, inventory labels, barcode labels, warehouse tags, compliance labels, and tracking labels where speed, accuracy, and reliability are essential to daily operations.

Rugged Design Built for Continuous Industrial Use

Constructed with a durable metal frame and industrial-grade components, the Zebra ZT411 is designed for continuous operation in demanding work environments. Its robust architecture helps maximize uptime, reduce maintenance requirements, and support mission-critical printing tasks in busy warehouses, production facilities, and logistics centers.

Scalable Label Printing for Enterprise Applications

The Zebra ZT411 integrates seamlessly with enterprise systems and supply chain workflows, supporting inventory management, asset tracking, product identification, order fulfillment, and warehouse automation initiatives. Its flexible deployment capabilities make it an excellent choice for businesses looking to scale their labeling infrastructure while maintaining operational efficiency.

Technical Specifications

General
Model: ZT411
Part Number: ZT41142-T0P0000Z
Product Name: Zebra ZT411 Direct Thermal Industrial Printer
Manufacturer: Zebra Technologies
Product Type: Industrial Barcode Label Printer
Printer Technology: Direct Thermal Printing
Series: Zebra ZT400 Series
Deployment: Manufacturing, Warehousing, Logistics, Retail, Transportation, Healthcare
Warranty: 1 Year Standard Manufacturer Warranty
Print Width: 4 Inches
Connectivity: USB, Serial, Ethernet, Bluetooth
Display: 4.3-Inch Full Color Touchscreen

Print Specifications
Print Technology: Direct Thermal
Print Resolution: 203 dpi (8 dots/mm)
Maximum Print Width: 4.09 Inches (104 mm)
Maximum Print Speed: Up to 14 ips (356 mm/sec)
Maximum Print Length: 157 Inches (3,988 mm)
Printhead Technology: E3™ Element Energy Equalizer
Label Printing: Supported
Barcode Printing: Supported
Graphic Printing: Supported

Media Specifications
Media Types:
• Continuous Labels
• Die-Cut Labels
• Black Mark Labels
• Notched Labels
• Tags

Maximum Media Width: 4.5 Inches (114 mm)
Minimum Media Width: 0.79 Inches (20 mm)
Maximum Media Roll Diameter: 8 Inches (203 mm)
Media Core Diameter: 3 Inches (76 mm)
Media Thickness: 0.0023 Inches to 0.010 Inches
Media Sensors: Dual Media Sensors (Transmissive and Reflective)
Media Calibration: Automatic

Processor & Memory
Processor Type: ARM Cortex-A7
Standard RAM: 256 MB SDRAM
Flash Memory: 512 MB
Processing Performance: High-Speed Industrial Printing Operations
Firmware Storage: Supported

Display & User Interface
Display Type: Full Color Touchscreen LCD
Display Size: 4.3 Inches
User Interface: Icon-Based Menu System
Status Monitoring: Real-Time Printer Status Display
Touch Navigation: Supported
Printer Configuration: On-Device Configuration Supported

Connectivity
USB 2.0 Host Port
USB 2.0 Device Port
RS-232 Serial Port
10/100 Ethernet Port
Bluetooth 4.1 Connectivity
Dual USB Host Support
Network Printing: Supported
Remote Printer Access: Supported

Network Features
Ethernet Networking
Web-Based Printer Management
Remote Monitoring
Printer Alerts and Notifications
Centralized Printer Management
Enterprise Network Deployment Ready

Supported Printer Languages
ZPL
ZPL II
EPL
XML Printing
Link-OS Compatible

Barcode Symbologies

1D Barcodes:
• Code 11
• Code 39
• Code 93
• Code 128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• GS1 DataBar
• Codabar
• Industrial 2 of 5
• Interleaved 2 of 5

2D Barcodes:
• QR Code
• Data Matrix
• PDF417
• MaxiCode
• Aztec
• MicroPDF417

Operating Environment
Operating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 60°C
Operating Humidity: 20% to 85% Non-Condensing
Storage Humidity: 5% to 85% Non-Condensing

Power Specifications
Power Supply Type: Internal Auto-Switching Power Supply
Input Voltage: 100 – 240 VAC
Input Frequency: 50 – 60 Hz
ENERGY STAR Certified: Yes
Power Efficiency: Optimized for Industrial Applications

Management & Software
Link-OS Operating System
Zebra DNA for Printers
Printer Setup Utilities
Remote Device Management
Firmware Update Support
Cloud Connectivity Support
Enterprise Fleet Management Ready

Design & Construction
Frame Material: All-Metal Construction
Media Door: Bi-Fold Metal Media Door
Print Mechanism: Rugged Industrial Design
Printhead Replacement: Tool-Free
Platen Roller Replacement: Tool-Free
Heavy-Duty Construction: Supported
Continuous Operation Design: Supported

Physical Specifications
Height: 324 mm
Width: 269 mm
Depth: 495 mm
Weight: 16.33 kg
Form Factor: Industrial Label Printer
Color: Black and Grey

Package Contents
Zebra ZT411 Direct Thermal Industrial Printer
Power Cord
USB Interface Connection
Documentation
Quick Start Guide

Key Features
4-Inch Industrial Barcode Label Printer
Direct Thermal Printing Technology
203 dpi Print Resolution
Up to 14 ips Print Speed
4.3-Inch Full Color Touchscreen
USB, Serial, Ethernet and Bluetooth Connectivity
256 MB SDRAM and 512 MB Flash Memory
Dual Media Sensor Technology
Link-OS Enterprise Management Platform
All-Metal Industrial Construction
Tool-Free Maintenance Design
ENERGY STAR Certified
Built for High-Volume Industrial Printing

Performance & Features
Designed for High-Volume Label Printing Applications
Reliable Direct Thermal Printing Performance
Fast Label Production for Industrial Workflows
Supports Enterprise-Wide Printer Deployments
Optimized for Warehouse and Distribution Operations
Easy Integration with Existing Zebra Environments
Advanced Network Management Capabilities
Suitable for Mission-Critical Labeling Applications
Durable Construction for Continuous Operation
Enterprise-Grade Security and Management Features

Typical Use Cases
Warehouse Label Printing
Shipping and Receiving Operations
Inventory Management
Distribution Centers
Manufacturing Traceability
Asset Tracking
Retail Backroom Labeling
Healthcare Identification Labels
Compliance Label Printing
Logistics and Transportation Operations
Industrial Barcode Printing
Supply Chain Management Systems
