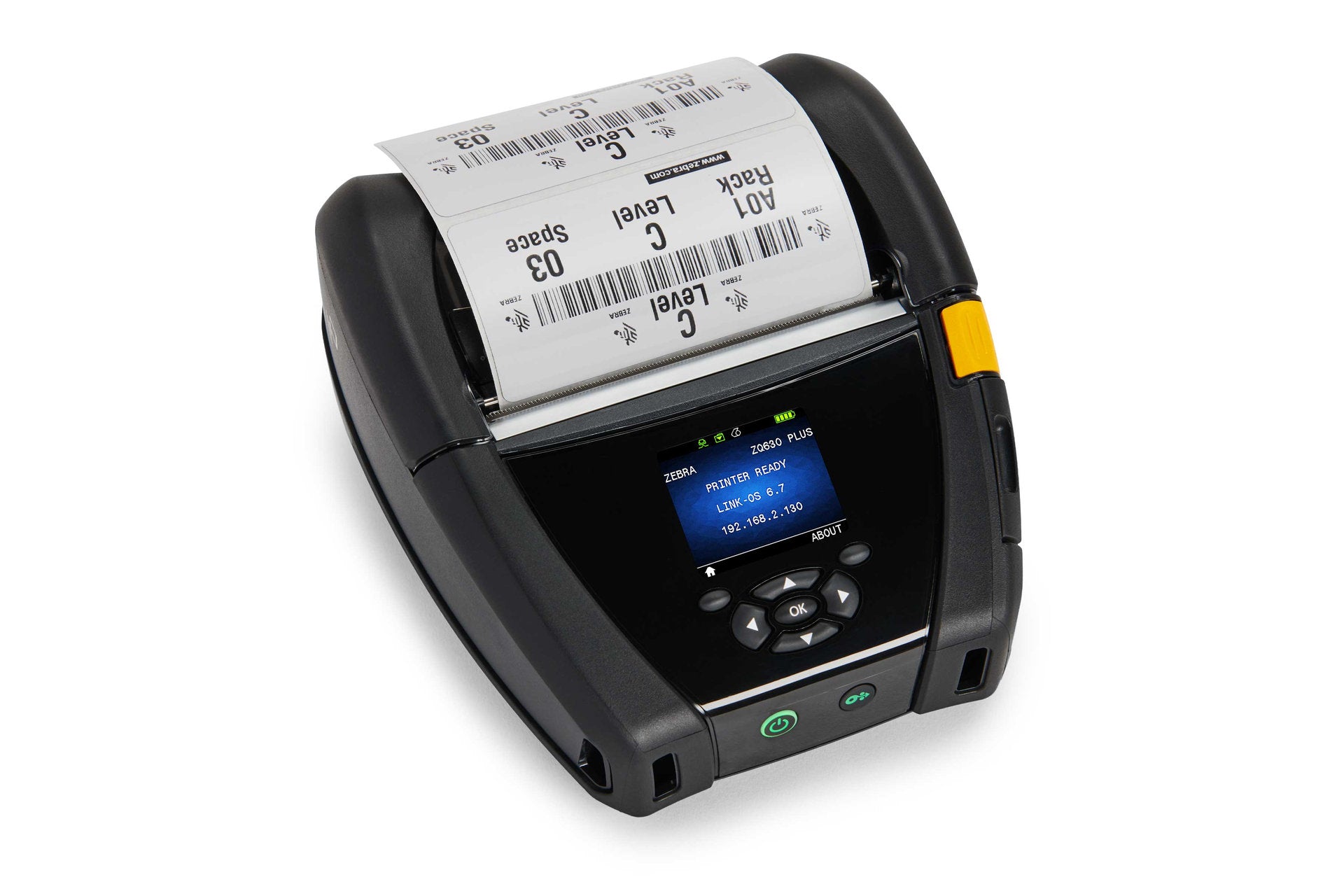

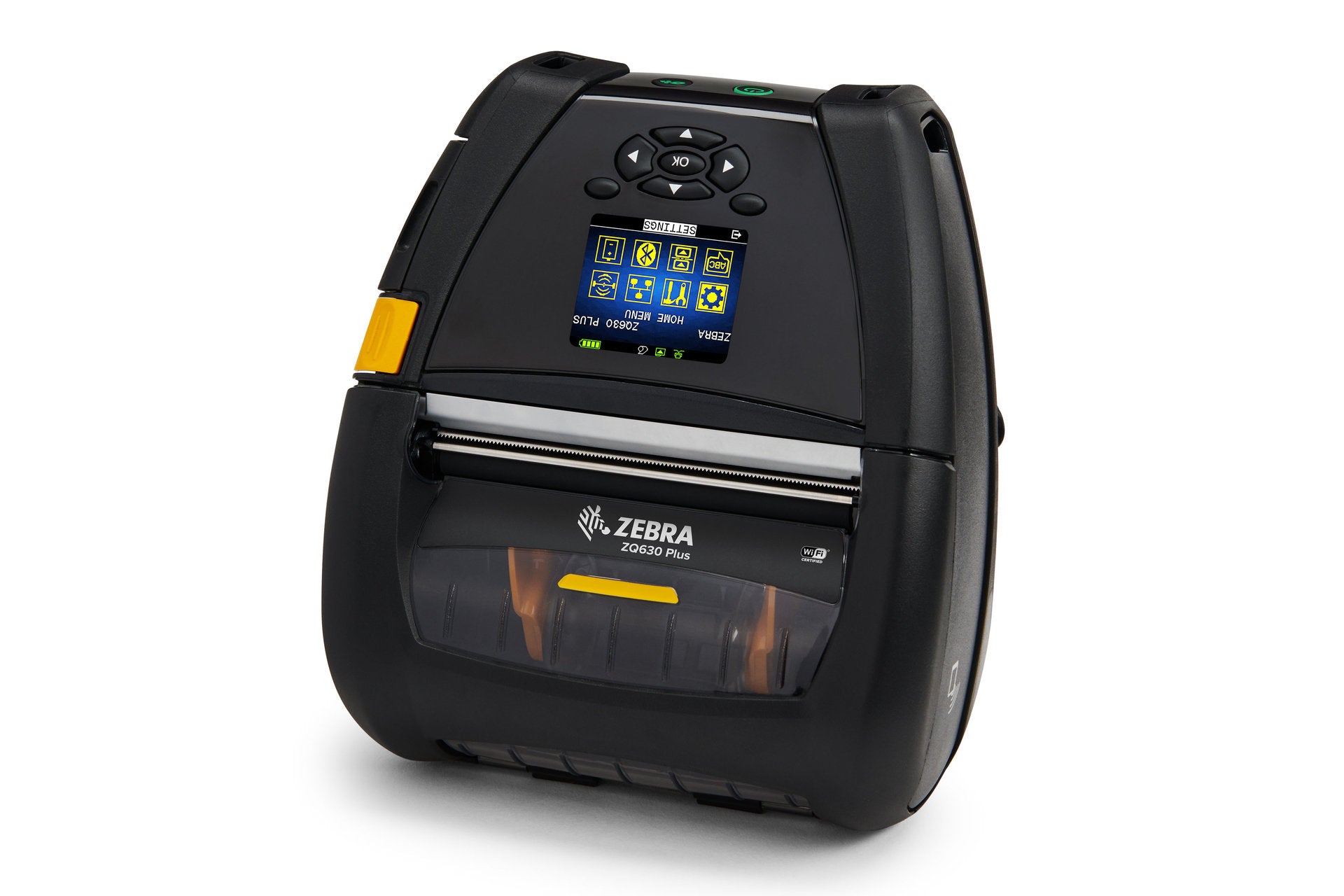

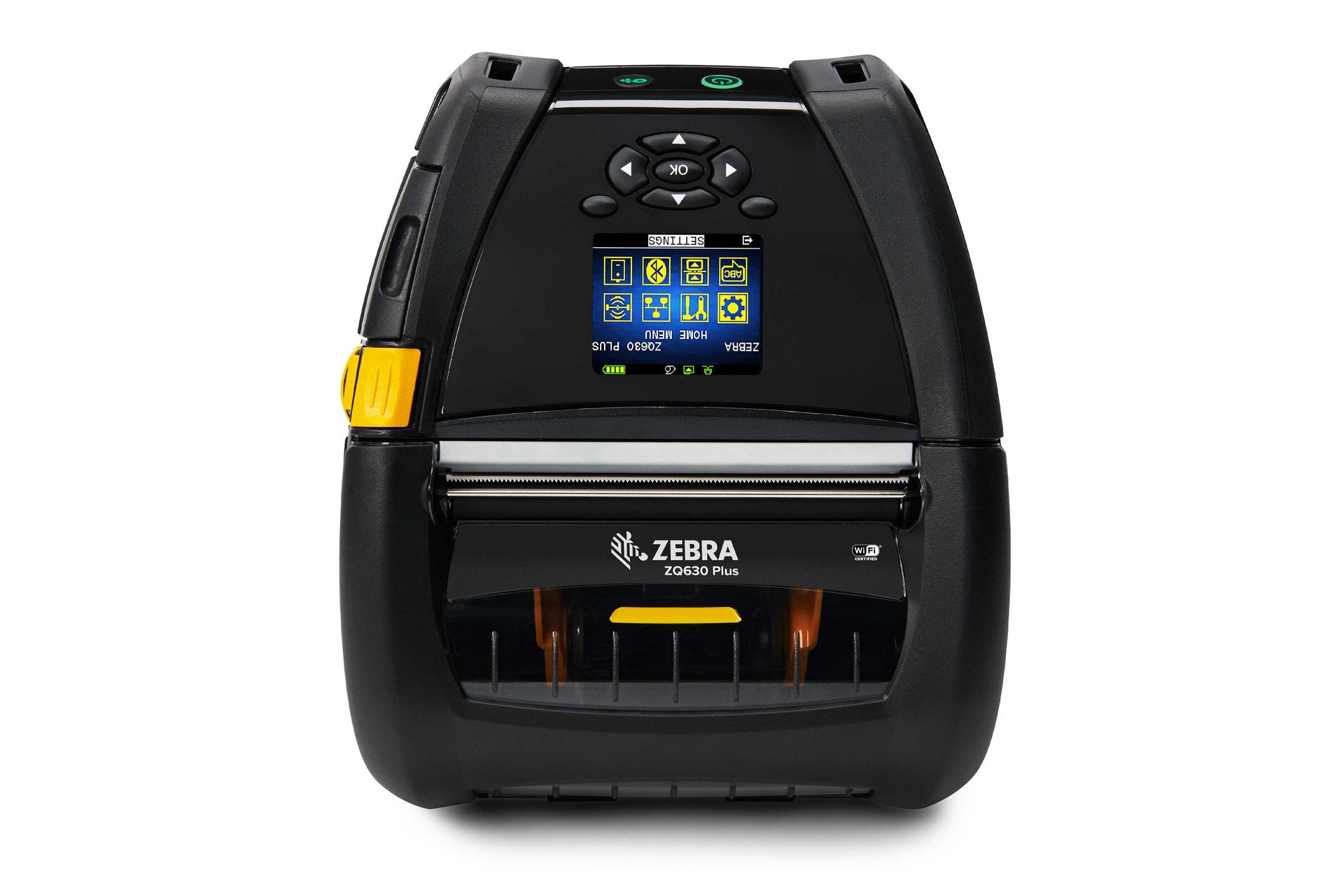

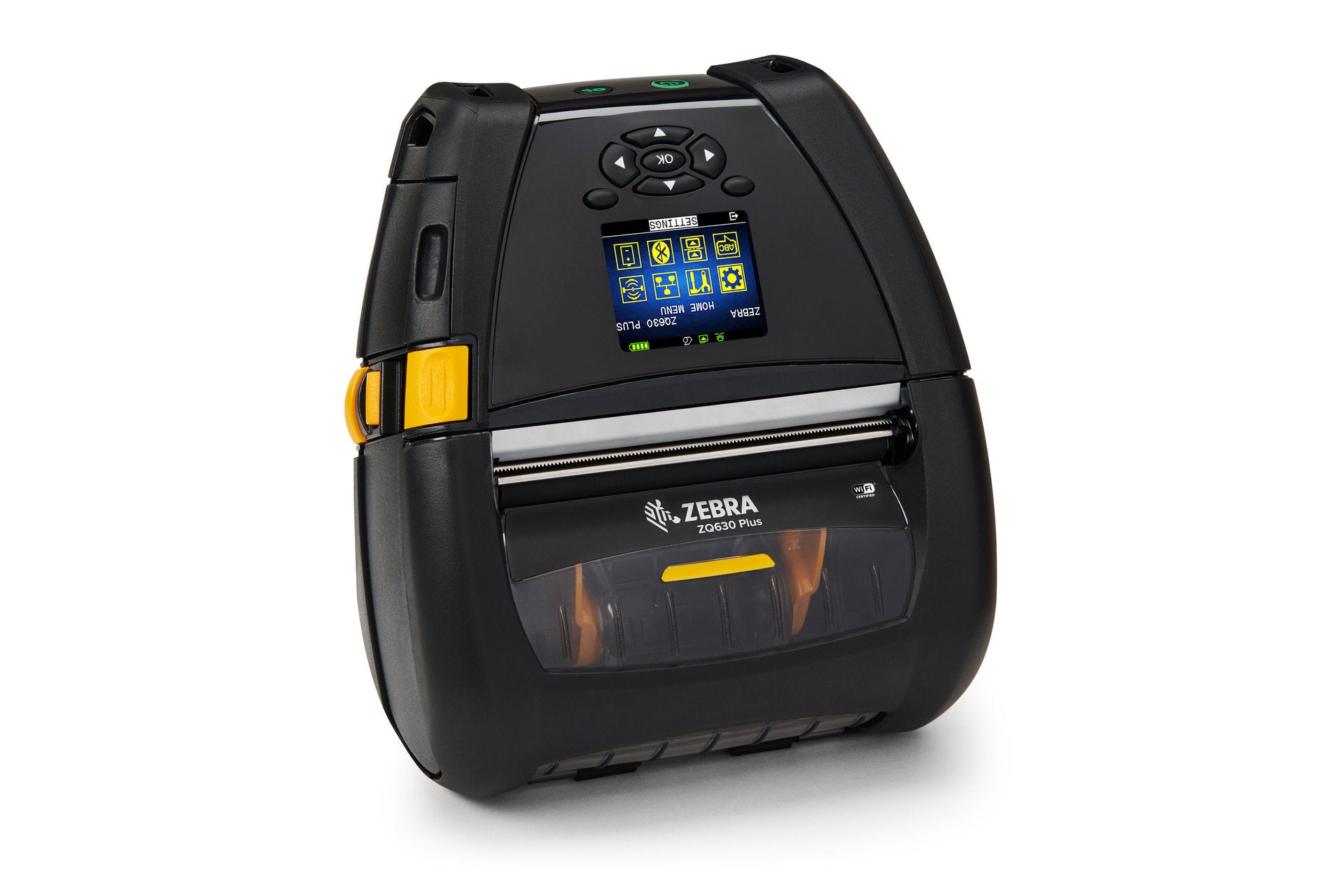

Zebra ZQ630 Plus 4" Premium Mobile Label & Receipt Printer, 203 dpi, Bluetooth + NFC
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Zebra ZQ63-AAFAA04-00 ZQ630 Plus 4" Premium Mobile Printer, 203 dpi, Bluetooth + NFC
Zebra's premium 4" mobile printer
For warehouse, retail and transport teams who print labels all shift at the point of work.
Big battery for long shifts
6,600 mAh PowerPrecision+ battery, the largest in the ZQ600 Plus range.
Colour display and alerts
Clear status, media and battery information at a glance, with a label-present sensor for batch printing.
Tap-to-pair
Bluetooth with NFC Print Touch for quick pairing to mobile computers and phones.
Zebra ZQ630 Plus Datasheet — Technical Specifications
General
| Product Name | Zebra ZQ630 Plus 4" Mobile Direct Thermal Printer |
| Part Number | ZQ63-AAFAA04-00 |
| Series | Zebra ZQ600 Plus Series |
| Dimensions | 186.7 mm L x 165.1 mm W x 82.5 mm H |
| Weight | 1.1 kg with battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Printing
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 104 mm (4.1") |
| Maximum Print Speed | 115 mm/s (4.5 ips) |
| Print Length | 12.7 mm to 813 mm |
| Memory | 256 MB RAM; 512 MB Flash |
| Programming | CPCL, EPL, ZPL, ZBI 2.0, XML; Link-OS |
Media
| Media Width | 51 mm to 112 mm (linered); 51 to 104 mm (linerless) |
| Maximum Roll Size | 66 mm O.D. on 19 mm or 34.9 mm core |
| Media Types | Die-cut labels and tags, linerless, receipt paper, black bar and gap |
Environmental & Power
| Battery | 6,600 mAh (47.5 Wh) removable PowerPrecision+ Li-Ion |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 10% to 90% non-condensing |
Compatibility & Connectivity
Wireless on this Model
Bluetooth with NFC Print Touch.
Host Devices
Zebra mobile computers, Android and iOS devices, and Windows PCs via Zebra drivers and SDKs.
Accessories
Ethernet and charging cradles, battery chargers, AC adapter, carry straps and cases.
Package Contents & Zebra ZQ600 Plus Ordering Information
In the Box
ZQ630 Plus printer with battery. Charger and media sold separately.
Zebra ZQ600 Plus Series at SourceIT
| Model | Key feature |
| ZQ62-HAXAA04-00 | ZQ620 Plus 3", Wi-Fi 6 + BT + Ethernet, peeler |
| ZQ63-AAFAA04-00 (this listing) | ZQ630 Plus 4", Bluetooth + NFC |
Datasheet & Downloads
| Zebra product page | ZQ630 Plus on zebra.com |
| Specification sheet | ZQ600 Plus Series spec sheet |
Frequently Asked Questions — Zebra ZQ630 Plus
Can it print shipping labels?
Yes. It prints 4" (104 mm) wide labels up to 813 mm long.
What warranty do I get?
Zebra warrants the ZQ600 Plus Series for 1 year from shipment.
