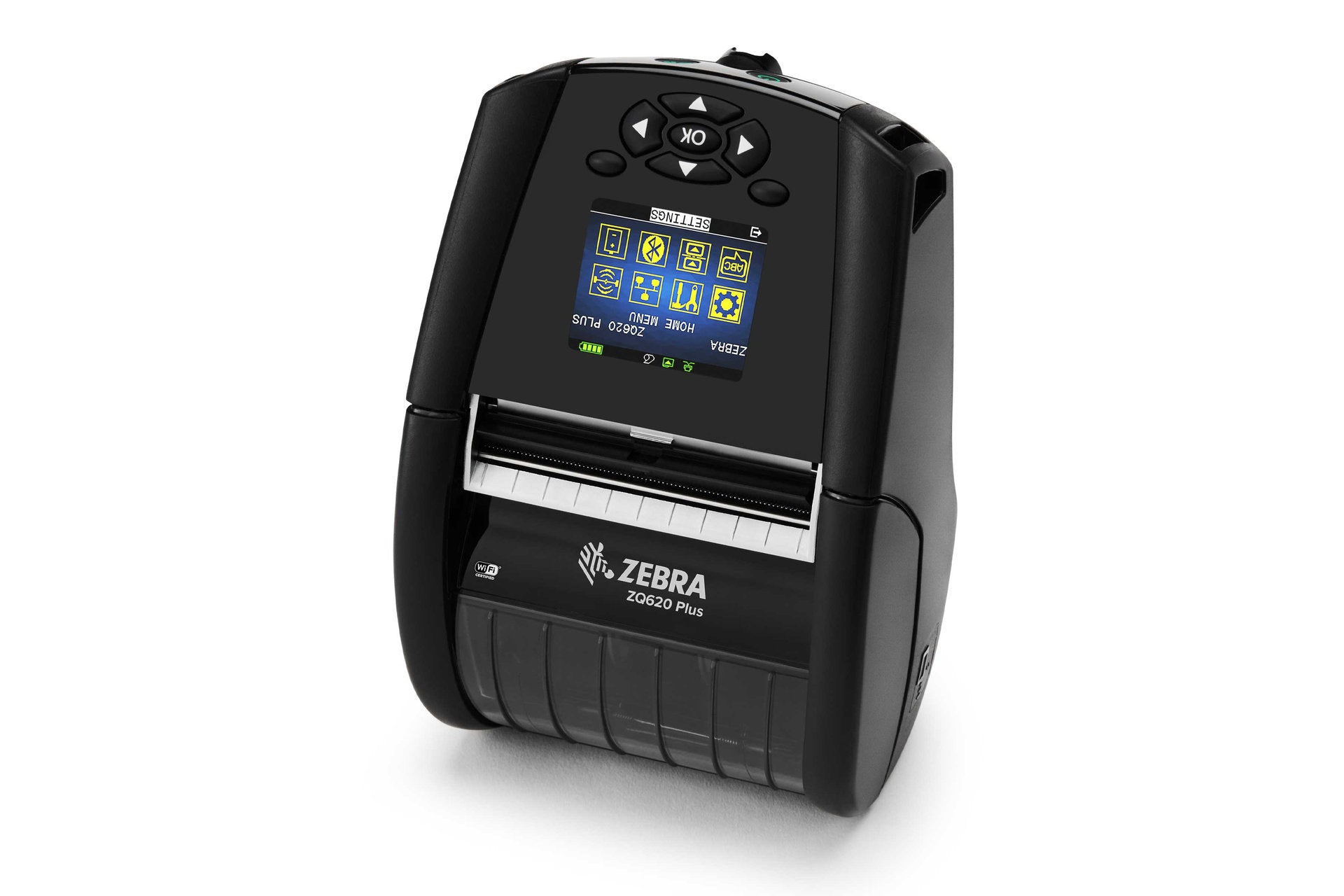

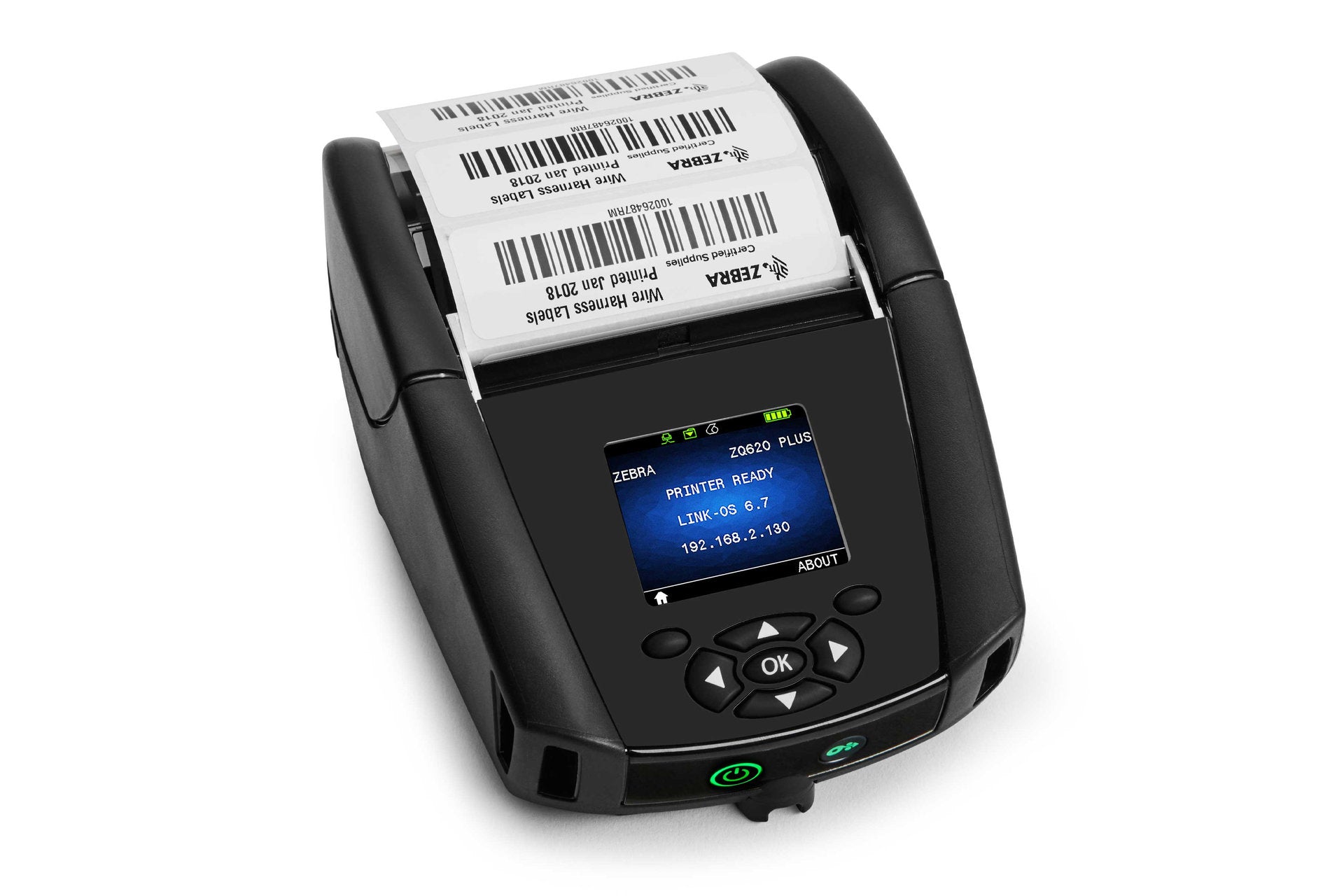

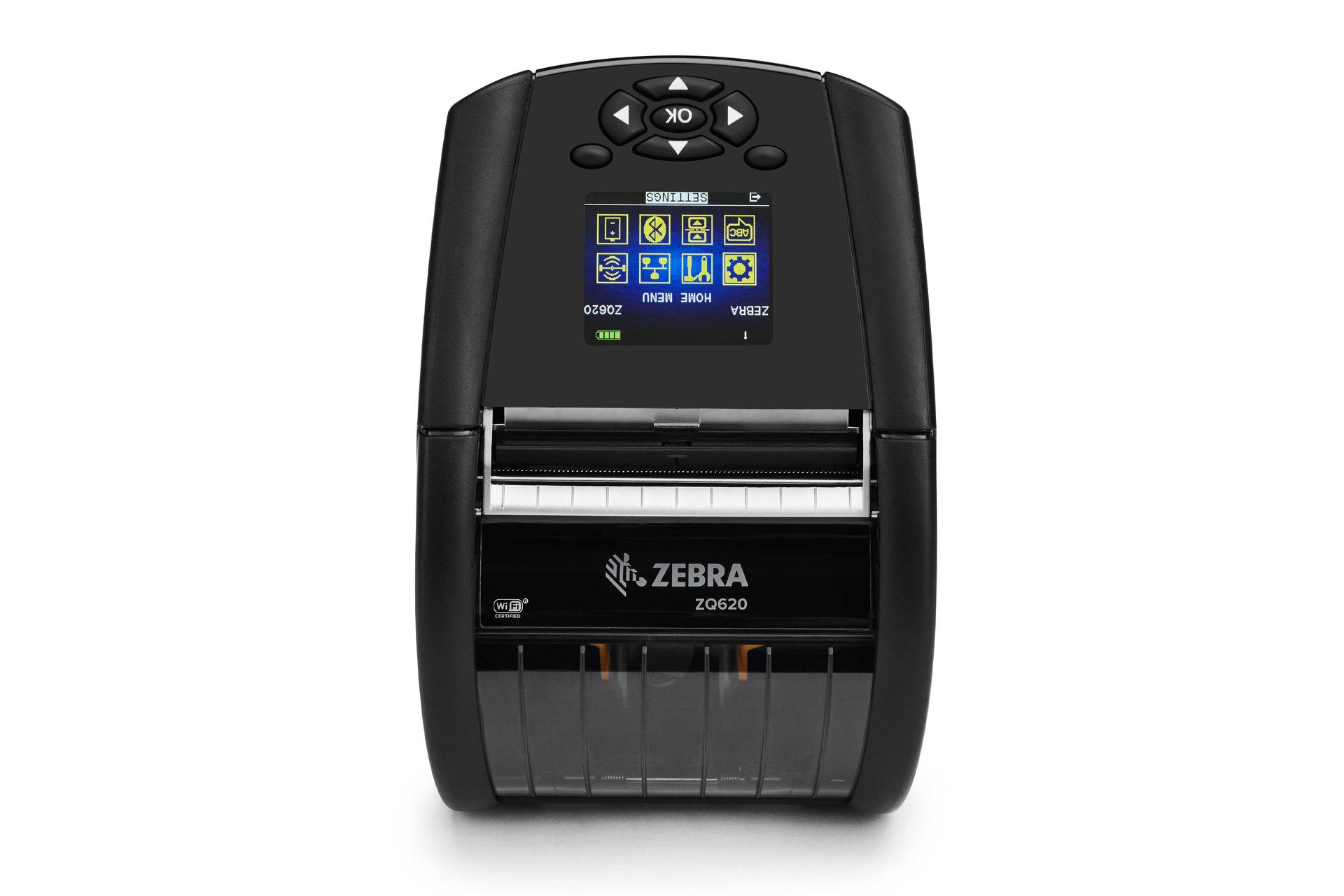

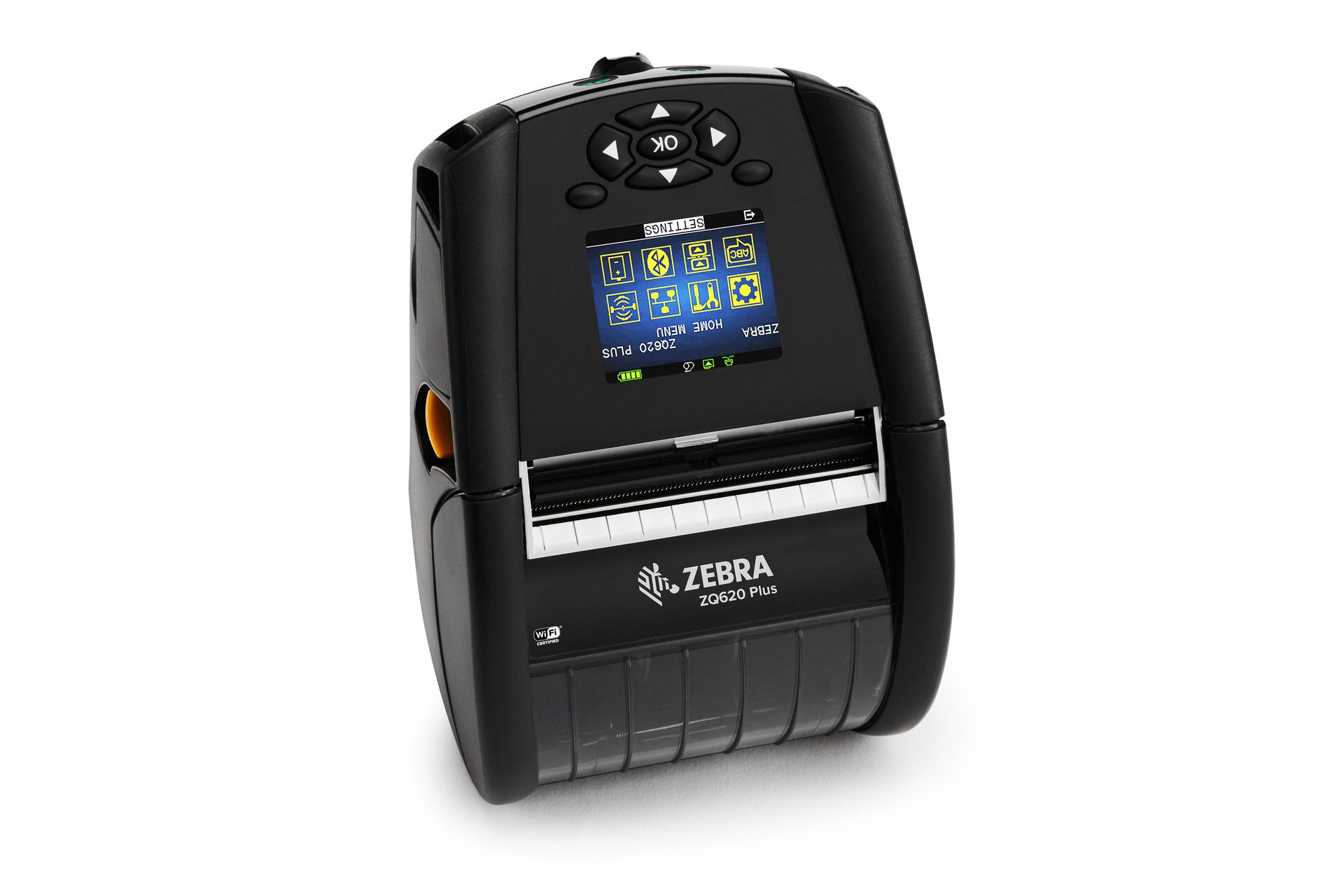

Zebra ZQ620 Plus 3" Premium Mobile Label & Receipt Printer, 203 dpi, Wi-Fi 6 + Bluetooth + Ethernet, Peeler
PRODUCT DESCRIPTION
Zebra ZQ62-HAXAA04-00 ZQ620 Plus 3" Premium Mobile Printer, 203 dpi, Wi-Fi 6 + Bluetooth + Ethernet
Premium 3" mobile printing
For retail shelf labels, mobile POS receipts, healthcare specimens and warehouse picking.
Wi-Fi 6, Bluetooth and Ethernet
802.11ax Wi-Fi, Bluetooth 5.3, NFC tap-to-pair, Ethernet and USB connectivity for any workflow.
Peel and present
Peel facility with label-present sensor issues one label at a time, ready to apply.
Shift-long battery
Removable 3,250 mAh PowerPrecision+ battery with real-time health reporting.
Zebra ZQ620 Plus Datasheet — Technical Specifications
General
| Product Name | Zebra ZQ620 Plus 3" Mobile Direct Thermal Printer |
| Part Number | ZQ62-HAXAA04-00 |
| Series | Zebra ZQ600 Plus Series |
| Dimensions | 173.7 mm L x 117.9 mm W x 76.9 mm H |
| Weight | 0.73 kg with battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Printing
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 72 mm (2.8") |
| Maximum Print Speed | 115 mm/s (4.5 ips) |
| Print Length | 12.7 mm to 813 mm |
| Memory | 256 MB RAM; 512 MB Flash |
| Programming | CPCL, EPL, ZPL, ZBI 2.0, XML; Link-OS |
Media
| Media Width | 25 mm to 79 mm |
| Maximum Roll Size | 66 mm O.D. on 19 mm or 34.9 mm core |
| Media Types | Die-cut labels and tags, linerless, receipt paper, black bar and gap |
Environmental & Power
| Battery | 3,250 mAh (23.4 Wh) removable PowerPrecision+ Li-Ion |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 10% to 90% non-condensing |
Compatibility & Connectivity
Interfaces on this Model
Wi-Fi 6 (802.11ax), Bluetooth 5.3, NFC, Fast Ethernet, USB and USB Host.
Host Devices
Zebra mobile computers, Android and iOS devices, and Windows PCs via Zebra drivers and SDKs.
Accessories
Ethernet and charging cradles, battery chargers, AC adapter, carry straps and cases.
Package Contents & Zebra ZQ600 Plus Ordering Information
In the Box
ZQ620 Plus printer with battery. Charger and media sold separately.
Zebra ZQ600 Plus Series at SourceIT
| Model | Key feature |
| ZQ62-HAXAA04-00 (this listing) | ZQ620 Plus 3", Wi-Fi 6 + BT + Ethernet, peeler |
| ZQ63-AAFAA04-00 | ZQ630 Plus 4", Bluetooth + NFC |
Datasheet & Downloads
| Zebra product page | ZQ620 Plus on zebra.com |
| Specification sheet | ZQ600 Plus Series spec sheet |
Frequently Asked Questions — Zebra ZQ620 Plus
Can it print receipts?
Yes. It prints receipts, labels and tags up to 72 mm wide.
What warranty do I get?
Zebra warrants the ZQ600 Plus Series for 1 year from shipment.
