Zebra ZQ521 4" Rugged Mobile Label & Receipt Printer, 203 dpi, Bluetooth + NFC
PRODUCT DESCRIPTION

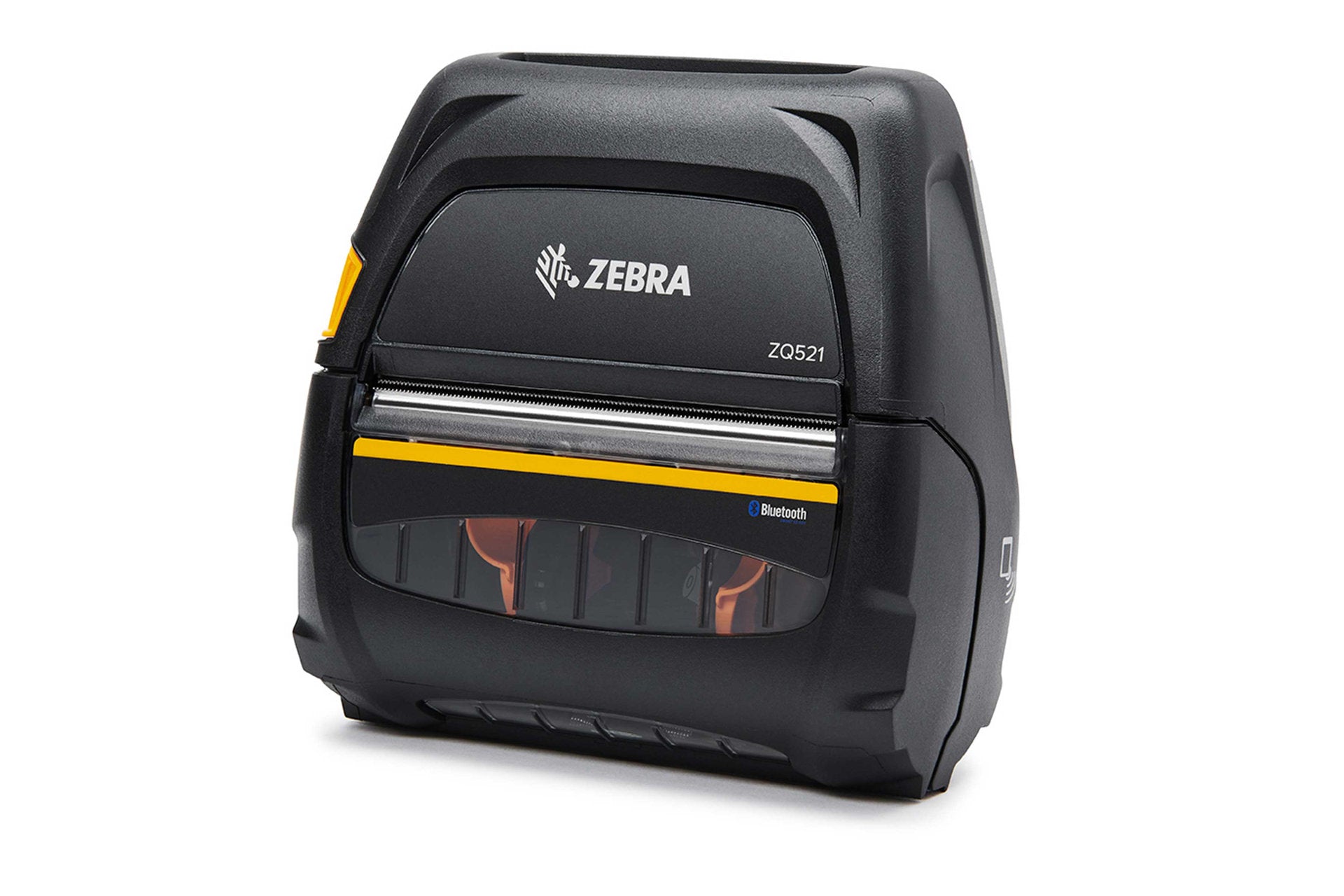

Zebra ZQ52-BBE000B-00 ZQ521 4" Rugged Mobile Printer, 203 dpi, Bluetooth + NFC
Premium rugged mobile printing
Built for route accounting, field service, delivery and warehouse picking, with a design that survives daily drops.

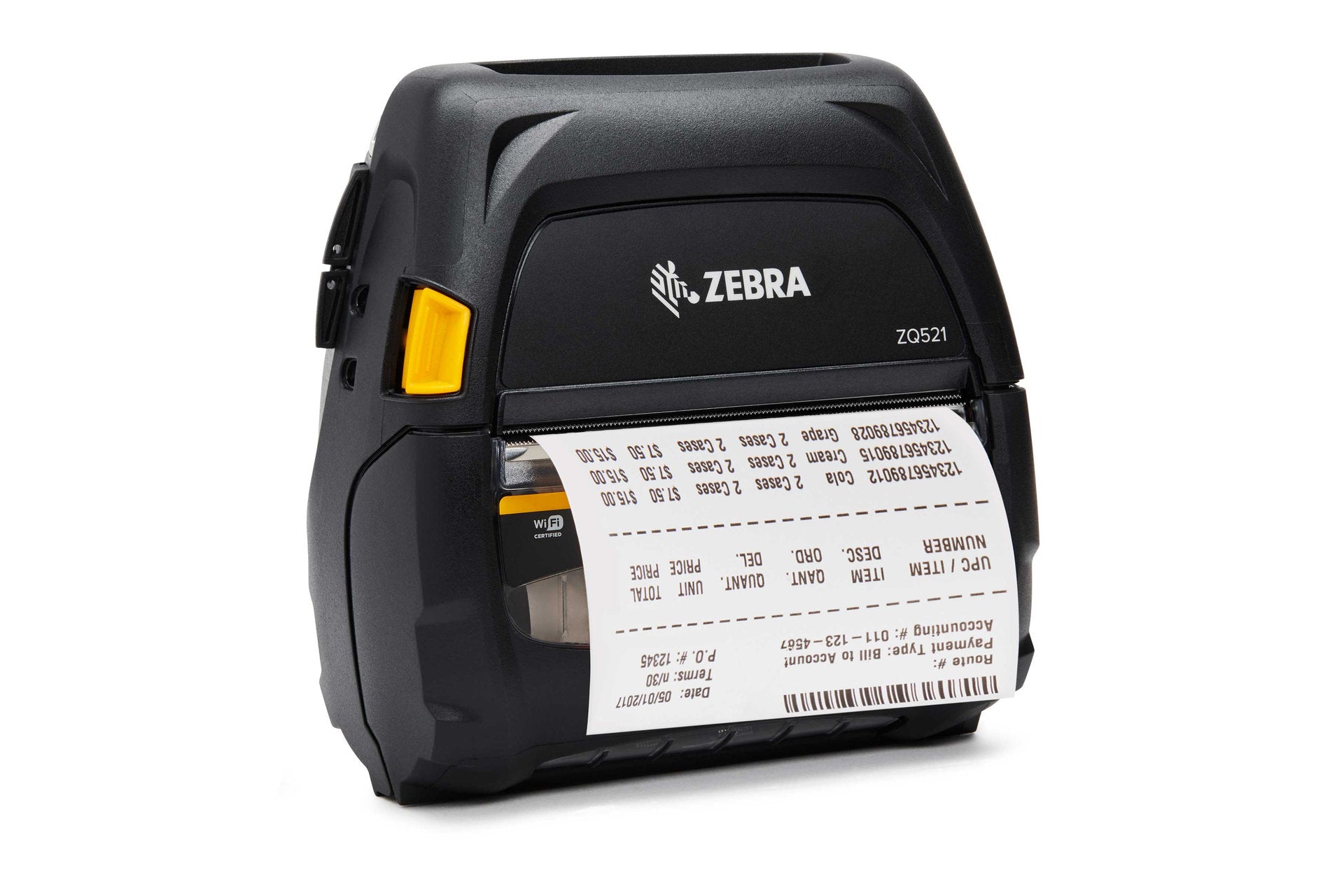

Labels and receipts on the go
Prints direct thermal labels, tags and receipts up to 104 mm wide at up to 127 mm per second.
Tap-to-pair Bluetooth
Bluetooth with NFC Print Touch for instant pairing with phones, tablets and Zebra mobile computers.
All-shift power
Removable 3250 mAh PowerPrecision+ battery, with an optional 6500 mAh extended battery.
Zebra ZQ521 Datasheet — Technical Specifications
General
| Product Name | Zebra ZQ521 4" Mobile Direct Thermal Printer |
| Part Number | ZQ52-BBE000B-00 |
| Series | Zebra ZQ500 Series |
| Dimensions | 158 mm L x 155 mm W x 67 mm H |
| Weight | 0.79 kg with standard battery |
| Manufacturer Warranty | 2 years printer; battery 1 year, printhead 6 months (Zebra) |
Printing
| Print Method | Direct thermal |
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 104 mm (4.09") |
| Maximum Print Speed | 127 mm/s (5 ips, draft mode) |
| Maximum Print Length | 991 mm |
| Memory | 256 MB RAM; 512 MB Flash |
| Programming | CPCL, ZPL, ZBI 2.x; Link-OS |
| Real Time Clock | Yes |

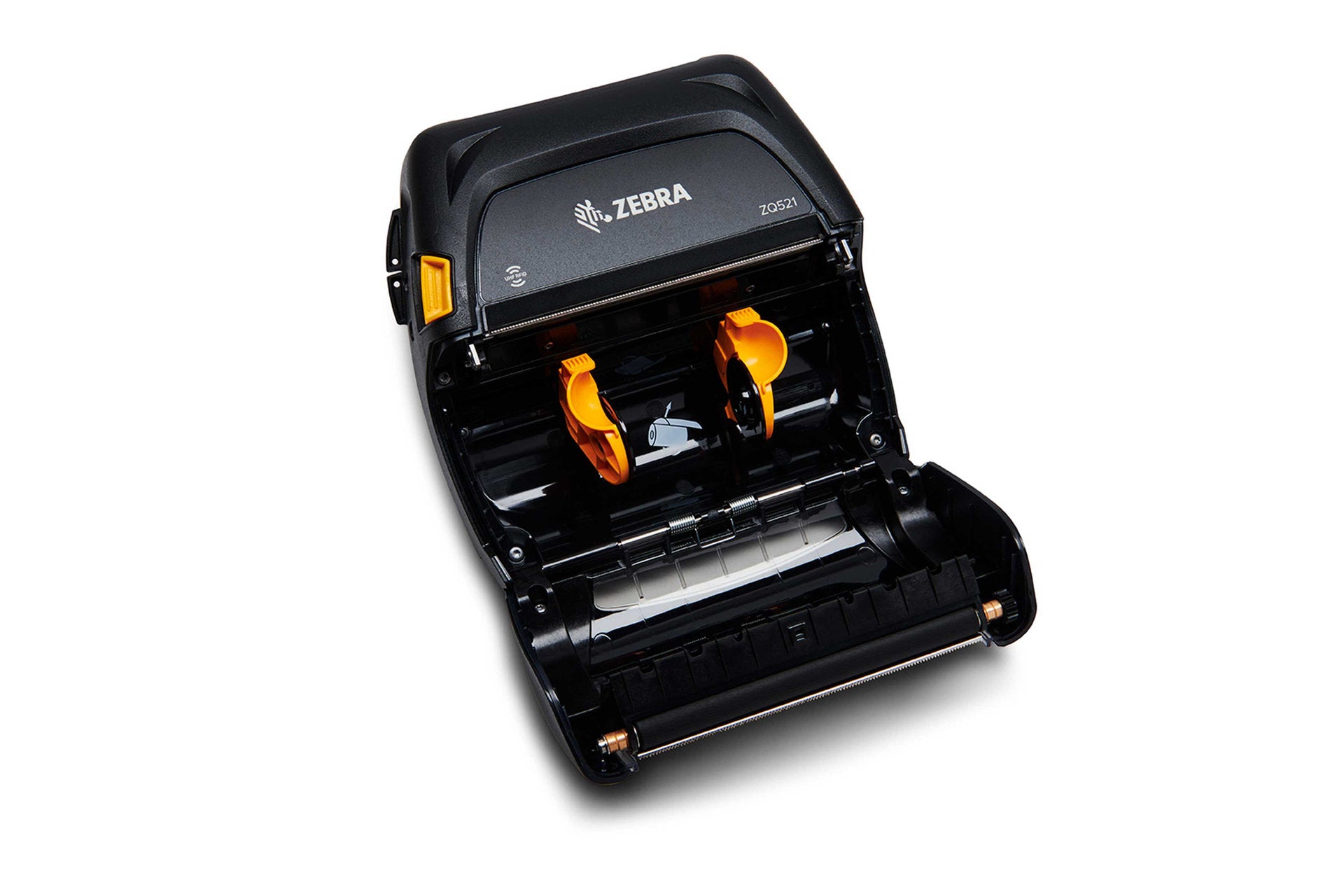

Media
| Media Width | 50.8 mm to 113 mm |
| Maximum Roll Diameter | 57 mm |
| Media Types | Receipt, gap/black-mark label, tag, linerless |
Environmental & Power
| Battery | 3250 mAh removable PowerPrecision+ Li-Ion (6500 mAh optional) |
| Operating Temperature | -20°C to 55°C |
| Operating Humidity | 10% to 90% non-condensing |
Compatibility & Connectivity
Wireless on this Model
Bluetooth with NFC Print Touch tap-to-pair. Choose the ZQ52-BBW000B-00 if you also need Wi-Fi.
Host Devices
Prints from Android and iOS apps, Zebra mobile computers and Windows PCs via the Zebra SDK, Link-OS and drivers.
Accessories
Vehicle cradle, 4-slot power station, battery chargers, 12–24 V DC supply and exoskeleton.
Package Contents & Zebra ZQ500 Series Ordering Information
In the Box
ZQ521 printer with standard battery and belt clip. Charger and media sold separately.
Zebra ZQ521 Models at SourceIT
| Model | Key feature |
| ZQ52-BBW000B-00 | ZQ521, Wi-Fi + Bluetooth + NFC |
| ZQ52-BBE000B-00 (this listing) | ZQ521, Bluetooth + NFC |
Datasheet & Downloads
| Zebra product page | ZQ521 on zebra.com |
| Specification sheet | ZQ511/ZQ521 spec sheet |
Frequently Asked Questions — Zebra ZQ521
Does it need ink or ribbon?
No. It is direct thermal and prints on heat-sensitive labels and receipt paper.
What warranty do I get?
Zebra warrants the ZQ521 for 2 years; batteries 1 year and printheads 6 months.
