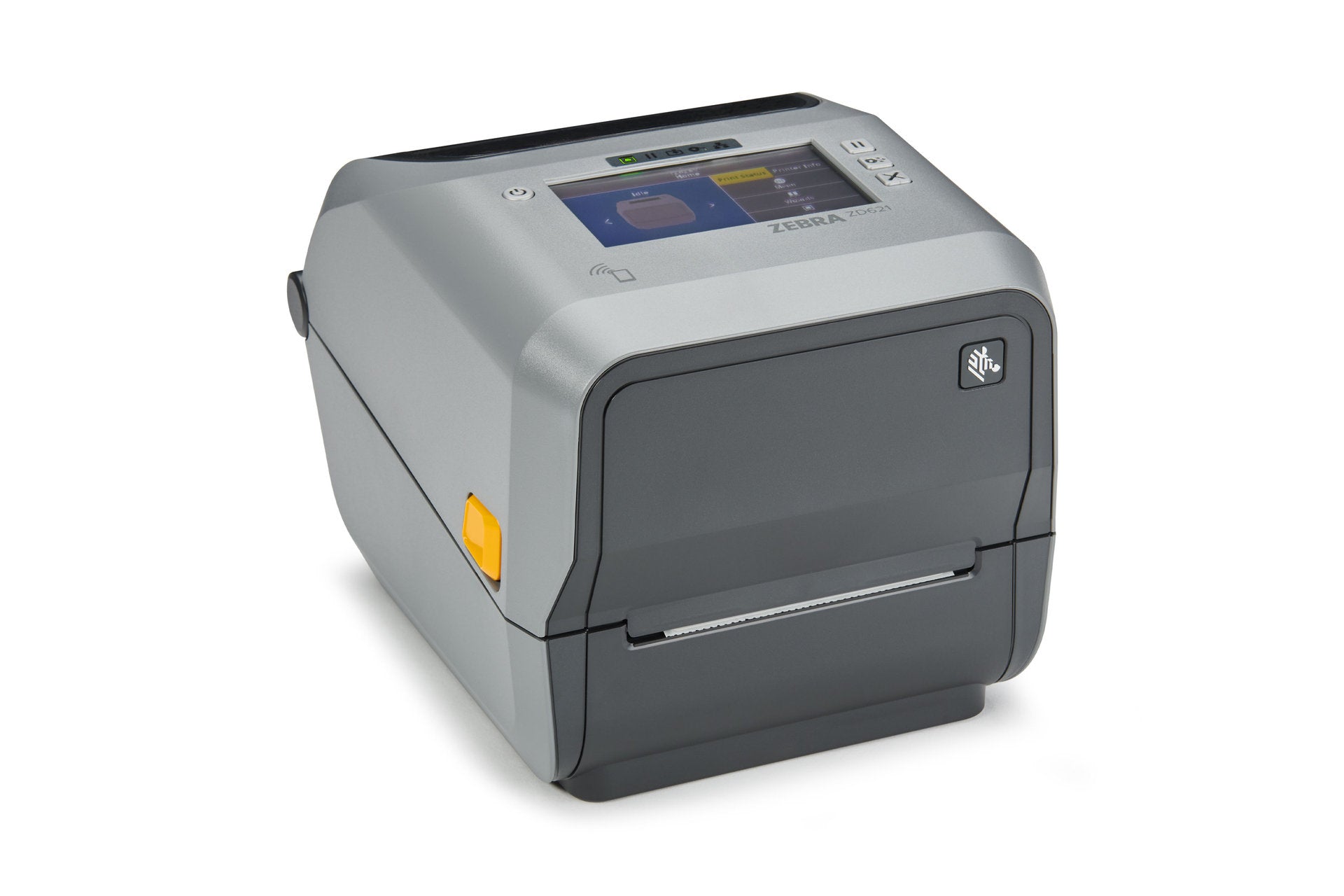

Zebra ZD621t 4" Premium Desktop Thermal Transfer Label Printer, 300 dpi, Ethernet/USB/Serial/BLE
PRODUCT DESCRIPTION
Zebra ZD6A043-30PF00EZ ZD621t 4" Premium Desktop Thermal Transfer Label Printer, 300 dpi
Zebra's premium desktop printer
Industrial-grade print quality and speed in a desktop footprint, with 300 dpi resolution for fine text and small codes.
Fully connected
Ethernet, USB, USB Host, serial and Bluetooth Low Energy built in, with field-installable Wi-Fi 6.
Up to 152 mm per second at 300 dpi
Takes 300 m ribbons for fewer changes in busy environments.
Link-OS manageability
Remote configuration, monitoring and firmware updates with Zebra DNA tools.
Zebra ZD621t Datasheet — Technical Specifications
General
| Product Name | Zebra ZD621t 4" Desktop Thermal Transfer Printer, 300 dpi |
| Part Number | ZD6A043-30PF00EZ |
| Series | Zebra ZD600 Series |
| Print Method | Thermal transfer and direct thermal |
| Dimensions | 267 mm L x 202 mm W x 192 mm H |
| Weight | 2.5 kg |
| Power Cords | APAC bundle (EU, UK, AUS, JP) |
| Manufacturer Warranty | 2 years (Zebra standard; varies by region) |
Printing
| Resolution | 300 dpi (12 dots/mm) |
| Maximum Print Width | 108 mm (4.27") |
| Maximum Print Speed | 152 mm/s (6 ips) at 300 dpi |
| Label Length | 6.35 mm to 991 mm |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Programming Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct; Link-OS |
Media & Ribbon
| Media Width | 15 mm to 118 mm |
| Maximum Roll Size | 127 mm O.D. |
| Media Thickness | 0.08 mm to 0.19 mm |
| Ribbon | 300 m or 74 m; 33.8 to 109.2 mm wide |
Environmental & Power
| Operating Temperature | 4.4°C to 41°C |
| Electrical | Auto-detectable 100–240 VAC, 50–60 Hz; ENERGY STAR certified |
Compatibility & Connectivity
Interfaces on this Model
10/100 Ethernet, USB 2.0, USB Host, RS-232 serial and Bluetooth Low Energy 5.
Field Upgrades
Wi-Fi 6 + Bluetooth 5.3 module, dispenser/peeler, cutter and battery base.
Software
ZebraDesigner, Windows drivers and Zebra DNA tools.
Package Contents & Zebra ZD600 Series Ordering Information
In the Box
Printer, empty ribbon take-up cores (1 in. and 0.5 in.), two 300 m ribbon core adapters, AC power supply, power cords, USB cable, Quick Start Guide and Regulatory Guide.
Zebra ZD600 Series at SourceIT
| Model | Key feature |
| ZD6A043-30PF00EZ (this listing) | ZD621t, 300 dpi |
| ZD6A143-30PFR2EZ | ZD621R, 300 dpi, UHF RFID, colour touch LCD |
Datasheet & Downloads
| Zebra product page | ZD621 on zebra.com |
| Specification sheet | ZD600 Series spec sheet |
Frequently Asked Questions — Zebra ZD621t
ZD421 or ZD621?
The ZD621 is faster (up to 203 mm/s at 203 dpi), has more built-in connectivity and offers a colour touch display option.
What warranty do I get?
Zebra warrants the ZD600 Series for a minimum of 2 years (varies by region).
