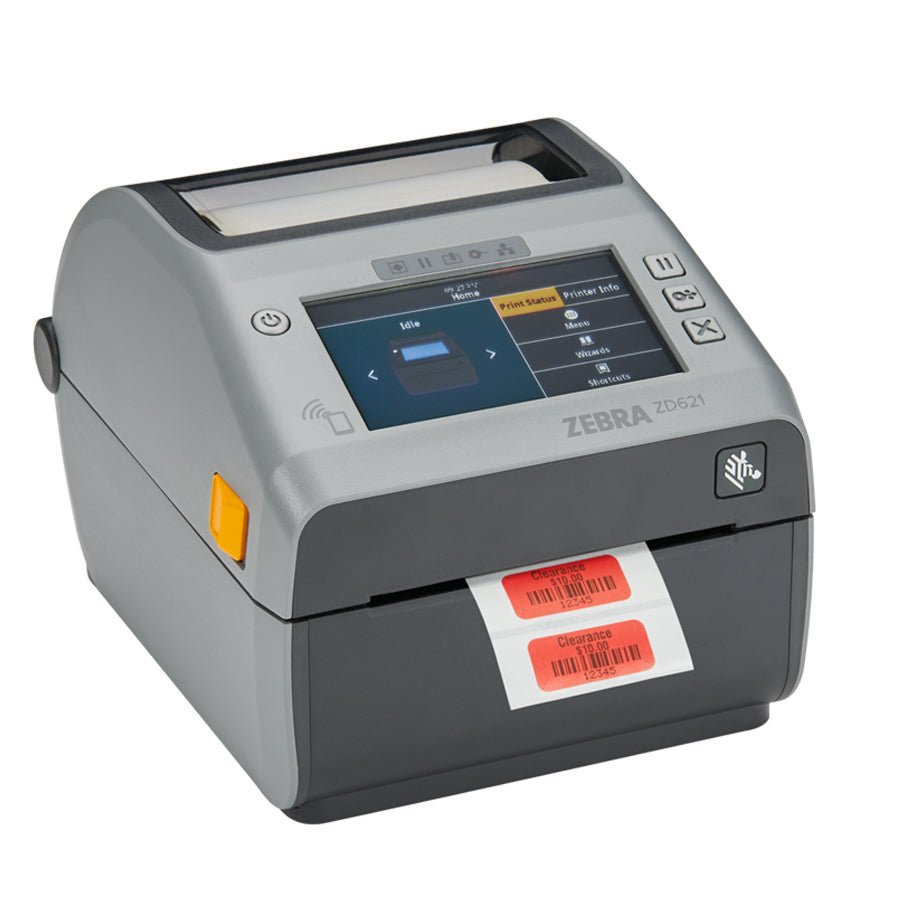

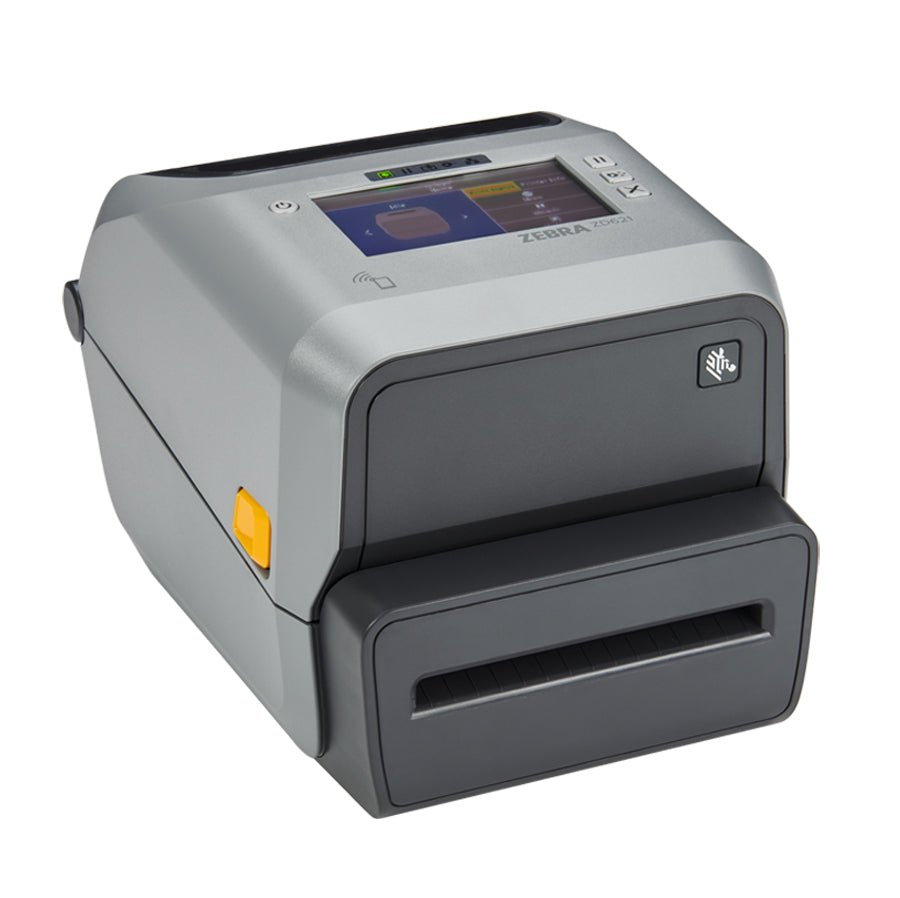

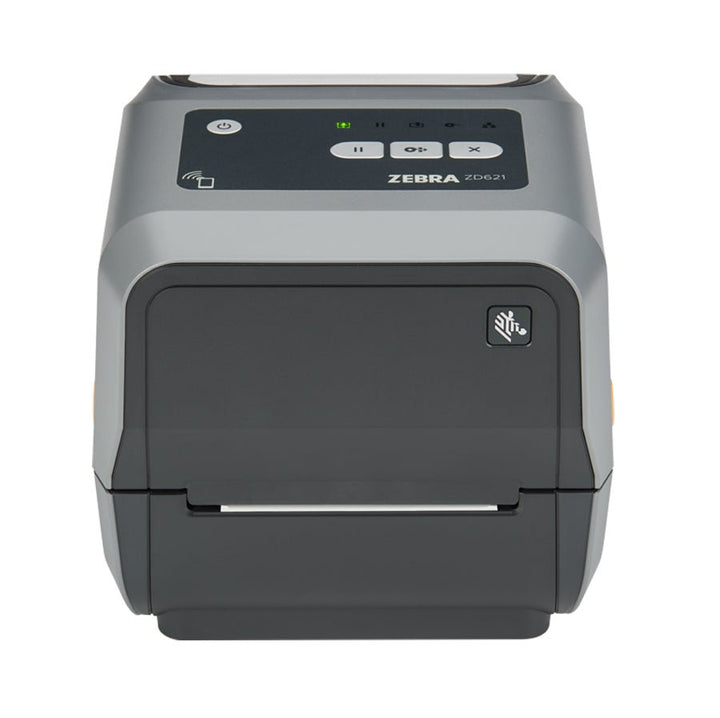

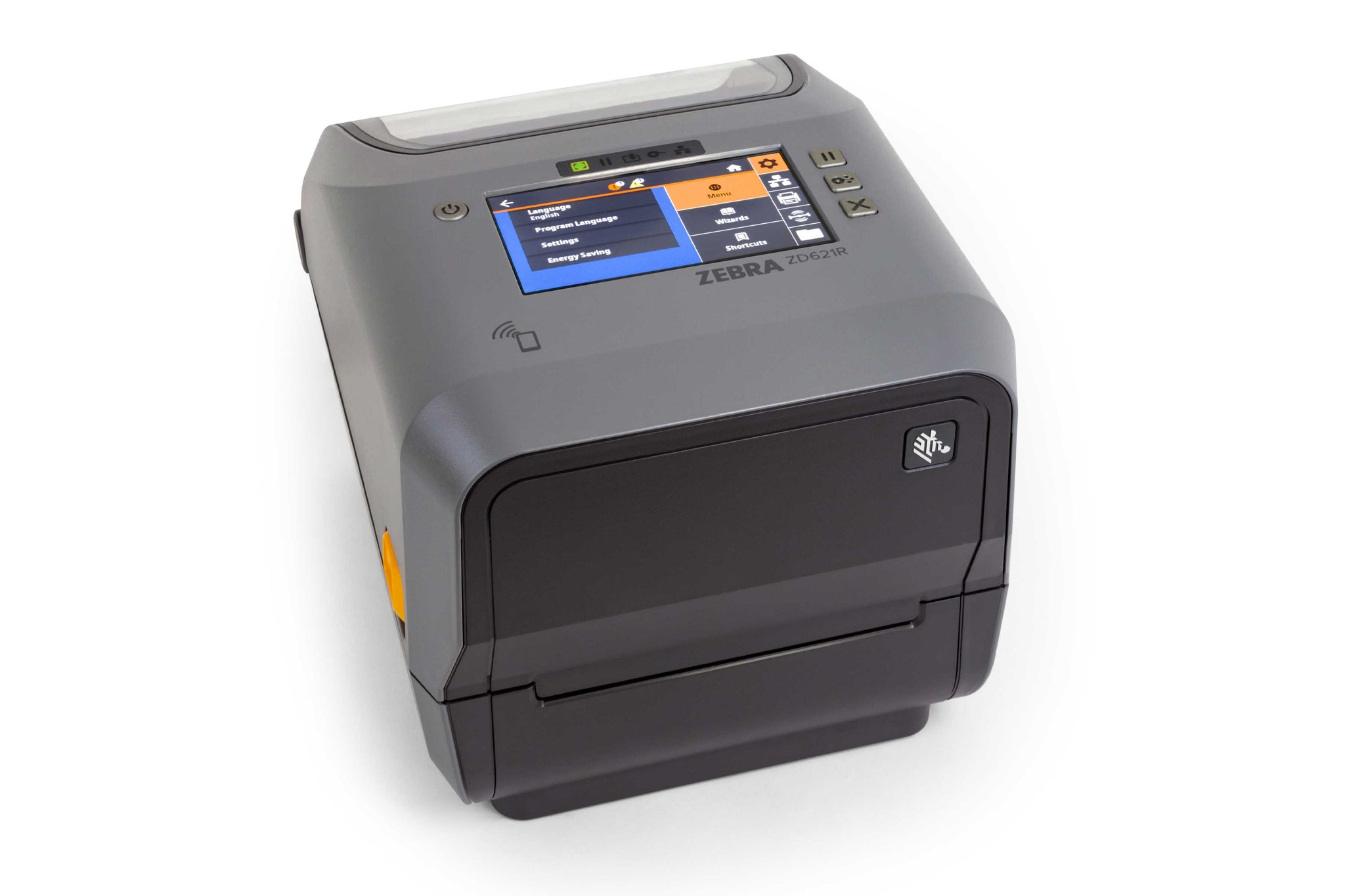

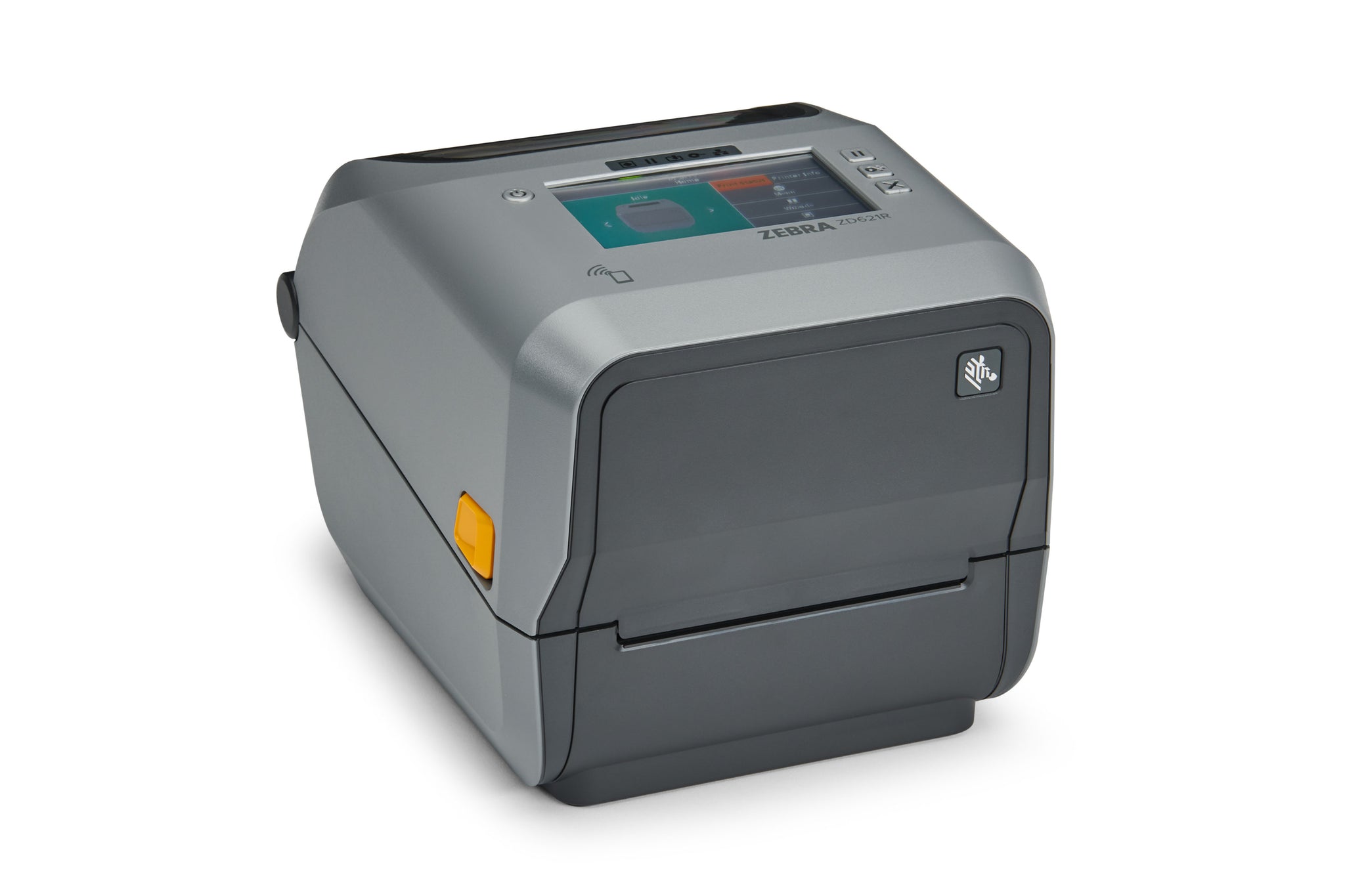

Zebra ZD621R 4" Desktop RFID Thermal Transfer Label Printer, 300 dpi, Ethernet/USB/Serial
PRODUCT DESCRIPTION
Zebra ZD6A143-30PFR2EZ ZD621R 4" Desktop RFID Thermal Transfer Label Printer, 300 dpi
Desktop UHF RFID encoding
Built-in Zebra RE40 reader/encoder supports UHF EPC Gen 2 V2.1 and RAIN RFID, with Adaptive Encoding Technology that simplifies setup.
Sharp 300 dpi output
Crisp small text and 2D codes at up to 152 mm per second.
4.3" colour touch display
Intuitive menus, wizards and alerts make setup and troubleshooting quick.
Wired connectivity built in
Ethernet, USB, USB Host and serial as standard, with field-installable Wi-Fi 6.
Zebra ZD621R Datasheet — Technical Specifications
General
| Product Name | Zebra ZD621R 4" Desktop RFID Thermal Transfer Printer |
| Part Number | ZD6A143-30PFR2EZ |
| Series | Zebra ZD600 RFID Series |
| Print Method | Thermal transfer and direct thermal |
| Dimensions | 267 mm L x 202 mm W x 192 mm H |
| Weight | 2.5 kg |
| Power Cords | EU, UK, AUS, JP |
| Manufacturer Warranty | 2 years (Zebra standard; varies by region) |
Printing
| Resolution | 300 dpi (12 dots/mm) |
| Maximum Print Width | 108 mm (4.27") |
| Maximum Print Speed | 152 mm/s (6 ips) at 300 dpi |
| Label Length | 6.35 mm to 991 mm |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Display | 4.3" full-colour touch LCD |
| Real Time Clock | Yes |
| Firmware | ZPL II, EPL 2, XML, ZBI, PDF Direct; Link-OS |
RFID
| Encoder | Zebra RE40 RFID reader/encoder |
| Supported Tags | UHF EPC Gen 2 V2.1, RAIN RFID |
| Encoding | Adaptive Encoding Technology |
Media & Ribbon
| Media Width | 15 mm to 118 mm |
| Maximum Roll Size | 127 mm O.D. |
| Media Thickness | 0.06 mm to 0.19 mm |
| Ribbon | 300 m or 74 m; 33 to 109.2 mm wide |
Environmental & Power
| Operating Temperature | 4.4°C to 41°C |
| Operating Humidity | 10% to 90% non-condensing |
| Electrical | Auto-detectable 100–240 VAC, 50–60 Hz; ENERGY STAR certified |
Compatibility & Connectivity
Interfaces on this Model
10/100 Ethernet, USB 2.0, USB Host and RS-232 serial.
Field Upgrades
Dual-radio Wi-Fi 6 and Bluetooth 5.3, dispenser/peeler, cutter and battery options.
Software
ZebraDesigner for label and RFID encoding design; Windows drivers and Zebra DNA management tools.
Package Contents & Zebra ZD600 Series Ordering Information
In the Box
Printer, empty ribbon take-up cores (1 in. and 0.5 in.), AC power supply, power cords, USB cable, Quick Start Guide and Regulatory Guide.
Zebra ZD600 Series at SourceIT
| Model | Key feature |
| ZD6A143-30PFR2EZ (this listing) | ZD621R, 300 dpi, UHF RFID, colour touch LCD |
| ZD6A043-30PF00EZ | ZD621t, 300 dpi, no RFID |
Datasheet & Downloads
| Zebra product page | ZD621R on zebra.com |
| Specification sheet | ZD600 RFID Series spec sheet |
Frequently Asked Questions — Zebra ZD621R
What can I use the ZD621R for?
Encoding and printing RFID labels for retail tagging, asset tracking, specimen and medical equipment tracking, and food-safety recall management.
Does it print normal labels?
Yes. It prints standard thermal transfer or direct thermal labels as well as RFID labels.
Can I add Wi-Fi?
Yes. A Wi-Fi 6 / Bluetooth 5.3 module is field installable.
