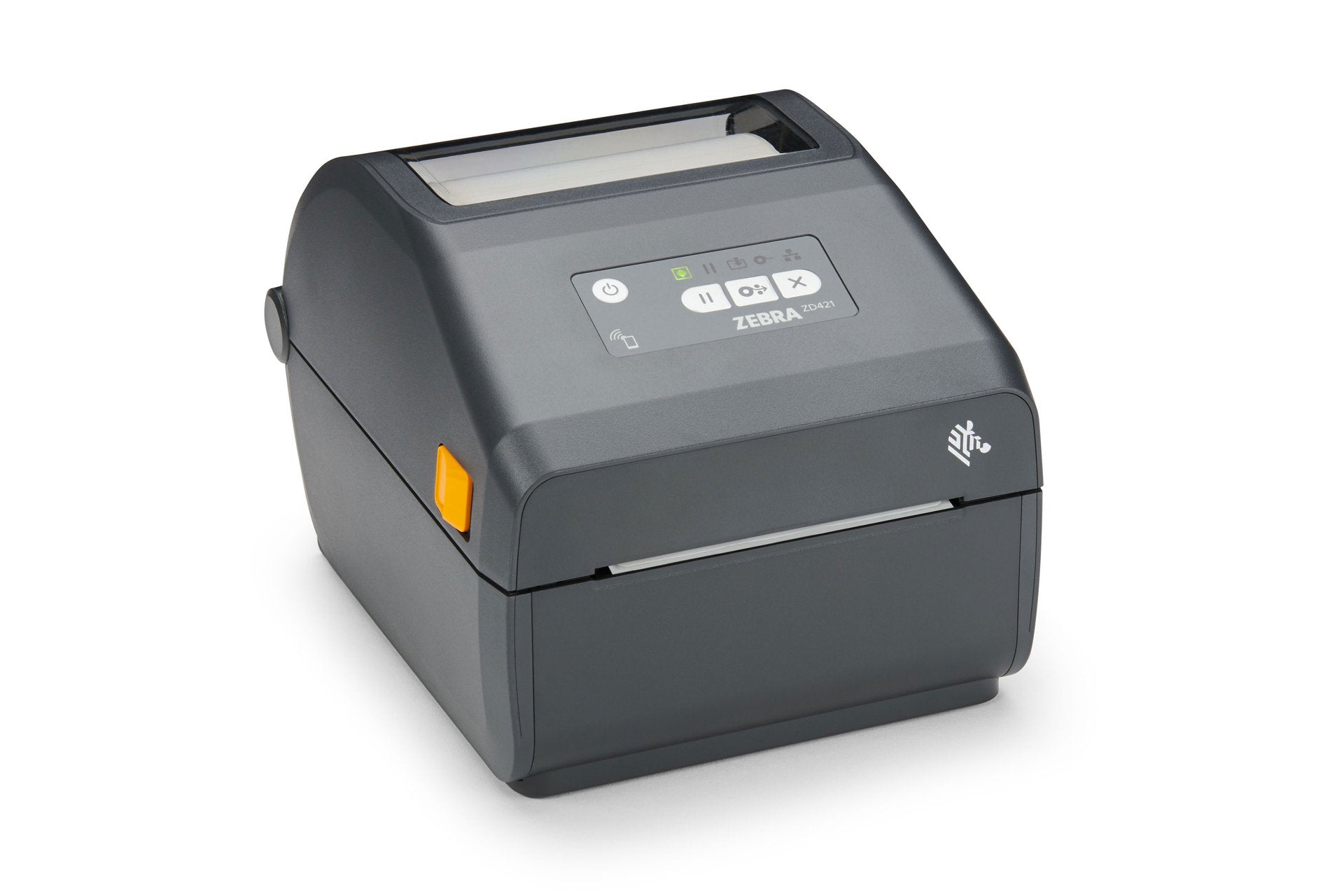

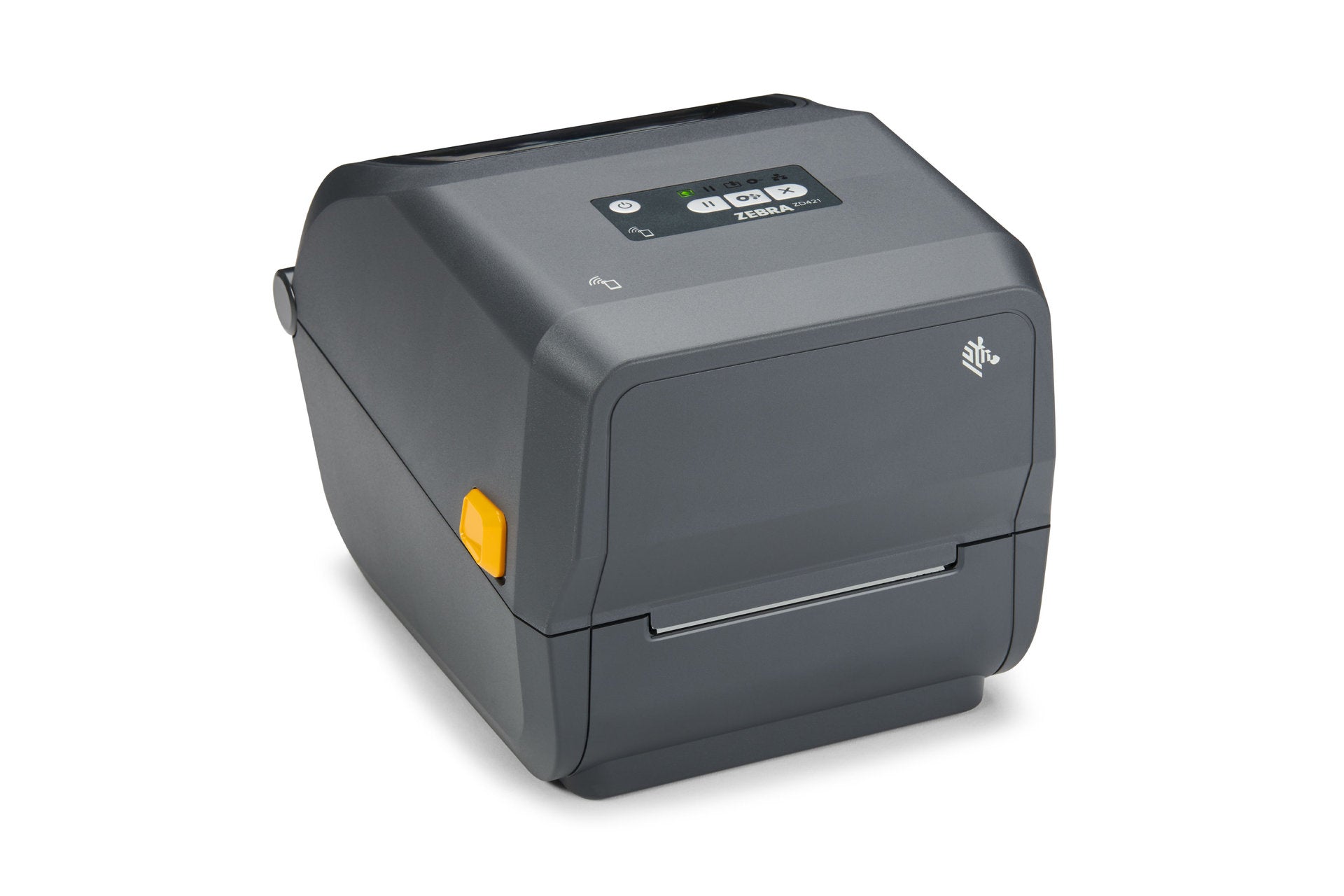

Zebra ZD421c 4" Desktop Ribbon Cartridge Thermal Transfer Label Printer, 203 dpi, USB/Bluetooth
PRODUCT DESCRIPTION
Zebra ZD4A042-C0PM00EZ ZD421c 4" Desktop Ribbon Cartridge Thermal Transfer Label Printer, 203 dpi
Ribbon changes in seconds
Drop-in ribbon cartridge removes threading errors, so anyone can change ribbon without training.
Smart cartridge
The printer recognises the cartridge and reports ribbon remaining, so you know when to reorder.
Thermal transfer quality
Durable, smudge-resistant labels for products, assets and compliance at up to 152 mm per second.
Wireless ready
USB, USB Host and Bluetooth built in, with field-installable Ethernet and Wi-Fi.
Zebra ZD421c Datasheet — Technical Specifications
General
| Product Name | Zebra ZD421c 4" Ribbon Cartridge Desktop Printer |
| Part Number | ZD4A042-C0PM00EZ |
| Series | Zebra ZD400 Series |
| Print Method | Thermal transfer (ribbon cartridge) and direct thermal |
| Power Cords | EU, UK, AUS, JP |
| Weight | 2.3 kg |
| Manufacturer Warranty | 2 years (Zebra standard; varies by region) |
Printing
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 104 mm (4.09") |
| Maximum Print Speed | 152 mm/s (6 ips) |
| Label Length | 6.35 mm to 991 mm |
| Memory | 512 MB Flash; 256 MB SDRAM |
| Real Time Clock | Yes |
| Programming Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct; Link-OS |
Media & Ribbon
| Media Width | 15 mm to 118 mm |
| Maximum Roll Size | 127 mm O.D. |
| Ribbon | Zebra ribbon cartridge, 74 m, 109.2 mm wide |
Environmental & Power
| Operating Temperature | 4.4°C to 41°C |
| Electrical | Auto-detectable 100–240 VAC, 50–60 Hz; ENERGY STAR certified |
Compatibility & Connectivity
Interfaces on this Model
USB 2.0, USB Host and Bluetooth.
Ribbon Supplies
Uses Zebra ZD421c ribbon cartridges only (wax, wax/resin and resin options); standard ribbon rolls do not fit.
Software
ZebraDesigner Essentials, Windows drivers and Zebra DNA tools.
Package Contents & Zebra ZD421 Ordering Information
In the Box
Printer, AC power supply, power cords, USB cable, Quick Start Guide and Regulatory Guide. Ribbon cartridges and labels sold separately.
Zebra ZD421 Models at SourceIT
| Model | Key feature |
| ZD4A042-30PE00EZ | ZD421t ribbon roll, 203 dpi |
| ZD4A042-30PX02EZ | ZD421t, 203 dpi, Wi-Fi |
| ZD4A043-30PE00EZ | ZD421t, 300 dpi, Ethernet |
| ZD4A042-C0PM00EZ (this listing) | ZD421c ribbon cartridge, 203 dpi |
Datasheet & Downloads
| Zebra product page | ZD421 on zebra.com |
| Specification sheet | ZD400 Series spec sheet |
Frequently Asked Questions — Zebra ZD421c
Can I use standard ribbon rolls?
No. The ZD421c uses Zebra ribbon cartridges. Choose the ZD421t if you prefer ribbon rolls.
Is it good for non-technical staff?
Yes. The cartridge is the simplest way to load ribbon on a Zebra desktop printer.
What warranty do I get?
Zebra warrants the ZD400 Series for a minimum of 2 years (varies by region).
