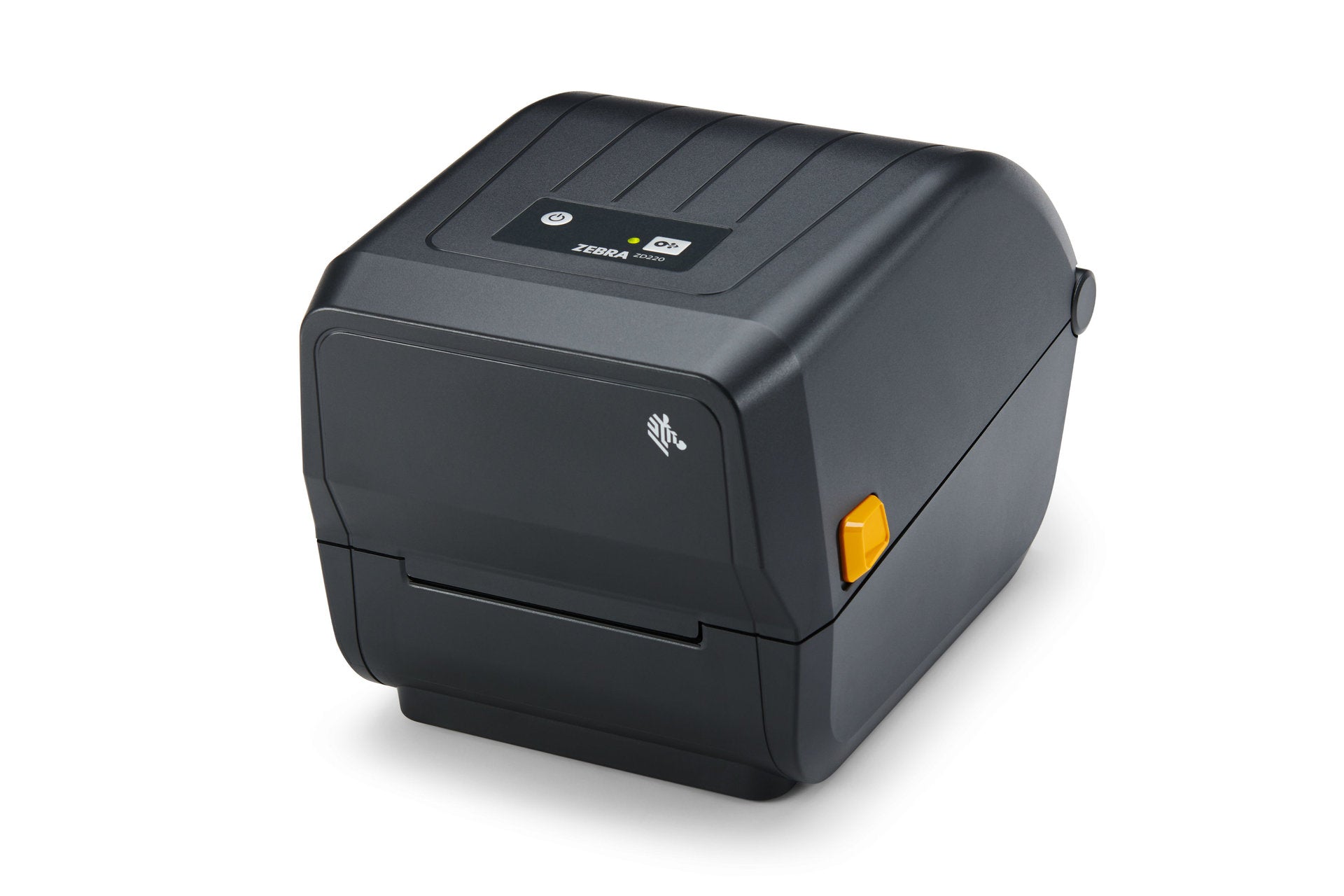

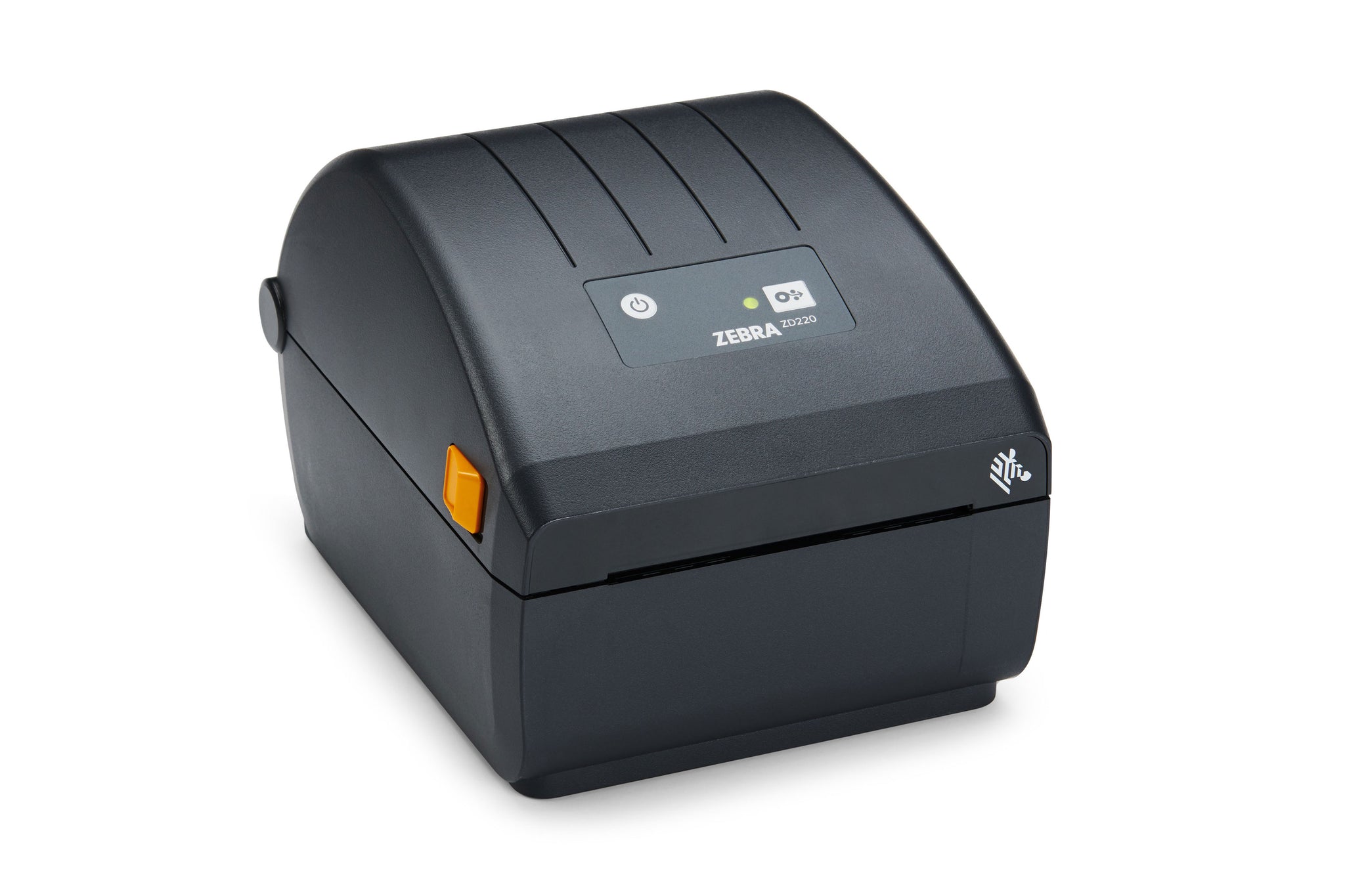

Zebra ZD220t 4" Desktop Thermal Transfer Label Printer, 203 dpi, USB, with Peeler
PRODUCT DESCRIPTION
Zebra ZD22042-T0PG00EZ ZD220t 4" Desktop Thermal Transfer Label Printer, 203 dpi, with Peeler
Reliable value printing
Dual-wall frame and quality Zebra construction at an entry-level price for low to medium volume labelling.
Simple operation
Single status LED, single feed/pause button and OpenACCESS media loading keep training to a minimum.
Peel and present
Factory-installed peeler removes the liner so each label is ready to apply.
ZPL and EPL support
Drop-in replacement for older Zebra desktop printers running ZPL or EPL formats.
Zebra ZD220 Datasheet — Technical Specifications
General
| Product Name | Zebra ZD220t 4" Desktop Thermal Transfer Printer with Peeler |
| Part Number | ZD22042-T0PG00EZ |
| Series | Zebra ZD200 Series |
| Print Method | Thermal transfer and direct thermal |
| Dimensions | 267 mm L x 197 mm W x 191 mm H |
| Weight | 1.7 kg |
| Manufacturer Warranty | 2 years (Zebra standard; varies by region) |
Printing
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 104 mm (4.09") |
| Maximum Print Speed | 102 mm/s (4 ips) |
| Maximum Label Length | 991 mm |
| Memory | 128 MB Flash; 128 MB SDRAM |
| Media Sensors | Movable black mark sensor; fixed off-centre gap sensor |
| Firmware | ZPL II, EPL 2, XML |
| Real Time Clock | None |
Media & Ribbon
| Media Width | 25.4 mm to 112 mm |
| Media Roll Size | 127 mm O.D.; 12.7 and 25.4 mm cores standard |
| Media Thickness | 0.08 mm to 0.19 mm |
| Media Types | Roll or fan-fold, die-cut or continuous, black mark, tag, receipt paper, wristbands |
| Ribbon | 74 m, 1:1 ribbon to media, 33.8 to 109.2 mm wide, 12.7 mm core |
Environmental & Power
| Operating Temperature | 4.4°C to 41°C |
| Operating Humidity | 10% to 90% non-condensing |
| Electrical | Auto-detectable 100–240 VAC, 50–60 Hz; ENERGY STAR qualified |
Compatibility & Connectivity
Interface
USB 2.0 connection to a Windows PC or POS. Network and wireless are not available on the ZD220; choose the ZD421 if you need them.
Software
Zebra Setup Utilities for configuration and ZebraDesigner Essentials (free) for label design; Windows drivers available from Zebra.
Package Contents & Zebra Desktop Printer Ordering Information
In the Box
ZD220t printer with peeler, power supply and cords, USB cable and quick start documentation. Labels and ribbon sold separately.
Zebra 4" Desktop Printers at SourceIT
| Model | Key feature |
| ZD22042-T0PG00EZ (this listing) | ZD220t value printer, USB, peeler |
| ZD4A042-30PE00EZ | ZD421t, faster 152 mm/s, USB + Bluetooth |
| ZD6A043-30PF00EZ | ZD621t, 300 dpi, Ethernet/serial/BLE |
Datasheet & Downloads
| Zebra product page | ZD220 on zebra.com |
| Specification sheet | ZD220 spec sheet |
Frequently Asked Questions — Zebra ZD220
Does the ZD220t need a ribbon?
Only for thermal transfer labels. It also prints direct thermal labels without a ribbon.
Does it support 300 m ribbons?
No. It takes 74 m ribbons. For 300 m ribbons choose the ZD421t.
Can it connect to a network?
No. The ZD220 is USB only.
What warranty do I get?
Zebra warrants the ZD200 Series for a minimum of 2 years from shipment (varies by region). Supplied by SourceIT with a GST invoice.
