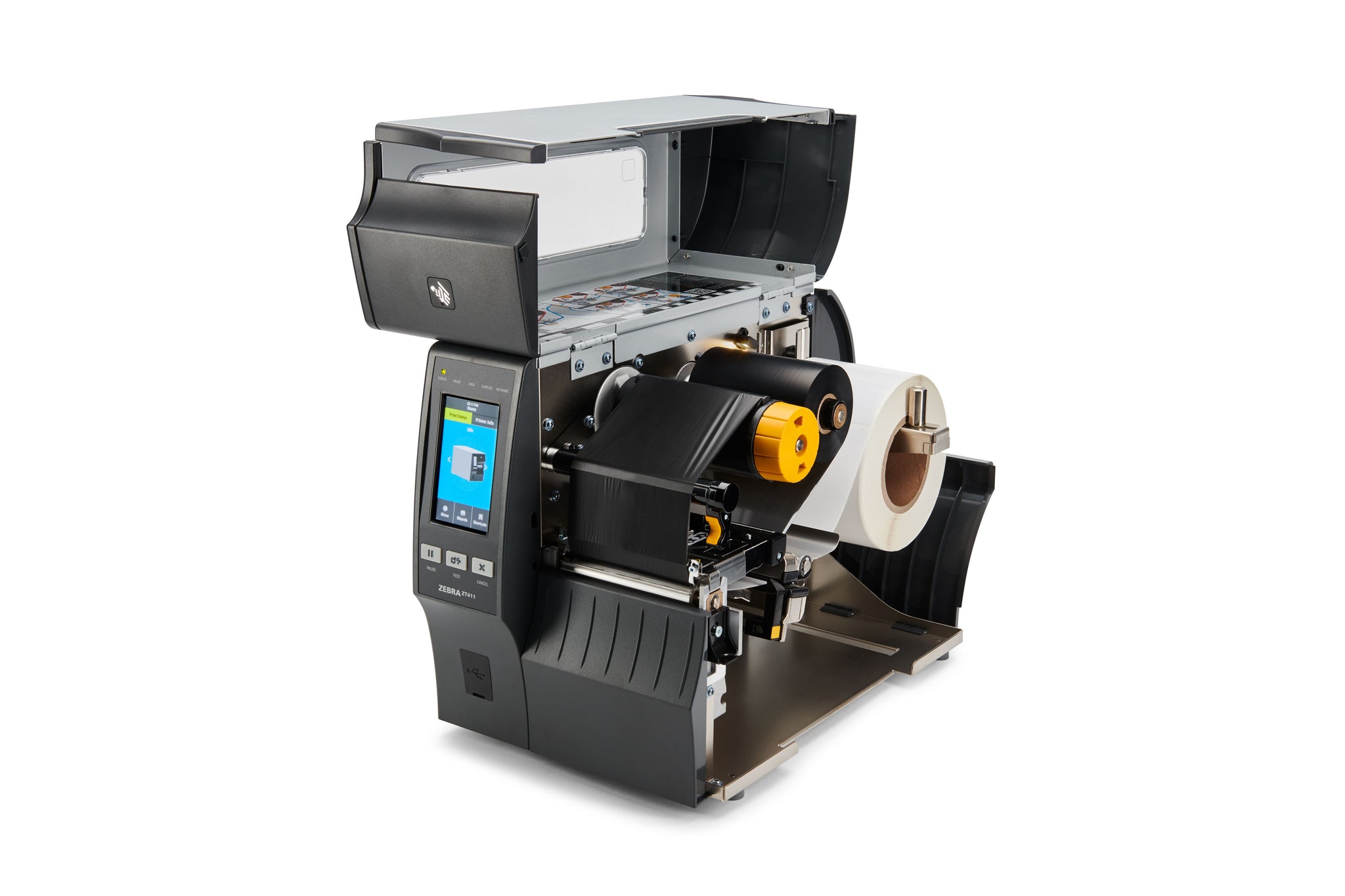

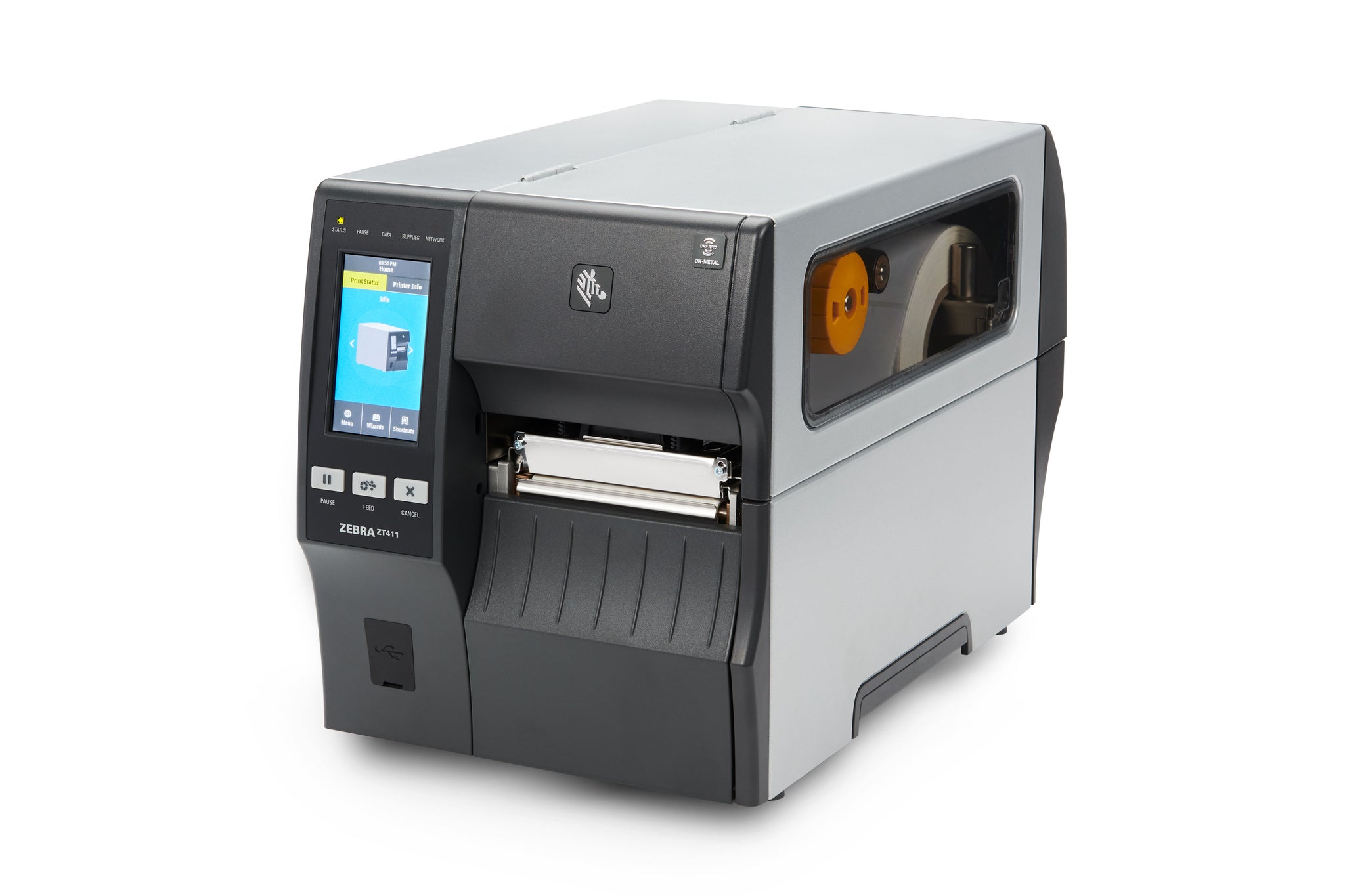

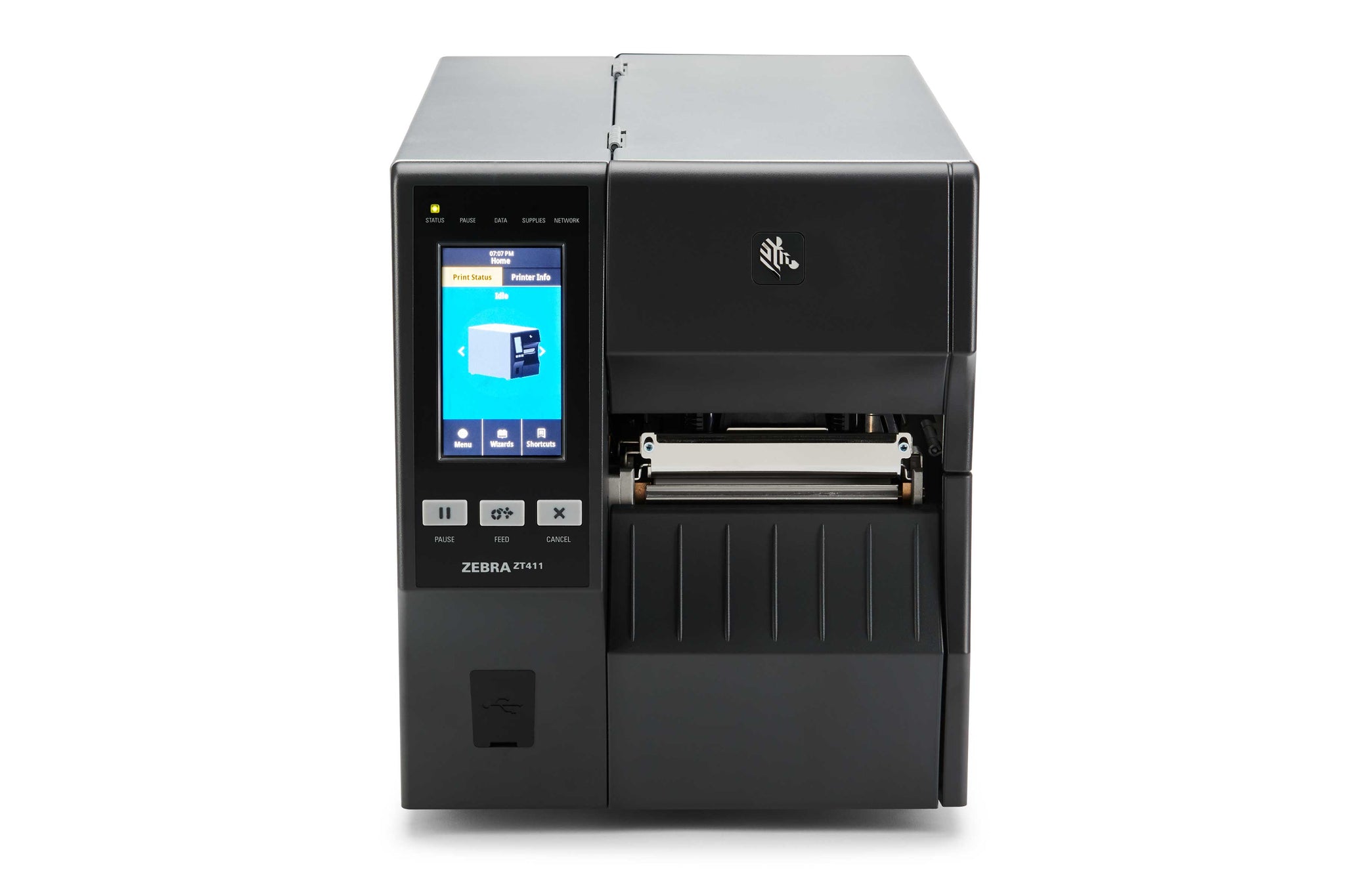

Zebra ZT411 4" Industrial RFID Label Printer with On-Metal RFID, 203 dpi, Ethernet/USB/Serial/Bluetooth
PRODUCT DESCRIPTION
Zebra ZT41142-T5P00C0Z ZT411 4" Industrial Printer with On-Metal UHF RFID, 203 dpi
Print and encode RFID in one pass
Integrated UHF RFID encoder supports EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID tags, with Adaptive Encoding Technology picking the best settings automatically.
On-metal RFID ready
Configured for on-metal RFID tags used to track IT assets, tools, containers and equipment.
Industrial speed and durability
All-metal build, 356 mm/s printing and a 4.3" colour touch display.
Fully connected
Fast Ethernet, USB, USB Host, serial and Bluetooth 4.1 built in.
Zebra ZT411 RFID Datasheet — Technical Specifications
General
| Product Name | Zebra ZT411 4" Industrial Printer with On-Metal RFID |
| Part Number | ZT41142-T5P00C0Z |
| Series | Zebra ZT400 Series RFID |
| Print Method | Thermal transfer and direct thermal |
| Power Cords | UK, AUS, JP, EU |
Printing
| Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | 104 mm (4.09") |
| Maximum Print Speed | 356 mm/s (14 ips) |
| Maximum Print Length | 3,988 mm at 203 dpi |
| Memory | 256 MB SDRAM; 512 MB Flash |
| Display | 4.3" colour touch display |
| Programming | ZPL, ZPL II, EPL emulation, XML; Link-OS |
RFID
| Supported Tags | UHF EPC Gen 2 V2.1, ISO/IEC 18000-63, RAIN RFID |
| Encoding | Adaptive Encoding Technology selects optimum settings |
| On-Metal | On-metal RFID configuration |
Media & Ribbon
| Media Width | 25.4 to 114 mm (tear/cutter) |
| Maximum Roll Size | 203 mm O.D. on 76 mm core |
| Media Thickness | 0.058 to 0.25 mm |
| Ribbon Length / Width | 450 m / 51 to 110 mm |
Environmental & Power
| Operating Temperature | Thermal transfer 5°C to 40°C; direct thermal 0°C to 40°C |
| Operating Humidity | 20% to 85% non-condensing |
| Electrical | Auto-detectable 100–240 VAC, 50–60 Hz; ENERGY STAR qualified |
Compatibility & Connectivity
Interfaces on this Model
Fast Ethernet, USB 2.0, USB Host, RS-232 serial and Bluetooth 4.1.
RFID Media
Use UHF RFID labels designed for the ZT400 RFID platform, including on-metal tags; ask us for compatible Zebra RFID supplies.
Software
ZebraDesigner for label and RFID encoding design; Zebra DNA tools for remote setup and monitoring.
Package Contents & Zebra ZT400 Series Ordering Information
In the Box
ZT411 RFID printer, power cords (UK, AUS, JP, EU), USB cable and documentation. Labels and ribbon are sold separately.
Zebra ZT400 Series
| Model | Key feature |
| ZT41142-T0P0000Z | ZT411, 203 dpi, no RFID |
| ZT41142-T5P00C0Z (this listing) | ZT411, 203 dpi, on-metal UHF RFID |
| ZT421 | 6" wide version |
Datasheet & Downloads
| Zebra product page | ZT411 RFID on zebra.com |
| Specification sheet | ZT400 Series spec sheet |
Frequently Asked Questions — Zebra ZT411 RFID
Can it print normal barcode labels too?
Yes. It prints standard thermal transfer or direct thermal labels as well as encoding RFID inlays.
What RFID tags does it support?
UHF EPC Gen 2 V2.1, ISO/IEC 18000-63 and RAIN RFID tags, including on-metal tags.
Is ribbon included?
No. Labels, RFID tags and ribbon are sold separately.
