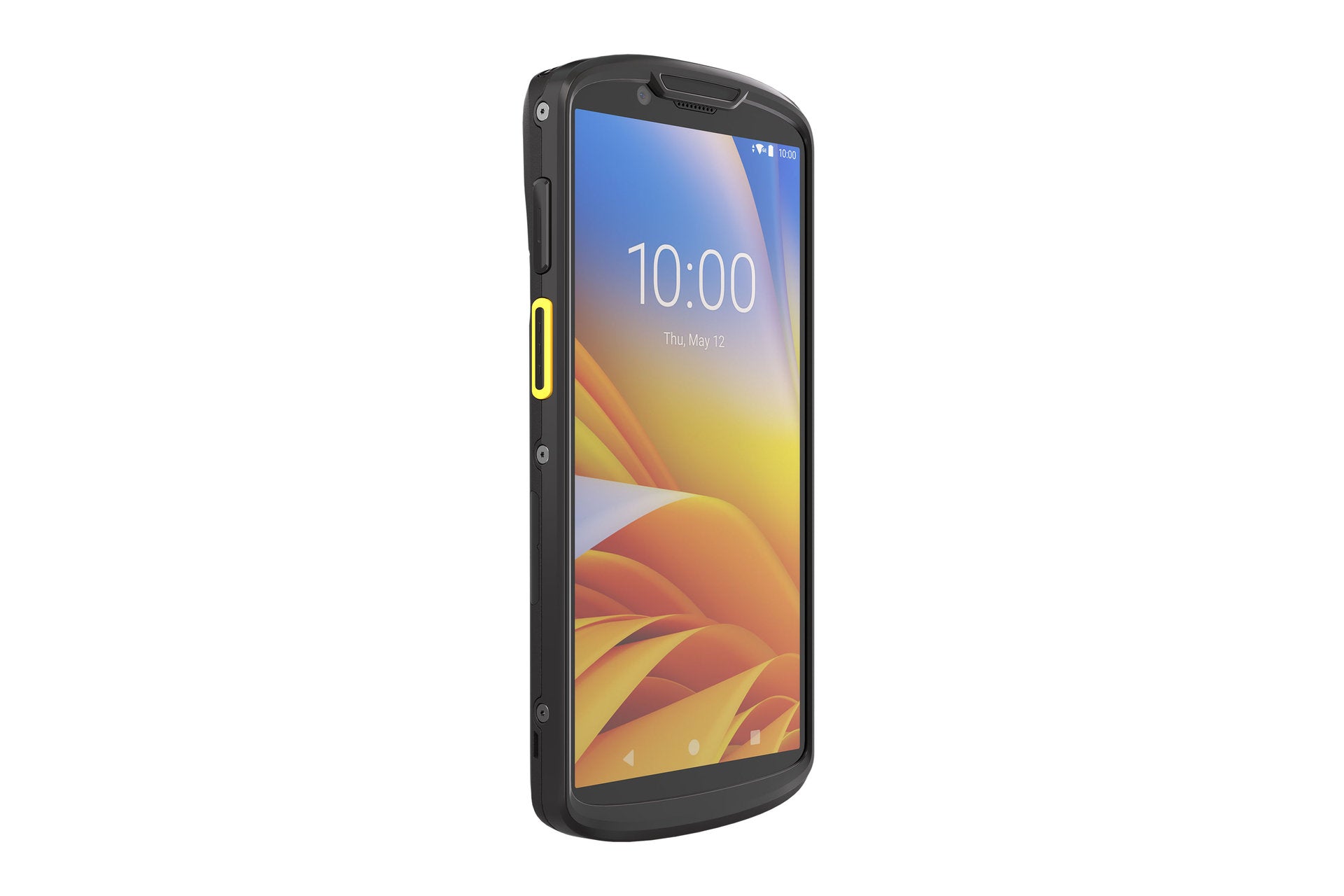

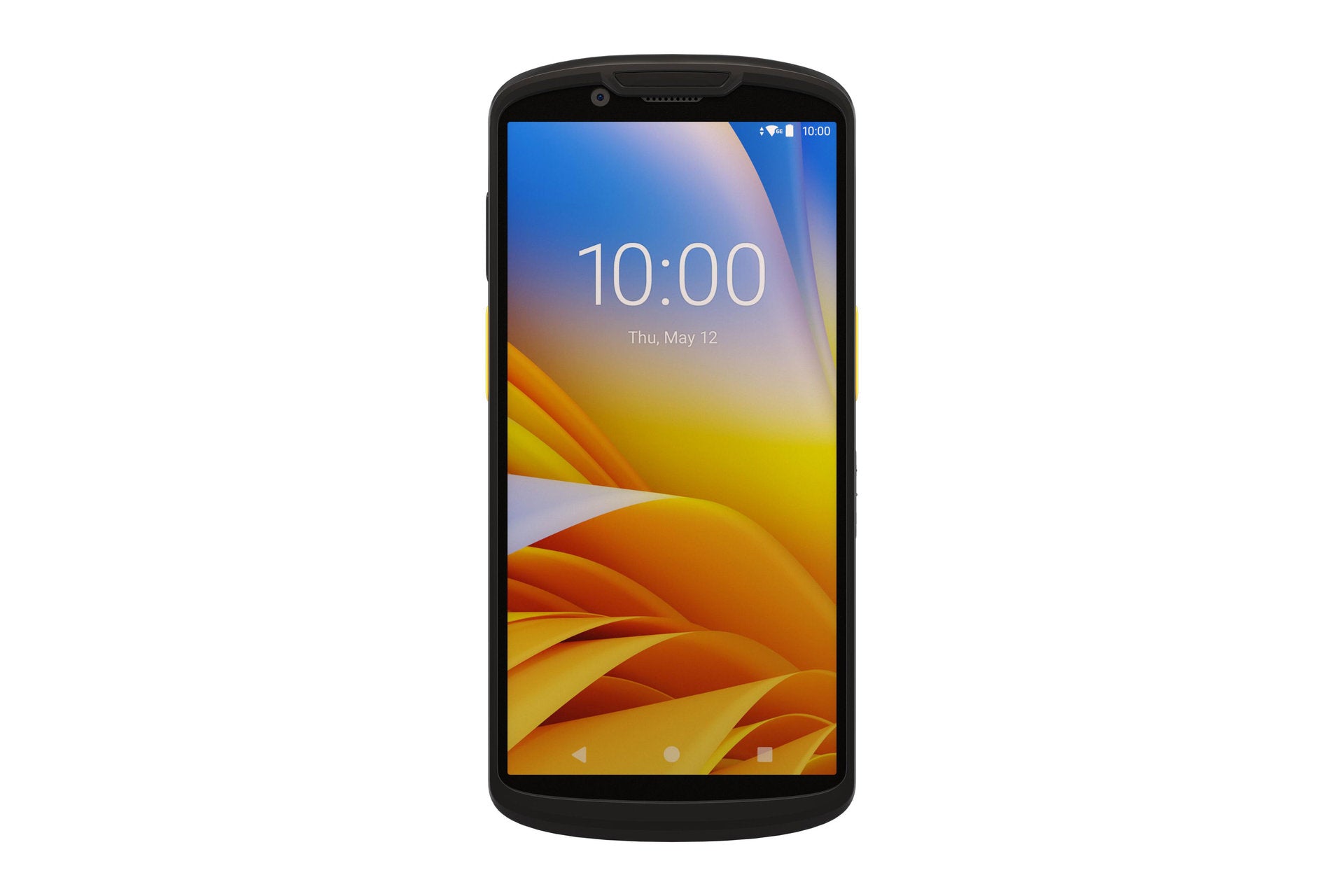

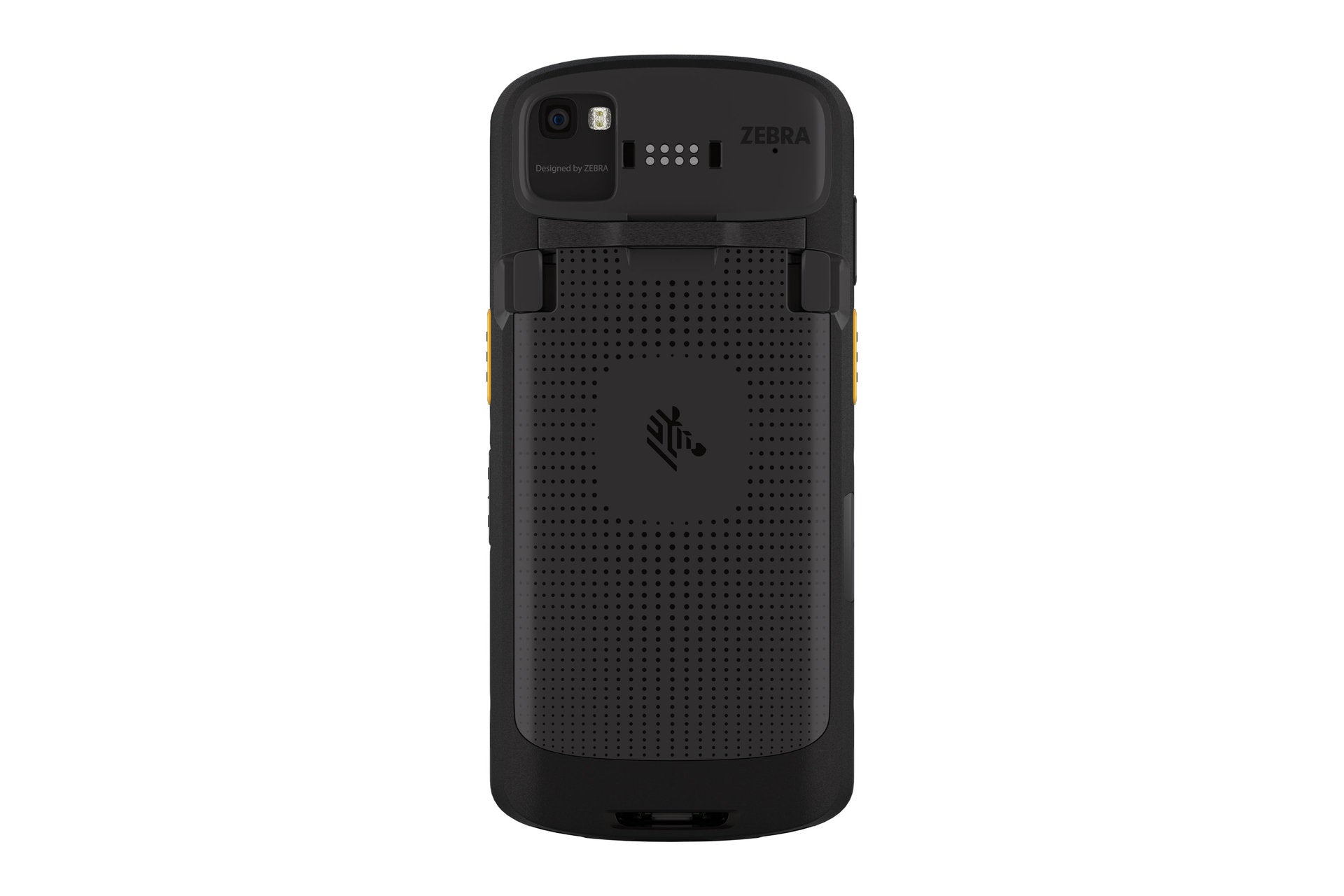

Zebra TC53 Wi-Fi Android Mobile Computer, 6" FHD+, 4GB/64GB, SE4720 1D/2D Scanner
PRODUCT DESCRIPTION
Zebra TC5301-0T1E4B1000-A6 TC53 Wi-Fi Android Mobile Computer with SE4720 Scanner, 4GB/64GB
Powerful TC5 platform
Qualcomm 6490 octa-core processor with Wi-Fi 6E for demanding retail, warehouse and healthcare apps.
Rugged and sealed
IP68/IP65 sealing, 1.8 m drops to concrete with boot, and 1,000 tumbles.
Fast 1D/2D scanning
SE4720 imager with dual scan buttons and trigger-handle support.
TAA compliant
Suitable for government and regulated deployments that require TAA-compliant devices.
Zebra TC53 Datasheet — Technical Specifications
General
| Product Name | Zebra TC53 Mobile Computer |
| Part Number | TC5301-0T1E4B1000-A6 |
| Series | Zebra TC53 / TC58 |
| Dimensions | 164.8 mm L x 77.35 mm W x 16.75 mm H |
| Weight | 293 g with standard battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Performance
| CPU | Qualcomm 6490 octa-core, 2.7 GHz |
| Memory | 4 GB RAM / 64 GB UFS Flash |
| Expansion | MicroSD up to 2 TB |
| Operating System | Android (upgradable to Android 16 per distributor) |
| Display | 6.0" FHD 1080 x 2160, 600 nits, Gorilla Glass |
| Battery | 4,680 mAh PowerPrecision+; 7,000 mAh extended optional |
Data Capture
| Scan Engine | SE4720 1D/2D imager |
| Cameras | Rear 16 MP autofocus with flash; front 8 MP |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; contactless payment support |
Wireless
| WLAN | Wi-Fi 6E (802.11ax), 2x2 MU-MIMO |
| Bluetooth | Bluetooth 5.2, BLE |
| WWAN | None (Wi-Fi model) |
Rugged
| Operating Temperature | -20°C to 50°C |
| Drop | 1.8 m to concrete with boot; 1.5 m to tile over concrete (MIL-STD-810H) |
| Tumble | 1,000 at 0.5 m |
| Sealing | IP68 and IP65 |
Compatibility & Connectivity
Ports
USB-C (host and client), Back I/O and 3.5 mm audio jack on WLAN models.
Accessories
TC5x cradles, trigger handle, boots, holsters and RFD40/RFD90 RFID sleds.
Software
Zebra Mobility DNA, DataWedge and major EMM/MDM platforms.
Package Contents & Zebra TC5x Ordering Information
In the Box
TC53 mobile computer with battery. Cradles and chargers sold separately.
Zebra TC5x Models at SourceIT
| Model | Key feature |
| TC5301-0T1E4B1000-A6 (this listing) | TC53 Wi-Fi, 4/64 GB, SE4720, TAA |
| TC530E-0T1E1B1000-A6 | TC53e Wi-Fi, 6/64 GB, SE4720 |
| TC58BE-3T1E1B1A80-A6 | TC58e 5G, 6/64 GB, SE4720 |
Datasheet & Downloads
| Zebra product page | TC53 on zebra.com |
| Specification sheet | TC53/TC58 spec sheet |
Frequently Asked Questions — Zebra TC53
TC53 or TC53e?
Both share the same form factor and accessories; the TC53e is the newer model with a Qualcomm 4490 platform, while this TC53 uses the Qualcomm 6490 and is TAA compliant.
What warranty do I get?
Zebra warrants the TC53 for 1 year from shipment.
