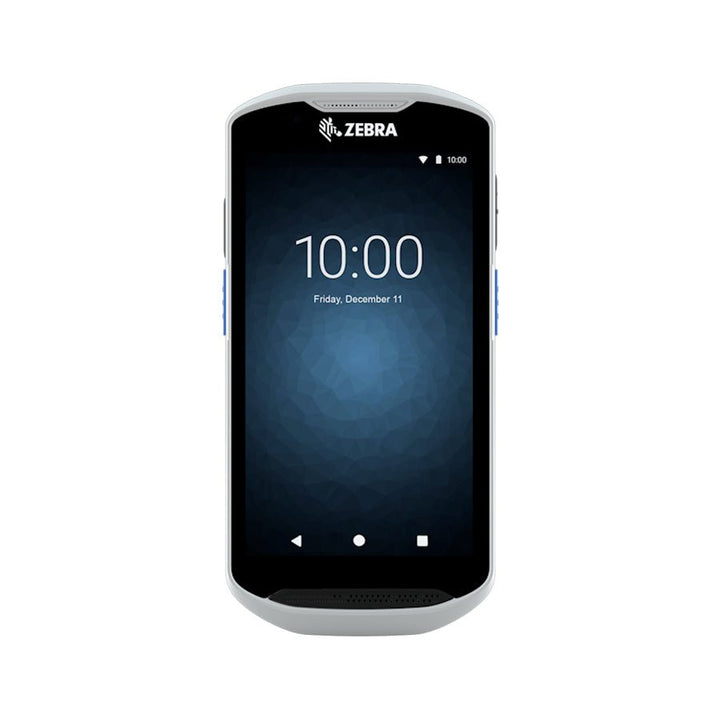

Zebra TC52 Mobile Handheld Computer

Zebra TC520K Mobile Handheld Computer (TC520K-1PEZU4P-A6) - 1 Year Local Warranty

Enterprise Mobility Solution for Modern Workforces

The Zebra TC520K Mobile Handheld Computer (TC520K-1PEZU4P-A6) is a powerful enterprise-grade mobile device designed to help businesses improve productivity, mobility, and operational efficiency. Combining the familiar experience of a smartphone with the durability and management capabilities required by enterprises, the TC520K is ideal for retail, logistics, warehousing, field service, transportation, and healthcare environments.

Powerful Performance for Business-Critical Applications

Built to support demanding enterprise workflows, the Zebra TC520K delivers fast access to business applications, inventory systems, workforce management tools, and cloud-based platforms. Employees can efficiently perform data collection, task management, inventory checks, and customer service activities while maintaining real-time connectivity across operations.

Rugged Design for Demanding Work Environments

Unlike consumer-grade mobile devices, the Zebra TC520K is engineered to withstand challenging workplace conditions. Its rugged construction helps protect against drops, impacts, and daily wear, making it suitable for high-traffic retail stores, warehouses, distribution centers, healthcare facilities, and field service deployments.

Optimized for Barcode Scanning and Enterprise Productivity

The Zebra TC520K supports a wide range of enterprise mobility applications including barcode scanning, inventory management, asset tracking, proof of delivery, mobile workforce automation, and customer engagement solutions. Running on the Android platform, it provides a familiar user experience while offering enhanced security, device management, and enterprise integration capabilities.

Technical Specifications

General
Model: TC520K
Part Number: TC520K-1PEZU4P-A6
Product Name: Zebra TC520K Mobile Handheld Computer
Manufacturer: Zebra Technologies
Product Type: Enterprise Mobile Handheld Computer
Series: TC52 Series
Form Factor: Rugged Touch Mobile Computer
Operating System: Android
Deployment: Retail, Warehousing, Logistics, Transportation, Field Service, Hospitality
Warranty: 1 Year Standard Manufacturer Warranty
Google Mobile Services (GMS): Included
Mobility DNA: Supported

Display Specifications
Display Size: 5.0 Inches
Display Type: Full HD Color Display
Resolution: 1920 x 1080 (FHD)
Touch Technology: Capacitive Multi-Touch
Display Protection: Corning Gorilla Glass
Brightness: High-Brightness Outdoor Readable Display
Touch Modes: Finger, Glove and Stylus Input Support

Processor Specifications
Processor Manufacturer: Qualcomm
Processor Type: Octa-Core Processor
Processor Speed: Up to 2.2 GHz
Architecture: 64-Bit
Performance Optimization: Enterprise-Class Mobile Computing Platform

Memory & Storage
Installed Memory: 4 GB RAM
Memory Type: LPDDR4
Internal Storage: 64 GB Flash Storage
Storage Expansion: MicroSD Card Support
Maximum Expansion Capacity: Up to 256 GB

Barcode Scanning Specifications
Scan Engine: SE4720 Enterprise Imager
Scanner Type: Integrated 1D/2D Barcode Scanner
Barcode Support:
• 1D Barcodes
• 2D Barcodes
• QR Codes
• PDF417
• Data Matrix

Scanning Performance: Enterprise-Grade Fast Barcode Capture
Damaged Barcode Reading: Supported
Mobile Screen Barcode Reading: Supported

Wireless Connectivity
Wi-Fi Standard: Wi-Fi 5 (802.11ac)
Bluetooth Version: Bluetooth 5.0
NFC: Supported
Voice Communications: Supported
Push-to-Talk: Supported
Wireless Roaming: Fast Roaming Support

Supported Wireless Standards
• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac

Location Services
GPS
GLONASS
Galileo
BeiDou
A-GPS Support

Camera Specifications
Rear Camera Resolution: 13 MP
Rear Camera Features: Autofocus with LED Flash
Front Camera Resolution: 5 MP
Video Calling: Supported
Image Capture: Supported

Audio Specifications
Speaker Type: High-Volume Front-Facing Speaker
Microphones: Multiple Noise-Cancelling Microphones
Voice Communications: Supported
VoIP Support: Supported
PTT Applications: Supported

Battery Specifications
Battery Type: Rechargeable Lithium-Ion PowerPrecision+ Battery
Battery Capacity: 4150 mAh
Battery Replacement: User Replaceable
Hot Swap Support: Supported
Shift Operation: Full Shift and Multi-Shift Usage Supported
Fast Charging: Supported

Durability Specifications
Ingress Protection Rating: IP65
Drop Resistance: Up to 1.8 m (6 ft.) to Concrete
Tumble Specification: 2,000 Tumbles at 0.5 m
Sealing Protection: Dustproof and Water Resistant
Enterprise Rugged Design: Supported

Environmental Specifications
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 95% Non-Condensing
Electrostatic Discharge Protection: Supported

Ports & Interfaces
USB Type-C Port
Charging Contacts
Accessory Expansion Connector
Docking Support
Enterprise Charging Cradle Compatibility

Sensors
Ambient Light Sensor
Proximity Sensor
Accelerometer
Gyroscope
Magnetometer (eCompass)
Motion Detection Support

Management & Security
Android Enterprise Recommended
Mobility DNA Enterprise Suite
Enterprise Mobility Management (EMM) Support
Remote Device Management Support
Secure Enterprise Deployment Support
LifeGuard™ for Android Support
Firmware and Security Updates Supported

Design & Construction
Color: Black
Form Factor: Rugged Handheld Mobile Computer
Construction: Enterprise-Grade Rugged Design
One-Handed Operation: Supported
Field Service Ready Design: Supported
Lightweight Ergonomic Construction: Supported

Physical Specifications
Dimensions: Approximately 155 mm x 75.5 mm x 18.6 mm
Weight: Approximately 249 g
Display Size: 5 Inches
Form Factor: Rugged Enterprise Mobile Computer
Color: Black

Package Contents
Zebra TC520K Mobile Handheld Computer
PowerPrecision+ Battery
Documentation
Quick Start Guide

Key Features
5-Inch Full HD Touchscreen Display
Android Enterprise Mobile Computing Platform
4GB RAM and 64GB Flash Storage
Integrated SE4720 1D/2D Barcode Scanner
Wi-Fi 5 Wireless Connectivity
Bluetooth 5.0 Support
13MP Rear Camera
5MP Front Camera
IP65 Rugged Protection
Hot-Swappable Battery Design
NFC Support
Mobility DNA Enterprise Tools
Google Mobile Services Included
Enterprise-Grade Security and Management

Performance & Features
Enterprise-Class Mobile Computing for Frontline Workers
Fast and Accurate Barcode Scanning Performance
Reliable Wireless Connectivity for Real-Time Operations
Designed for Retail and Warehouse Productivity
Supports Inventory and Asset Tracking Applications
Secure Device Management Across Large Deployments
Optimized for Mobile Workforce Operations
Built to Withstand Demanding Business Environments
Supports Continuous Multi-Shift Usage with Replaceable Batteries
Enhances Workforce Efficiency Through Enterprise Mobility Tools

Typical Use Cases
Retail Inventory Management
Warehouse Operations
Asset Tracking
Field Service Applications
Proof of Delivery Workflows
Transportation and Logistics
Hospitality Operations
Mobile Point of Sale (mPOS)
Healthcare Inventory Tracking
Enterprise Data Collection
Barcode Scanning Applications
Mobile Workforce Enablement
Supply Chain Management
Store Replenishment and Stock Audits
