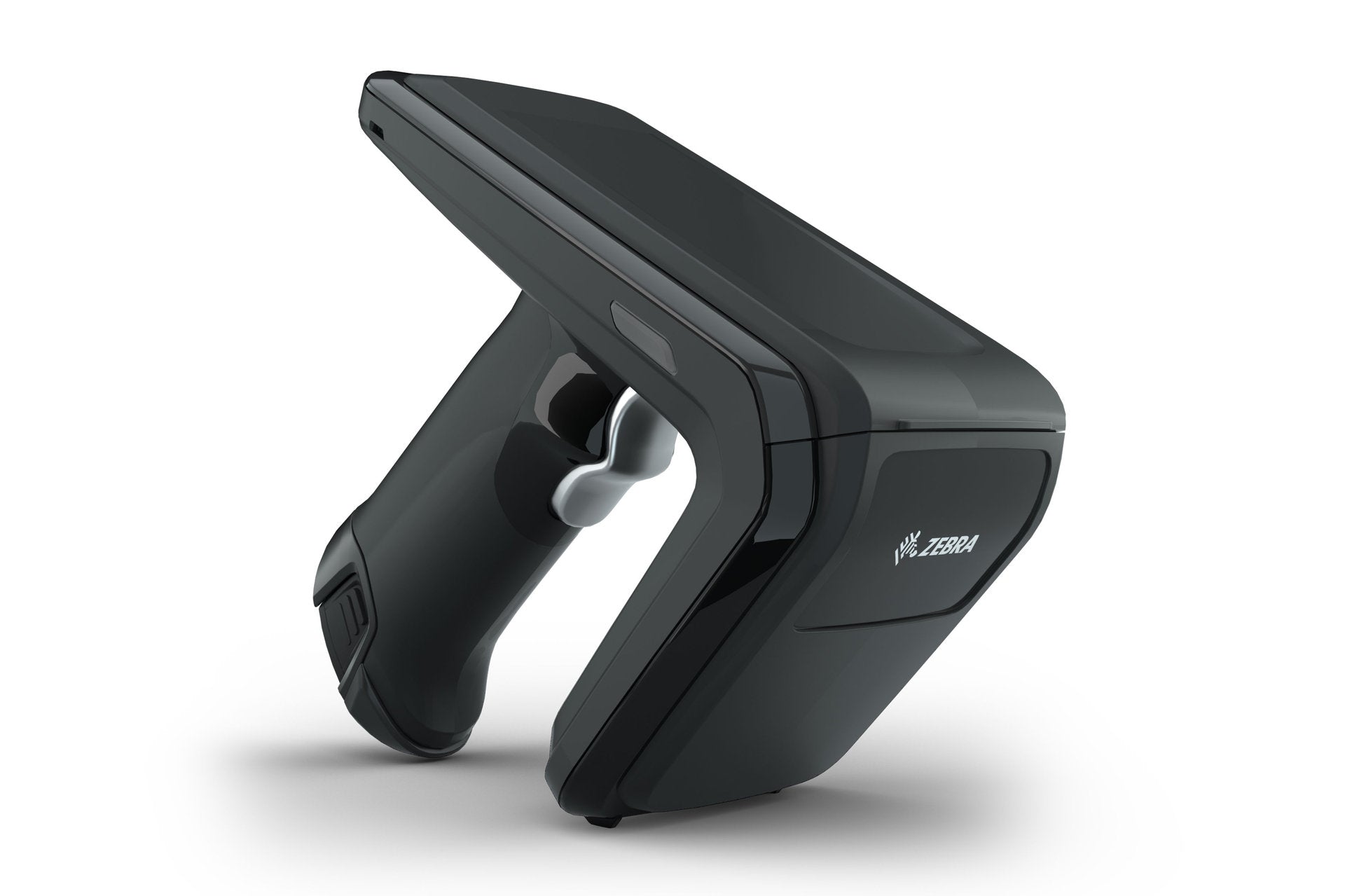

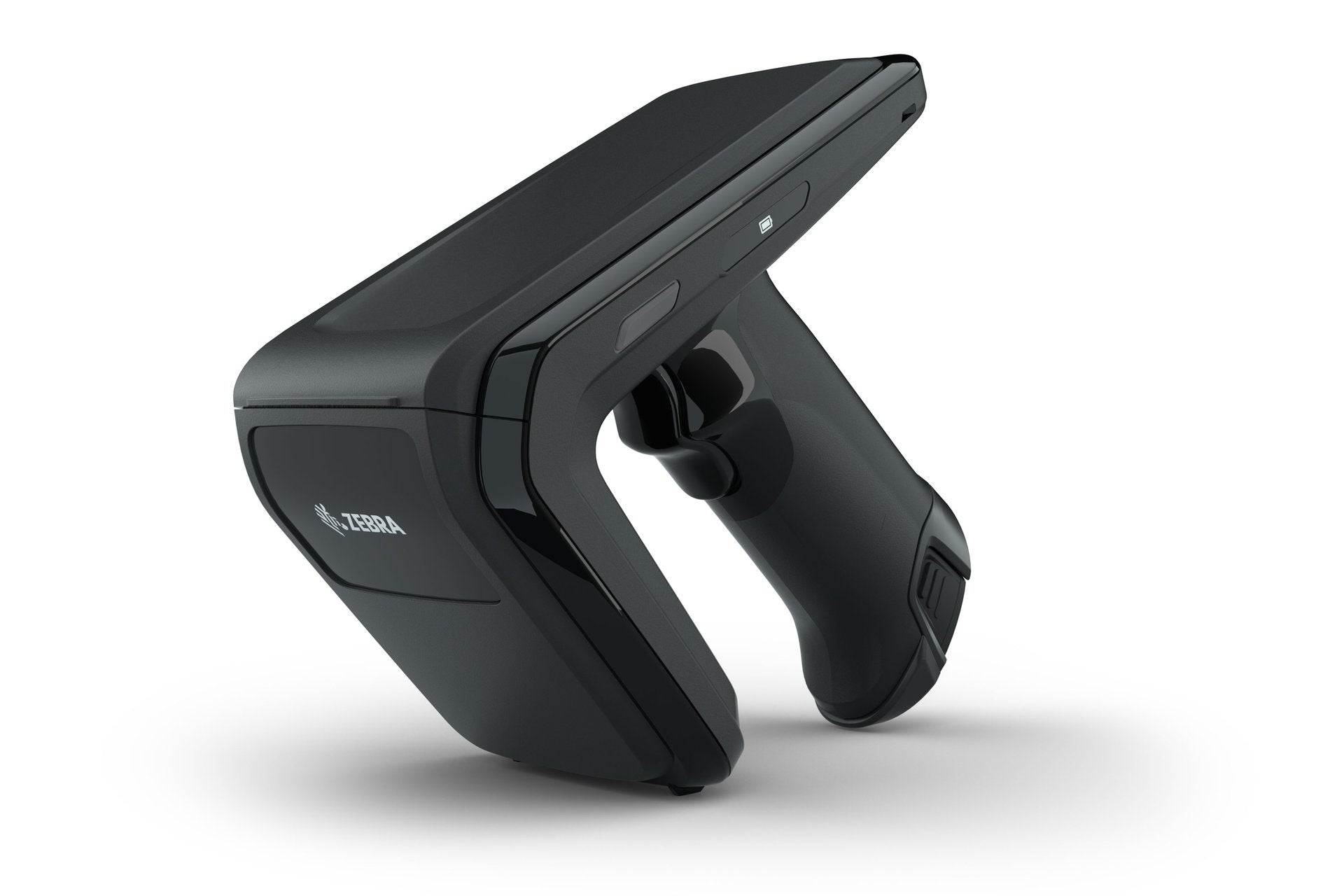

Zebra RFD40 Premium UHF RFID Sled Reader with Wi-Fi and Bluetooth
PRODUCT DESCRIPTION
Zebra RFD4031-G10B700-WR RFD40 Premium UHF RFID Sled Reader with Wi-Fi
RFID for mobile computers and smartphones
Attach to Zebra mobile computers via eConnex, or connect wirelessly to supported devices over Bluetooth.
Remotely manageable
Built-in Wi-Fi lets IT update firmware and configuration over the network without collecting devices.
High-speed reads
More than 1,300 tags per second and a nominal range of 12 m.
Shift-long battery
Quick-release 7,000 mAh PowerPrecision+ battery.
Zebra RFD40 Premium Datasheet — Technical Specifications
General
| Product Name | Zebra RFD40 Premium UHF RFID Sled |
| Part Number | RFD4031-G10B700-WR |
| Configuration | Premium sled with Wi-Fi and Bluetooth, WR (rest of world) |
| Frequency (per distributor) | 865–868 MHz UHF |
| Dimensions | 15.1 cm H x 8.4 cm W x 16.65 cm L |
RFID Performance
| Standards | EPC Class 1 Gen 2; EPC Gen2 V2; Gen2X |
| Fastest Read Rate | 1,300+ tags/sec |
| Nominal Read Range | 12 m (40 ft) |
| RF Output | 0 to 30 dBm EIRP |
Power & Interface
| Battery | Quick-release PowerPrecision+ Li-Ion 7,000 mAh |
| Host Connection | eConnex 8-pin, Bluetooth, USB |
| Wireless Management | Wi-Fi |
| User Input | Tri-function programmable trigger |
Rugged
| Operating Temperature | -10°C to 50°C |
| Drop | Multiple 1.5 m drops to concrete |
| Sealing | IP54 |
Compatibility & Connectivity
Host Devices
Zebra mobile computers via eConnex adapters; Bluetooth connection to supported Android and iOS devices; Windows PCs over USB.
Software
Zebra 123RFID Mobile/Desktop and the Zebra RFID SDK.
Package Contents & Zebra RFD40 Ordering Information
In the Box
RFD40 Premium sled with battery. Adapters, cradles and cables sold separately.
Zebra RFD40 Models at SourceIT
| Model | Key feature |
| RFD4030-G00B700-WR | RFD40 Standard, USB/eConnex |
| RFD4031-G10B700-WR (this listing) | RFD40 Premium, Wi-Fi + Bluetooth |
Datasheet & Downloads
| Zebra product page | RFD40 on zebra.com |
| Specification sheet | RFD40 Premium Series spec sheet |
Frequently Asked Questions — Zebra RFD40 Premium
What does Premium add over Standard?
Wi-Fi for remote management and Bluetooth for connecting to non-Zebra phones and tablets.
Which frequency band is it set to?
The distributor lists this unit at 865–868 MHz; confirm the band you need for your site with us before ordering.
