Zebra RFD40 Standard UHF RFID Sled Reader, USB, eConnex
PRODUCT DESCRIPTION

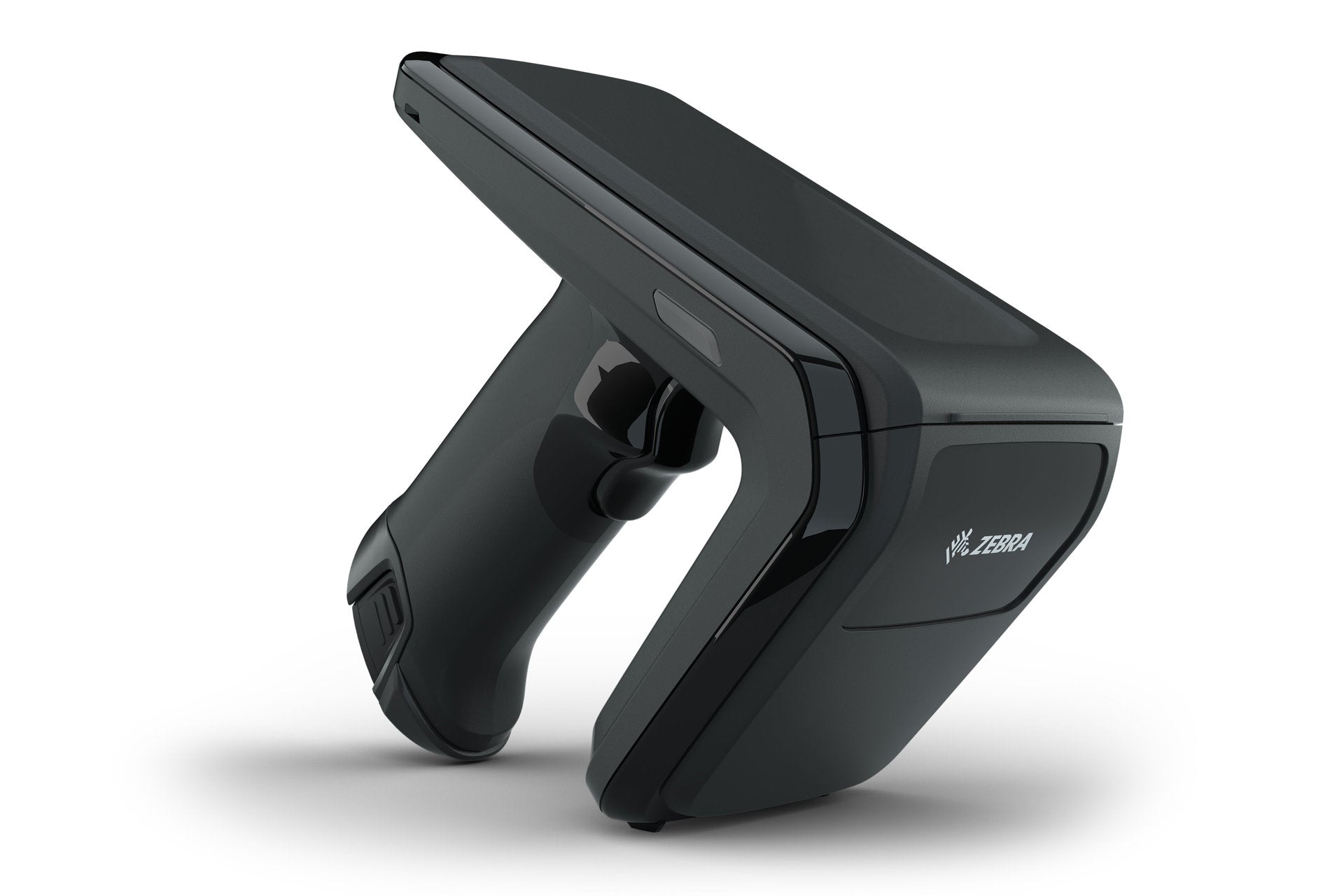

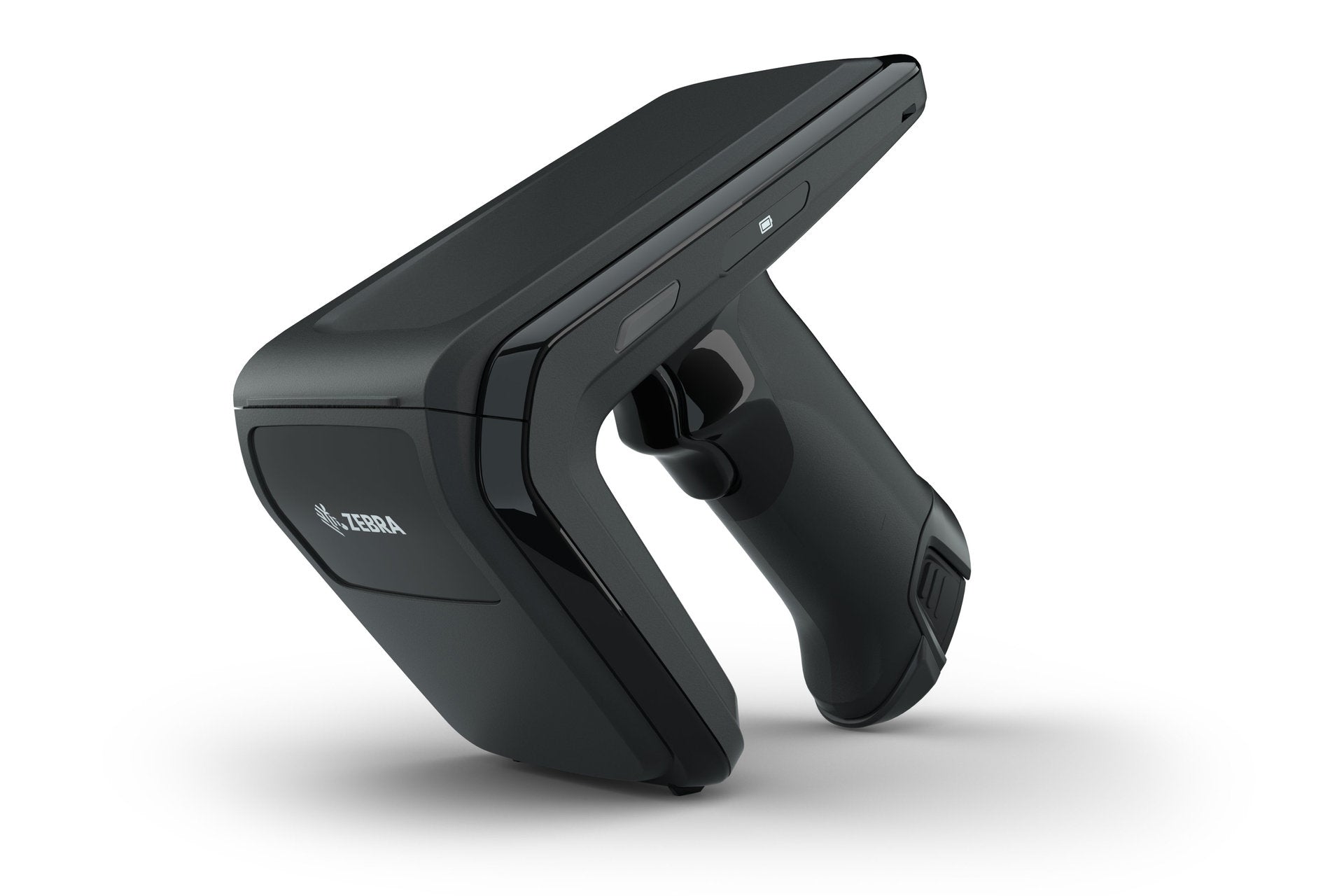

Zebra RFD4030-G00B700-WR RFD40 Standard UHF RFID Sled Reader
Add RFID to your mobile computers

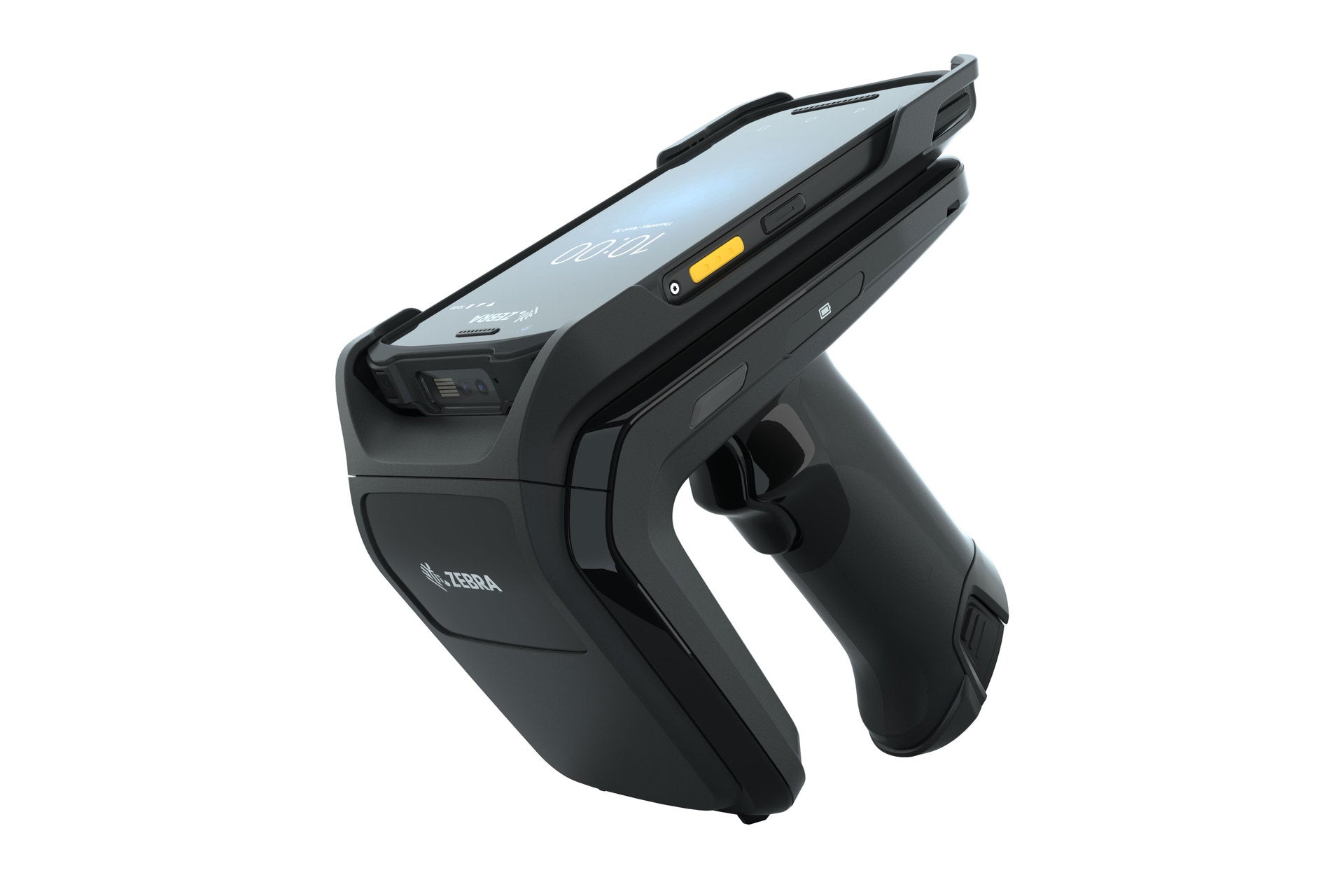

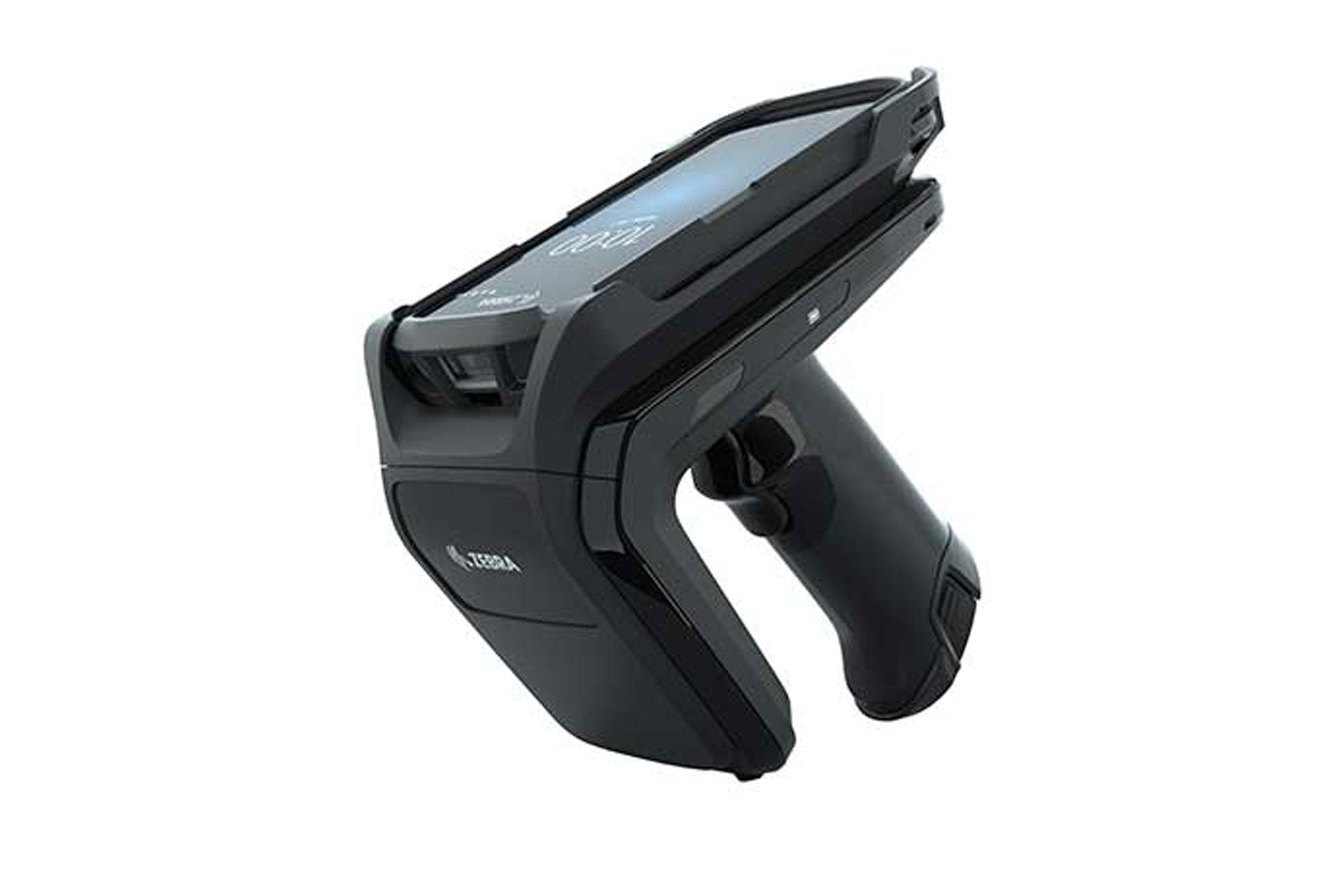

Snaps onto supported Zebra TC2x, TC5x and EC5x mobile computers through eConnex adapters, turning them into high-performance UHF RFID readers.
Fast inventory counts
Reads more than 1,300 tags per second with a nominal range of 12 m for rapid cycle counts and item locating.
All-day power
Quick-release 7,000 mAh PowerPrecision+ battery that can also charge the attached mobile computer.
Built for the shop floor
IP54 sealing, 1.5 m drop rating and a tri-function programmable trigger.
Zebra RFD40 Datasheet — Technical Specifications
General
| Product Name | Zebra RFD40 Standard UHF RFID Sled |
| Part Number | RFD4030-G00B700-WR |
| Configuration | Standard sled, USB, eConnex host connection, WR (rest of world) |
| Dimensions | 15.1 cm H x 8.4 cm W x 16.65 cm L |
| Weight | Approx. 541 g with battery |
RFID Performance
| Standards | EPC Class 1 Gen 2; EPC Gen2 V2; Gen2X |
| RFID Engine | Zebra proprietary radio technology |
| Fastest Read Rate | 1,300+ tags/sec |
| Nominal Read Range | 12 m (40 ft) |
| RF Output | 0 to 30 dBm EIRP |
Power & Interface
| Battery | Quick-release PowerPrecision+ Li-Ion 7,000 mAh |
| Host Connection | eConnex 8-pin, USB-C cable, USB cable cup |
| Host Computers | Zebra mobile computers and tablets; Windows PCs |
| Notification | Decode LEDs, battery status LED, beeper |
Rugged
| Operating Temperature | -10°C to 50°C |
| Drop | Multiple 1.5 m drops to concrete |
| Tumble | 500 cycles at 0.5 m |
| Sealing | IP54 |
Compatibility & Connectivity
Supported Mobile Computers
Attaches to Zebra TC2x, TC5x and EC5x family devices with the matching eConnex adapter (sold separately).
Software
Zebra 123RFID Mobile app and RFID SDK for Android; DataWedge for keyboard-wedge RFID data.
Accessories
1-slot and multi-slot charging cradles, Ethernet cradles, 4-slot battery charger, holster and battery locking foot.
Package Contents & Zebra RFD40 Ordering Information
In the Box
RFD40 Standard sled with battery. eConnex adapter for your mobile computer, cradles and cables sold separately.
Zebra RFD40 Models at SourceIT
| Model | Key feature |
| RFD4030-G00B700-WR (this listing) | RFD40 Standard, USB/eConnex |
| RFD4031-G10B700-WR | RFD40 Premium with Wi-Fi and Bluetooth |
Datasheet & Downloads
| Zebra product page | RFD40 on zebra.com |
| Specification sheet | RFD40 spec sheet |
Frequently Asked Questions — Zebra RFD40
Does it work with my TC52 or TC57?
Yes, with the correct eConnex adapter. Tell us your mobile computer model and we will quote the right adapter.
Which frequency band does it use?
The WR model covers rest-of-world UHF bands; confirm the regional setting for your deployment with us before ordering.
Can it scan barcodes?
The Standard sled is RFID only; barcodes are read by the attached mobile computer.
