Zebra MC9300 Ultra-Rugged Android Mobile Computer, SE4770 1D/2D, 53-Key, 4GB/32GB
PRODUCT DESCRIPTION

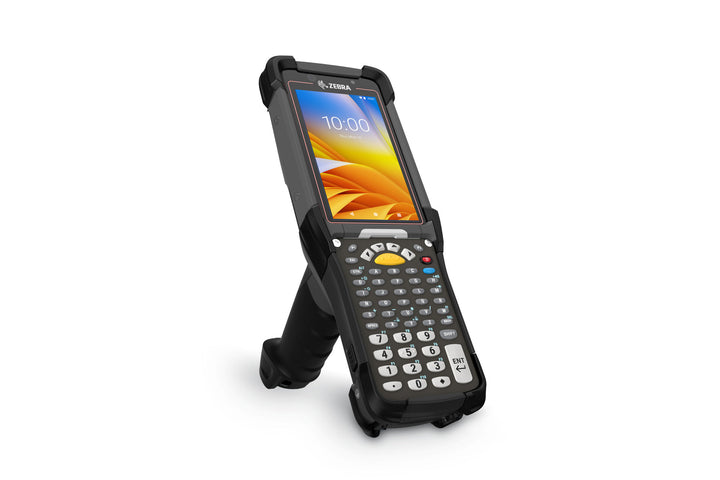

Zebra MC930B-GSHDG4RW MC9300 Ultra-Rugged Android Mobile Computer with SE4770 Imager
Ultra-rugged gun-grip design
Survives 3 m drops at room temperature and 6,000 tumbles, sealed to IP67/IP65 for warehouse, yard and manufacturing work.
Physical keypad plus touch
53-key alphanumeric keypad with a 4.3" capacitive touchscreen that works with gloves.
Omnidirectional 1D/2D scanning
SE4770 imager reads 1D and 2D barcodes quickly at standard working ranges.
Long shift power
7,000 mAh PowerPrecision+ battery with hot swap and fast charging.
Zebra MC9300 Datasheet — Technical Specifications
General
| Product Name | Zebra MC9300 Ultra-Rugged Mobile Computer |
| Part Number | MC930B-GSHDG4RW |
| Form Factor | Gun grip |
| Dimensions | 240 mm L x 88 mm W x 189 mm H |
| Weight | 765 g with battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Performance
| CPU | Qualcomm Snapdragon 660 octa-core, 2.2 GHz |
| Memory | 4 GB RAM / 32 GB Flash pSLC |
| Expansion | MicroSD up to 256 GB |
| Operating System | Android |
| Display | 4.3" WVGA 800 x 480 colour, Gorilla Glass |
| Keypad | 53-key alphanumeric, backlit |
| Battery | 3.6 V 7,000 mAh PowerPrecision+ Li-Ion, hot swap |
Data Capture
| Scan Engine | SE4770 1D/2D standard range omnidirectional imager |
| Cameras | Rear 13 MP autofocus with flash; front 5 MP |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693, HCE |
Wireless
| WLAN | IEEE 802.11 a/b/g/n/ac 2x2 MU-MIMO |
| Bluetooth | Class 2, Bluetooth 5.0 with BLE |
Rugged
| Operating Temperature | -20°C to 50°C |
| Drop | 3.1 m at room temperature; 2.4 m across temperature (MIL-STD-810G) |
| Tumble | 6,000 at 1 m |
| Sealing | IP67 and IP65 |
Compatibility & Connectivity
Applications
Runs Android warehouse, inventory and terminal emulation apps; supports Zebra Mobility DNA, DataWedge and Enterprise Home Screen.
Accessories
Compatible with MC9x charging cradles, spare battery chargers, holsters and lanyards.
Package Contents & Zebra MC9300 Ordering Information
In the Box
MC9300 mobile computer with battery. Cradles and chargers sold separately.
Note
Zebra has introduced the MC9400 as the successor to the MC9300; this listing is for in-stock MC9300 units.
Datasheet & Downloads
| Specification sheet | MC9300 spec sheet |
| Support & downloads | MC9300 support on zebra.com |
Frequently Asked Questions — Zebra MC9300
Is this suitable for freezers?
This is the standard model (-20°C to 50°C). A separate freezer model with a heated scan window exists.
Can it run terminal emulation?
Yes. The 53-key keypad suits TE apps, and Zebra supports common TE clients on Android.
What warranty do I get?
Zebra warrants the MC9300 for 1 year from shipment.
