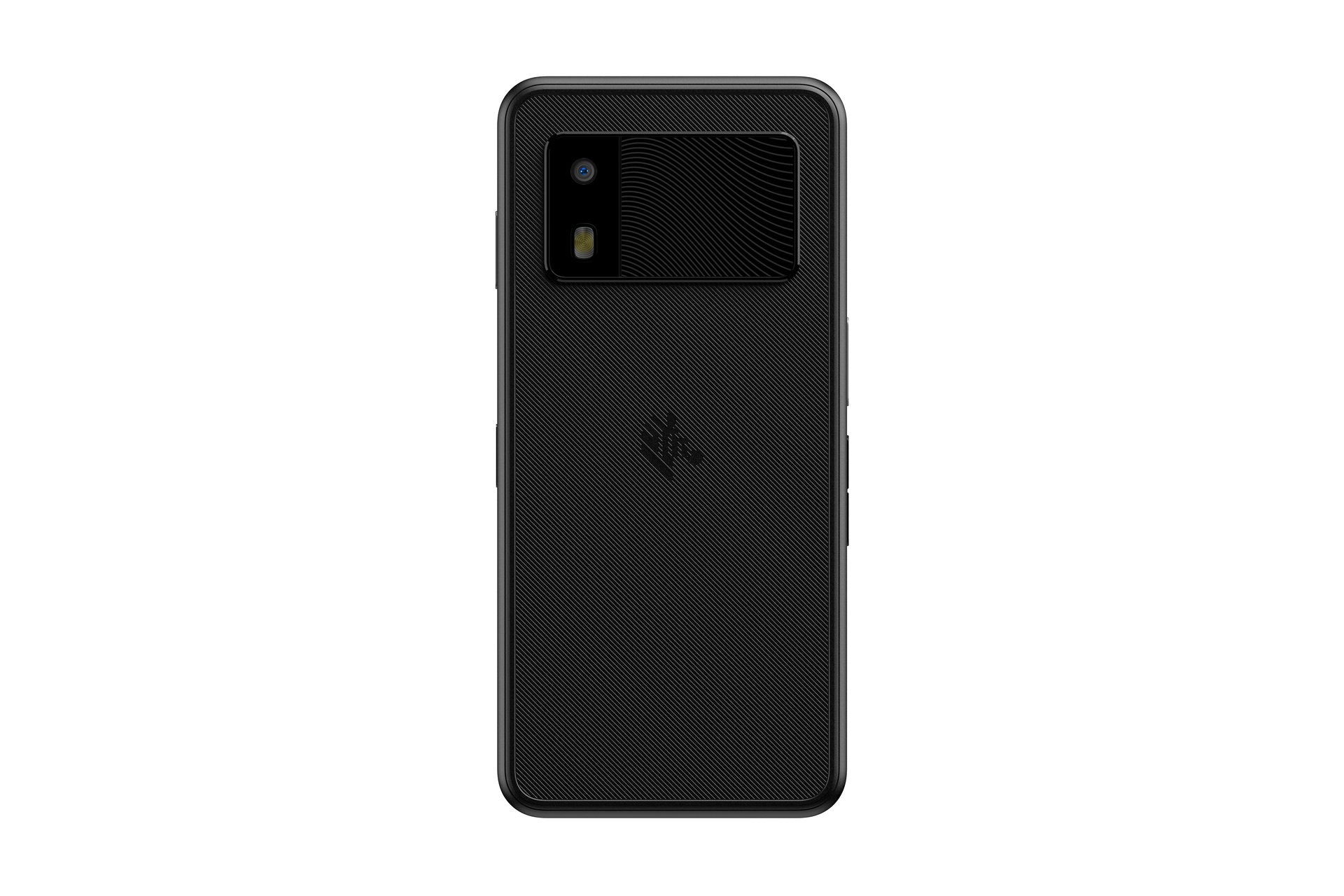

Zebra EM45 RFID 5G Enterprise Android Mobile Computer with Built-in UHF RFID, 6.7" FHD+, 8GB/128GB
PRODUCT DESCRIPTION
Zebra EM45B2-3T106B0-RW EM45 RFID 5G Enterprise Android Mobile Computer, 8GB/128GB
RFID in your pocket
Integrated short-range UHF RFID reads tags up to 1.2 m away for item locating, stock checks and customer assist, with no sled needed.
Smartphone-slim

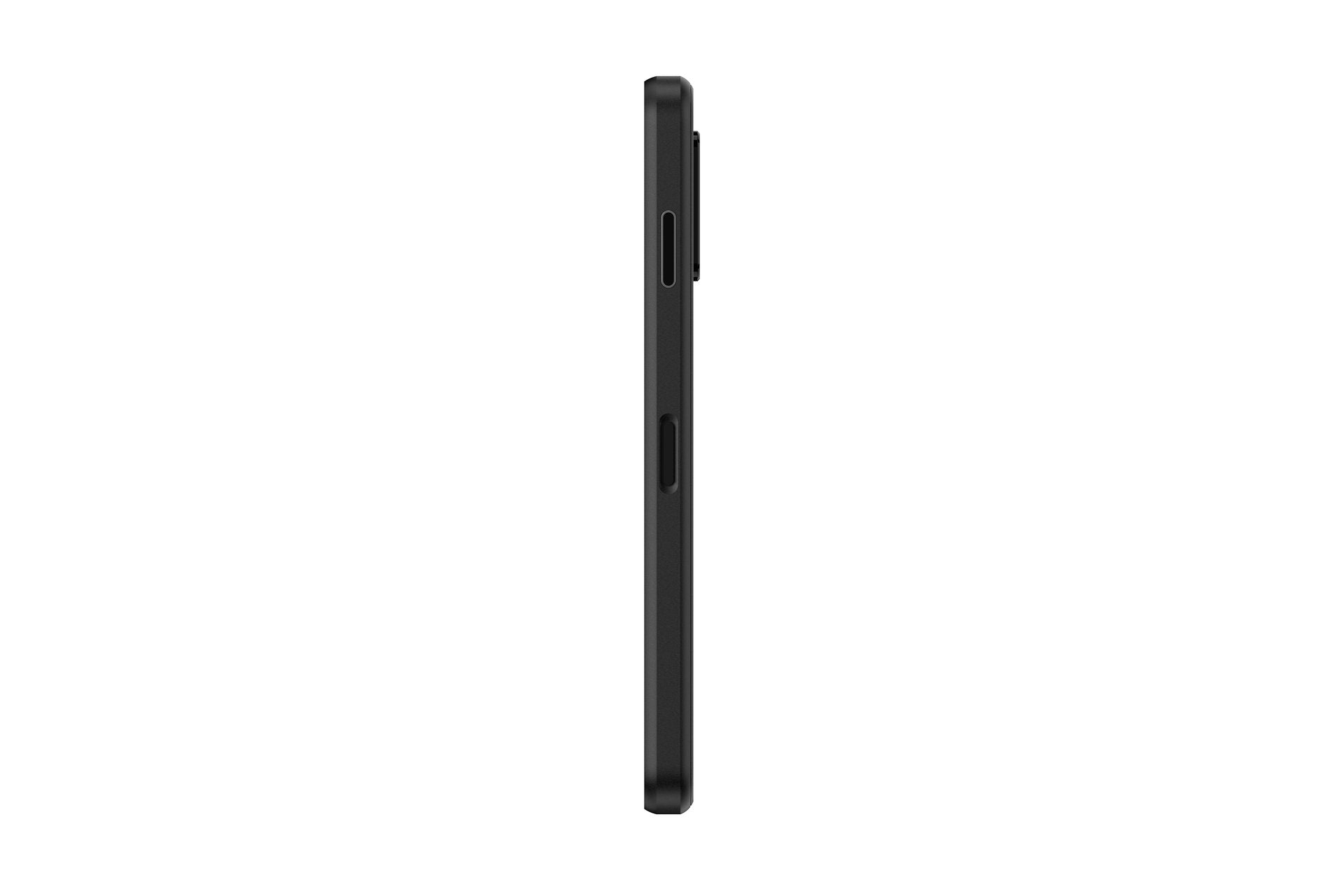

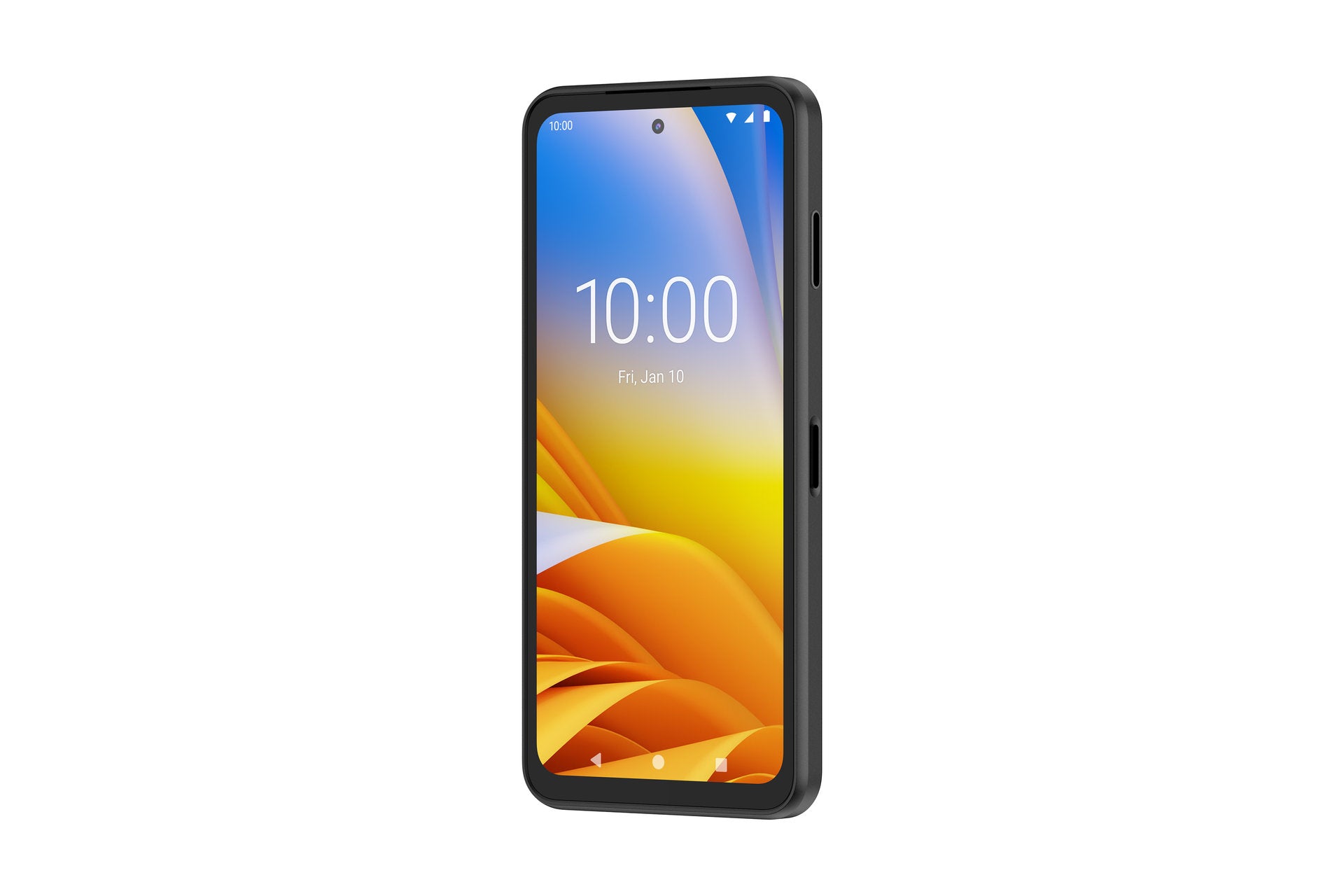

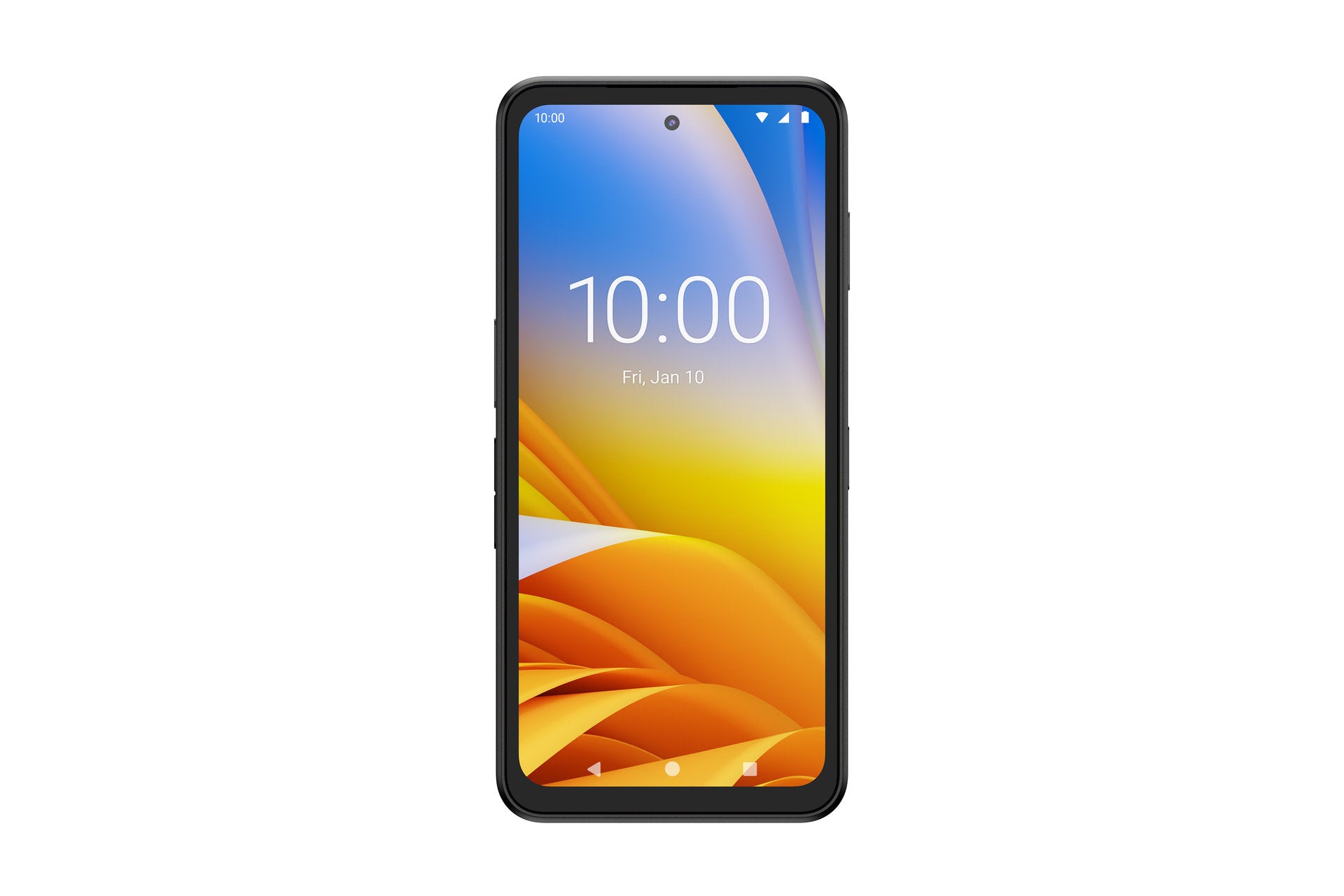

10.7 mm thin with a 6.7" 120 Hz FHD+ display and 450-nit brightness.
Camera scanning and NFC payments
50 MP OIS camera with Zebra's decoder library, plus NFC for contactless payment and loyalty.
Enterprise tough
IP68/IP65 sealing and 1.5 m drop rating with protective boot.
Zebra EM45 RFID Datasheet — Technical Specifications
General
| Product Name | Zebra EM45 RFID 5G Mobile Computer |
| Part Number | EM45B2-3T106B0-RW |
| Colour | Black |
| Dimensions | 170.65 mm L x 80.54 mm W x 10.7 mm D |
| Weight | 250 g with embedded battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Performance
| CPU | Qualcomm 5430 octa-core, 2.2 GHz |
| Memory | 8 GB DDR5 RAM / 128 GB UFS 3.1 Flash |
| Expansion | MicroSD up to 2 TB |
| Operating System | Android |
| Display | 6.7" FHD+ 2400 x 1080, 450 nits, dynamic 120 Hz |
| Battery | 4,750 mAh (18.43 Wh), service replaceable |
RFID & Capture
| Built-in RFID | Short-range UHF RFID, 1.2 m range, 20 tags/sec; EU 865–868 MHz and US 902–928 MHz |
| Rear Camera | 50 MP, autofocus, OIS, f/1.9, 4K video |
| Front Camera | 8 MP |
| Scanning | Camera-based with Zebra decoder library |
Wireless
| WWAN | 5G, LTE; nano SIM + eSIM |
| WLAN | Wi-Fi 6E tri-band, 2x2 MU-MIMO |
| Bluetooth | Class 1, Bluetooth 5.3 |
| GNSS | Dual-band GPS, GLONASS, Galileo, BeiDou, QZSS |
Rugged
| Operating Temperature | 0°C to 50°C |
| Drop | 1.5 m to tile over concrete with boot; 1.2 m without |
| Sealing | IP68 and IP65 |
Compatibility & Connectivity
RFID Software
Zebra 123RFID Mobile and the RFID SDK for Android; DataWedge for RFID keyboard input.
Mobile Networks
5G and LTE band support varies by country and carrier; confirm with your Singapore carrier.
Package Contents & Zebra EM45 Ordering Information
In the Box
EM45 RFID mobile computer with embedded battery. Chargers and cases sold separately.
Zebra EM45 Models at SourceIT
| Model | Key feature |
| EM45B1-3T106B0-A6 | EM45 5G, 8/128 GB |
| EM45B2-3T106B0-RW (this listing) | EM45 RFID with built-in UHF RFID |
Datasheet & Downloads
| Zebra product page | EM45 RFID on zebra.com |
| Specification sheet | EM45 RFID spec sheet |
Frequently Asked Questions — Zebra EM45 RFID
How far can it read RFID tags?
About 1.2 m with the built-in short-range reader. For long-range cycle counts, pair a mobile computer with an RFD40 or RFD90 sled.
What warranty do I get?
Zebra warrants the EM45 RFID for 1 year from shipment.
