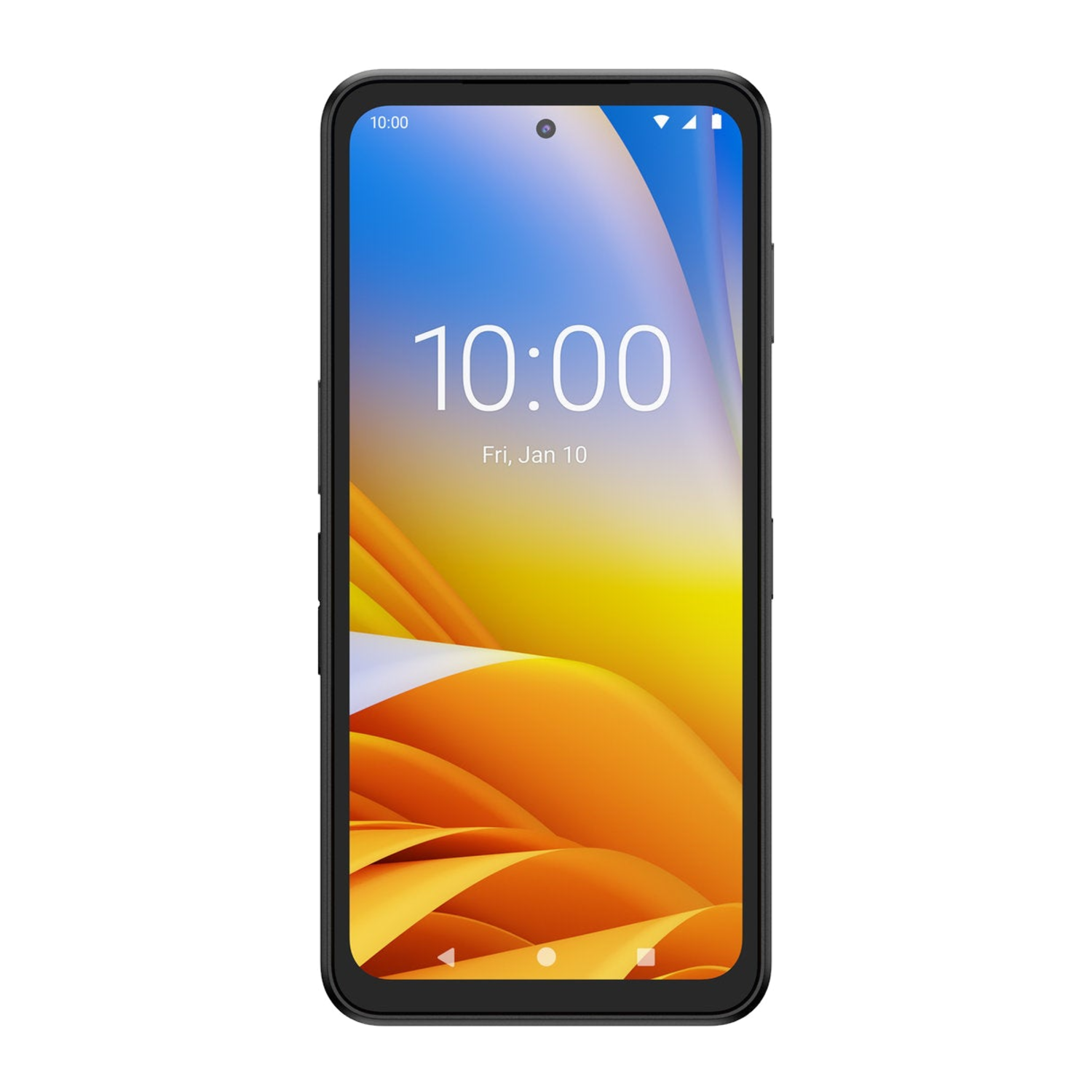

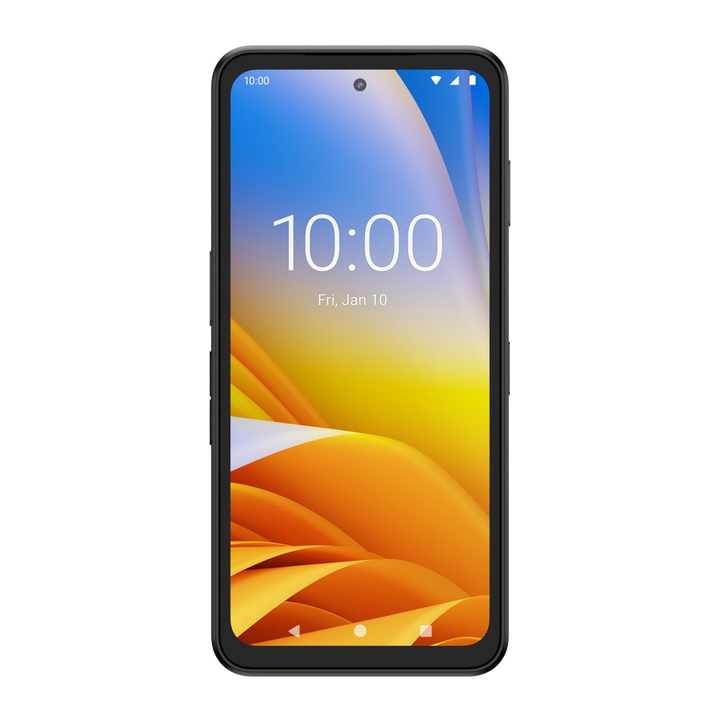

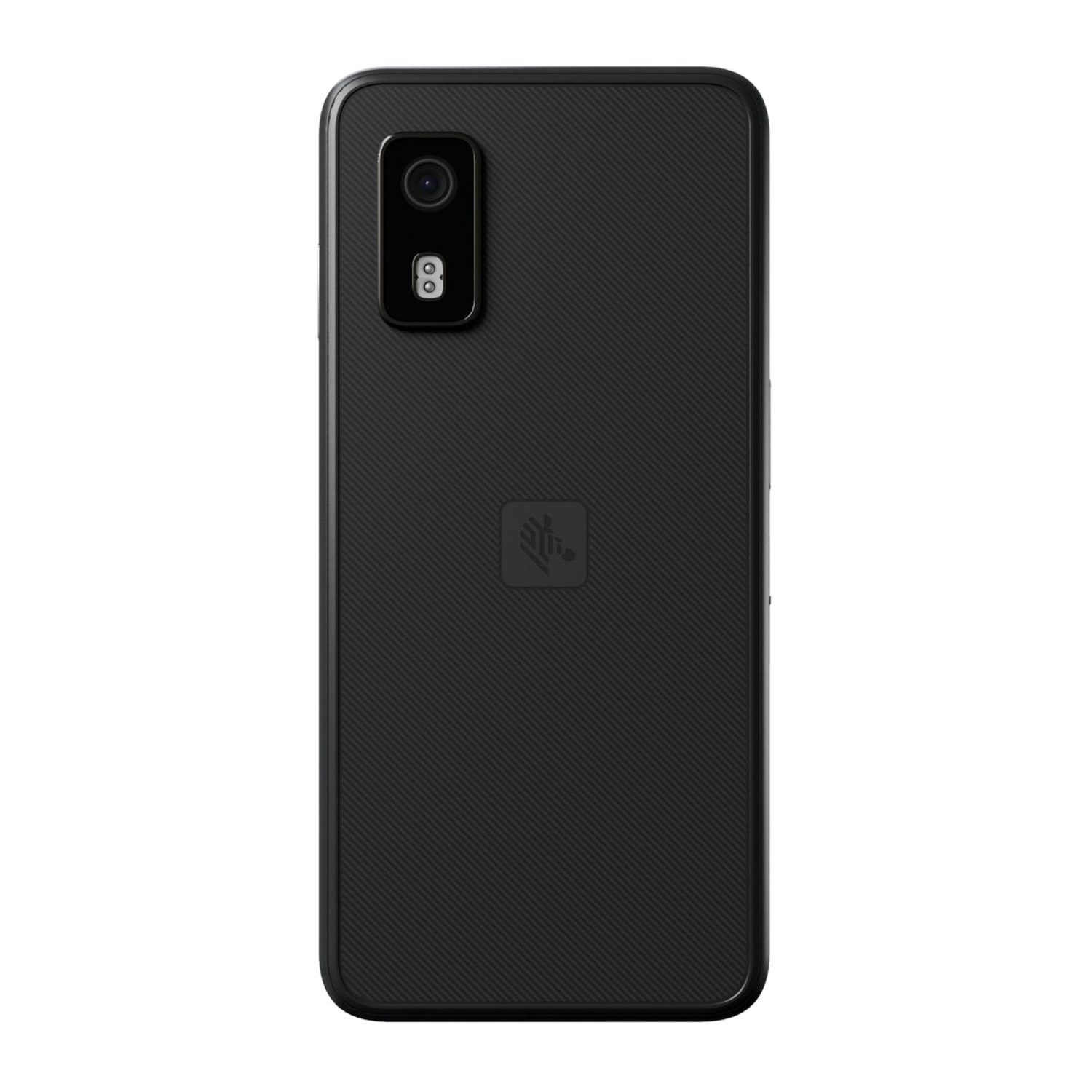

Zebra EM45 5G Enterprise Android Mobile Computer, 6.7" FHD+, 8GB/128GB
PRODUCT DESCRIPTION
Zebra EM45B1-3T106B0-A6 EM45 5G Enterprise Android Mobile Computer, 8GB/128GB
Pocket-sized enterprise device
A 10.7 mm slim smartphone-style computer with a 6.7" 120 Hz FHD+ display, built for associates, managers and mobile workers.
Camera-based scanning included
50 MP OIS rear camera with Zebra's advanced decoder library for accurate barcode capture at no extra licence cost.
Tougher than a phone
IP68/IP65 sealing, 1.5 m drop rating with protective boot, and enterprise lifecycle support.
Fully connected
5G with nano SIM + eSIM, tri-band Wi-Fi 6E, Bluetooth 5.3, NFC payments and fingerprint biometrics.
Zebra EM45 Datasheet — Technical Specifications
General
| Product Name | Zebra EM45 5G Mobile Computer |
| Part Number | EM45B1-3T106B0-A6 |
| Colour | Black |
| Dimensions | 170.65 mm L x 80.54 mm W x 10.7 mm D |
| Weight | 243 g with battery |
| Manufacturer Warranty | 1 year (Zebra hardware warranty) |
Performance
| CPU | Qualcomm 5430 octa-core, 2.2 GHz |
| Memory | 8 GB DDR5 RAM / 128 GB UFS 3.1 Flash |
| Expansion | MicroSD up to 2 TB |
| Operating System | Android |
| Display | 6.7" FHD+ 2400 x 1080, dynamic 120 Hz |
| Battery | 4,750 mAh (18.43 Wh), service replaceable |
Cameras & Capture
| Rear Camera | 50 MP, autofocus, OIS, f/1.9, 4K video |
| Front Camera | 8 MP, f/2.0 |
| Scanning | Camera-based with Zebra decoder library |
| NFC | ISO 14443 A/B, FeliCa, ISO 15693; contactless payment; Apple VAS |
Wireless
| WWAN | 5G, LTE Advanced; nano SIM + eSIM |
| WLAN | Wi-Fi 6E tri-band, 2x2 MU-MIMO |
| Bluetooth | Class 1, Bluetooth 5.3 |
| GNSS | Dual-band GPS, GLONASS, Galileo, BeiDou, QZSS |
Rugged
| Operating Temperature | 0°C to 50°C |
| Drop | 1.5 m to tile over concrete with boot; 1.2 m without (exceeds MIL-STD-810H) |
| Sealing | IP68 and IP65 |
Compatibility & Connectivity
Ports & Security
USB-C 3.1 with OTG; fingerprint sensor in the power button; Android Enterprise Recommended.
Mobile Networks
5G and LTE band support varies by country and carrier; confirm with your Singapore carrier.
Software
Zebra Mobility DNA, Workcloud apps and major EMM/MDM platforms.
Package Contents & Zebra EM45 Ordering Information
In the Box
EM45 mobile computer with embedded battery. Chargers and cases sold separately.
Zebra EM45 Models at SourceIT
| Model | Key feature |
| EM45B1-3T106B0-A6 (this listing) | EM45 5G, 8/128 GB |
| EM45B2-3T106B0-RW | EM45 RFID with built-in UHF RFID |
Datasheet & Downloads
| Zebra product page | EM45 on zebra.com |
| Specification sheet | EM45 spec sheet |
Frequently Asked Questions — Zebra EM45
Does it have a dedicated scan engine?
No. It scans with the 50 MP camera using Zebra's decoder; a programmable side button defaults to scan.
Can staff use it as a work phone?
Yes. It supports cellular voice, VoIP and push-to-talk.
What warranty do I get?
Zebra warrants the EM45 for 1 year from shipment.
