Zebra DS5502-SR Compact Fixed Mount 1D/2D Barcode Scanner Kit, USB, Black
PRODUCT DESCRIPTION

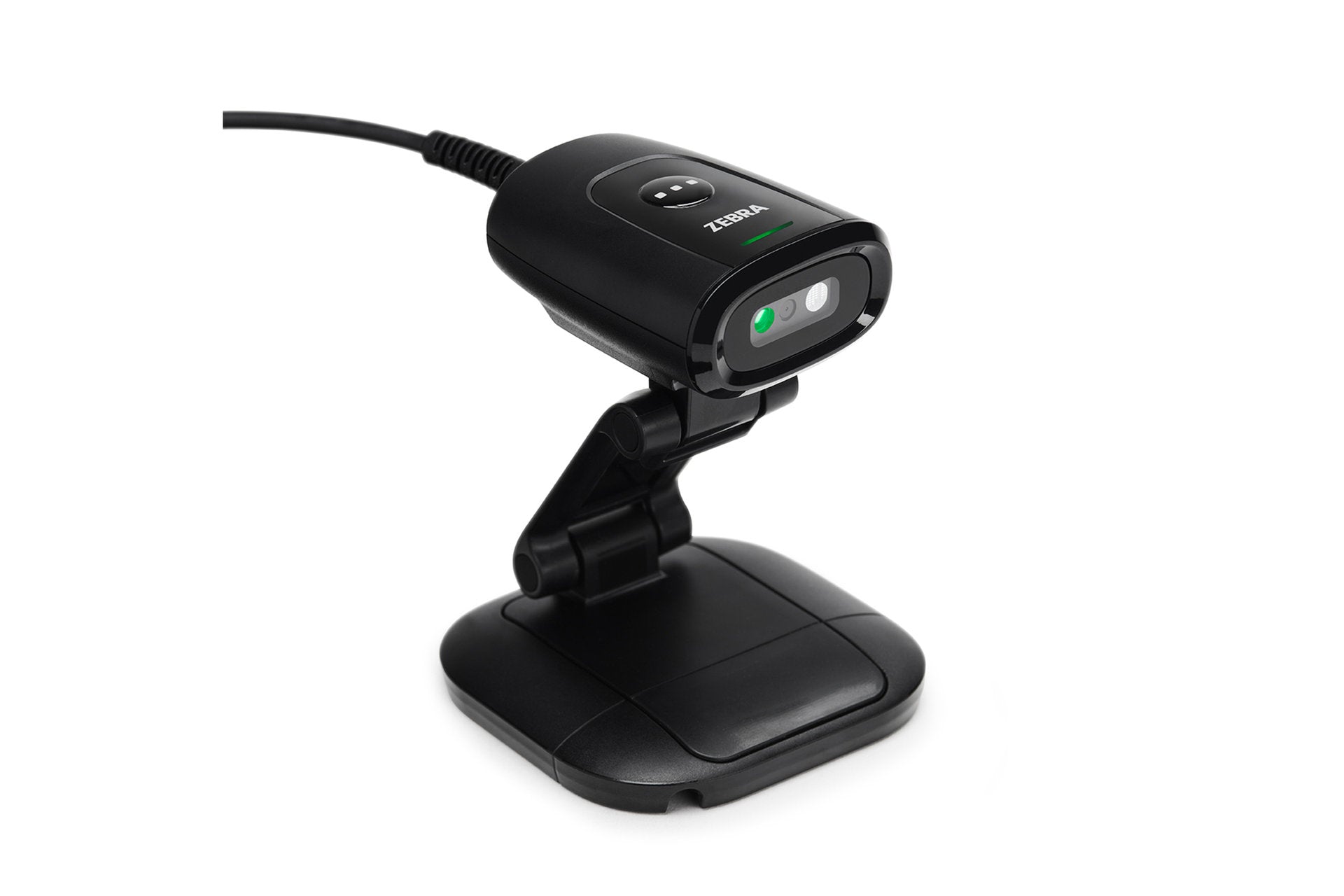

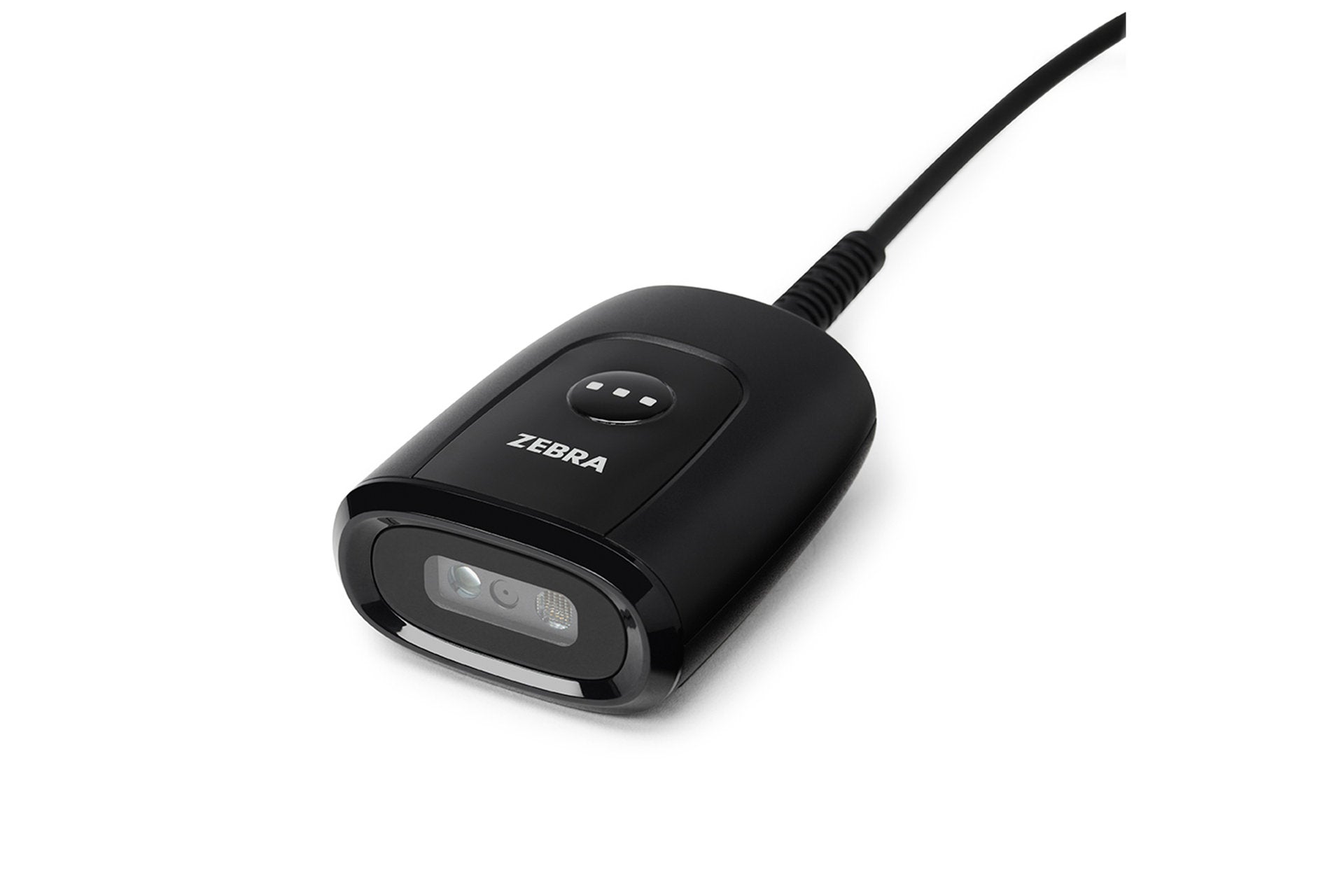

Zebra DS5502-SR4US70MAZW DS5502-SR Compact Fixed Mount 1D/2D Barcode Scanner Kit (USB, Black)
Fits anywhere
At just 3.0 x 5.6 x 7.2 cm and 65 g, the DS55 slips into kiosks, lockers, turnstiles, lab equipment and self-checkout stations.
Reads almost any barcode
1D, 2D and OCR on labels, receipts and phone screens, with a green aimer and warm white illumination that is easy on users' eyes.
Presentation or trigger mode
Swipe speeds up to 254 cm per second in hands-free mode, or trigger mode for controlled reads.
Tough for public use
IP54 sealing and 1.5 m drop rating, with a 3-year Zebra warranty.
Zebra DS5502 Datasheet — Technical Specifications
General
| Product Name | Zebra DS5502-SR Fixed Mount Scanner Kit |
| Part Number | DS5502-SR4US70MAZW |
| Series | Zebra DS55 Series |
| Colour | Midnight Black |
| Dimensions | 3.0 cm H x 5.6 cm W x 7.2 cm D |
| Weight | 65.2 g |
| Manufacturer Warranty | 3 years (Zebra hardware warranty) |
Performance
| Image Sensor | 1280 x 800 pixels |
| Field of View | 48° H x 30° V nominal |
| Aimer / Illumination | Circular 525 nm green LED / warm white LED |
| Swipe Speed | Up to 254 cm/s for 13 mil UPC |
| Skew / Pitch / Roll | ±60° / ±60° / 0–360° |
| Symbologies | All major 1D and 2D codes incl. QR, DataMatrix, PDF417, Aztec, GS1 DataBar; OCR-A/B, MICR |
| Decode Range | UPC 13 mil: 4.1 to 62.7 cm (trigger); QR 20 mil: 2.3 to 43.9 cm |
| Image Capture | BMP, JPEG or TIFF; 200 PPI document capture |
Electrical & Interfaces
| Host Interfaces | USB (certified), RS232 |
| Input Voltage | 4.75 to 5.25 VDC |
| User Indicators | Good decode LEDs, speaker (adjustable tone and volume) |
Environmental
| Operating Temperature | -20°C to 50°C |
| Humidity | 5% to 95% RH, non-condensing |
| Sealing | IP54 |
| Drop | Multiple 1.5 m drops to concrete |
Compatibility & Connectivity
Integration
USB HID keyboard or USB COM for kiosks, POS and embedded PCs on Windows, Linux and Android; RS232 with the matching cable.
Mounting

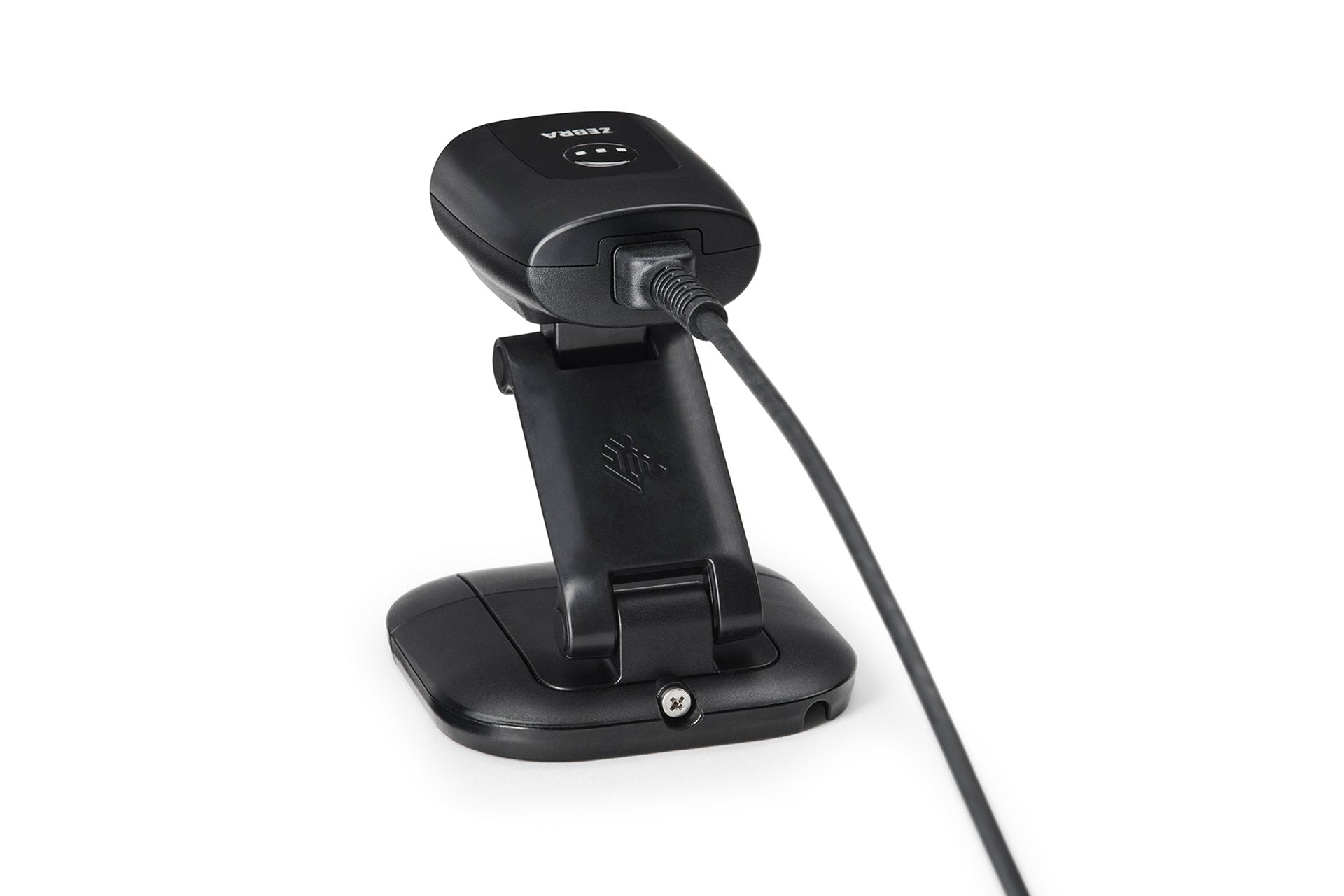

Standard 1/4"-20 mounting thread fits Zebra and third-party mounts; optional gooseneck stand and 3-in-1 mount (PC display, presentation stand or wall).
Management
123Scan, Scanner SDK and Scanner Management Service.
Package Contents & Zebra DS55 Series Ordering Information
In the Box
DS5502-SR scanner kit with USB connection, part number DS5502-SR4US70MAZW.
Zebra DS55 Series
| Model | Key feature |
| DS5502-SR4US70MAZW (this listing) | Standard range, USB kit, black |
| DS5502 for Labs | Laboratory version with lab mounts |
Datasheet & Downloads
| Zebra product page | DS55 Series on zebra.com |
| Specification sheet | DS55 Series spec sheet |
Frequently Asked Questions — Zebra DS5502
What is the DS5502 used for?
Self-checkout, kiosks, click-and-collect lockers, parking and ticketing gates, ID verification and lab instruments.
Can it scan QR codes on phones?
Yes. It reads 1D and 2D codes on phone screens and paper.
What warranty do I get?
Zebra warrants the DS5502 for 3 years from shipment. Supplied by SourceIT with a GST invoice.
