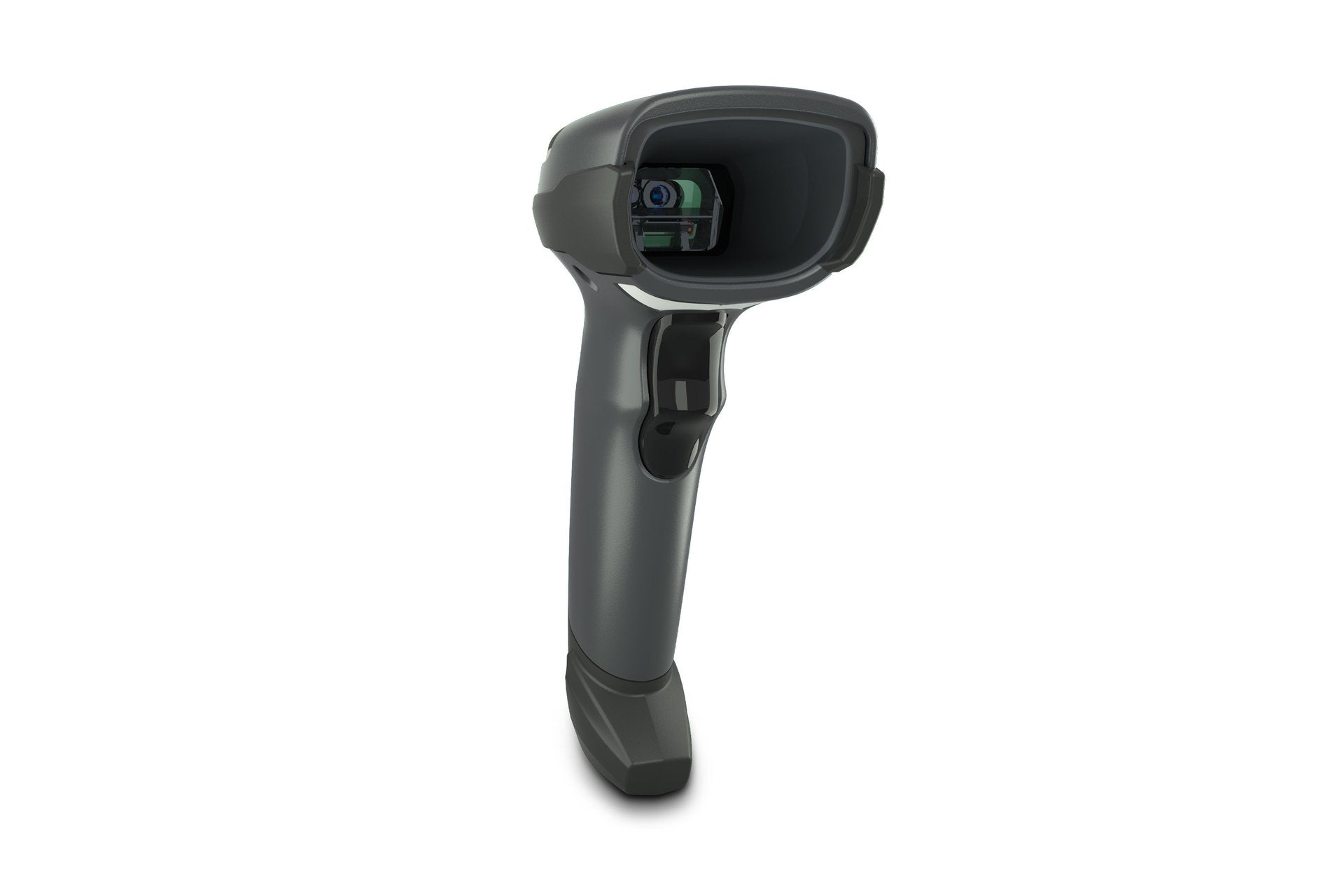

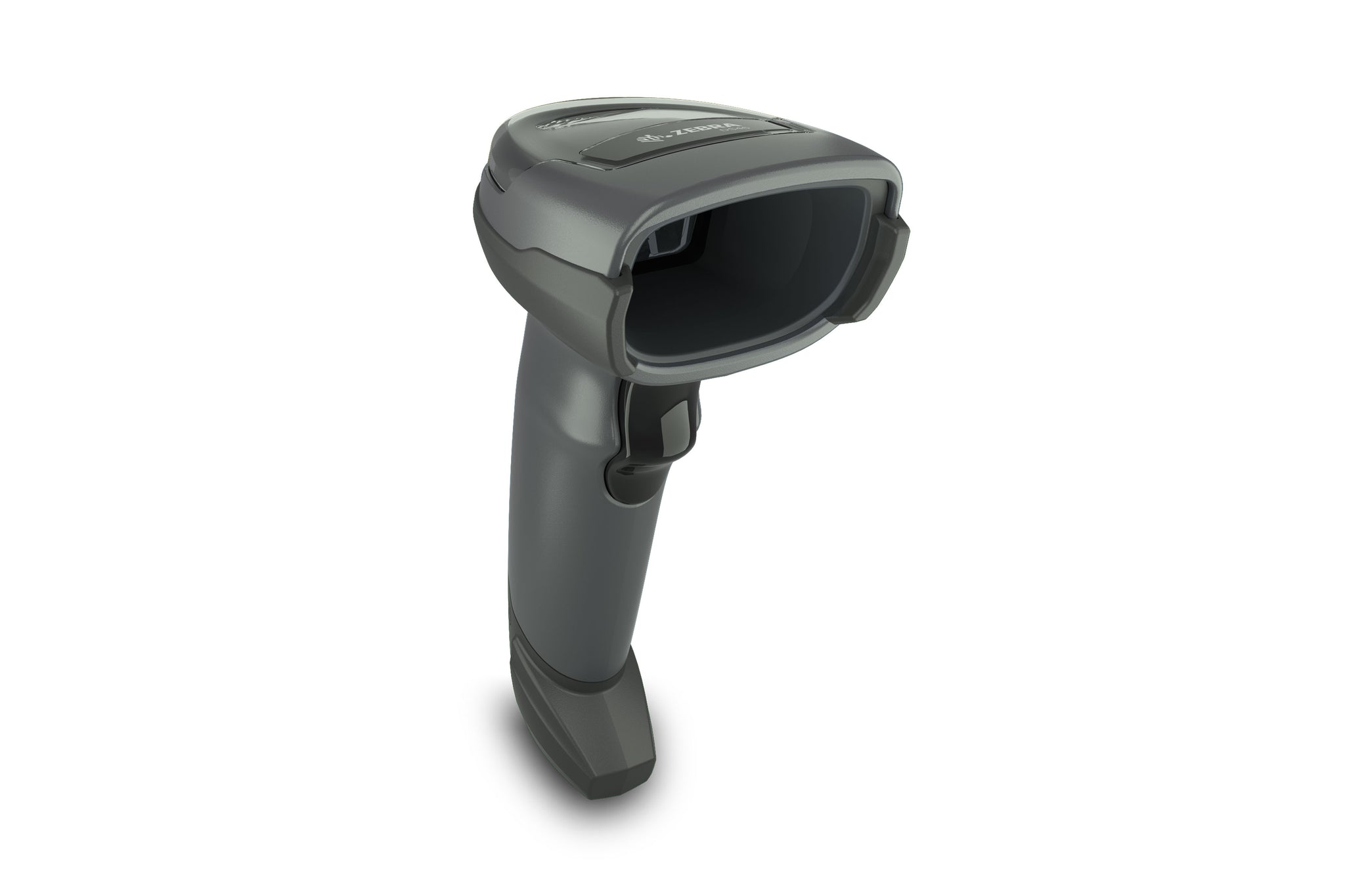

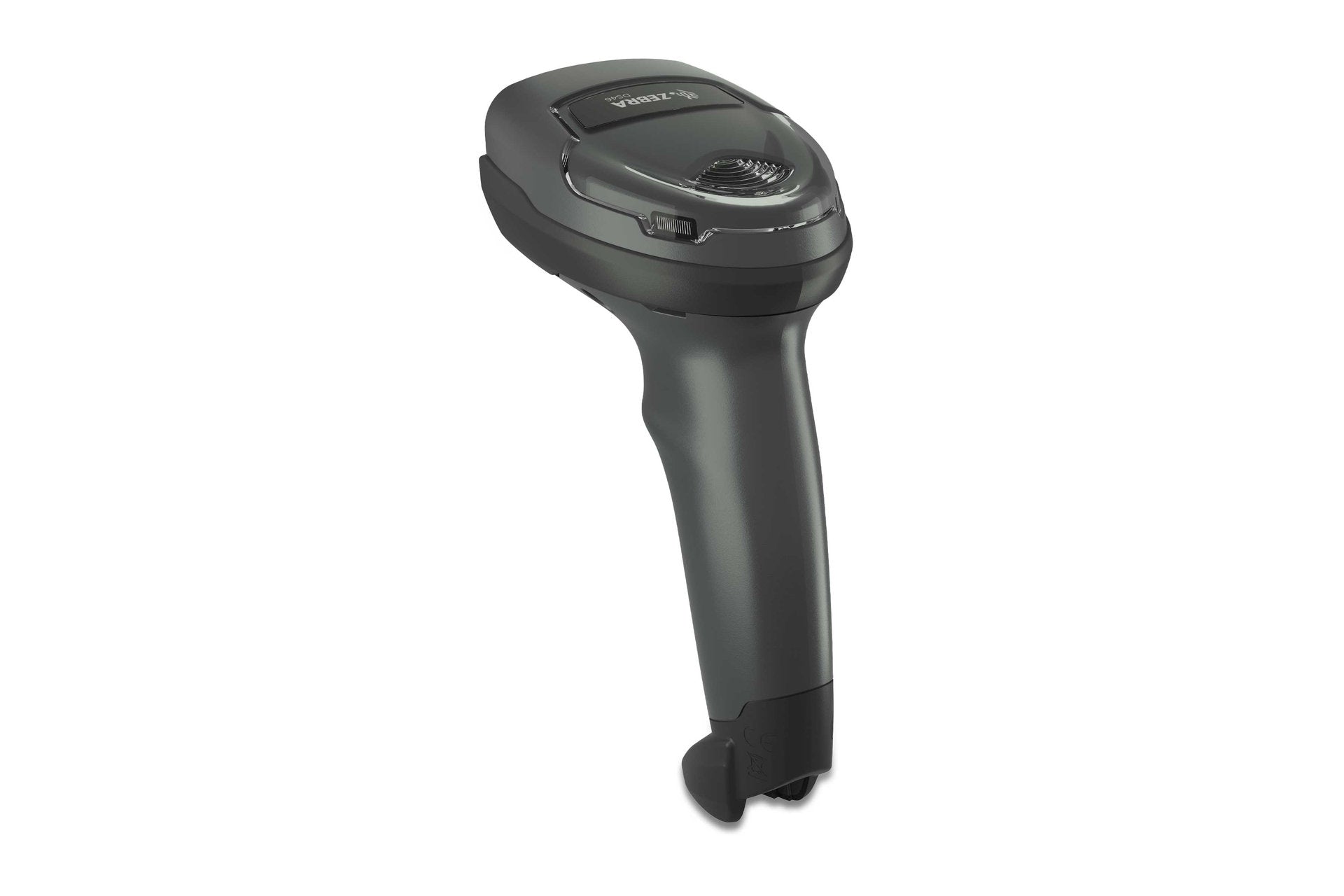

Zebra DS4608-SR 1D/2D Handheld Barcode Scanner Kit with Stand, USB, Twilight Black
PRODUCT DESCRIPTION
Zebra DS4608-SR7U2100SGW 1D/2D Handheld Barcode Scanner Kit with Stand (USB, Twilight Black)
Scans almost anything
Reads 1D and 2D barcodes on labels and phone screens, plus OCR text, with Zebra PRZM intelligent imaging for fast first-time decodes.
Handheld or hands-free
The included stand lets staff switch between handheld scanning and hands-free presentation mode on the fly.
Long working range
Reads 13 mil UPC from contact up to 71 cm, and 20 mil Code 39 out to about 1.1 m.
Built to last
Survives multiple 1.8 m drops to concrete, IP52 sealed, and carries a 5-year Zebra warranty on the corded DS4608.
Zebra DS4608 Datasheet — Technical Specifications
General
| Product Name | Zebra DS4608-SR 1D/2D Handheld Barcode Scanner Kit |
| Part Number | DS4608-SR7U2100SGW |
| Series | Zebra DS4600 Series (standard range) |
| Colour | Twilight Black |
| Manufacturer Warranty | 5 years (Zebra hardware warranty, corded DS4608) |
Physical
| Dimensions | 16.5 cm H x 6.7 cm W x 9.8 cm D |
| Weight | 161.9 g |
| Input Voltage | 4.5 to 5.5 VDC host powered or external supply |
| Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| User Indicators | Direct Decode Indicator, good decode LEDs, rear view LEDs, adjustable beeper |
| EAS | Compatible with Checkpoint EAS deactivation |
Performance
| Image Sensor | 1280 x 800 pixels |
| Field of View | 31.6° H x 22.6° V nominal |
| Illumination / Aimer | (2) 660 nm red LEDs / circular 617 nm amber LED |
| Skew / Pitch / Roll | ±60° / ±60° / 0–360° |
| Minimum Element Resolution | Code 39: 3.0 mil; DataMatrix: 5.0 mil |
| Symbologies | 1D: Code 39, Code 128, Code 93, Codabar, UPC/EAN, GS1 DataBar and more; 2D: PDF417, QR, Micro QR, DataMatrix, Aztec, MaxiCode, Han Xin, DotCode, Dotted DataMatrix; OCR-A/B, MICR |
| Decode Range | UPC 13 mil: 0 to 71.1 cm; Code 39 20 mil: 0 to 111.8 cm; QR 20 mil: 0 to 44.5 cm |
| Image Capture | BMP, JPEG or TIFF; 96 PPI on an A4 document |
Environmental
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Drop | Multiple 1.8 m drops to concrete |
| Tumble | 2,000 tumbles at 0.5 m |
| Sealing | IP52 |
| Ambient Light Immunity | 0 to 107,000 lux |
Compatibility & Connectivity
POS and PC Connection
The USB cable connects to Windows, macOS, Linux and Android hosts as a USB keyboard (HID) device, with over 90 international keyboard layouts supported.
Retail Features
Multi-code capture with one trigger pull, picklist mode to single out one barcode, GS1 label parsing and EAS tag deactivation.
Management Tools
Zebra 123Scan for setup and firmware, Scanner SDK and Scanner Management Service for remote management.
Package Contents & Zebra DS4600 Series Ordering Information
In the Box
DS4608-SR scanner (Twilight Black), USB cable and stand.
Zebra DS4600 Series
| Model | Key feature |
| DS4608-SR7U2100SGW (this listing) | Corded, standard range, USB kit with stand |
| DS4608-HD | Corded, high density for very small codes |
| DS4678 | Cordless Bluetooth with cradle |
| DS4608-HC | Healthcare white, disinfectant-ready |
Datasheet & Downloads
| Zebra product page | DS4608 on zebra.com |
| Specification sheet | DS4600 Series spec sheet |
Frequently Asked Questions — Zebra DS4608
Is the stand included?
Yes. This SGW kit includes the stand, so the scanner works hands-free at the counter.
Can it read QR codes on phones?
Yes. It reads 1D and 2D barcodes from paper and from phone or tablet screens.
Is it plug-and-play?
Yes. Connected by USB it works as a keyboard device on most POS systems and PCs.
What warranty do I get?
Zebra warrants the corded DS4608 for 5 years from shipment. Supplied by SourceIT with a GST invoice.
