Zebra DS3678-ER Rugged Industrial Handheld Scanner

Zebra DS3678-ER Rugged Industrial Warehouse Handheld Barcode Scanner (DS3678-ER3U42A2SVW) - 1 Year Local Warranty

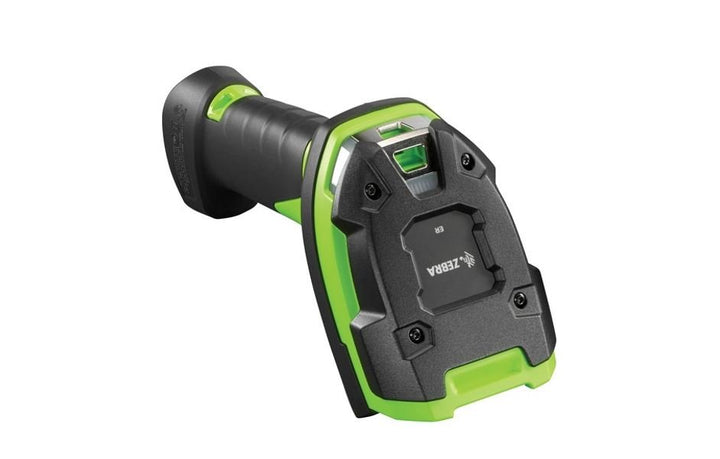

Zebra DS3678-ER Rugged Industrial Warehouse Handheld Barcode Scanner (DS3678-ER3U42A2SVW)

The Zebra DS3678-ER is a rugged and powerful handheld barcode scanner designed for industrial environments, especially warehouses, logistics, and manufacturing floors. Built to withstand the toughest conditions, this scanner offers advanced features that enable the quick and accurate capture of barcodes, even in challenging conditions such as harsh weather, dirt, and dust. Its extended range scanning technology ensures it can capture barcodes from close up to several meters away, offering superior flexibility for your warehouse operations.

Rugged Design for Tough Environments

Engineered for durability, the Zebra DS3678-ER features a tough design that can endure drops from up to 2.4 meters (8 feet) onto concrete, making it perfect for high-risk environments like warehouses and factories. Its IP67-rated sealing ensures complete protection against dust and water, allowing it to function reliably in environments where moisture or dust is a concern. This makes the Zebra DS3678-ER one of the most rugged scanners on the market today, built to handle the most demanding work conditions.

Extended Range Scanning for Improved Efficiency

The Zebra DS3678-ER3U42A2SVW comes with extended range scanning capabilities, enabling it to read barcodes at a much longer distance compared to standard scanners. It can easily scan barcodes from as close as 3.7 cm (1.5 inches) to as far as 21.3 meters (70 feet), making it ideal for use in large warehouses where barcodes on high shelves need to be scanned from a distance. The ability to capture both short-range and long-range barcodes in a single pass boosts operational efficiency and reduces the need for manual retrieval of items.

Superior Performance and Flexibility

The Zebra DS3678-ER is equipped with advanced scanning technology that can capture barcodes in virtually any condition, including damaged or poorly printed barcodes. Its high-performance scanning engine allows for quick data capture in a variety of conditions, including low light, direct sunlight, and reflective surfaces. This makes the scanner ideal for environments like shipping and receiving docks, inventory management, and order picking, where efficiency is critical.

Seamless Connectivity and Integration

Designed for ease of use, the Zebra DS3678-ER3U42A2SVW offers multiple connectivity options, including Bluetooth and USB, ensuring it can easily integrate into your existing infrastructure. The Bluetooth version enables wireless operation with a range of up to 100 meters (328 feet), providing flexibility in large-scale environments. The scanner’s versatile connectivity ensures compatibility with a wide variety of devices, including PCs, tablets, and mobile computers, ensuring seamless operation across your warehouse or industrial operations.

Technical Specifications

General
Model: ZT231
Part Number: ZT23142-T0P000FZ
Product Name: Zebra ZT231 Thermal Industrial Label Printer
Manufacturer: Zebra Technologies
Product Type: Industrial Barcode Label Printer
Printer Category: Industrial Thermal Label Printer
Printing Technology: Thermal Transfer and Direct Thermal
Deployment: Manufacturing, Warehousing, Logistics, Retail, Transportation, Healthcare
Connectivity Type: USB, Ethernet, Serial, USB Host
Warranty: 1 Year Manufacturer Warranty

Printing Specifications
Print Technology: Thermal Transfer / Direct Thermal
Print Resolution: 203 dpi (8 dots/mm)
Maximum Print Speed: Up to 12 inches per second (305 mm/s)
Maximum Print Width: 4.09 inches (104 mm)
Maximum Print Length: 157 inches (3,988 mm)
Processor: High-Performance Processor
Memory: 256 MB SDRAM
Flash Memory: 256 MB Flash
Print Direction: Bidirectional Printing

Media Handling
Media Type:
• Die-Cut Labels
• Continuous Labels
• Black Mark Labels
• Notched Labels
• Tags
• Receipt Paper

Maximum Media Width: 114 mm (4.5 inches)
Minimum Media Width: 19.4 mm (0.75 inches)
Maximum Roll Diameter: 203 mm (8 inches)
Media Thickness: 0.058 mm to 0.25 mm
Media Sensors: Dual Reflective and Transmissive Sensors
Media Loading: Side-Loading Media Path

Ribbon Specifications
Ribbon Type: Wax, Wax/Resin, Resin
Maximum Ribbon Length: 450 m (1,476 ft)
Ribbon Core Diameter: 25.4 mm (1 inch)
Maximum Ribbon Width: 110 mm (4.3 inches)
Ribbon Monitoring: Ribbon-Out Detection Supported

Connectivity
USB Interface: USB 2.0 Device
USB Host: Supported
Ethernet Interface: 10/100 Ethernet
Serial Interface: RS-232 Serial
Network Printing: Supported
Remote Configuration: Supported

Supported Printer Languages
• ZPL II
• EPL
• XML
• PDF Direct
• ZBI 2.0 (Optional)

Barcode Support

1D Barcodes:
• Code 11
• Code 39
• Code 93
• Code 128
• UPC-A
• UPC-E
• EAN-8
• EAN-13
• GS1 DataBar
• Codabar
• Interleaved 2-of-5

2D Barcodes:
• QR Code
• PDF417
• Data Matrix
• Aztec
• MaxiCode
• MicroPDF417

Fonts & Graphics
Resident Fonts: Scalable and Bitmap Fonts
Unicode Support: Supported
Graphic Formats: BMP, GIF, PNG, PCX Supported
Custom Fonts: Downloadable

Operating System Compatibility

Supported Operating Systems:
• Windows 11
• Windows 10
• Windows Server 2025
• Windows Server 2022
• Windows Server 2019
• macOS
• Linux

Software Support
Zebra Setup Utilities: Supported
ZebraDesigner Professional: Supported
Print DNA Suite: Supported
Firmware Updates: Supported
Remote Printer Management: Supported
Printer Configuration Tools: Supported

Management & Security
Web-Based Printer Management: Supported
Remote Monitoring: Supported
Network Configuration Management: Supported
Password Protection: Supported
Enterprise Device Management: Supported
Secure Connectivity Features: Supported

Design & Construction
Color: Black and Gray
Form Factor: Industrial Label Printer
Display Type: 4.3-Inch Full-Color Touchscreen Display
Media Loading: Side-Loading Design
Construction: Durable Metal Frame Construction
Durability: Industrial-Grade Design for Continuous Operation

Performance & Features
Industrial Thermal Transfer and Direct Thermal Printing
Large Full-Color Touchscreen Interface
Fast Label Printing Performance
Designed for Medium-to-High Volume Printing
Easy Media and Ribbon Loading
Advanced Print DNA Software Support
Reliable 24/7 Industrial Operation
Supports Multiple Label Formats and Media Types
Optimized for Warehouse and Manufacturing Environments
Enterprise-Class Reliability and Performance

Environmental Specifications
Operating Temperature: 5°C to 40°C
Storage Temperature: -40°C to 60°C
Operating Humidity: 20% to 85% Non-Condensing
Storage Humidity: 5% to 85% Non-Condensing

Physical Specifications
Form Factor: Industrial Label Printer
Width: 241 mm
Height: 279 mm
Depth: 432 mm
Weight: Approximately 9.1 kg
Color: Black and Gray

Package Contents
Zebra ZT231 Thermal Industrial Label Printer
Power Supply and Power Cord
USB Interface Cable
Quick Start Guide
Printer Documentation

Key Features
Thermal Transfer and Direct Thermal Printing
203 dpi Print Resolution
Up to 305 mm/s Print Speed
4.3-Inch Full-Color Touchscreen Display
USB, Ethernet, Serial and USB Host Connectivity
256 MB SDRAM and 256 MB Flash Memory
Industrial-Grade Construction
Supports ZPL, EPL and PDF Direct
Print DNA Software Suite
High-Capacity 450 m Ribbon Support
Designed for Medium-to-High Volume Printing
Enterprise-Class Reliability

Typical Use Cases
Warehouse Barcode Label Printing
Inventory Management
Shipping and Logistics Labels
Manufacturing Product Identification
Asset Tracking Applications
Retail Distribution Centers
Compliance Label Printing
Work-in-Progress Tracking
Healthcare Specimen Labeling
Supply Chain Operations
Industrial Barcode and Label Printing Environments
