Zebra DS2278-HC Healthcare Cordless 1D/2D Barcode Scanner Kit with Presentation Cradle, Healthcare White
PRODUCT DESCRIPTION
Zebra DS2278-HCBU2100PRR DS2278-HC Healthcare Cordless 1D/2D Barcode Scanner Kit
Purpose-built for healthcare
Healthcare White, disinfectant-ready housing that stands up to frequent cleaning at the bedside, in pharmacy and in labs.
Quiet at night
"Do Not Disturb" mode silences beeps and dims lights for night-time patient rounds.
Cordless with full-shift power

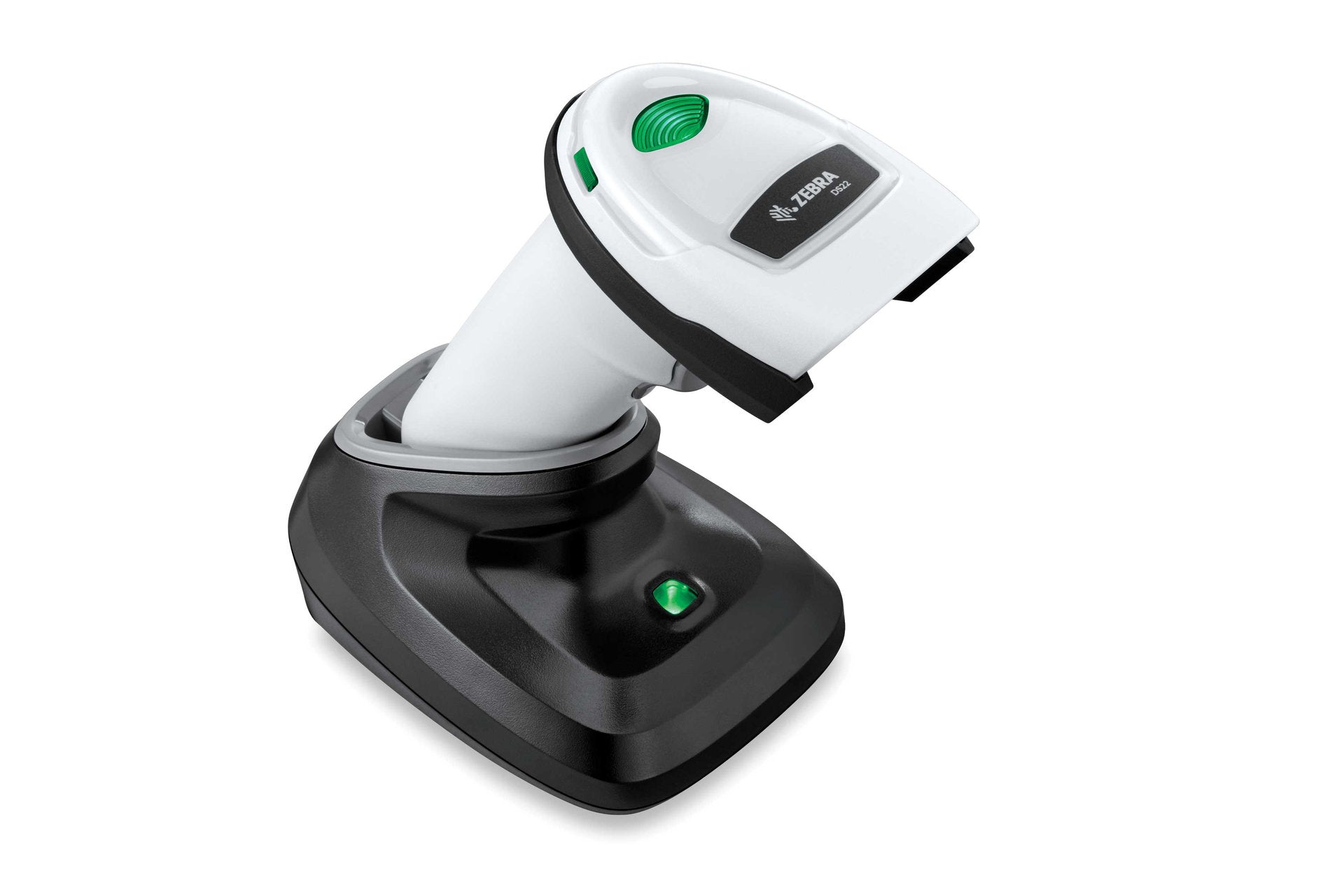

Bluetooth with a 2,400 mAh battery rated for about 84 hours per charge, plus a presentation cradle for hands-free use.
Instant decoding
PRZM intelligent imaging reads 1D and 2D barcodes on wristbands, medication and phone screens.
Zebra DS2278-HC Datasheet — Technical Specifications
General
| Product Name | Zebra DS2278-HC Healthcare Cordless Scanner Kit |
| Part Number | DS2278-HCBU2100PRR |
| Series | Zebra DS2200 Series for Healthcare |
| Colour | Healthcare White |
| Dimensions | 17.5 cm H x 6.6 cm W x 9.0 cm D (scanner) |
| Weight | 214 g (scanner); 151 g (presentation cradle) |
| Manufacturer Warranty | Scanner and cradle 36 months; battery 12 months (Zebra) |
Performance
| Image Sensor | 640 x 480 pixels |
| Field of View | 32.8° H x 24.8° V nominal |
| Aimer / Illumination | Linear 624 nm amber LED / (2) 645 nm red LEDs |
| Swipe Speed (hands-free) | Up to 76.2 cm/s for 13 mil UPC |
| Skew / Pitch / Roll | ±65° / ±65° / 0–360° |
| Minimum Resolution | Code 39/128: 4.0 mil; DataMatrix: 6.0 mil |
| Decode Range | UPC 13 mil: 1.3 to 36.8 cm; QR 20 mil: 0 to 27.9 cm |
Wireless & Battery
| Bluetooth | Bluetooth 4.0 with BLE, Class 2 (10 m), SPP and HID |
| Battery | 2,400 mAh Li-Ion |
| Scans per Charge | 110,000 at 60 scans/min |
| Operating Time per Charge | 84 hours |
| Host Interfaces | USB, RS232, Keyboard Wedge, IBM 46XX |
Environmental
| Operating Temperature | 0°C to 50°C (cradle 0°C to 40°C) |
| Drop | Multiple 1.5 m drops to concrete |
| Sealing | IP52 |
| Cleaning | Disinfectant ready (see Zebra approved cleaners list) |
Compatibility & Connectivity
EMR and Clinical Systems
Works as a USB keyboard through the cradle with EMR/EHR systems, or pairs directly by Bluetooth with tablets running clinical apps.
Easy Pairing
Scan-to-pair with the cradle or with Zebra's Scan-To-Connect barcode on a PC or tablet screen.
Management
123Scan, Scanner SDK and Scanner Management Service.
Package Contents & Zebra DS2200 Healthcare Ordering Information
In the Box
DS2278-HC cordless scanner kit with presentation cradle and USB cable, part number DS2278-HCBU2100PRR.
Zebra DS2200 Series for Healthcare
| Model | Key feature |
| DS2278-HCBU2100PRR (this listing) | Cordless kit with presentation cradle |
| DS2208-HC | Corded healthcare imager, 5-year warranty |
Datasheet & Downloads
| Specification sheet | DS2200 Series for Healthcare spec sheet |
| DS2200 Series page | DS2278 on zebra.com |
Frequently Asked Questions — Zebra DS2278-HC
Can it be wiped with hospital disinfectants?
Yes. The housing is disinfectant-ready; refer to Zebra's approved cleaners list for compatible products.
How far can I walk from the cradle?
Class 2 Bluetooth gives about 10 m range.
What warranty do I get?
Zebra warrants the DS2278-HC scanner and cradle for 36 months and the battery for 12 months.
