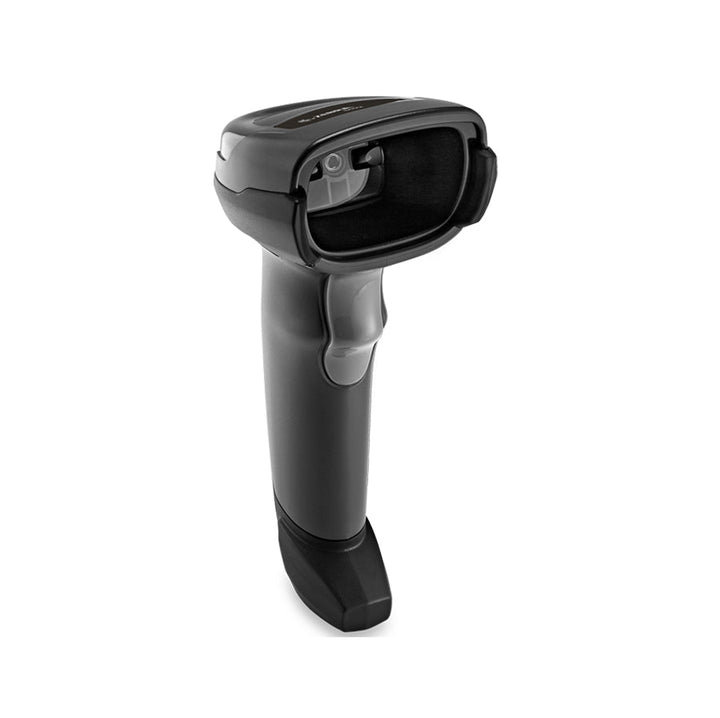

Zebra DS2278 Barcode Scanner

Zebra DS2278 Cordless Handheld 1D/2D Barcode Scanner (DS2278-SR7U2100PRW) - 1 Year Local Warranty

Reliable Wireless Scanning for Modern Workplaces

The Zebra DS2278 Cordless Handheld 1D/2D Barcode Scanner (DS2278-SR7U2100PRW) is a versatile and high-performance barcode scanning solution designed to improve operational efficiency across a wide range of industries. Combining the freedom of wireless connectivity with enterprise-grade scanning performance, the DS2278 enables workers to scan barcodes from virtually any distance, angle, or surface condition without being tethered to a workstation.

Superior Scanning Performance in Any Condition

The Zebra DS2278 is equipped with advanced 1D and 2D barcode scanning technology, capable of reading standard barcodes, QR codes, PDF417, data matrix, and even damaged or poorly printed labels. Its multi-line raster scanning pattern ensures fast and reliable barcode capture, reducing errors and improving throughput. Whether scanning products at retail checkout, tracking assets in a warehouse, or processing shipments in a distribution center, the DS2278 delivers consistent accuracy and speed.

Wireless Freedom with Reliable Connectivity

Featuring Bluetooth wireless connectivity, the Zebra DS2278 allows workers to move freely within their work area without worrying about cable entanglement. It supports a wireless range of up to 100 meters in open environments, allowing it to be used across large retail floors, warehouse aisles, or manufacturing areas. The scanner pairs seamlessly with its charging cradle and supports both single-slot and multi-slot cradles for flexible deployment options.

Built for Durability in Enterprise Environments

Designed to withstand the demands of daily business operations, the Zebra DS2278 features an IP52 rating for dust and splash resistance, along with the ability to survive multiple 1.5 m drops to concrete. Its robust construction ensures long-term reliability, reducing replacement costs and minimizing downtime in busy work environments where scanning devices see heavy daily use.

Technical Specifications

General
Model: DS2278
Part Number: DS2278-SR7U2100PRW
Product Name: Zebra DS2278 Cordless Handheld Barcode Scanner
Manufacturer: Zebra Technologies
Product Type: Cordless Barcode Scanner
Series: DS2200 Series
Form Factor: Handheld Cordless Scanner
Connectivity Type: Bluetooth Wireless
Interface: USB (via Cradle)
Warranty: 1 Year Standard Manufacturer Warranty
Deployment: Retail, Warehousing, Healthcare, Manufacturing, Hospitality

Scanning Specifications
Scan Engine: Single-Line Raster
Scanner Type: 1D/2D Barcode Scanner
Barcode Support:
• 1D Barcodes
• 2D Barcodes
• QR Codes
• PDF417
• Data Matrix
• GS1 DataBar
• Composite Codes
Scanning Mode: Standard Range (SR)

Scanning Performance: High-Speed Cordless Barcode Scanning
Damaged Barcode Reading: Supported
Mobile Screen Barcode Reading: Supported
Omnidirectional Scanning: Supported

Wireless Specifications
Wireless Technology: Bluetooth
Bluetooth Version: Bluetooth 4.0 (Classic)
Wireless Range: Up to 100 m (Open Air)
Radio Frequency: 2.4 GHz ISM Band
Pairing: Single-slot Cradle Pairing

Physical Interface
Cradle Interface: USB
Cradle Type: Single-slot Charging Cradle (Included)
Host Connectivity: Via USB Cradle

Battery Specifications
Battery Type: Rechargeable Lithium-Ion Battery
Charging Method: Via Cradle
Shift Operation: Full Shift Usage Supported
Battery Indicator: LED Battery Status Indicator

Durability Specifications
Ingress Protection Rating: IP52
Drop Resistance: Multiple 1.5 m Drops to Concrete
Sealing Protection: Splash and Dust Resistant

Environmental Specifications
Operating Temperature: 0°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity: 5% to 85% Non-Condensing
Electrostatic Discharge Protection: Supported

Ports & Interfaces
USB Port (via Cradle)
Charging Contacts
Cradle LED Indicators
Scanner Trigger Button
Bluetooth Pairing Button

Visual and Audio Indicators
LED Scan Indicator
Beeper/Buzzer
Vibration Alert (Optional Accessory Supported)
Battery Status LED Indicator

Design & Construction
Color: White
Form Factor: Cordless Handheld Barcode Scanner
Construction: Rugged Plastic Housing
Ergonomic Design: Yes, Lightweight and Comfortable Grip
One-Handed Operation: Supported

Physical Specifications
Dimensions: 160 mm x 66 mm x 104 mm (Approx.)
Weight: Approximately 165 g (without battery)
Form Factor: Gun-Style Handheld
Color: White

Package Contents
Zebra DS2278 Cordless Handheld Barcode Scanner
USB Charging Cradle
USB Cable
Rechargeable Battery
Quick Start Guide

Key Features
1D and 2D Cordless Barcode Scanner
Bluetooth 4.0 Wireless Connectivity
Up to 100 m Wireless Range
Standard Range (SR) Scan Engine
IP52 Rated for Dust and Splash Resistance
1.5 m Drop Resistance
USB Connectivity via Cradle
Charging and Communication Cradle Included
Ergonomic Handheld Design
Full Shift Battery Operation

Performance & Features
Fast and Accurate 1D and 2D Barcode Scanning
Reliable Wireless Freedom for Mobile Workers
Durable Design for High-Volume Scanning Environments
Designed for Retail, Warehouse, and Healthcare Use
Supports Standard and Custom Barcode Formats
Easy Pairing with USB Cradle for Seamless Connectivity
LED and Beeper Feedback for Scan Confirmation
Lightweight and Ergonomic for All-Day Use

Typical Use Cases
Retail Barcode Scanning
Inventory Management
Asset Tracking
Warehouse Operations
Healthcare Patient Tracking
Document Management
Library Management
Manufacturing Line Scanning
Transportation and Logistics
Hospitality Operations
Point of Sale (POS) Applications
Mobile Workforce Data Collection
Receiving and Dispatch Operations
