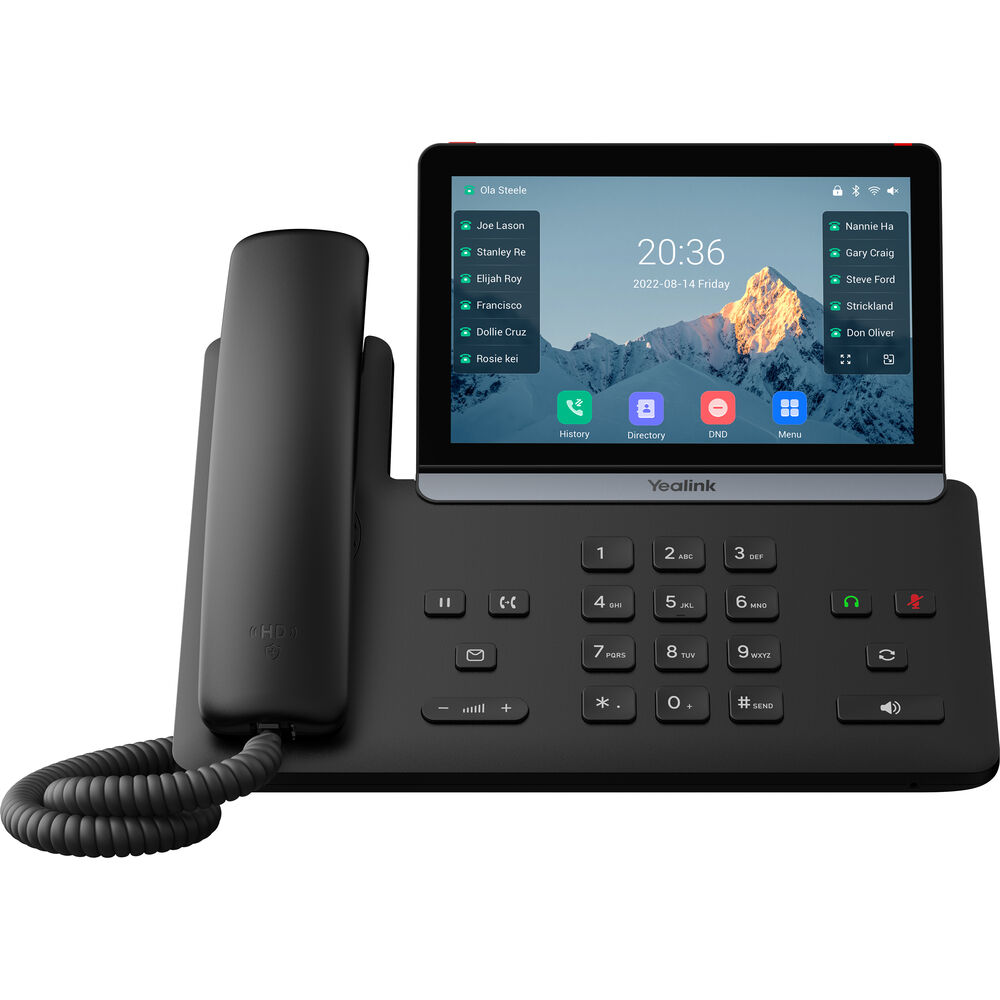

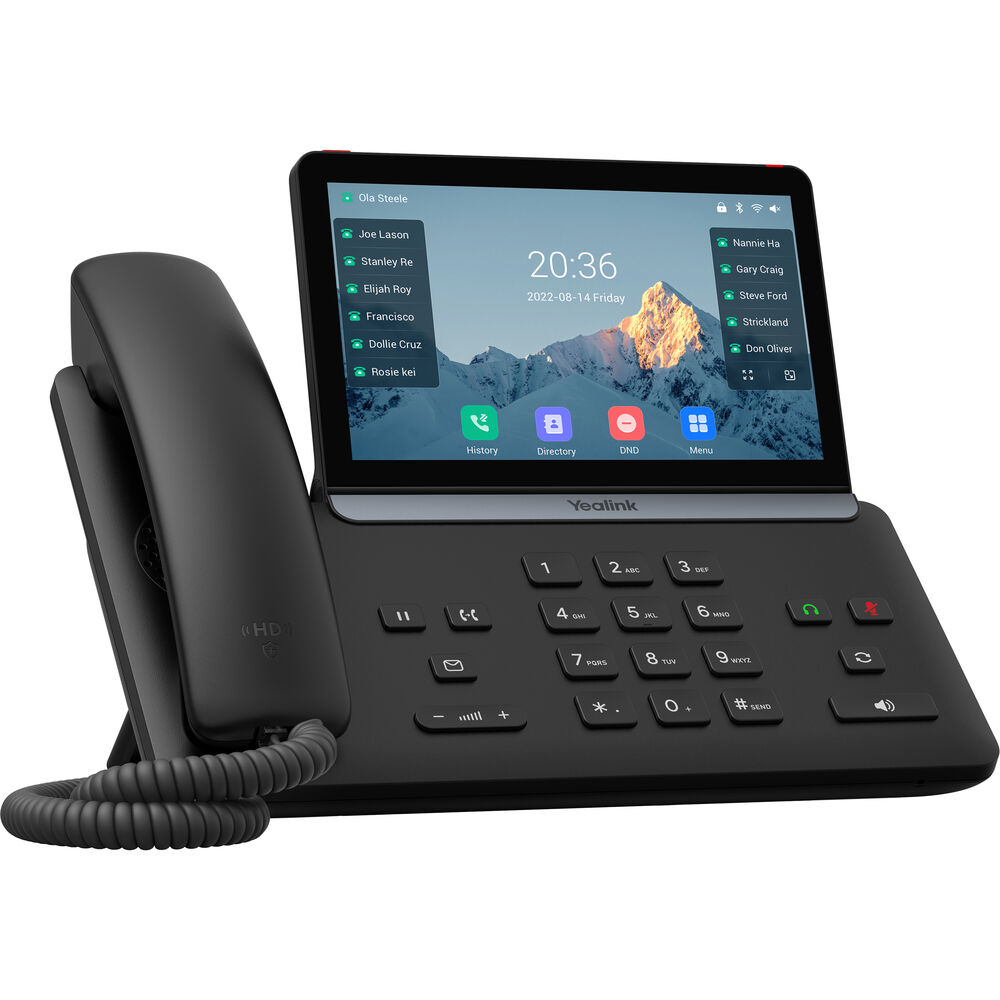

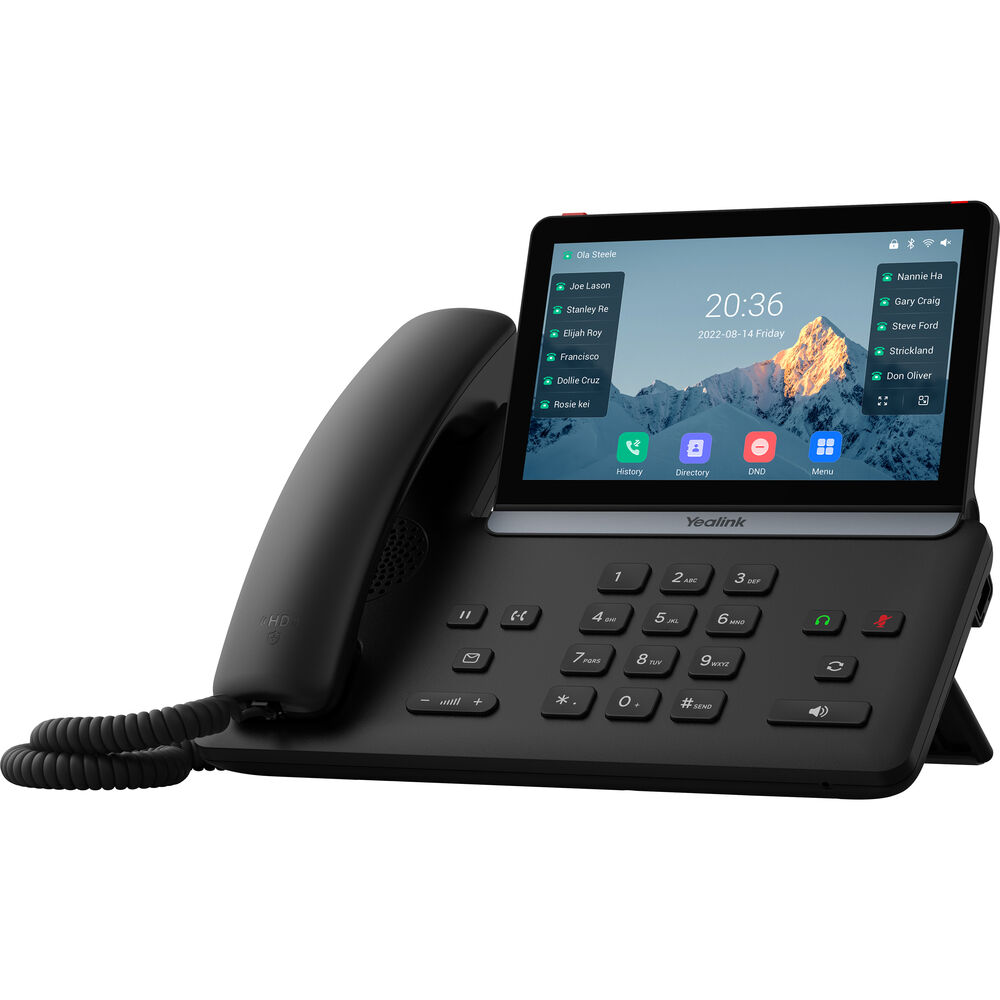

Yealink SIP-T87W Touch Screen Business IP Phone
PRODUCT DESCRIPTION
Yealink SIP-T87W 7" Touch Screen Business IP Phone with Wi-Fi 6 and Bluetooth 5.0 (SIP-T87W) - 1 Year Local Warranty
Yealink T87W — Ultra Prime Touch Screen Business Phone
The Yealink SIP-T87W brings a 7-inch 800 x 480 multi-point capacitive touch screen to the new T8 series. With 16 SIP accounts, 84 one-touch DSS keys and 10-way conferencing, it is built for busy executives and professionals who handle many lines from one desk.
Clear HD Audio with Acoustic Shield
A 3W speaker, AI noise cancellation, Acoustic Shield and Smart Noise Filtering keep voices clear in open-plan offices, while wideband G.722 and AMR-WB (optional) codecs deliver natural HD voice on every call.
Wi-Fi 6, Bluetooth 5.0 and Dual Gigabit
Built-in dual-band Wi-Fi 6 and Bluetooth 5.0, dual-port Gigabit Ethernet with PoE, USB Type-A and Type-C ports, USB/EHS headset support and up to three colour-screen expansion modules make the T87W a flexible desk or reception phone.
Secure and Centrally Managed
A Trusted Execution Environment (TEE) hardware encryption solution, TLS 1.3, SRTP, 802.1X and WPA2/WPA3 protect every call, and Yealink Device Management Platform (YDMP/YMCS) plus auto-provisioning let IT manage fleets remotely.
Yealink SIP-T87W Datasheet — Technical Specifications
| Model | Yealink SIP-T87W |
| Part Number / SKU | SIP-T87W |
| Product Type | 16-account touch screen business IP desk phone with Wi-Fi 6 and Bluetooth 5.0 |
| Warranty | 1 Year Local Warranty (Singapore) |
| Display | 7" 800 x 480 capacitive adjustable multi-point touch screen; dark and light themes |
| Indicators | LED for call and message waiting indication |
| VoIP Accounts | 16 VoIP accounts |
| Keys | 84 one-touch DSS keys; 7 function keys (Hold, Transfer, Message, Headset, Mute, Redial, Speakerphone) |
| Conferencing | 10-way conferencing |
| Audio | 3W speaker, AI noise cancellation, Acoustic Shield, Smart Noise Filtering |
| Wideband Codecs | AMR-WB (optional), G.722 |
| Narrowband Codecs | AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC |
| Ethernet | Dual-port Gigabit Ethernet |
| PoE | Supported |
| Wi-Fi | Built-in dual-band 2.4/5 GHz, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Bluetooth | Built-in Bluetooth 5.0 |
| USB | 2 x USB ports (Type-A and Type-C); USB headset and EHS support |
| Expansion | Up to 3 colour-screen expansion modules |
| Security | TEE hardware encryption solution, SRTP and TLS call encryption, TLS 1.3, IEEE 802.1X, WPA2/WPA3 |
| Management | Auto-provisioning via FTP/TFTP/HTTP/HTTPS; Yealink Device Management Platform (YDMP/YMCS) |
| Power | PoE: 2.401–3.275 W; optional power adapter (AC 100–240 V in, DC 5 V/2 A out): 2.77–2.96 W |
| Dimensions (W x D x H x T) | 263.7 x 187.2 x 237.9 x 38.9 mm |
| Operating Environment | -10 to 45 °C, 10–95% humidity |
| Colour / Mounting | Classic Grey; wall mountable (optional bracket) |
Compatibility & Software Support
The SIP-T87W is a standards-based SIP phone that registers up to 16 accounts on SIP-based IP-PBX platforms and SIP trunk services, including popular systems used by Singapore businesses such as 3CX, Yeastar and Asterisk-based PBXs. It supports USB and EHS wireless headsets and colour-screen expansion modules, and is managed through the web interface, the phone itself, auto-provisioning or Yealink YDMP/YMCS.
Package Contents & T8 Series Ordering Information
In the box: Yealink SIP-T87W IP phone, handset with handset cord, 2 m CAT5E Ethernet cable, stand, quick start guide. Power adapter and wall mount bracket optional (PoE supported).
| Yealink SIP-T85W | 5.5" colour screen, Wi-Fi 6 and Bluetooth 5.0 |
| Yealink SIP-T87W | 7" touch screen, Wi-Fi 6 and Bluetooth 5.0 (this model) |
| Yealink SIP-T88W | 7" Android 13 smart phone, BTH88 handset optional |
| Yealink SIP-T88W Pro | 7" Android 13 smart phone with BTH88 Bluetooth handset |
| Yealink SIP-T88V Pro | 7" Android 13 video phone, 5 MP camera, BTH88 Bluetooth handset |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T87W
What is the difference between the T87W and the T88W?
The T87W has a 7-inch 800 x 480 touch screen. The T88W steps up to a 7-inch 1024 x 600 screen running Android 13 and supports the optional BTH88 Bluetooth handset.
How many accounts and DSS keys does the SIP-T87W support?
16 VoIP accounts and 84 one-touch DSS keys.
Does the T87W have Wi-Fi and Bluetooth?
Yes — dual-band Wi-Fi 6 and Bluetooth 5.0 are built in.
Is the power adapter included?
No. The phone supports PoE; a 5 V/2 A power adapter is optional.
Can the SIP-T87W be wall mounted?
Yes, with the optional wall mount bracket.
Does the Yealink SIP-T87W come with local warranty in Singapore?
Yes. Every SIP-T87W sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
