Yealink SIP-T85W Business IP Phone
PRODUCT DESCRIPTION
Yealink SIP-T85W 5.5" Colour Screen Business IP Phone with Wi-Fi 6 and Bluetooth 5.0 (SIP-T85W) - 1 Year Local Warranty
Yealink T85W — Ultra Prime Business Phone for Busy Professionals

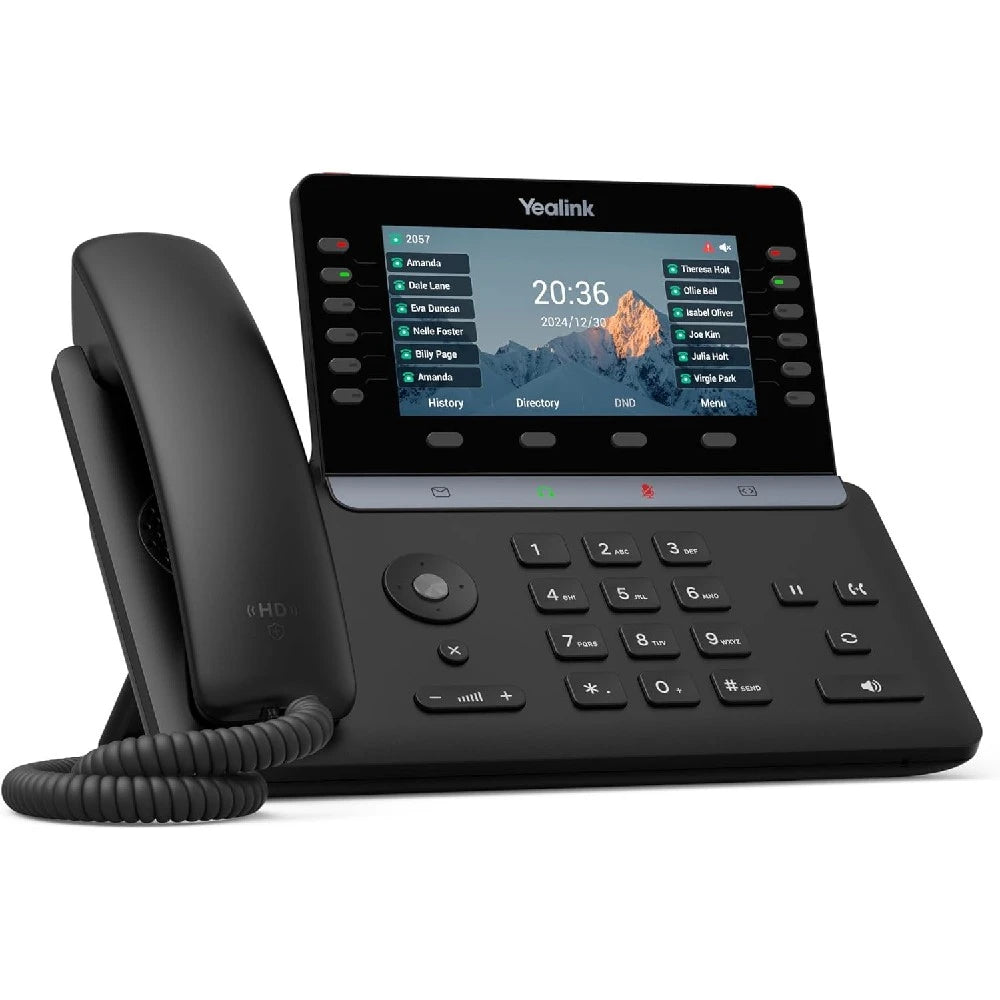

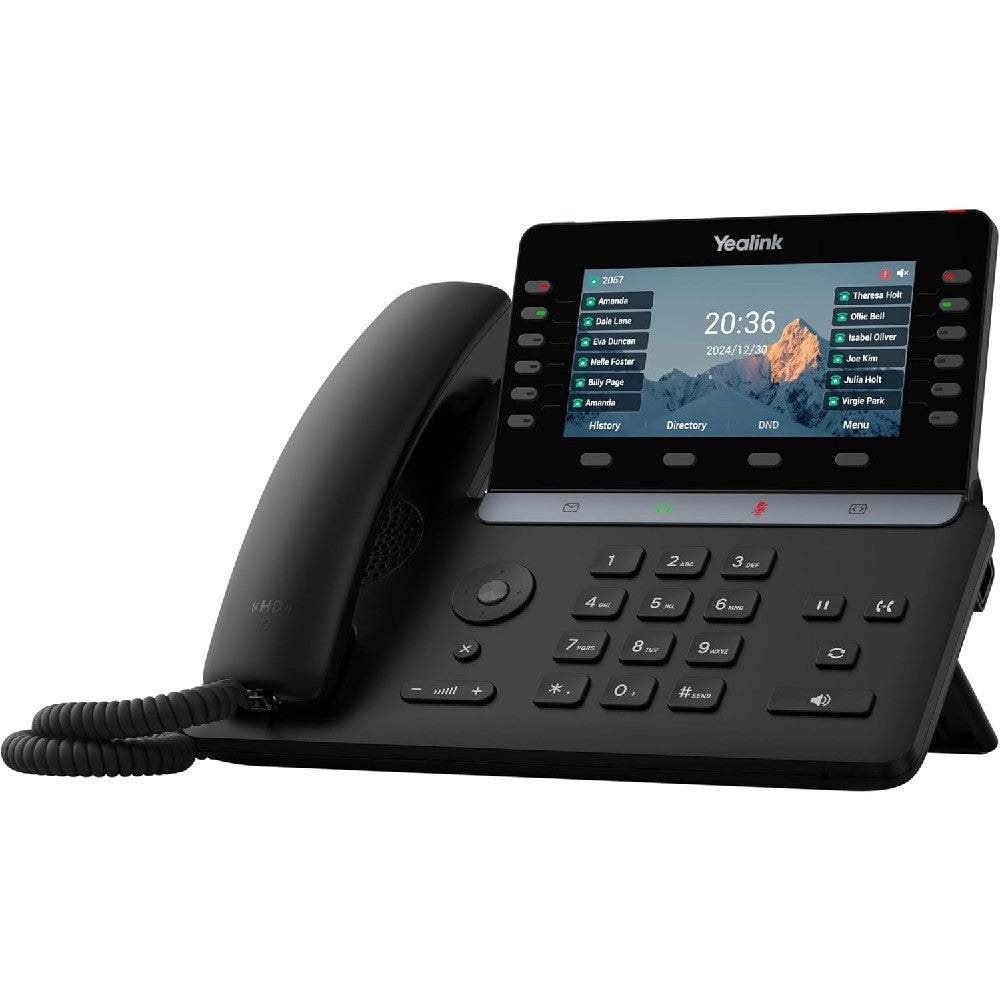

The Yealink SIP-T85W is the entry point to Yealink's new T8 series: a slim, modern desk phone with an adjustable 5.5-inch 960 x 480 colour screen, 16 SIP accounts and 12 LED line keys that expand to 60 DSS keys across 5 pages. Dark and light themes keep the interface easy to read on any desk in a Singapore office.
HD Voice with Acoustic Shield and Smart Noise Filtering
Yealink HD voice on both the handset and the 3W speaker, a full-duplex speakerphone with echo cancellation, Acoustic Shield and Smart Noise Filtering keep conversations clear in busy open-plan spaces. The hearing aid compatible (HAC) handset and 10-way conferencing are built in.
Wi-Fi 6, Bluetooth 5.0 and Dual Gigabit Built In
Built-in dual-band Wi-Fi 6 and Bluetooth 5.0 remove the need for dongles, while dual-port Gigabit Ethernet with PoE, USB Type-A and Type-C ports, USB/EHS headset support and up to three colour-screen expansion modules let the T85W grow with the user.
Three Rings of Security
Secure Boot, a Trusted Execution Environment (TEE) hardware encryption solution, TLS 1.3, SRTP, 802.1X and WPA2/WPA3 protect the device, the network and every call, and auto-provisioning over FTP/TFTP/HTTP/HTTPS simplifies large roll-outs.
Yealink SIP-T85W Datasheet — Technical Specifications
| Model | Yealink SIP-T85W |
| Part Number / SKU | SIP-T85W |
| Product Type | 16-account business IP desk phone with Wi-Fi 6 and Bluetooth 5.0 |
| Warranty | 1 Year Local Warranty (Singapore) |
| Display | 5.5" 960 x 480 colour screen, 16-bit colour depth, adjustable; dark and light themes |
| Indicators | LED for call and message waiting indication |
| VoIP Accounts | 16 VoIP accounts |
| Keys | 12 line keys with LED (up to 60 DSS keys, 5 pages) |
| Conferencing | 10-way conferencing |
| Audio | HD voice (HD handset, HD speaker), 3W speaker, full-duplex hands-free speakerphone with AEC, Acoustic Shield, Smart Noise Filtering, HAC handset |
| Wideband Codecs | AMR-WB (optional), G.722 |
| Narrowband Codecs | AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC |
| Ethernet | Dual-port Gigabit Ethernet |
| PoE | Supported |
| Wi-Fi | Built-in dual-band 2.4/5 GHz, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Bluetooth | Built-in Bluetooth 5.0 |
| USB | 2 x USB ports (Type-A and Type-C); USB headset and EHS support |
| Expansion | Up to 3 colour-screen expansion modules |
| Security | Secure Boot, TEE hardware encryption solution, SRTP, TLS 1.3, IEEE 802.1X, WPA2/WPA3 |
| Management | Configuration via browser, phone or auto-provisioning (FTP/TFTP/HTTP/HTTPS) |
| Power Consumption | PoE: 1.537–2.44 W; power adapter: 1.68–2.06 W |
| Dimensions (W x D x H x T) | 258.73 x 176.3 x 224.38 x 39.1 mm |
| Operating Environment | -10 to 45 °C, 10–95% humidity |
| Colour | Classic Grey |
Compatibility & Software Support
The SIP-T85W is a standards-based SIP phone that registers up to 16 accounts on SIP-based IP-PBX platforms and SIP trunk services, including popular systems used by Singapore businesses such as 3CX, Yeastar and Asterisk-based PBXs. It supports USB and EHS wireless headsets, colour-screen expansion modules, and configuration through the web interface, the phone itself or auto-provisioning for fleet deployments.
Package Contents & T8 Series Ordering Information
In the box: Yealink SIP-T85W IP phone, handset with handset cord, 2 m CAT5E Ethernet cable, stand, quick start guide. PoE supported.
| Yealink SIP-T85W | 5.5" colour screen, Wi-Fi 6 and Bluetooth 5.0 (this model) |
| Yealink SIP-T87W | 7" touch screen, Wi-Fi 6 and Bluetooth 5.0 |
| Yealink SIP-T88W | 7" Android 13 smart phone, BTH88 handset optional |
| Yealink SIP-T88W Pro | 7" Android 13 smart phone with BTH88 Bluetooth handset |
| Yealink SIP-T88V Pro | 7" Android 13 video phone, 5 MP camera, BTH88 Bluetooth handset |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T85W
How many SIP accounts does the SIP-T85W support?
Up to 16 VoIP accounts, with 12 LED line keys that provide up to 60 DSS keys across 5 pages.
Does the SIP-T85W have Wi-Fi and Bluetooth?
Yes — dual-band Wi-Fi 6 and Bluetooth 5.0 are built in, so no dongle is needed.
Is the T85W screen a touch screen?
No. The T85W has an adjustable 5.5-inch colour screen with line keys. For a 7-inch touch screen choose the SIP-T87W or SIP-T88W.
Can I add expansion modules?
Yes, up to three colour-screen expansion modules can be cascaded.
Does the SIP-T85W support PoE?
Yes. The phone can be powered over Ethernet from a PoE switch.
Does the Yealink SIP-T85W come with local warranty in Singapore?
Yes. Every SIP-T85W sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
Product Video
Official Yealink T8 series video (yealink.com).
