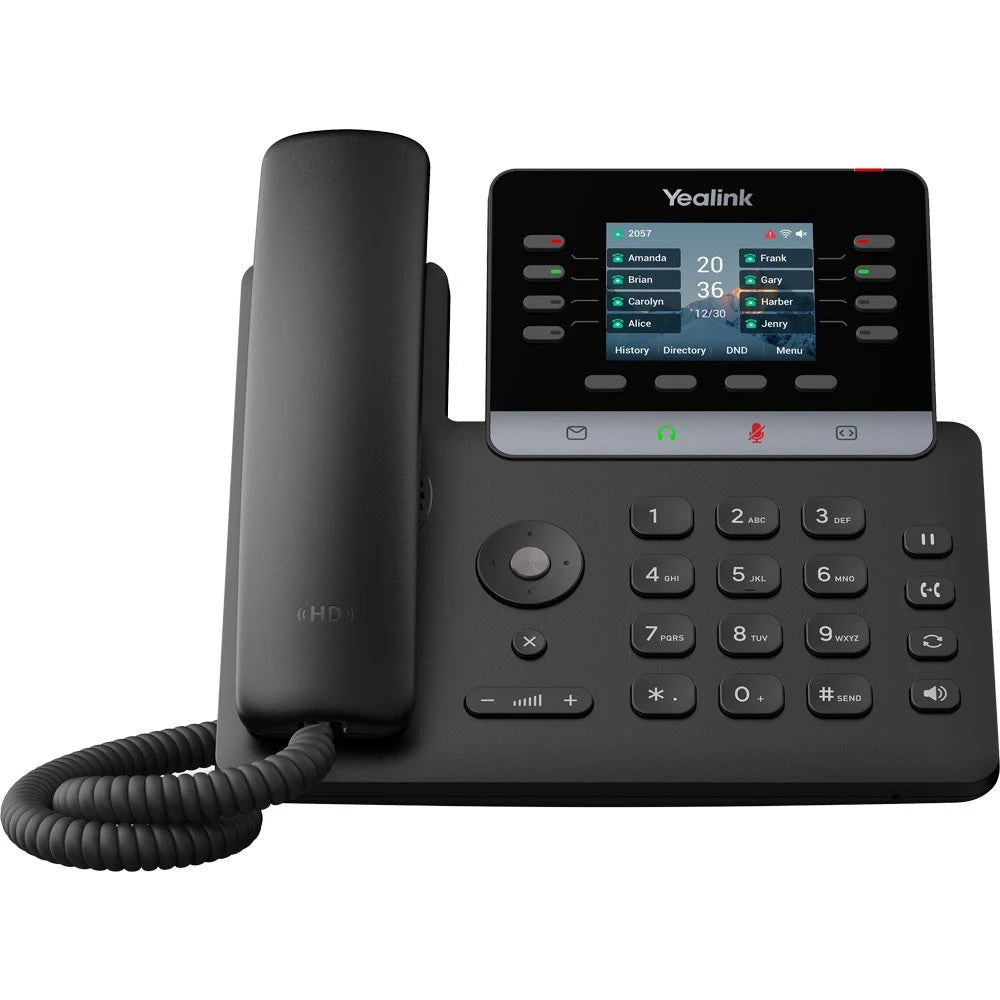

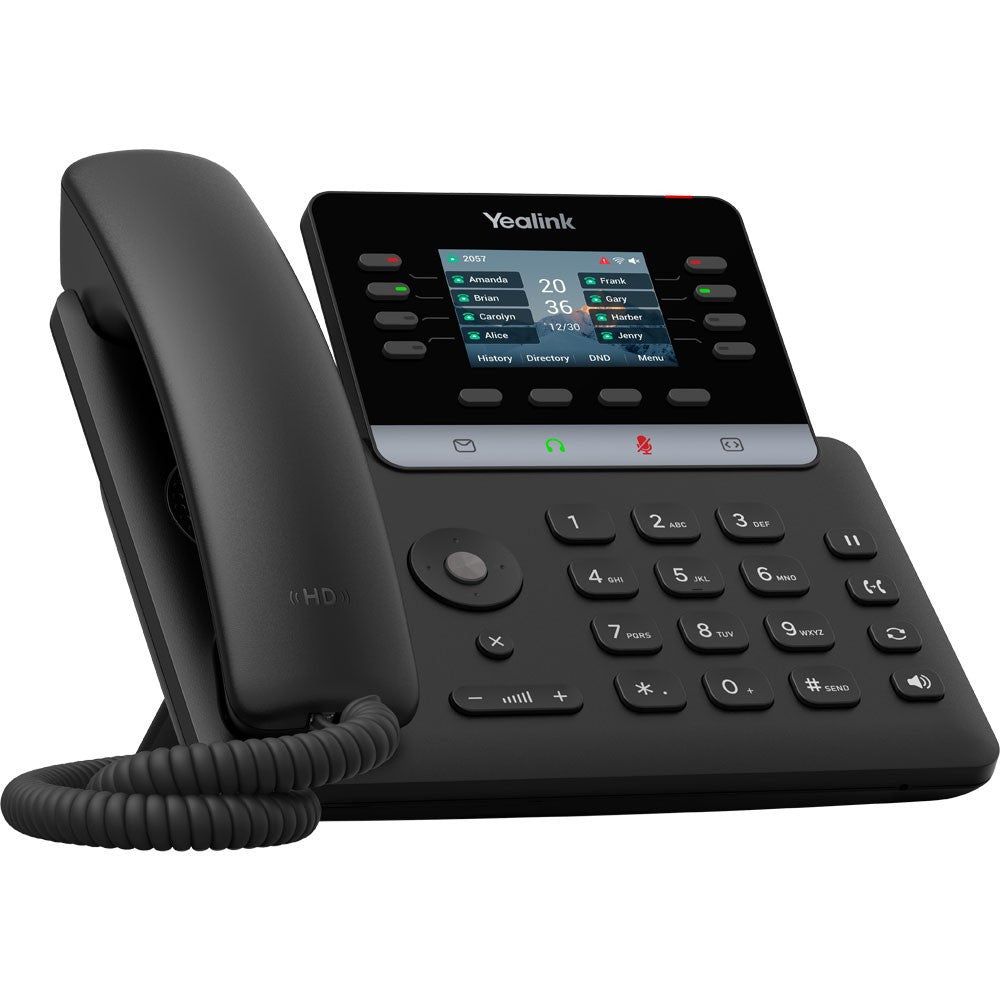

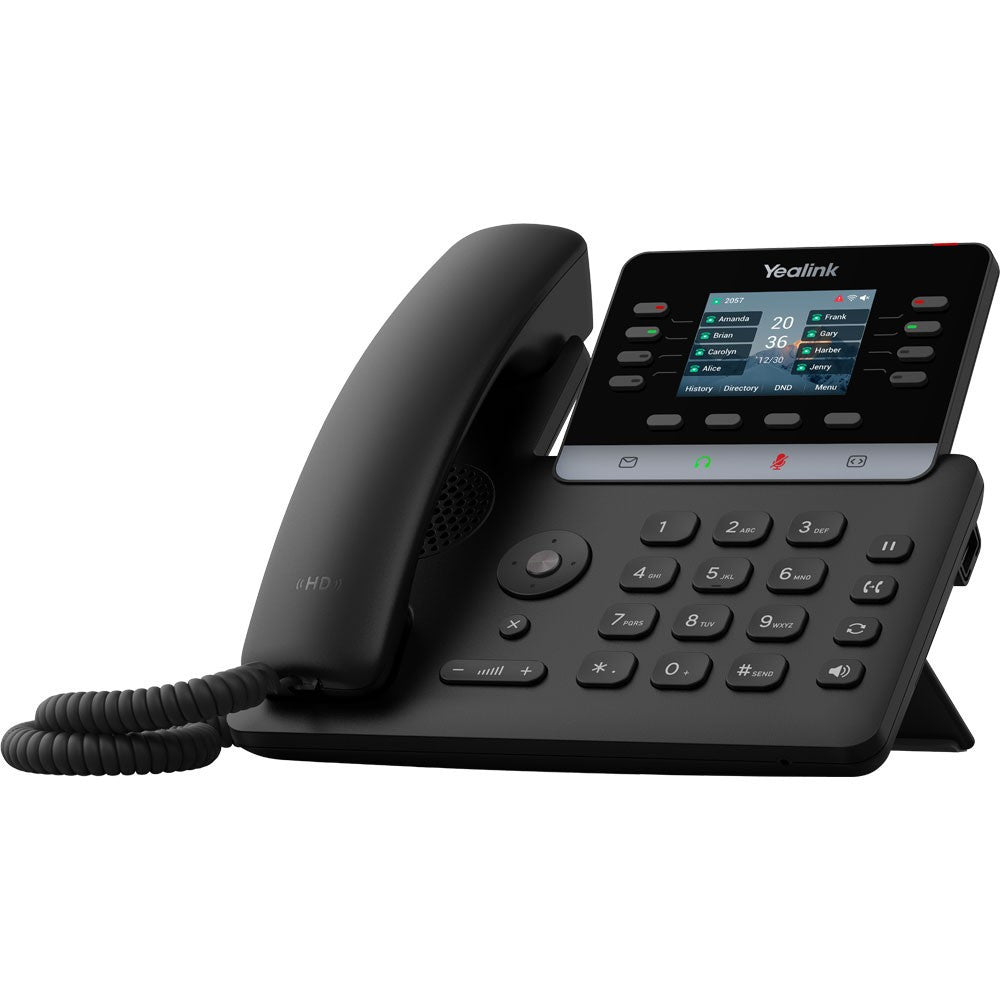

Yealink SIP-T73W Business IP Phone
PRODUCT DESCRIPTION
Yealink SIP-T73W 2.8" Colour Screen Business IP Phone with Wi-Fi 6 and Bluetooth 5.0 (SIP-T73W) - 1 Year Local Warranty
Yealink T73W — Multifunctional SIP Phone, Excellent Voice Communication
The Yealink SIP-T73W is an all-in-one business phone from Yealink's new T7 series, with a slimmer body, a 2.8-inch 320 x 240 colour display and touchable buttons. Up to 12 SIP accounts and 8 LED line keys (up to 40 DSS keys over 5 pages) suit everyday desks across Singapore offices.
Clean Sound, Clear Calls
A 3W speaker, Smart Noise Filtering and Acoustic Shield keep calls clear in shared workspaces, and wideband G.722 and AMR-WB (optional) codecs deliver natural HD voice.
Built-in Wi-Fi 6 and Bluetooth 5.0
Dual-band Wi-Fi 6 and Bluetooth 5.0 are built in, so the T73W can be placed wherever there is power and wireless coverage, while dual Gigabit Ethernet ports with PoE, a USB 2.0 port and support for up to three colour-screen expansion modules cover wired desks.
Three Rings of Security
A Trusted Execution Environment (TEE) hardware encryption solution, TLS 1.3, SRTP, 802.1X and WPA3 protect the device, the network and every call.
Yealink SIP-T73W Datasheet — Technical Specifications
| Model | Yealink SIP-T73W |
| Part Number / SKU | SIP-T73W |
| Product Type | 12-account business IP desk phone with Wi-Fi 6 and Bluetooth 5.0 |
| Warranty | 1 Year Local Warranty (Singapore) |
| Display | 2.8" 320 x 240 colour screen with backlight |
| VoIP Accounts | Up to 12 SIP accounts |
| Keys | 8 line keys with LED (up to 40 DSS keys, 5 pages), 4 touch buttons, 4 function keys |
| Conferencing | 5-way conferencing |
| Audio | 3W speaker, Smart Noise Filtering, Acoustic Shield |
| Wideband Codecs | AMR-WB (optional), G.722 |
| Narrowband Codecs | AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC |
| Ethernet | Dual Gigabit Ethernet ports |
| PoE | IEEE 802.3af, Class 2 |
| Wi-Fi | Built-in dual-band 2.4/5 GHz, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6) |
| Bluetooth | Built-in Bluetooth 5.0 |
| USB | 1 x USB 2.0 (headsets, USB flash drive, expansion modules); USB headset and EHS support |
| Expansion | Up to 3 colour-screen expansion modules cascaded |
| Security | TEE hardware encryption solution, TLS 1.3, SRTP, IEEE 802.1X, WPA3 |
| Management | Auto-provisioning via FTP/TFTP/HTTP/HTTPS for mass deployment |
| Power Consumption | PoE: 1.368–1.832 W; adapter: 1.30–1.48 W |
| Dimensions (W x D x H x T) | 209.0 x 167.5 x 214.8 x 53.4 mm |
| Operating Environment | -10 to +45 °C, 5–90% humidity |
Compatibility & Software Support
The SIP-T73W is a standards-based SIP phone that registers up to 12 accounts on SIP-based IP-PBX platforms and SIP trunk services, including popular systems used by Singapore businesses such as 3CX, Yeastar and Asterisk-based PBXs. It supports USB and EHS headsets and colour-screen expansion modules, and is deployed at scale with auto-provisioning.
Package Contents & T7 Series Ordering Information
In the box: Yealink SIP-T73W IP phone, handset with handset cord, Ethernet cable, stand, quick start guide. Power adapter and wall mount bracket optional (PoE supported).
| Yealink SIP-T73U | 2.8" colour screen, 12 SIP accounts, wired |
| Yealink SIP-T73W | 2.8" colour screen, built-in Wi-Fi 6 and Bluetooth 5.0 (this model) |
| Yealink SIP-T74U | 4.3" colour screen, 16 SIP accounts, wired |
| Yealink SIP-T74W | 4.3" colour screen, built-in Wi-Fi 6 and Bluetooth 5.0 |
| Yealink SIP-T77U | 7" touch screen, 16 SIP accounts, 84 DSS keys |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T73W
What is the difference between the T73W and the T73U?
Both have a 2.8-inch colour screen and up to 12 SIP accounts. The T73W adds built-in dual-band Wi-Fi 6 and Bluetooth 5.0.
How many accounts does the SIP-T73W support?
Up to 12 SIP accounts, with 8 line keys giving up to 40 DSS keys.
Does the SIP-T73W support PoE?
Yes, IEEE 802.3af Class 2. A power adapter is optional.
Can I add expansion modules?
Yes, up to three colour-screen expansion modules can be cascaded.
Does the Yealink SIP-T73W come with local warranty in Singapore?
Yes. Every SIP-T73W sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
